Communication Line Check: Notes

After the odo/trip LCD segments check, the self-diagnostic starts the communication line check.

If all segments come on, the communication line is OK.

If the word "Error" is indicated, there is a malfunction in the communication line between the gauge assembly, the multiplex control unit, the keyless receiver unit and the ECM.

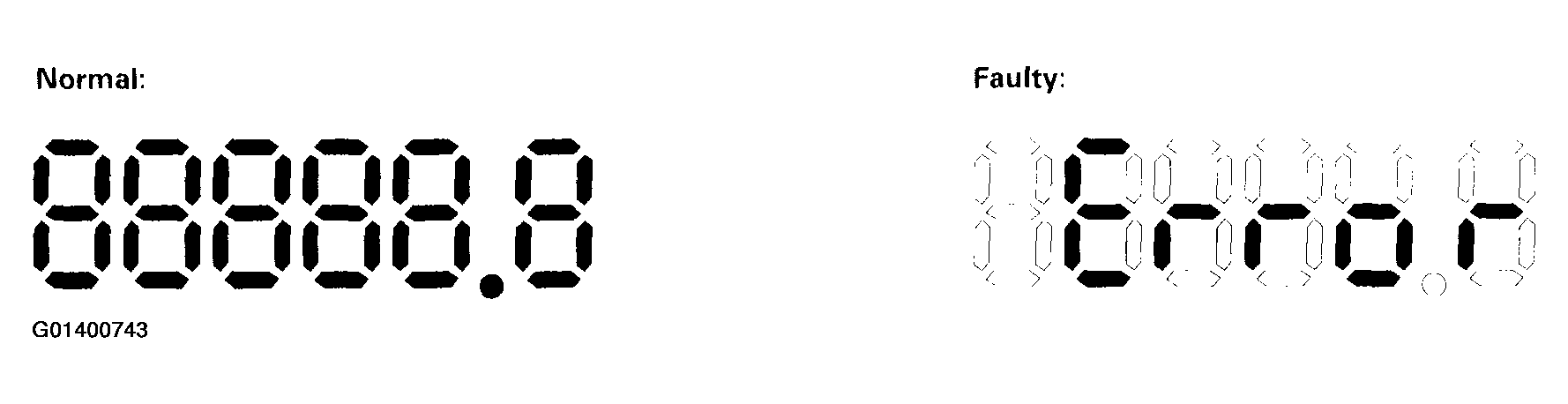

Fig 1: Identifying Communication Line Check

Courtesy of AMERICAN HONDA MOTOR CO., INC.
