Instrument Panel Displays & Instrument Panel Gauges (Hatchback)
>>
Circuit Diagram
Circuit Diagram

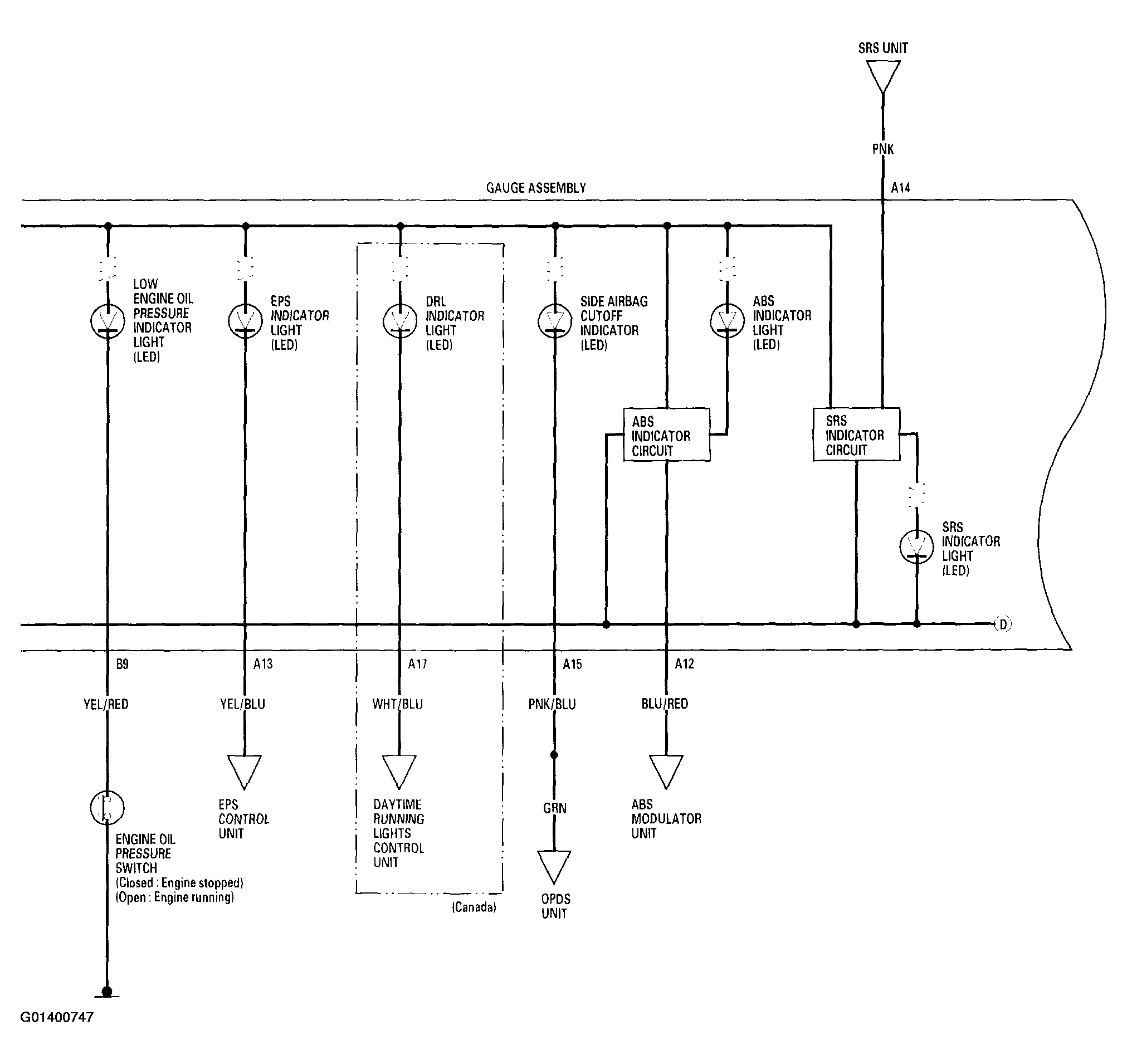

Fig 1: Gauge Wiring Diagram (1 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

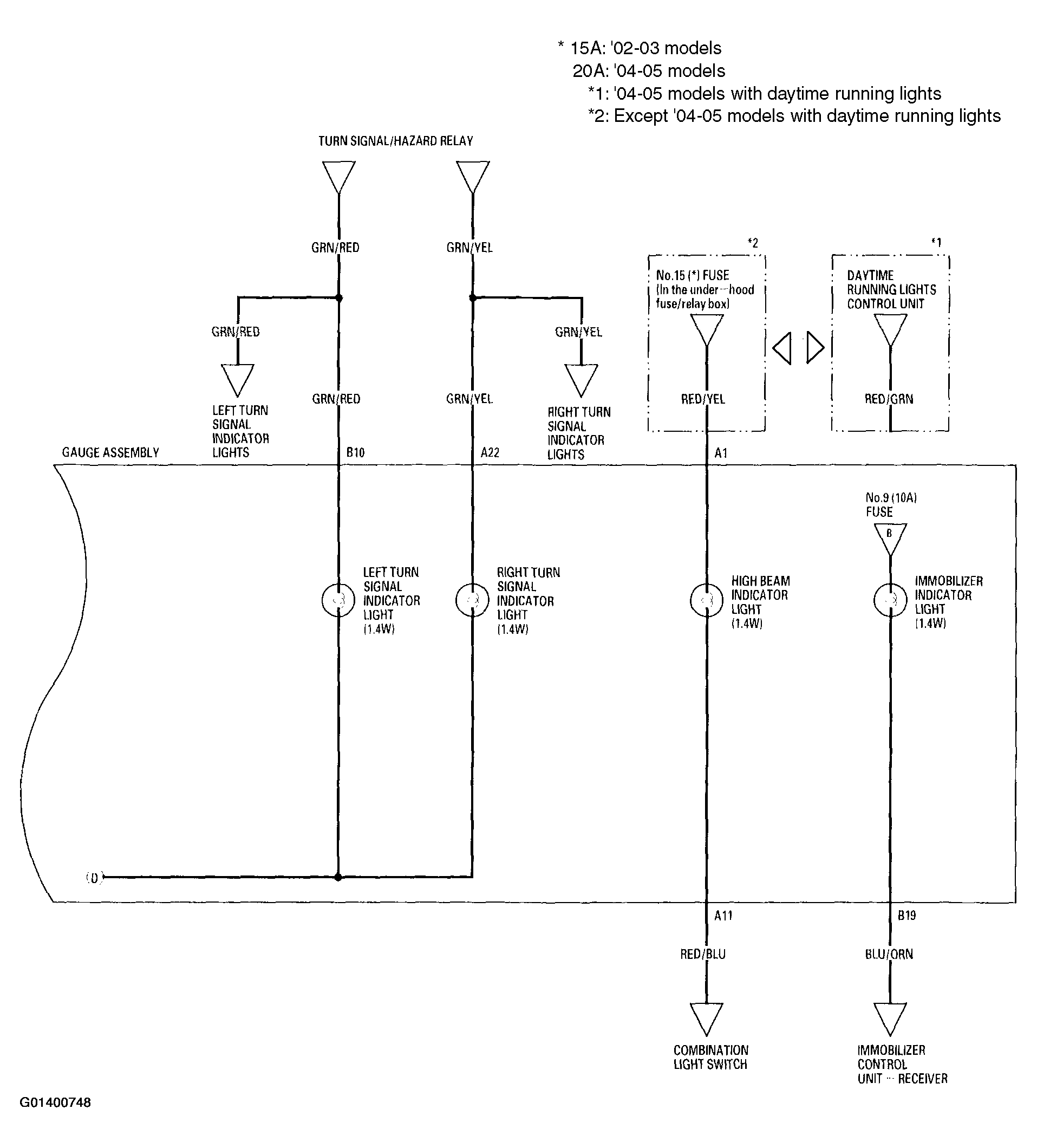

Fig 2: Gauge Wiring Diagram (2 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

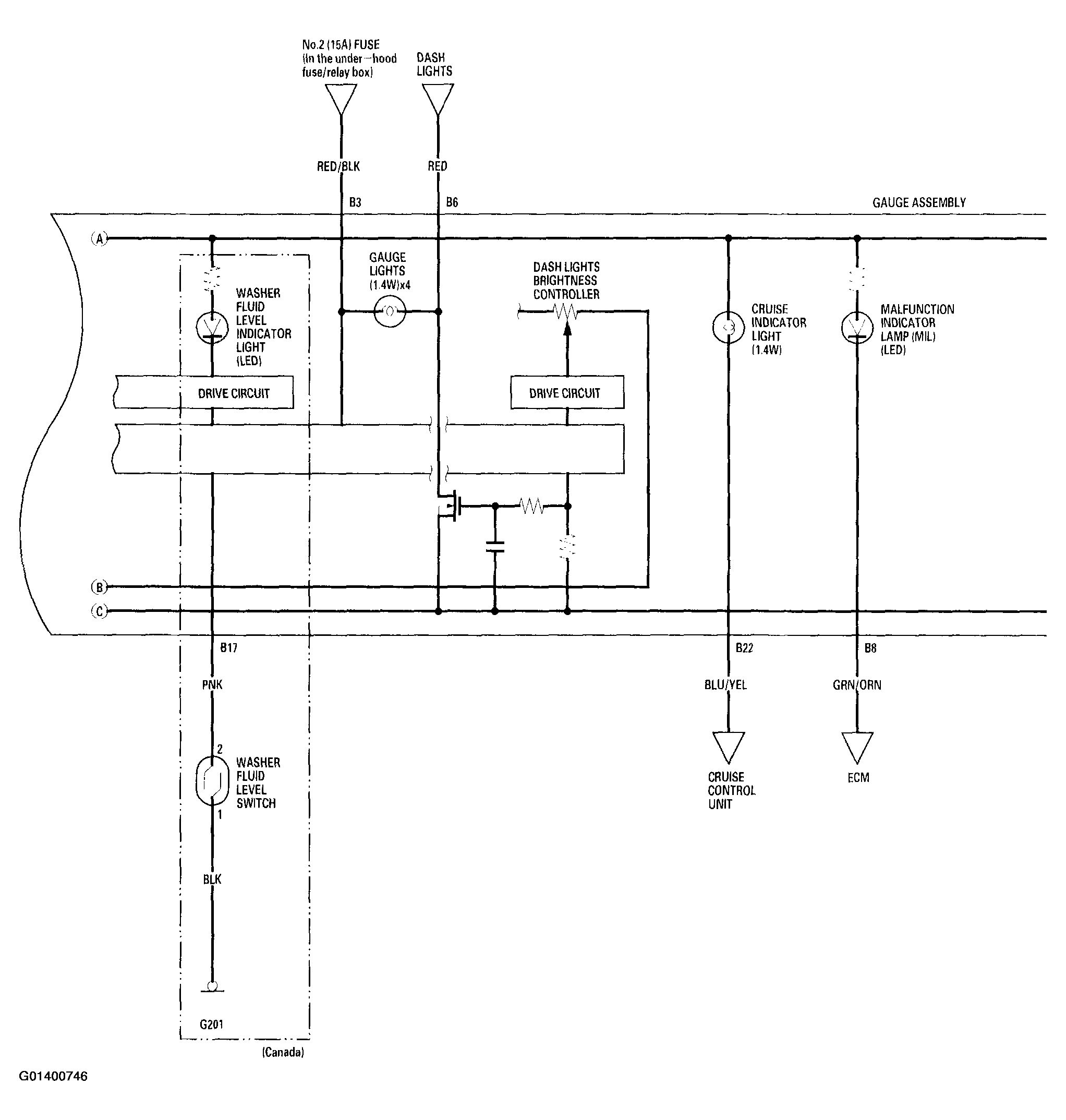

Fig 3: Gauge Wiring Diagram (3 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

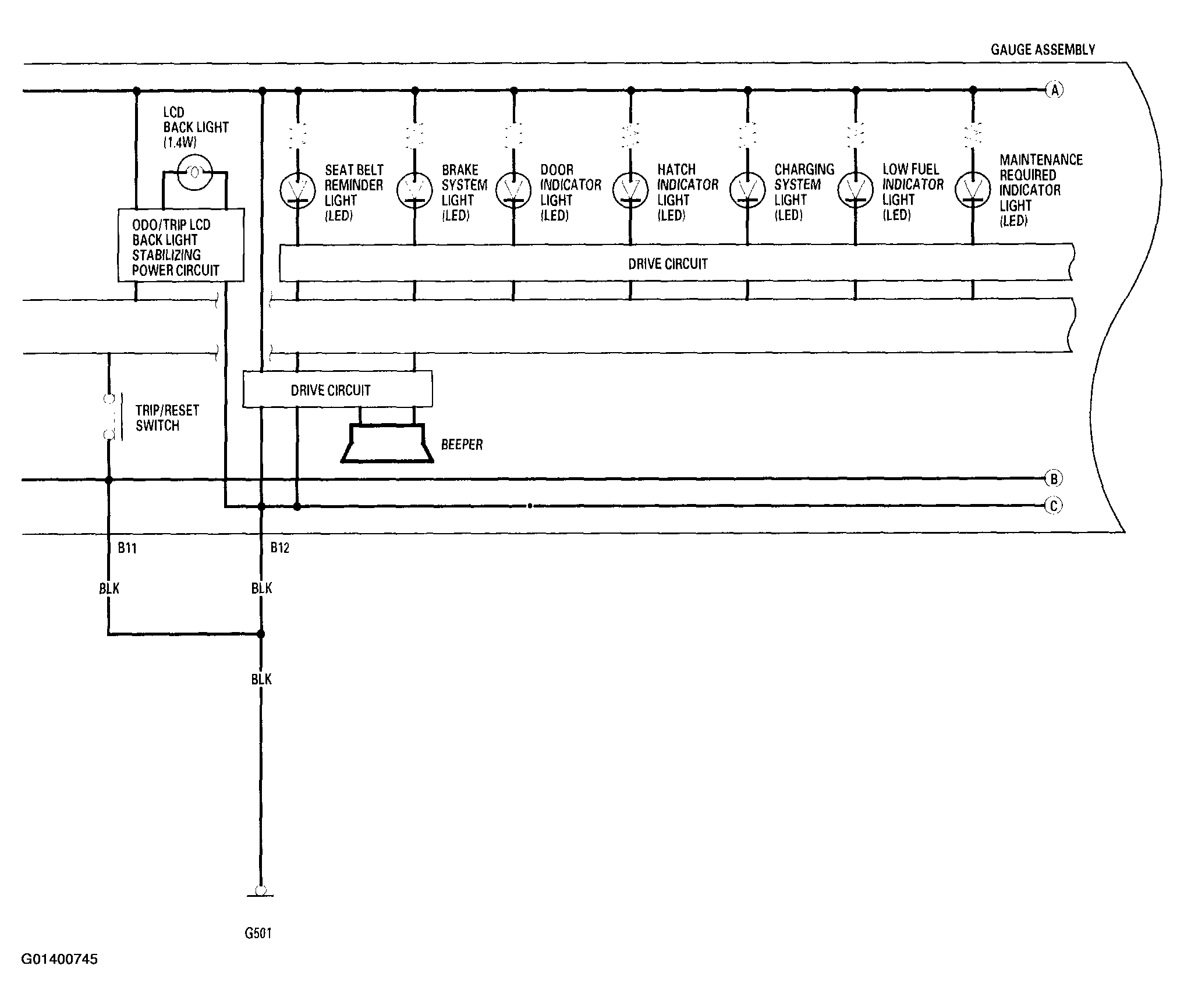

Fig 4: Gauge Wiring Diagram (4 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

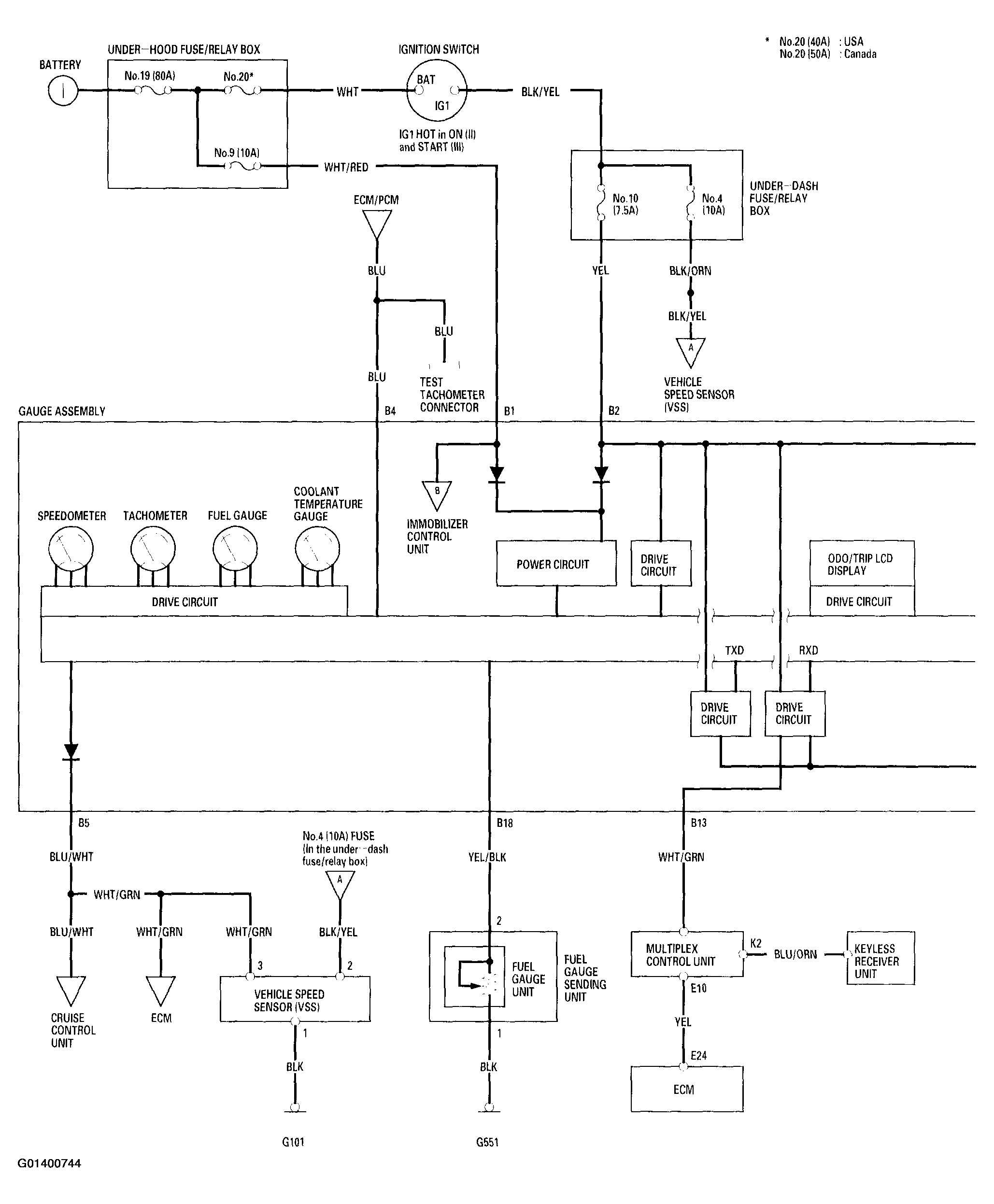

Fig 5: Gauge Wiring Diagram (5 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
