Ground to Components Index

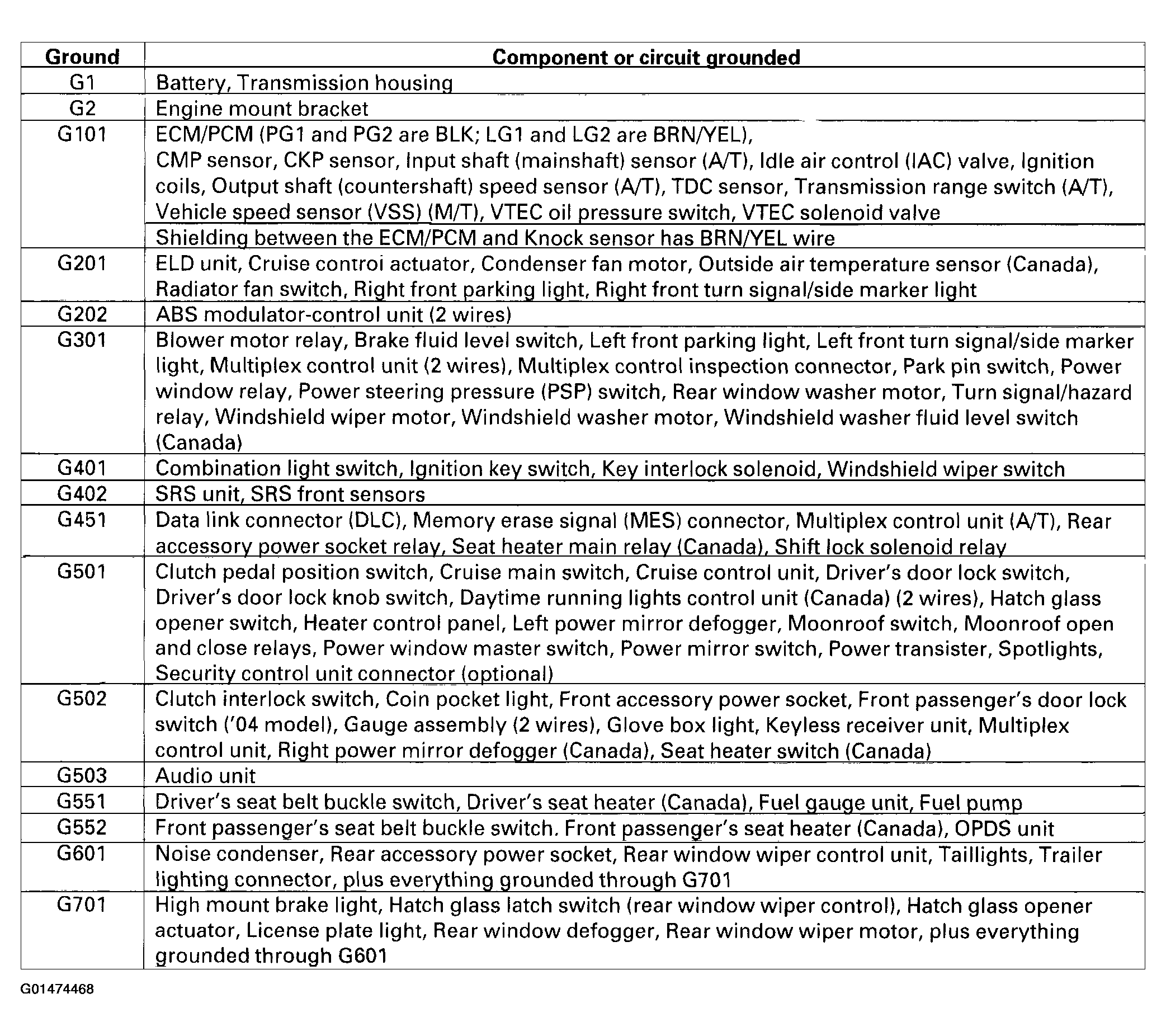

Fig 1: Identifying Ground To Components Chart
G01474468Courtesy of AMERICAN HONDA MOTOR CO., INC.
