Connector to Harness Index

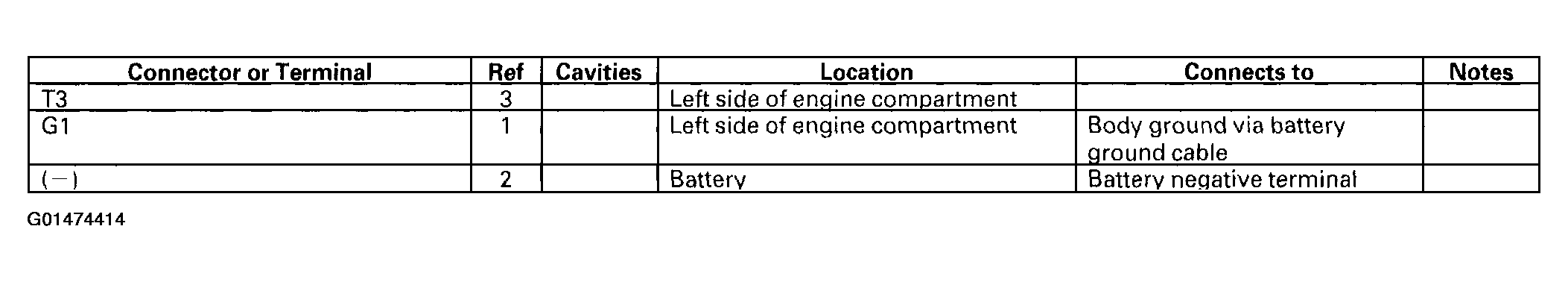

Fig 1: Connector To Harness Chart (Battery Ground Cable)
G01474414Courtesy of AMERICAN HONDA MOTOR CO., INC.

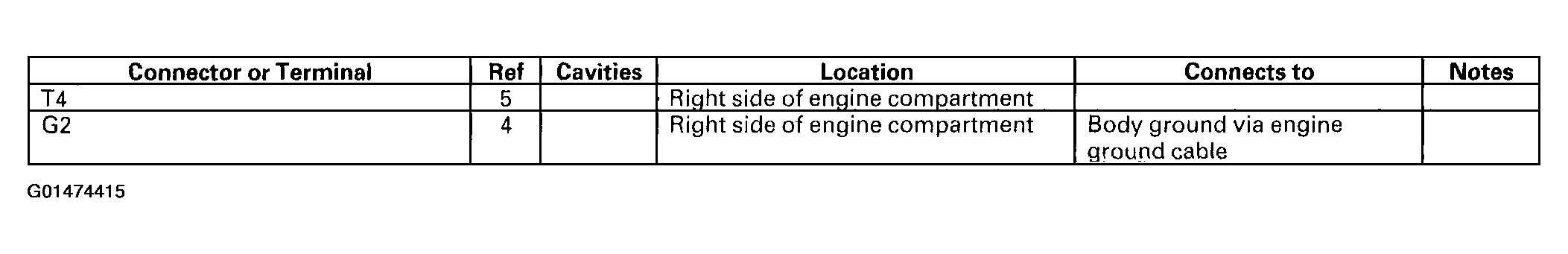

Fig 2: Connector To Harness Chart (Engine Ground Cable)
G01474415Courtesy of AMERICAN HONDA MOTOR CO., INC.

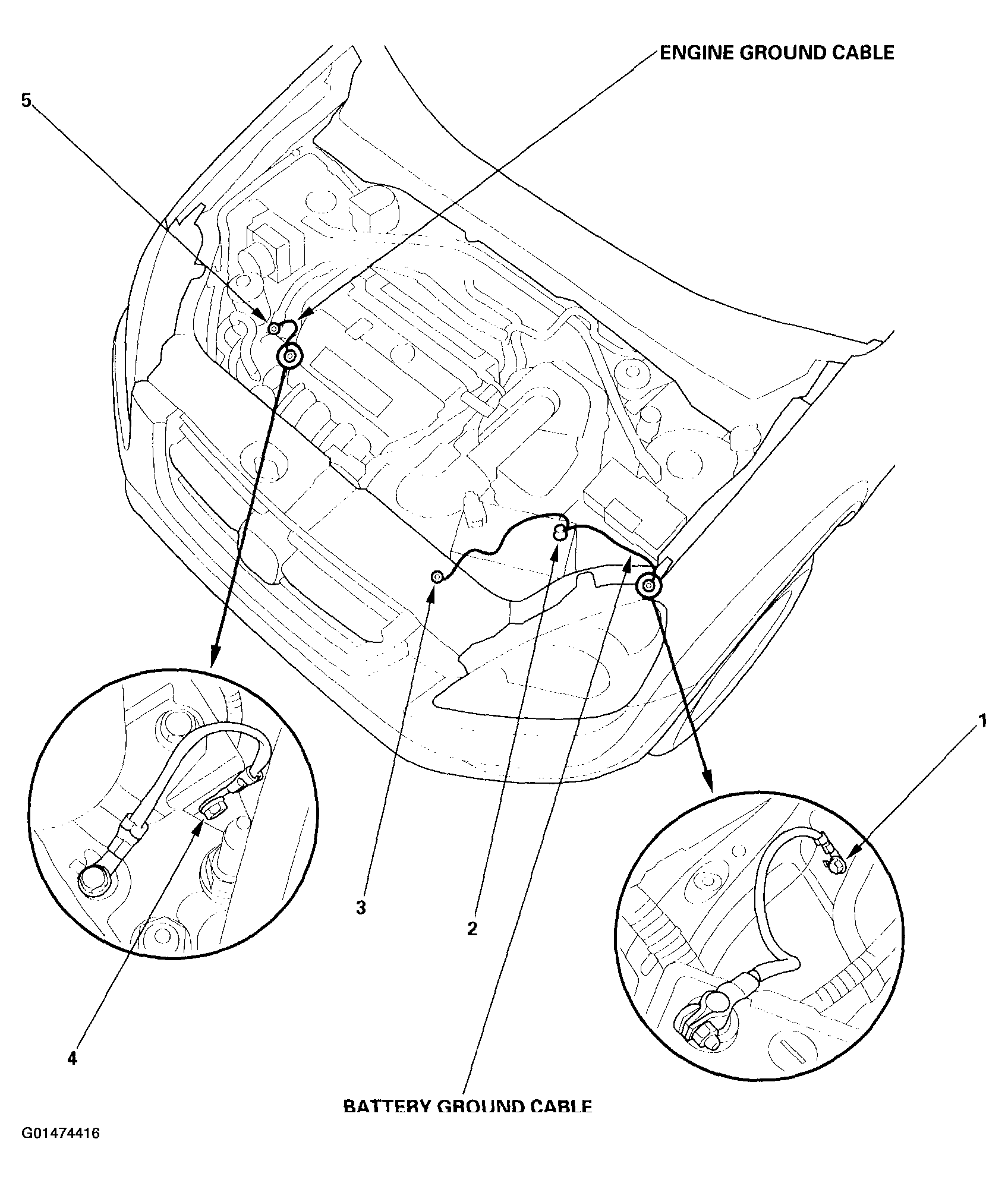

Fig 3: Locating Engine Ground Cable & Battery Ground Cable
G01474416Courtesy of AMERICAN HONDA MOTOR CO., INC.

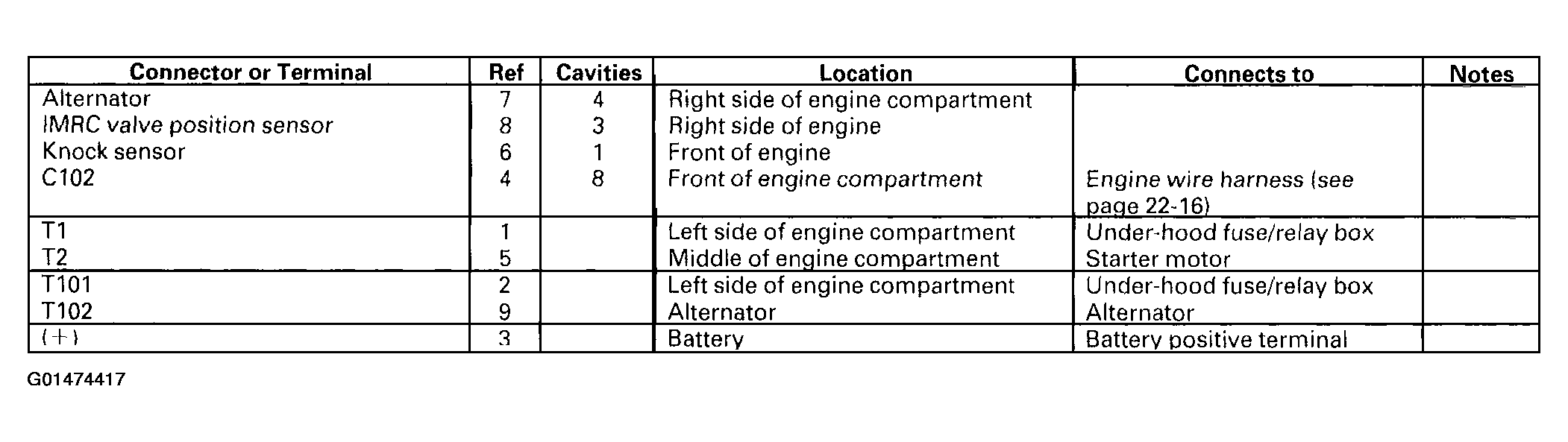

Fig 4: Connector To Harness Chart (Starter Subharness)
G01474417Courtesy of AMERICAN HONDA MOTOR CO., INC.

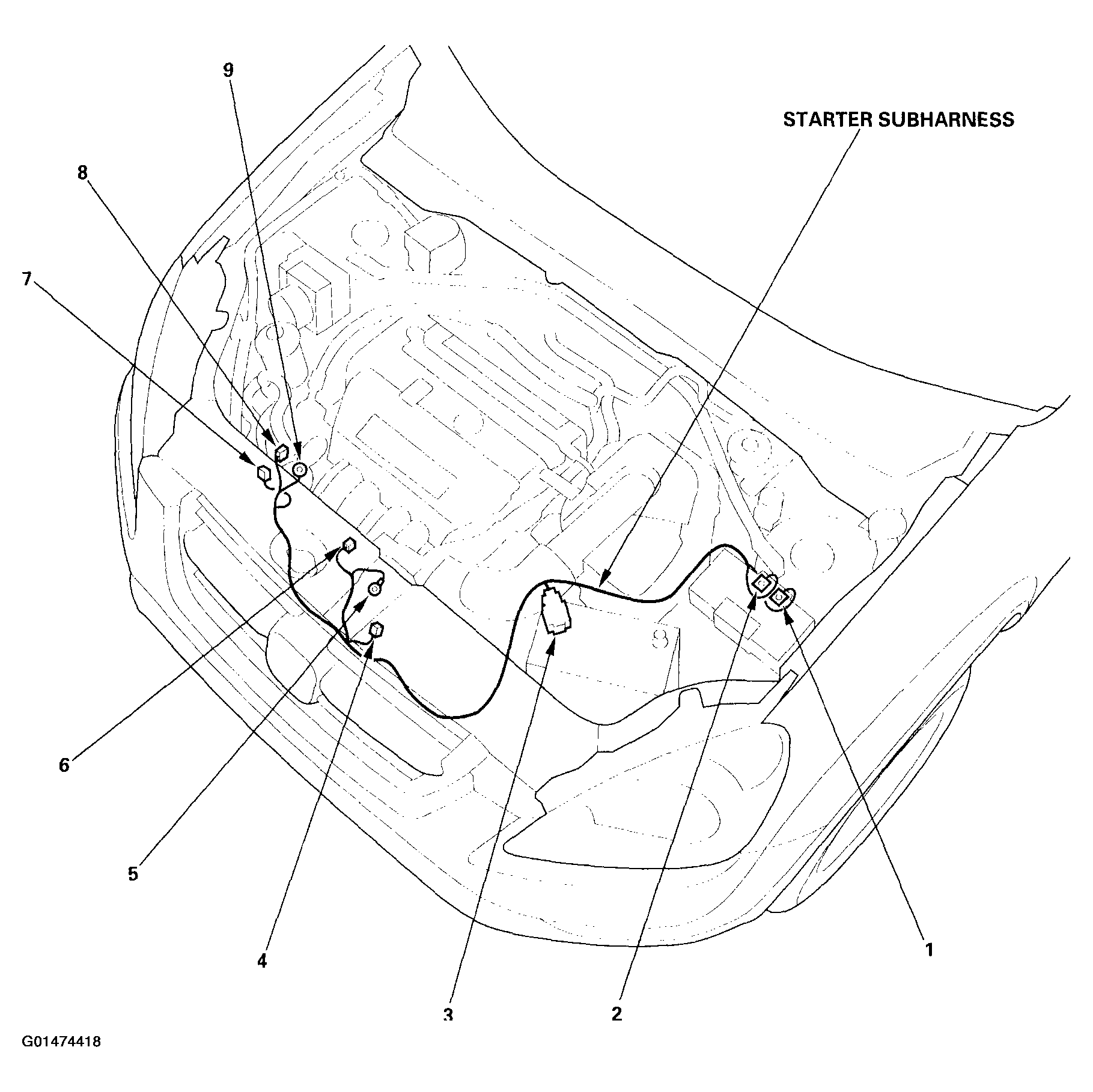

Fig 5: Locating Starter Subharness
G01474418Courtesy of AMERICAN HONDA MOTOR CO., INC.

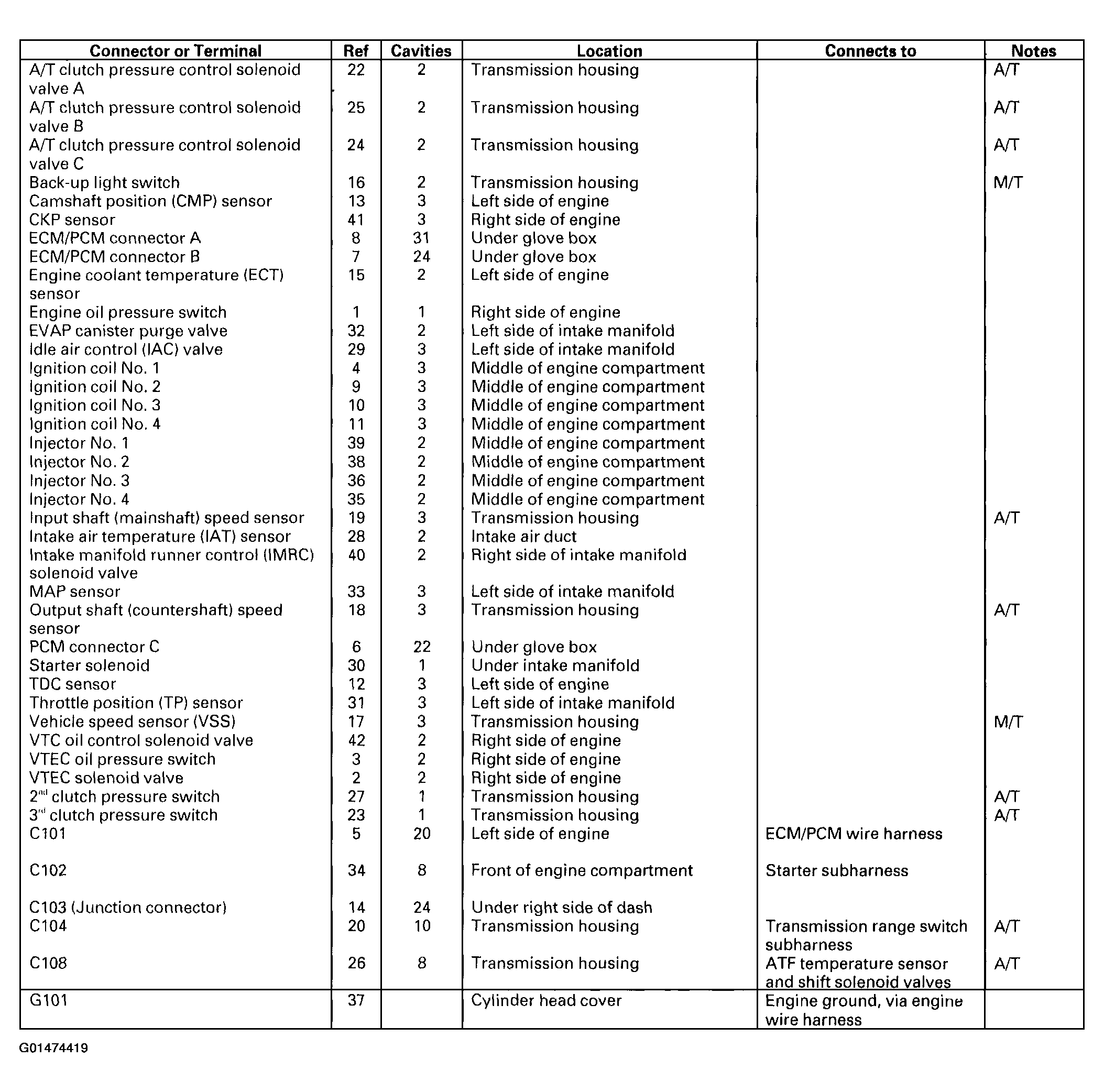

Fig 6: Connector To Harness Chart (Engine Wire Harness)
G01474419Courtesy of AMERICAN HONDA MOTOR CO., INC.

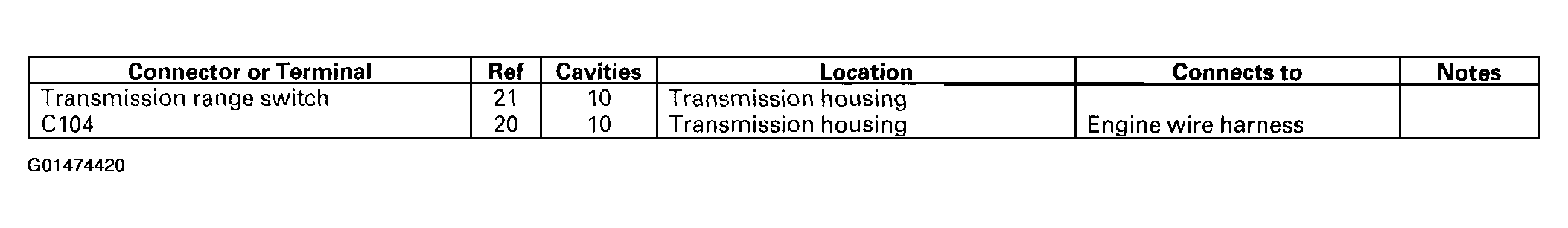

Fig 7: Connector To Harness Chart (Transmission Range Switch Subharness -A/T)
G01474420Courtesy of AMERICAN HONDA MOTOR CO., INC.

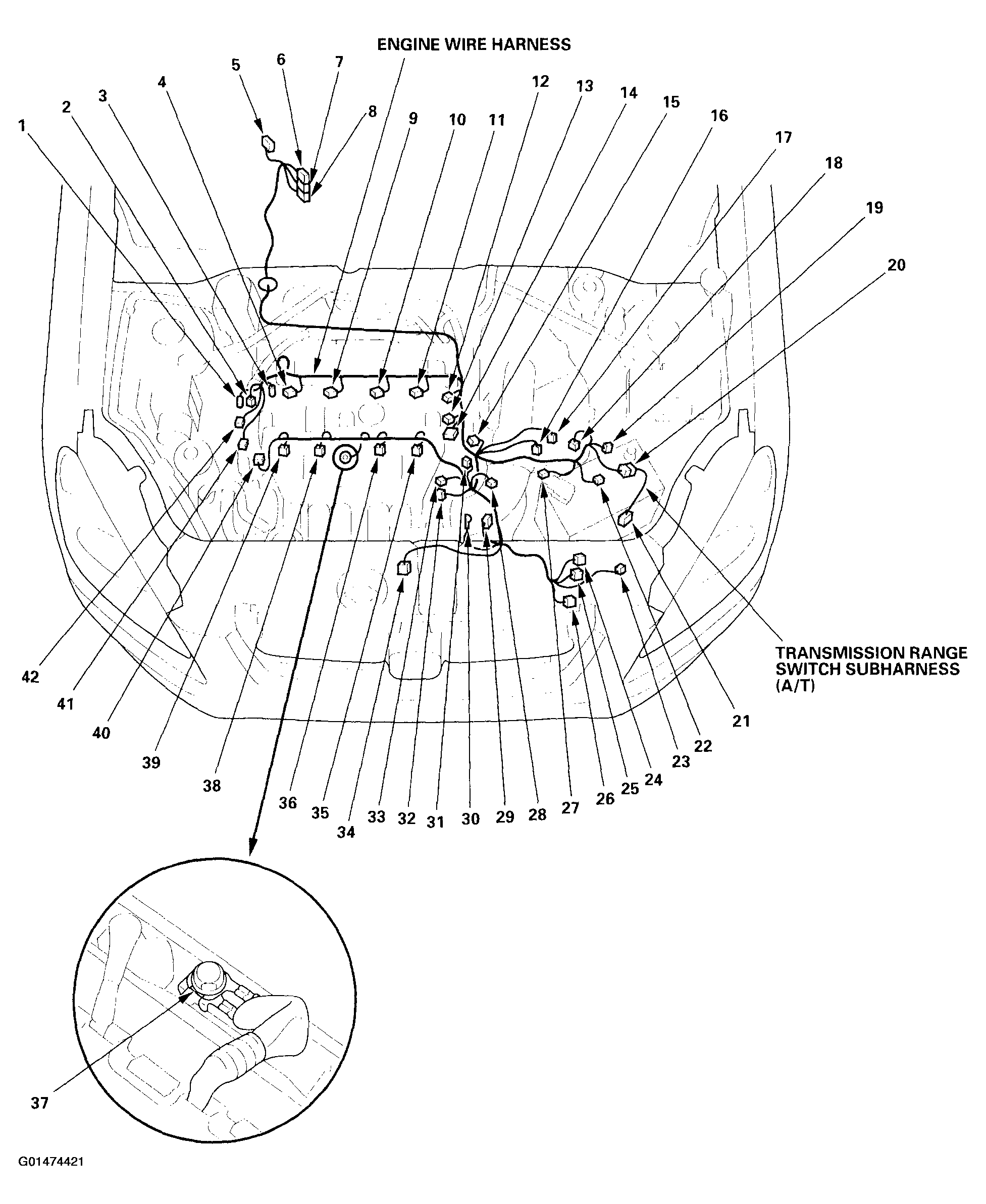

Fig 8: Locating Engine Wire Harness & Transmission Range Switch Subharness
G01474421Courtesy of AMERICAN HONDA MOTOR CO., INC.

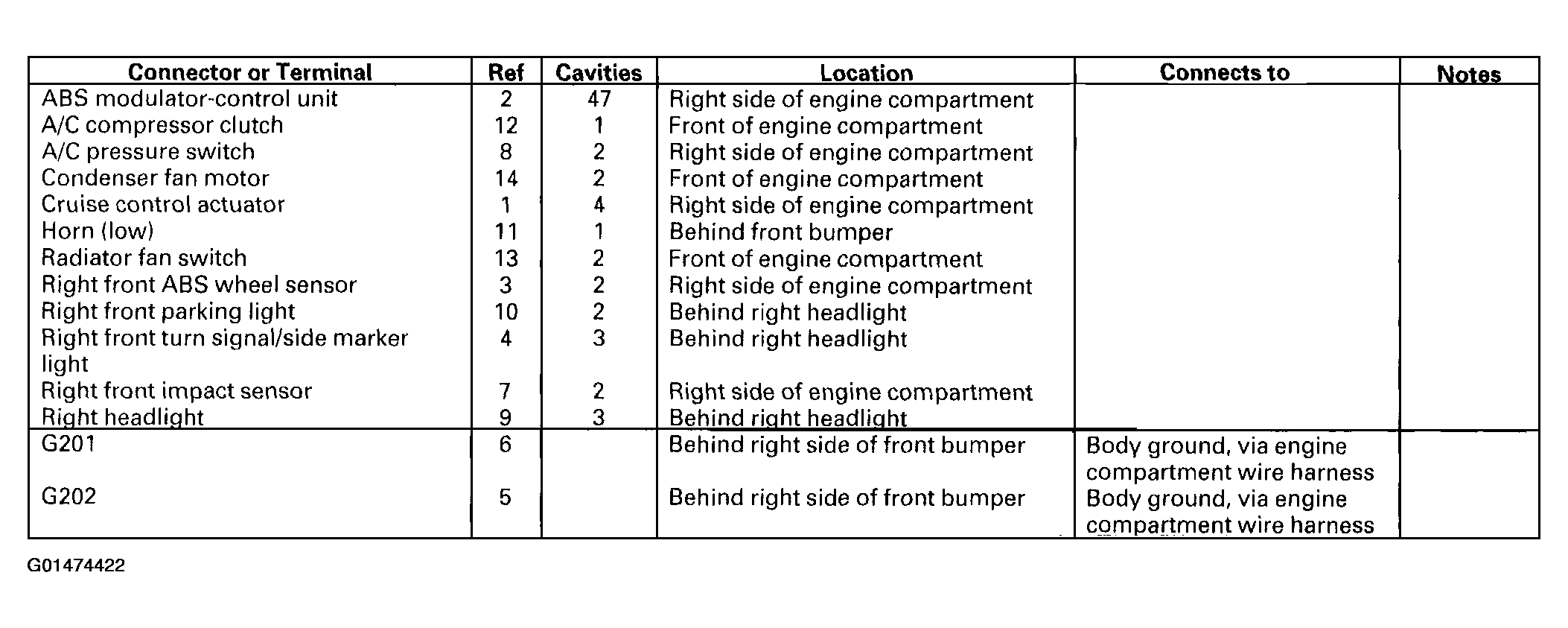

Fig 9: Connector To Harness Chart (Engine Compartment Wire Harness Right Branch)
G01474422Courtesy of AMERICAN HONDA MOTOR CO., INC.

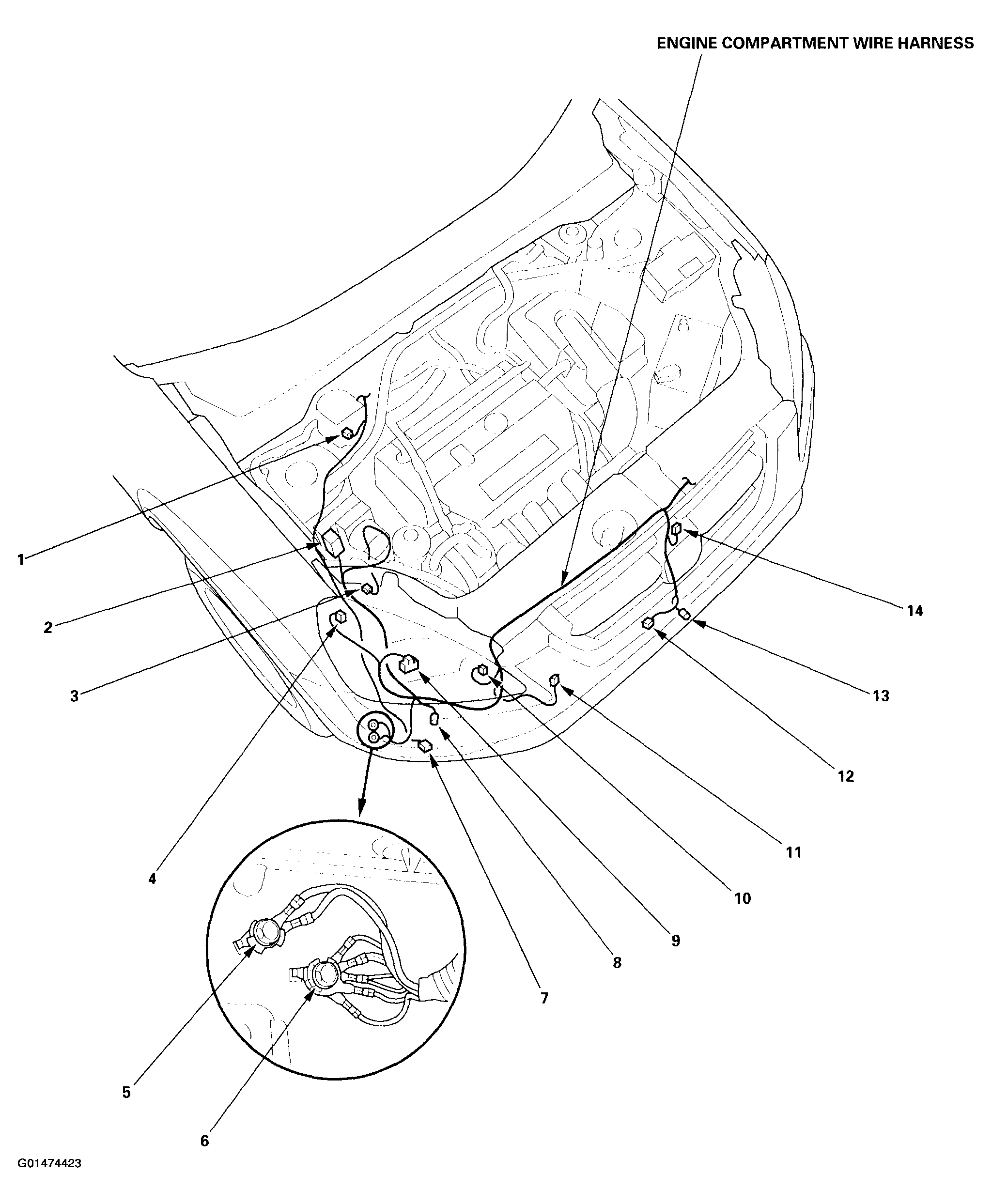

Fig 10: Locating Engine Compartment Wire Harness - Right Branch
G01474423Courtesy of AMERICAN HONDA MOTOR CO., INC.

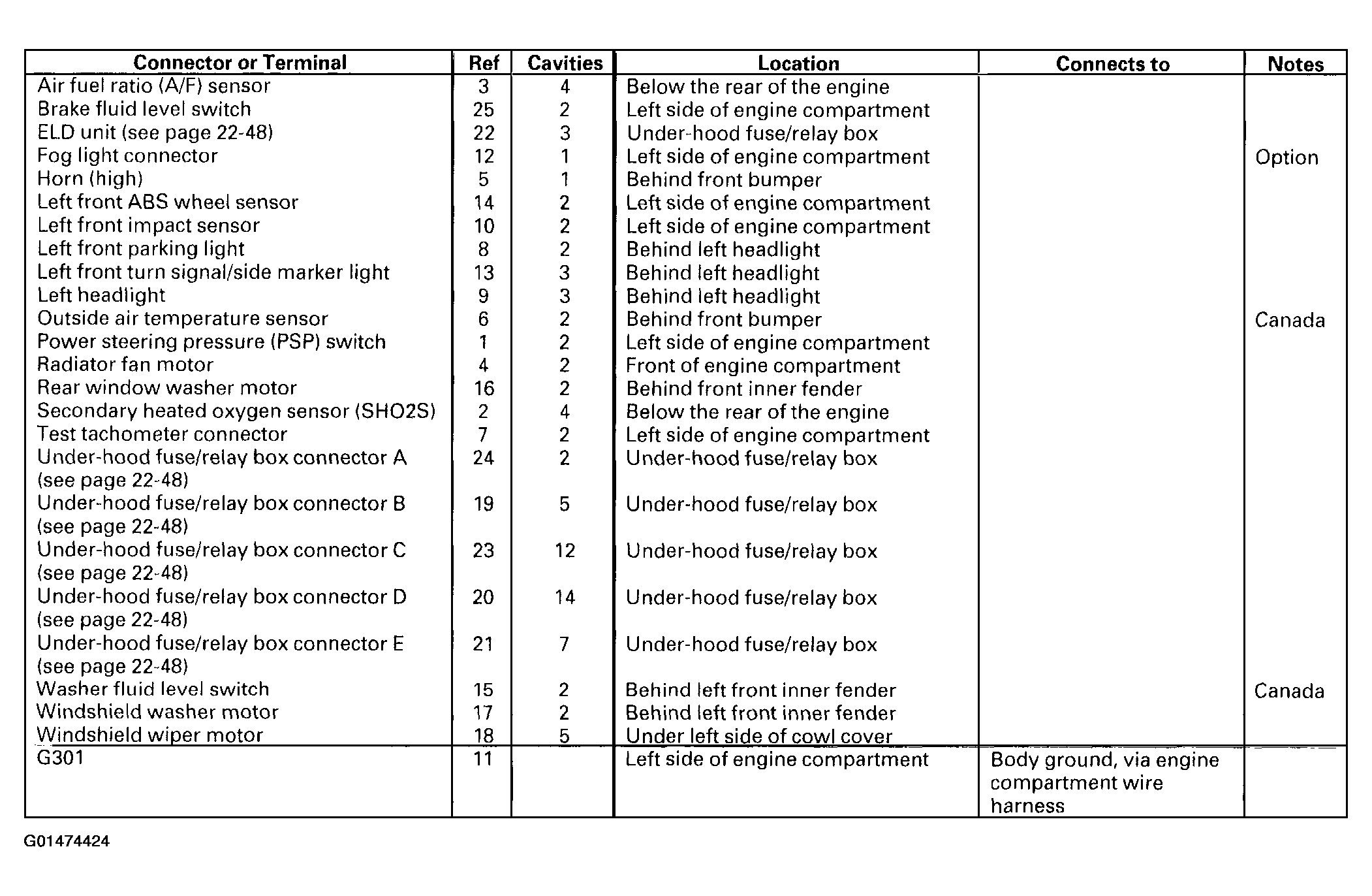

Fig 11: Connector To Harness Chart (Engine Compartment Wire Harness - Left Branch)
G01474424Courtesy of AMERICAN HONDA MOTOR CO., INC.

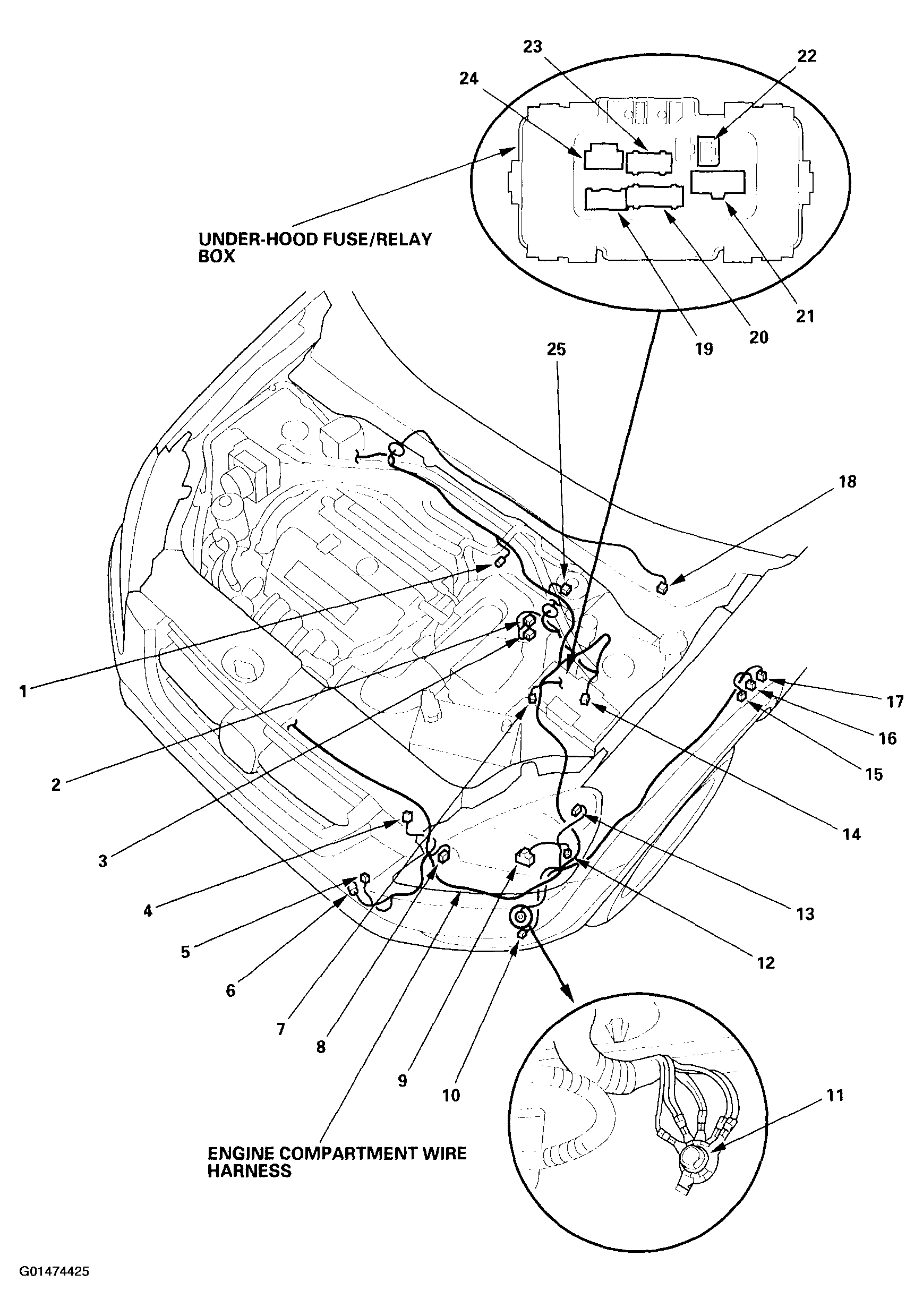

Fig 12: Locating Engine Compartment Wire Harness - Left Branch & Under-Hood Fuse/Relay Box
G01474425Courtesy of AMERICAN HONDA MOTOR CO., INC.

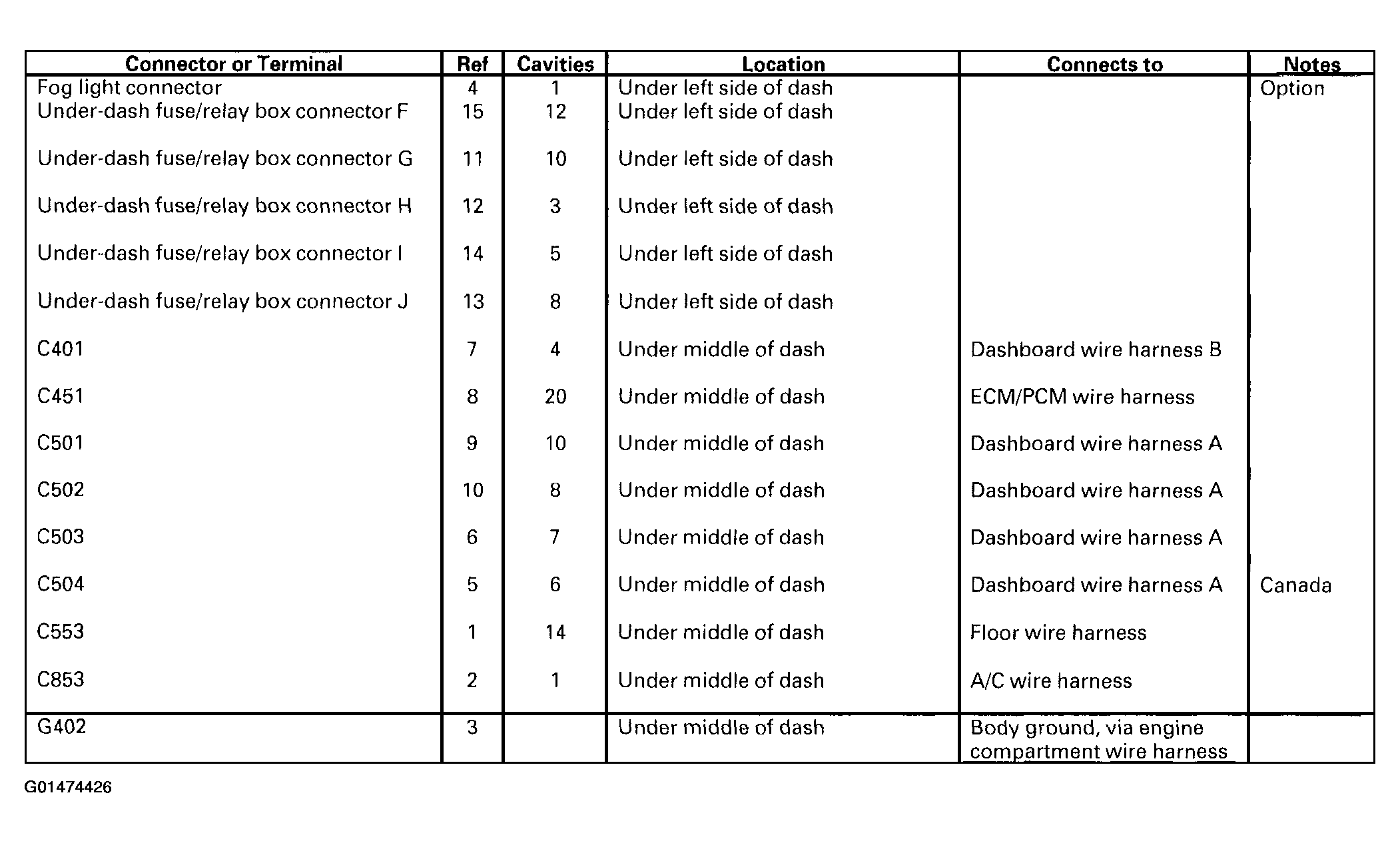

Fig 13: Connector To Harness Chart (Engine Compartment Wire Harness - Dashboard)
G01474426Courtesy of AMERICAN HONDA MOTOR CO., INC.

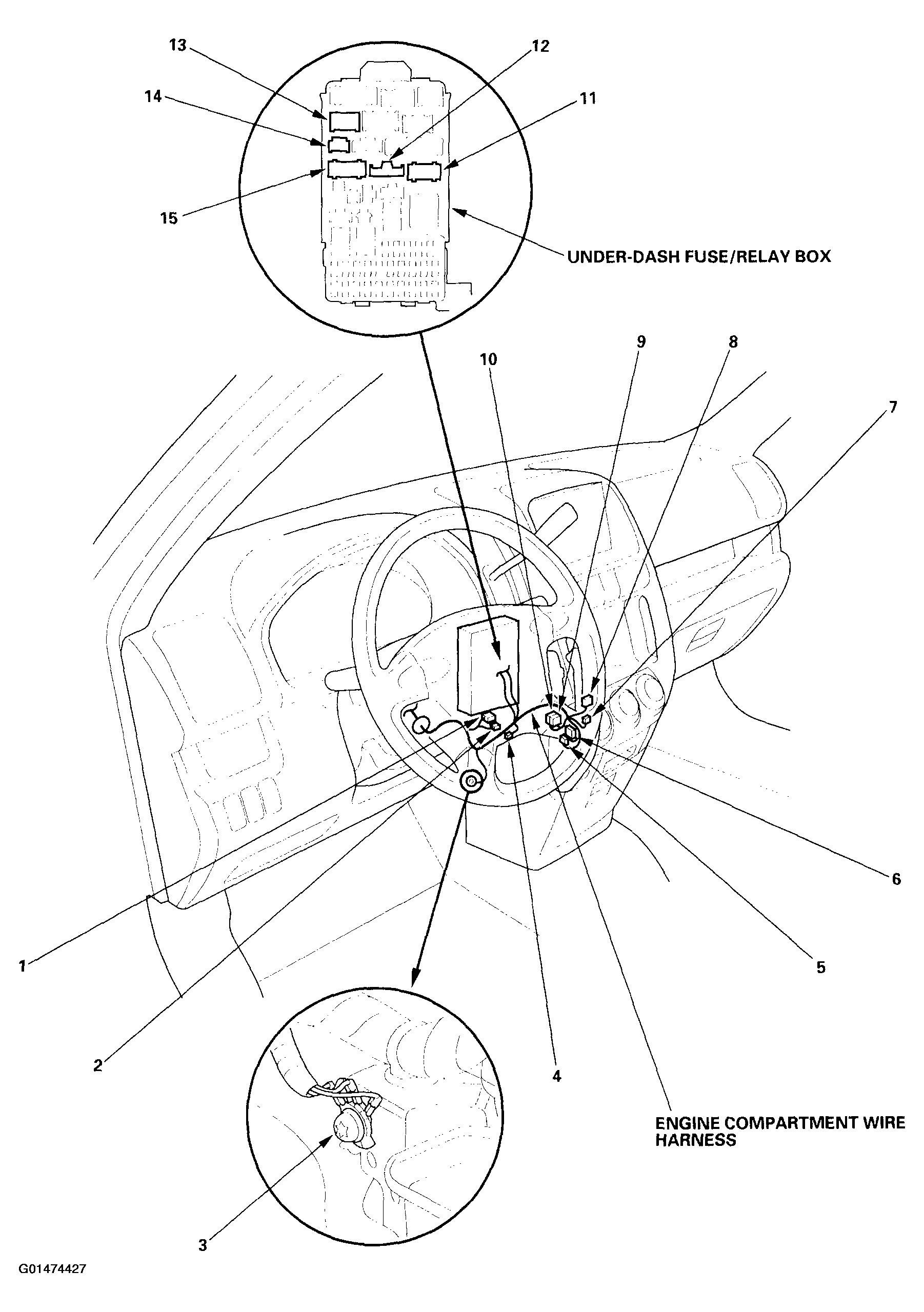

Fig 14: Locating Engine Compartment Wire Harness - Dashboard & Under-Dash Fuse/Relay Box
G01474427Courtesy of AMERICAN HONDA MOTOR CO., INC.

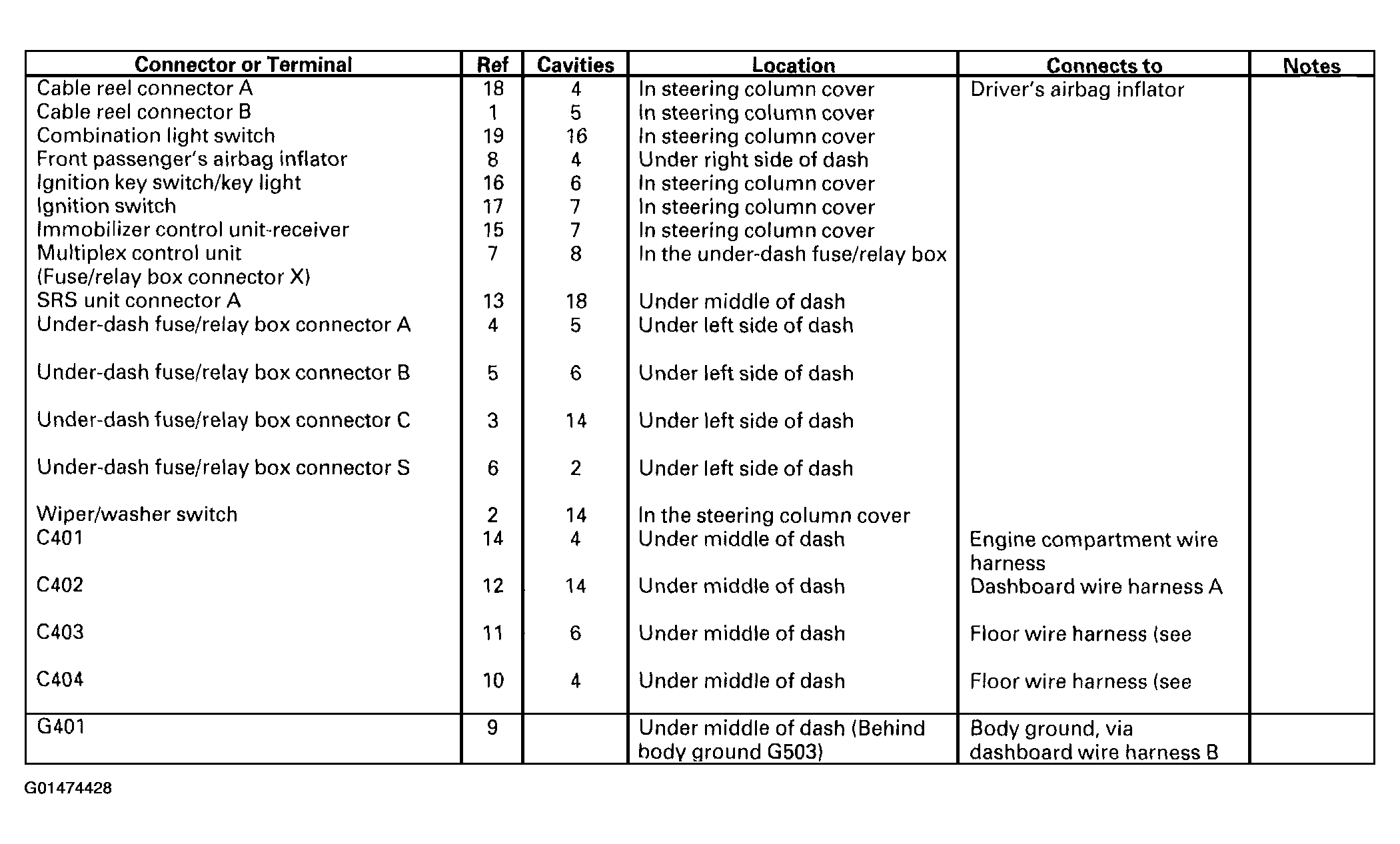

Fig 15: Connector To Harness Chart (Dashboard Wire Harness B)
G01474428Courtesy of AMERICAN HONDA MOTOR CO., INC.

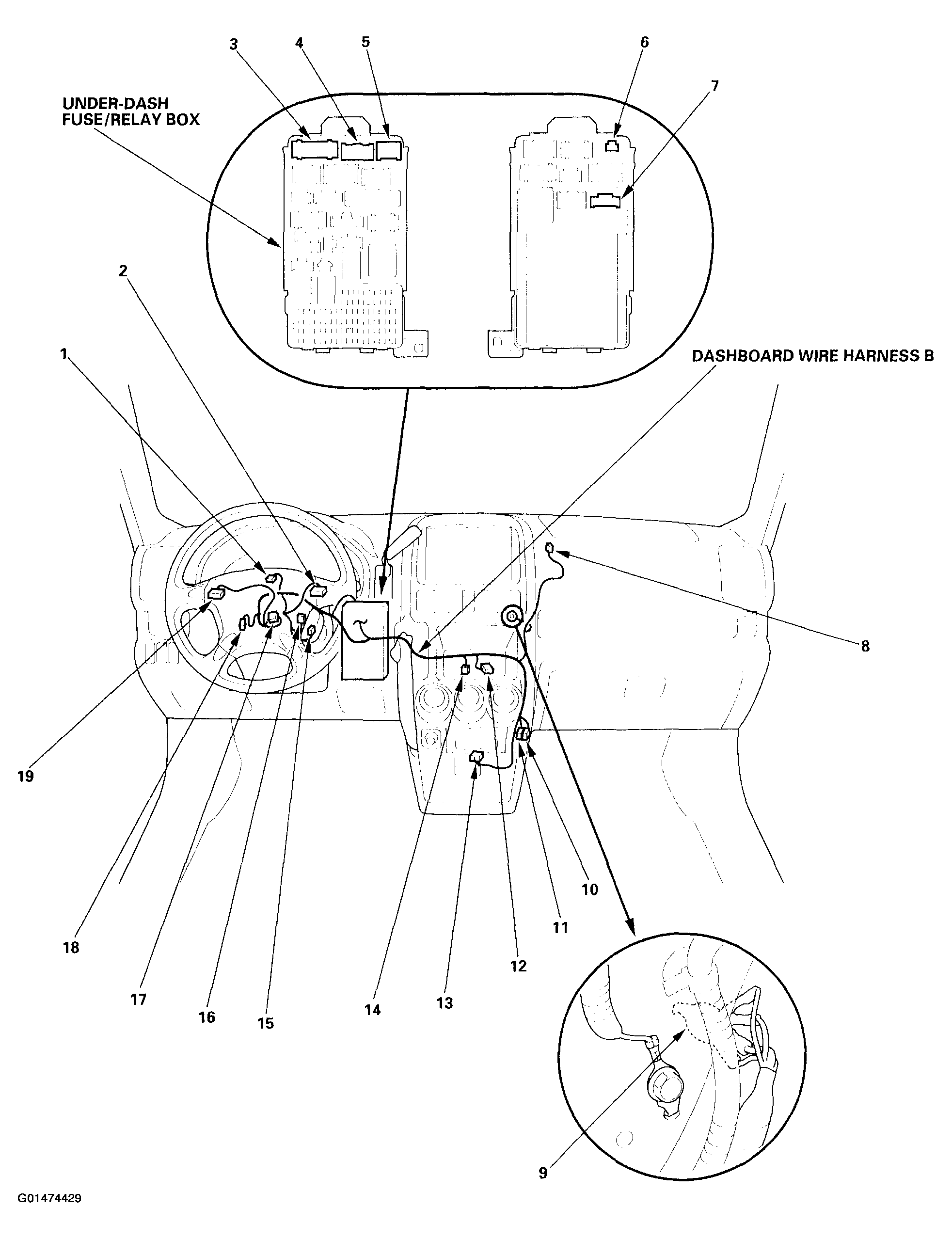

Fig 16: Locating Dashboard Wire Harness B & Under-Dash Fuse/Relay Box
G01474429Courtesy of AMERICAN HONDA MOTOR CO., INC.

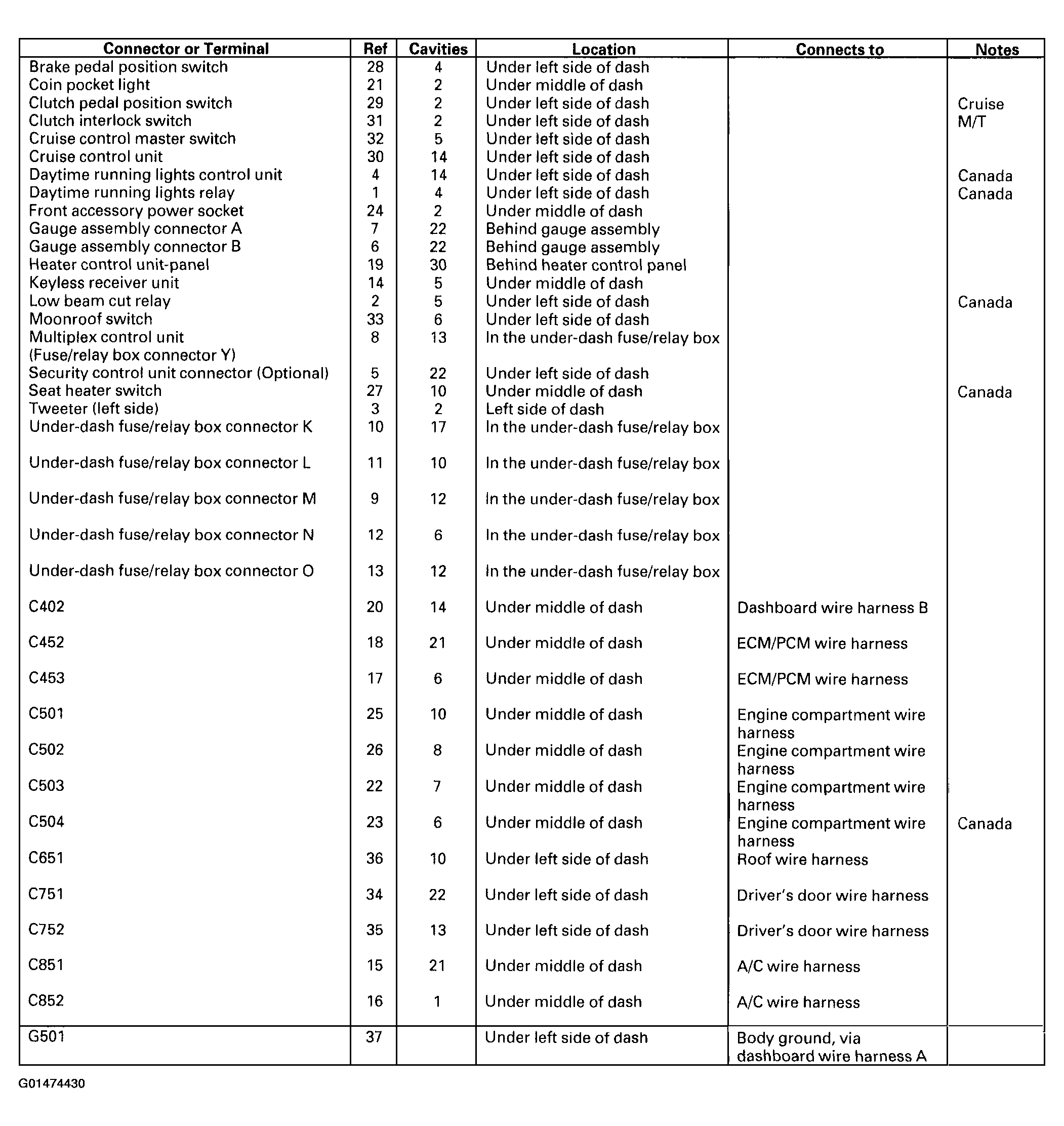

Fig 17: Connector To Harness Chart (Dashboard Wire Harness A - Left Branch)
G01474430Courtesy of AMERICAN HONDA MOTOR CO., INC.

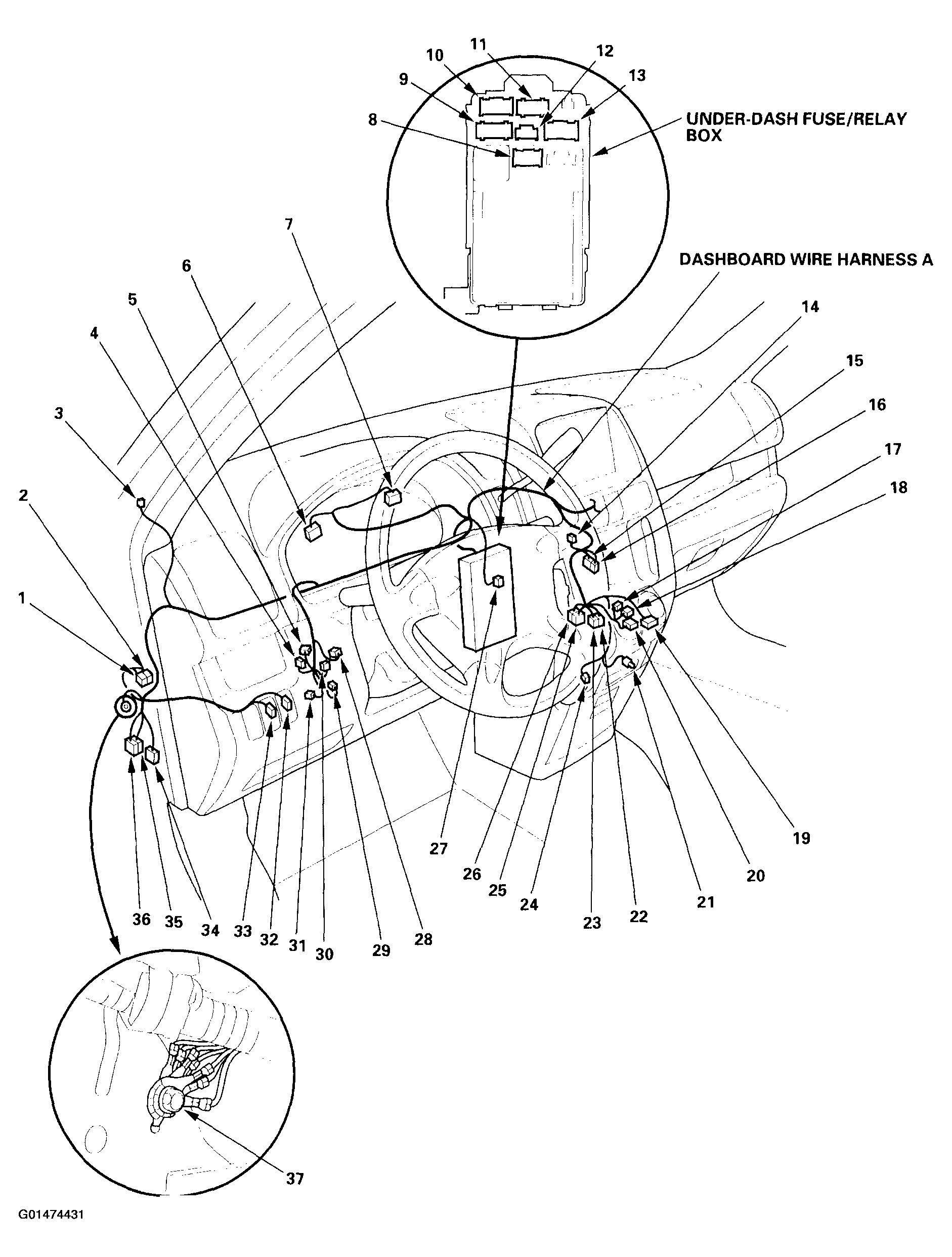

Fig 18: Locating Dashboard Wire Harness A - Left Branch & Under-Dash Fuse/Relay Box
G01474431Courtesy of AMERICAN HONDA MOTOR CO., INC.

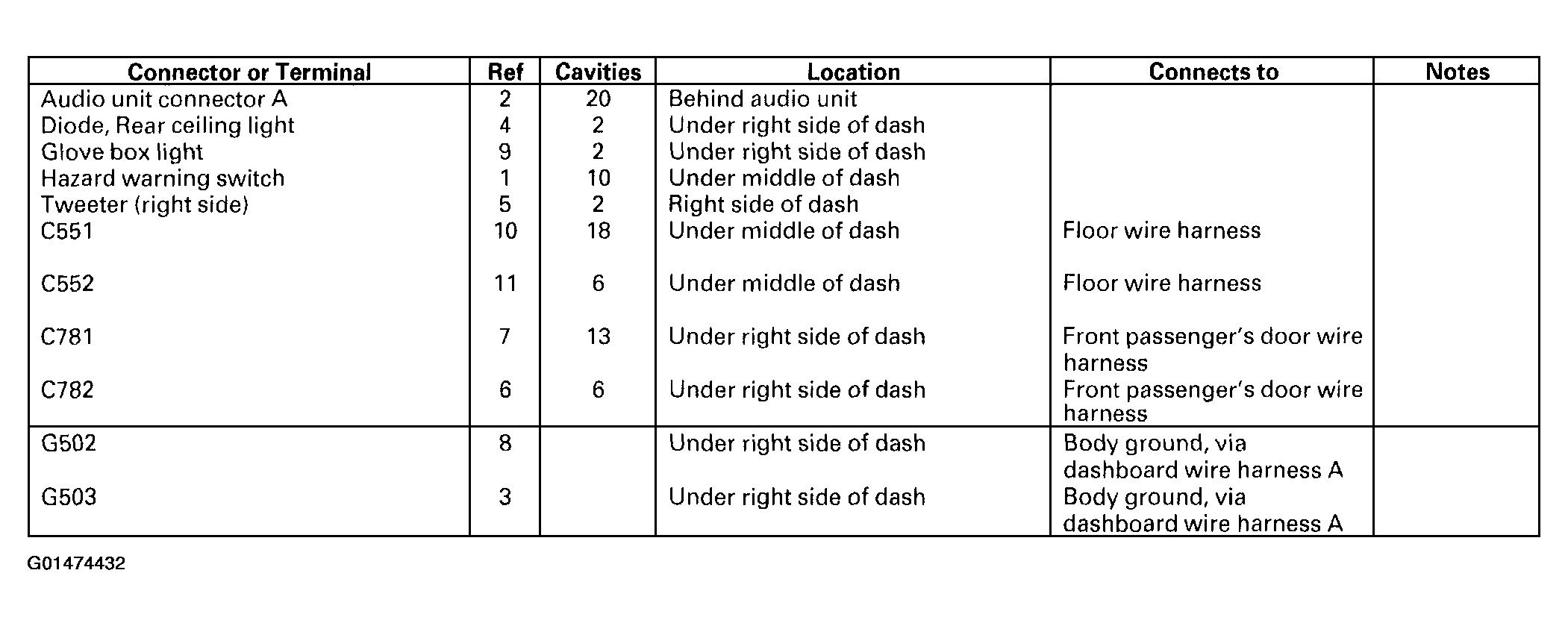

Fig 19: Connector To Harness Chart (Dashboard Wire Harness A - Right Branch)
G01474432Courtesy of AMERICAN HONDA MOTOR CO., INC.

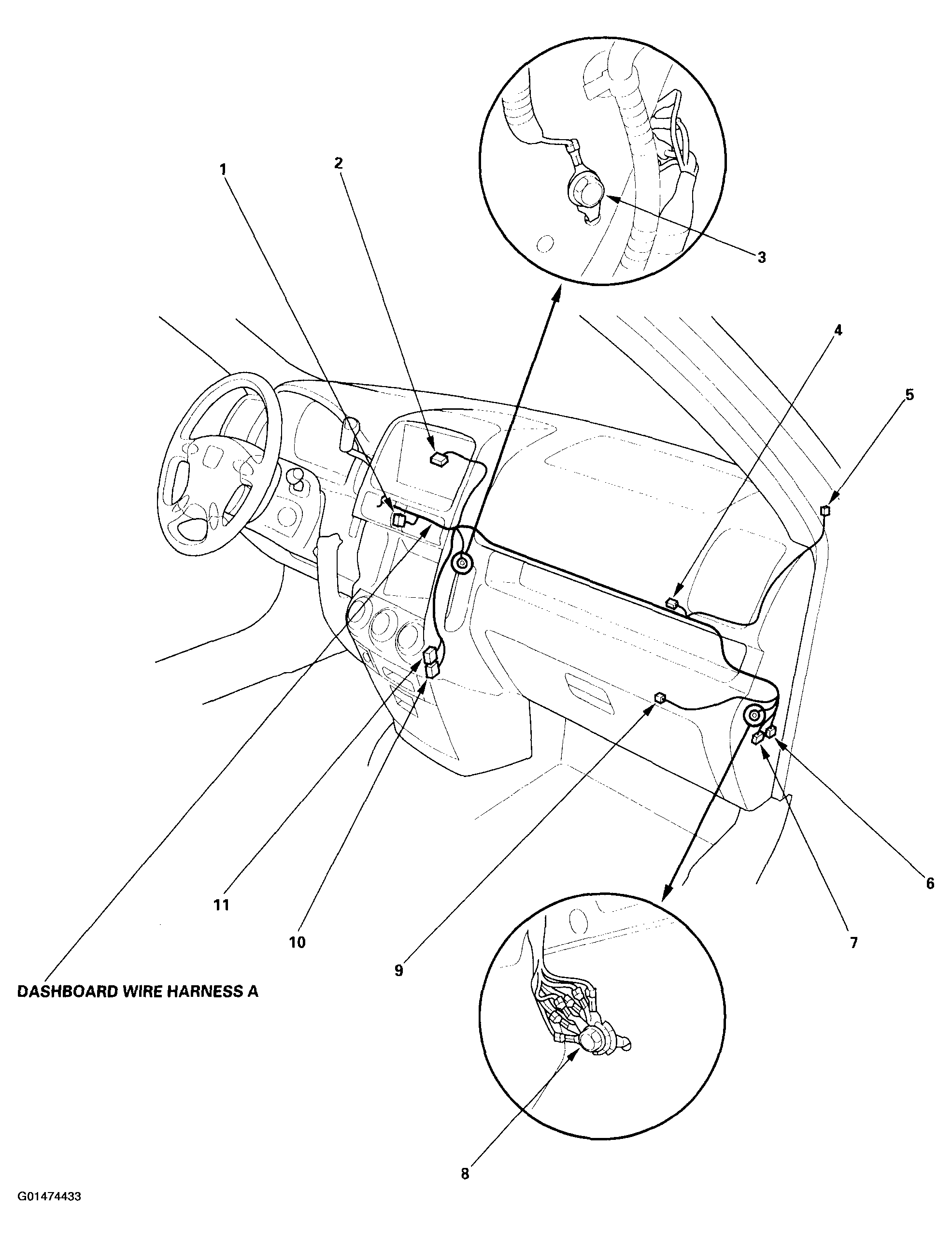

Fig 20: Locating Dashboard Wire Harness A - Right Branch
G01474433Courtesy of AMERICAN HONDA MOTOR CO., INC.

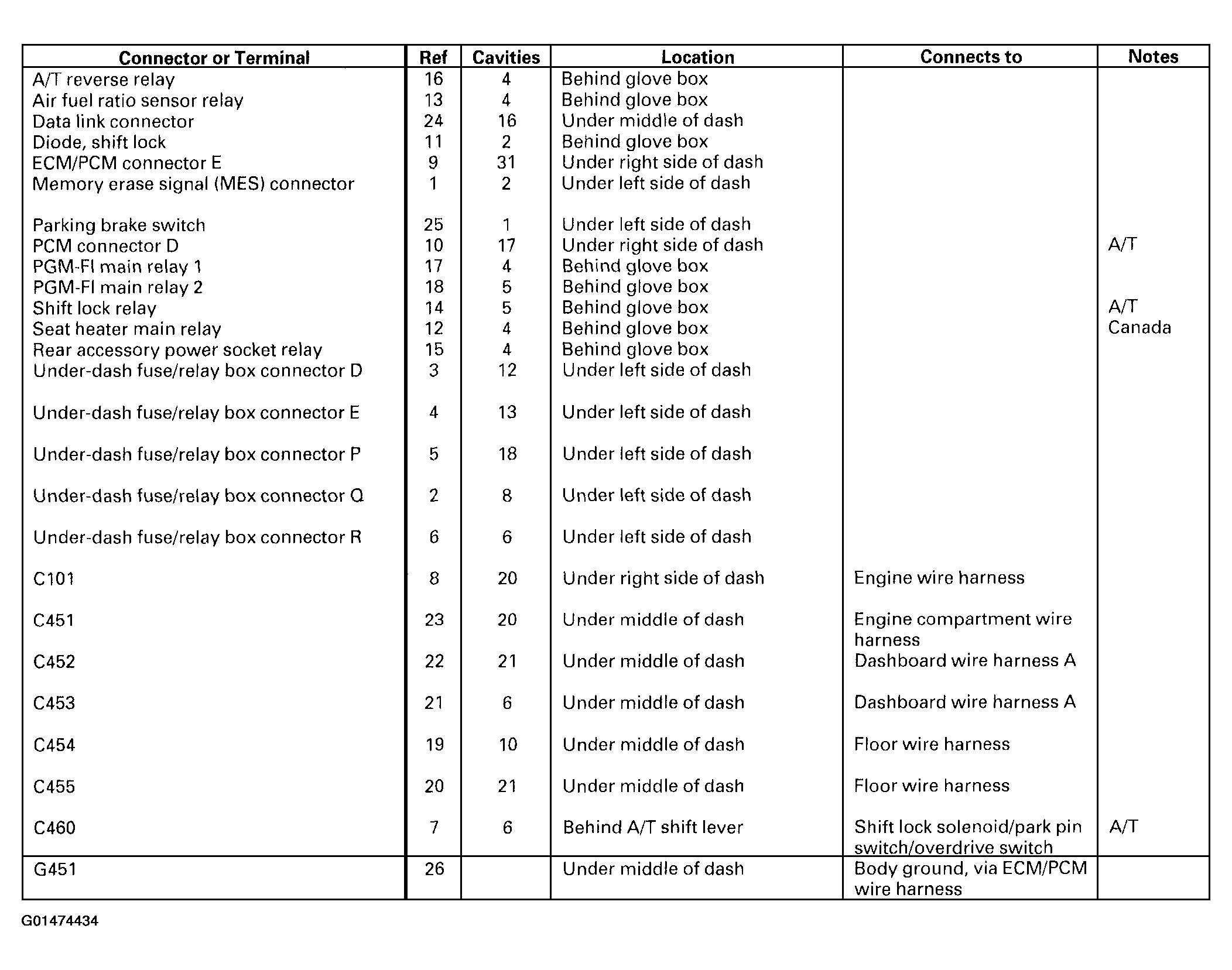

Fig 21: Connector To Harness Chart (ECM/PCM Wire Harness)
G01474434Courtesy of AMERICAN HONDA MOTOR CO., INC.

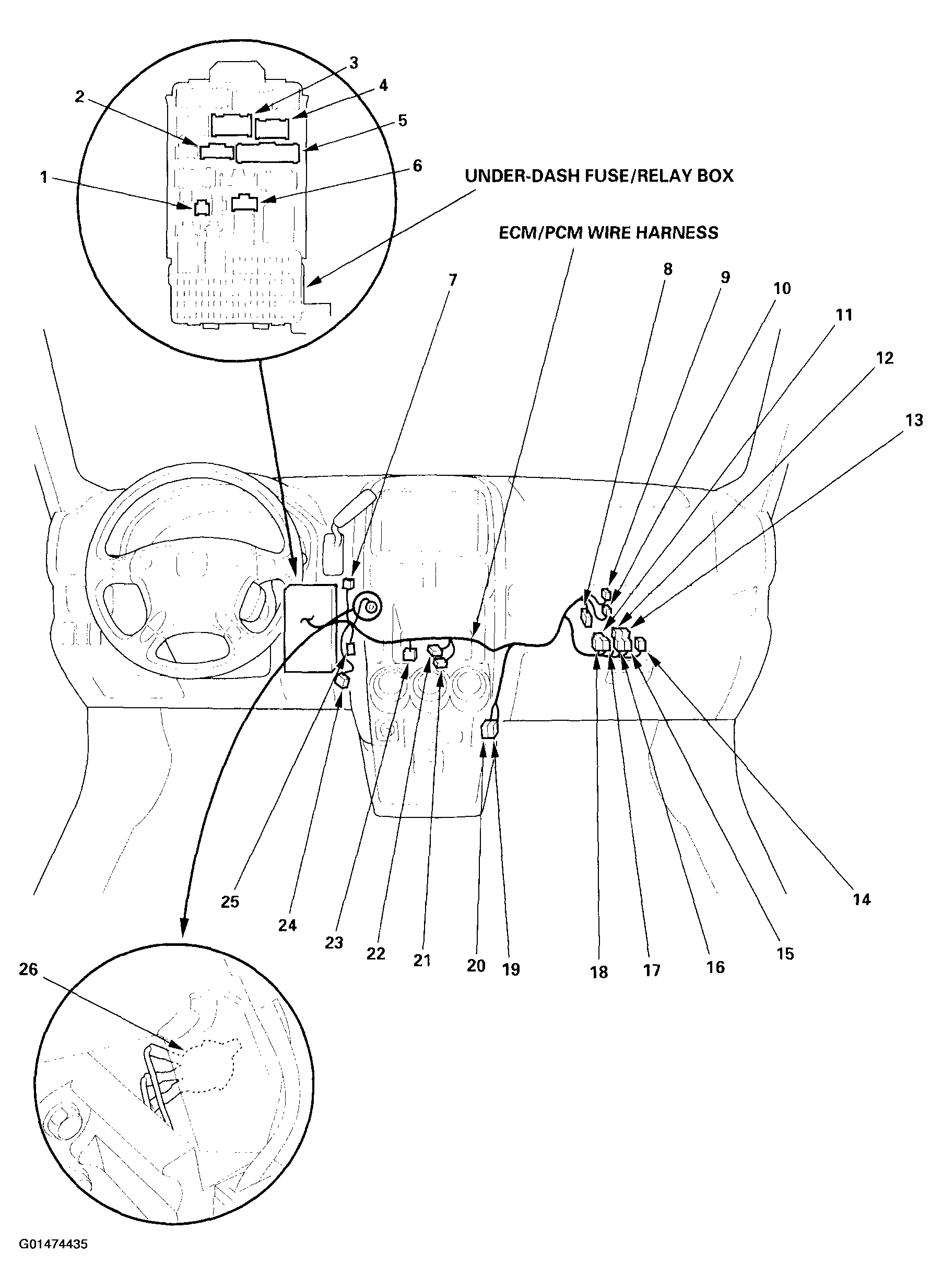

Fig 22: Locating ECM/PCM Wire Harness & Under-Dash Fuse/Relay Box
G01474435Courtesy of AMERICAN HONDA MOTOR CO., INC.

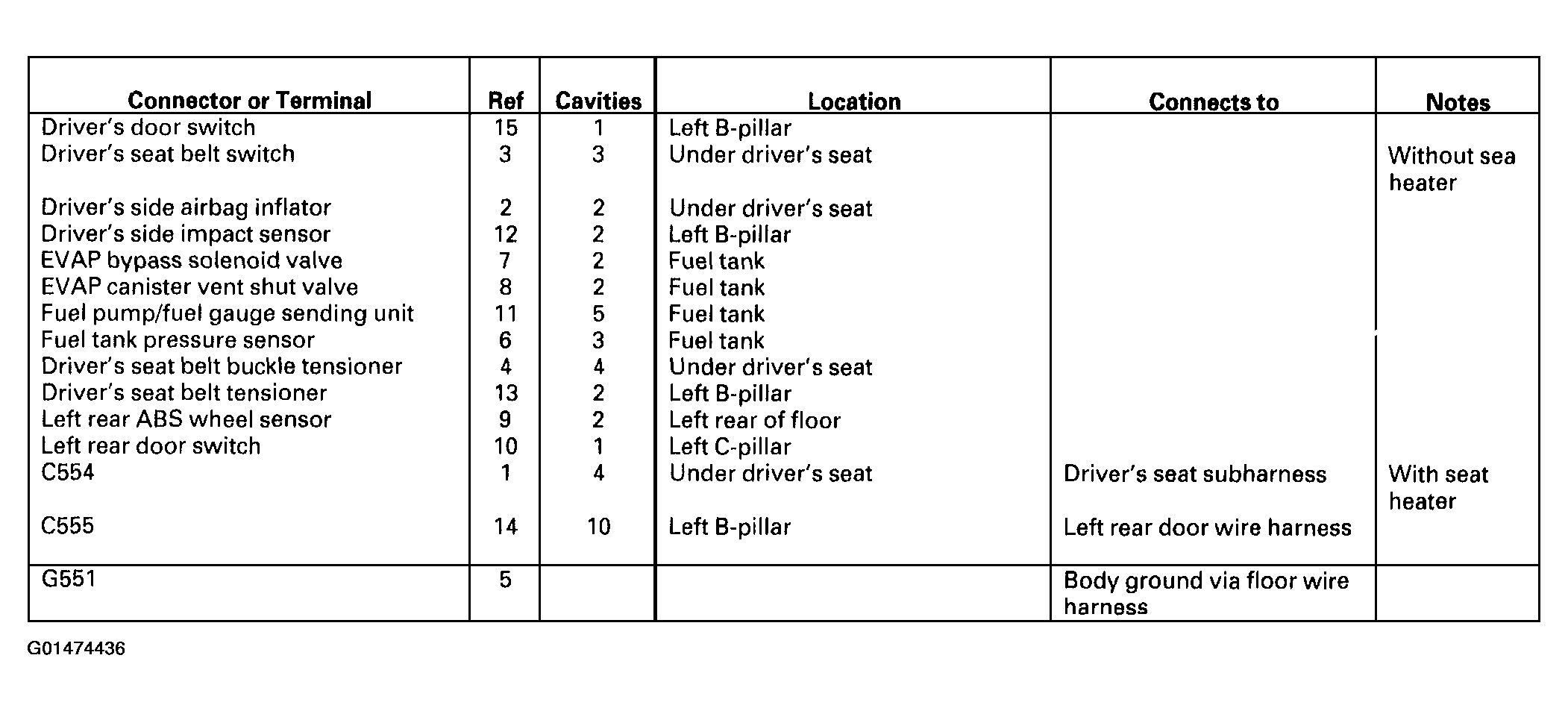

Fig 23: Connector To Harness Chart (Floor Wire Harness - Left Branch)
G01474436Courtesy of AMERICAN HONDA MOTOR CO., INC.

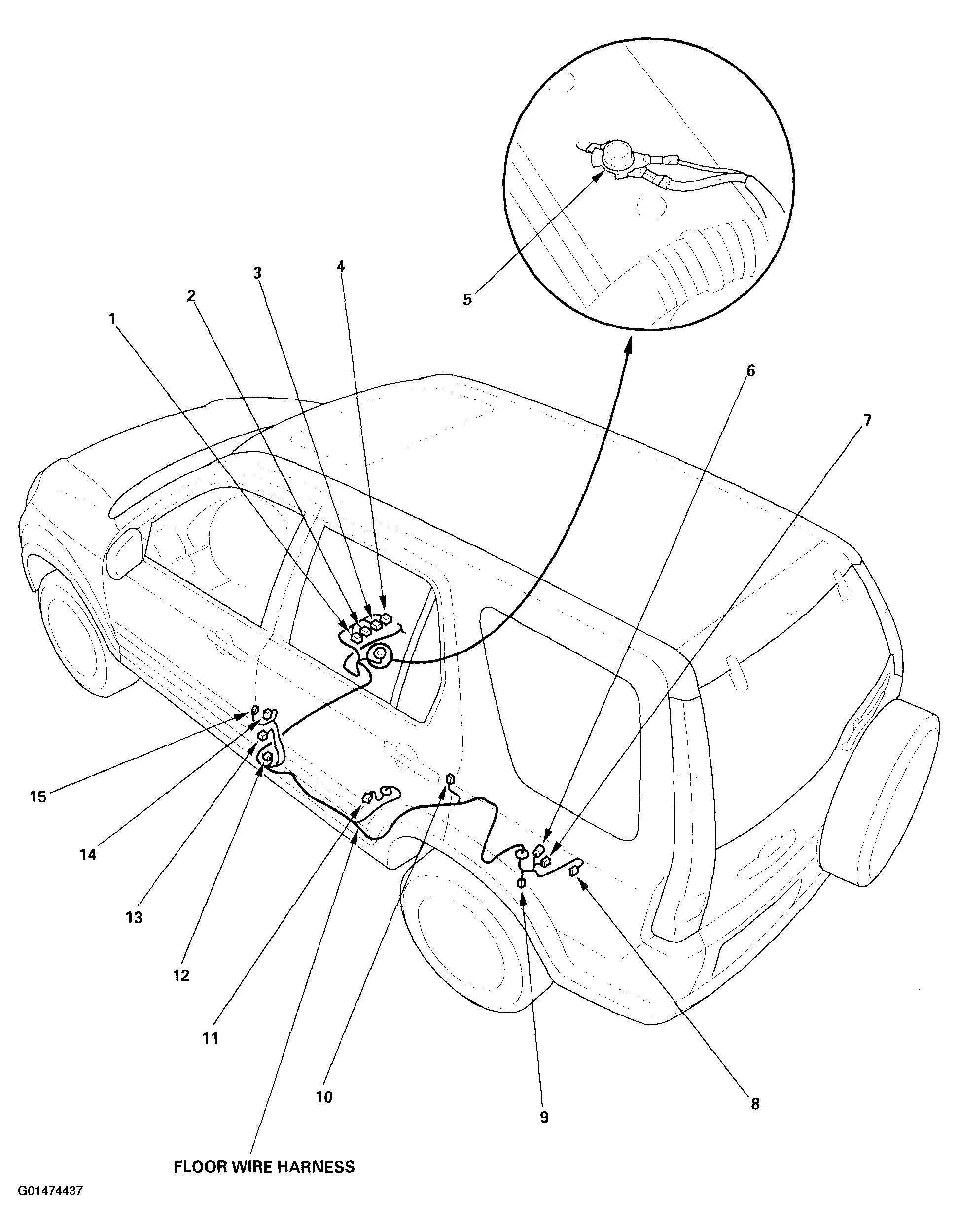

Fig 24: Locating Floor Wire Harness - Left Branch
G01474437Courtesy of AMERICAN HONDA MOTOR CO., INC.

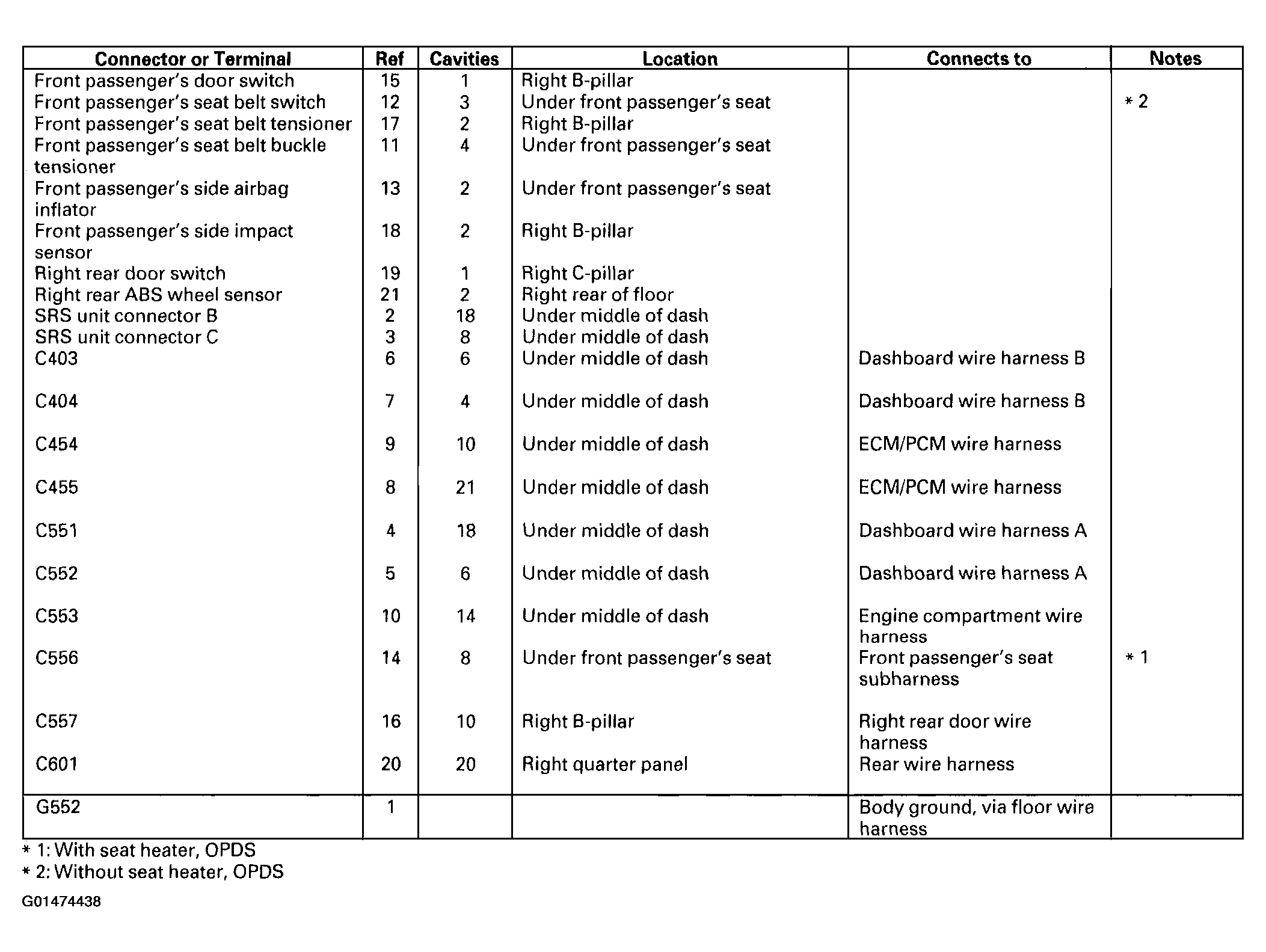

Fig 25: Connector To Harness Chart (Floor Wire Harness - Right Branch)
G01474438Courtesy of AMERICAN HONDA MOTOR CO., INC.

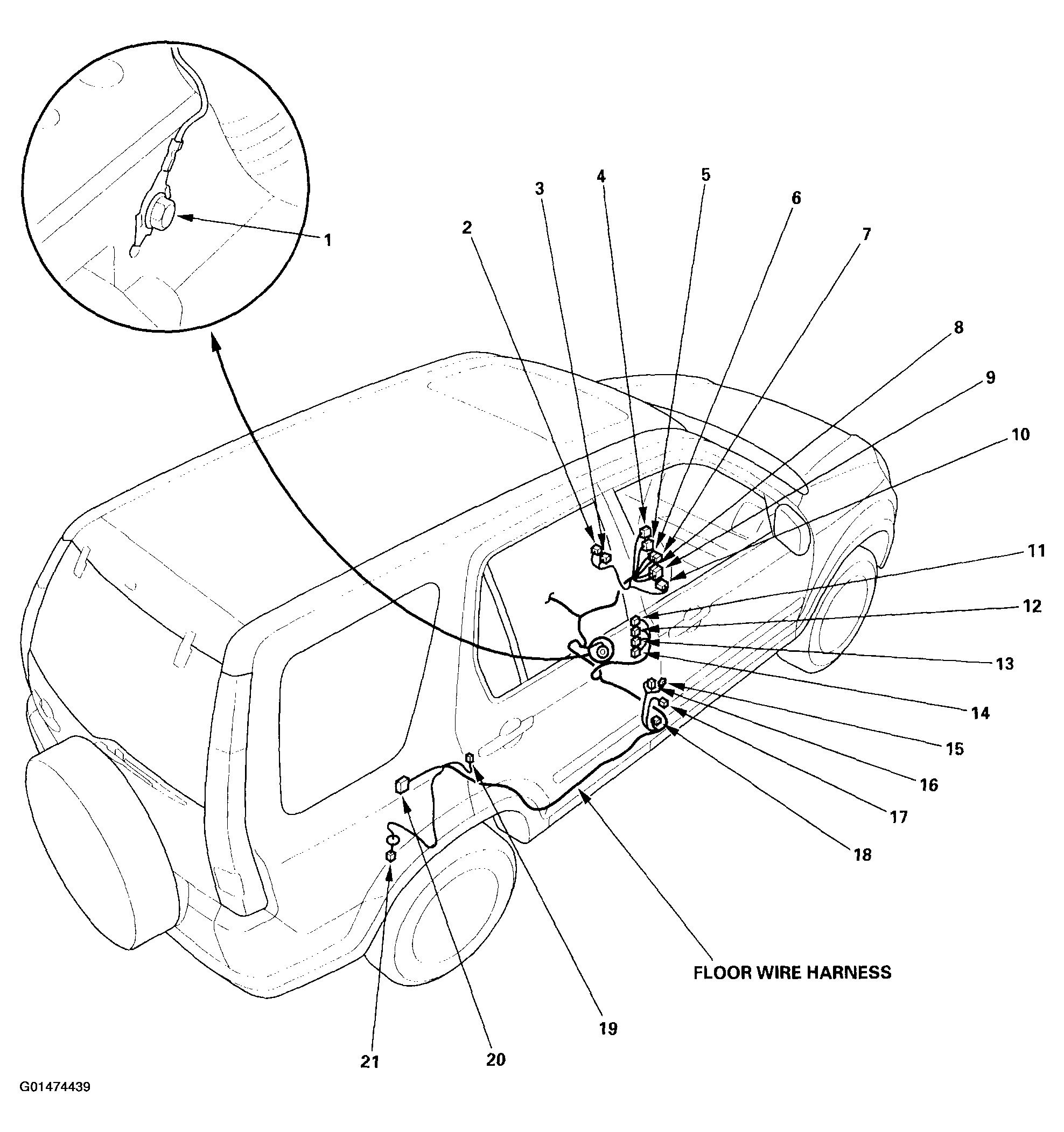

Fig 26: Locating Floor Wire Harness - Right Branch
G01474439Courtesy of AMERICAN HONDA MOTOR CO., INC.

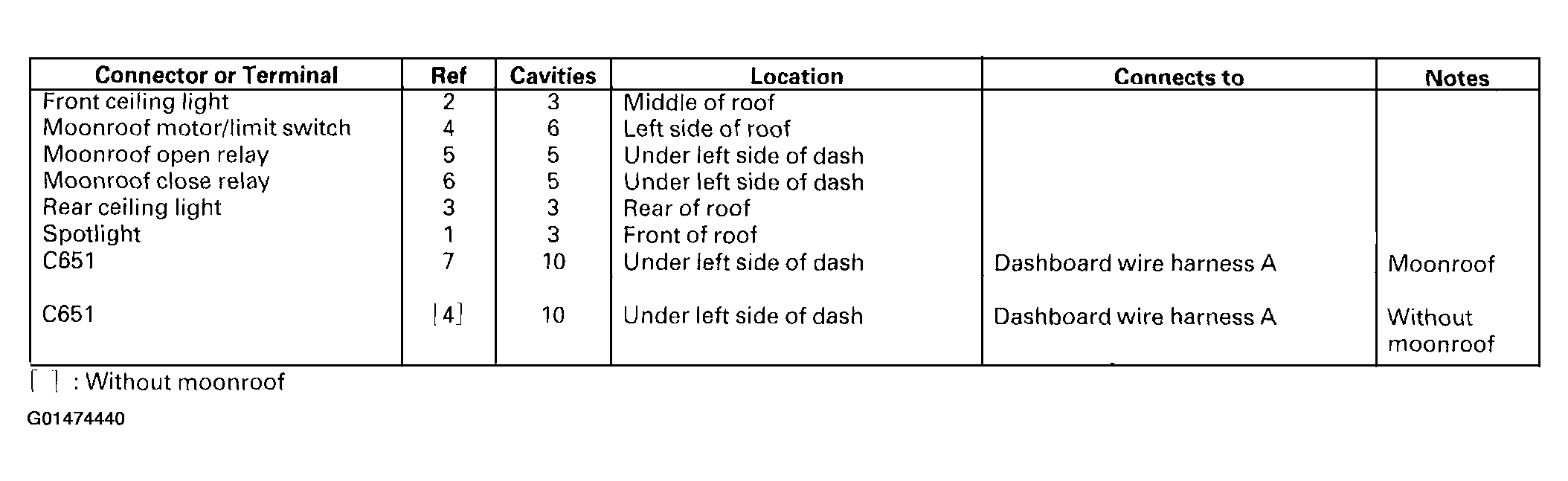

Fig 27: Connector To Harness Chart (Roof Wire Harness)
G01474440Courtesy of AMERICAN HONDA MOTOR CO., INC.

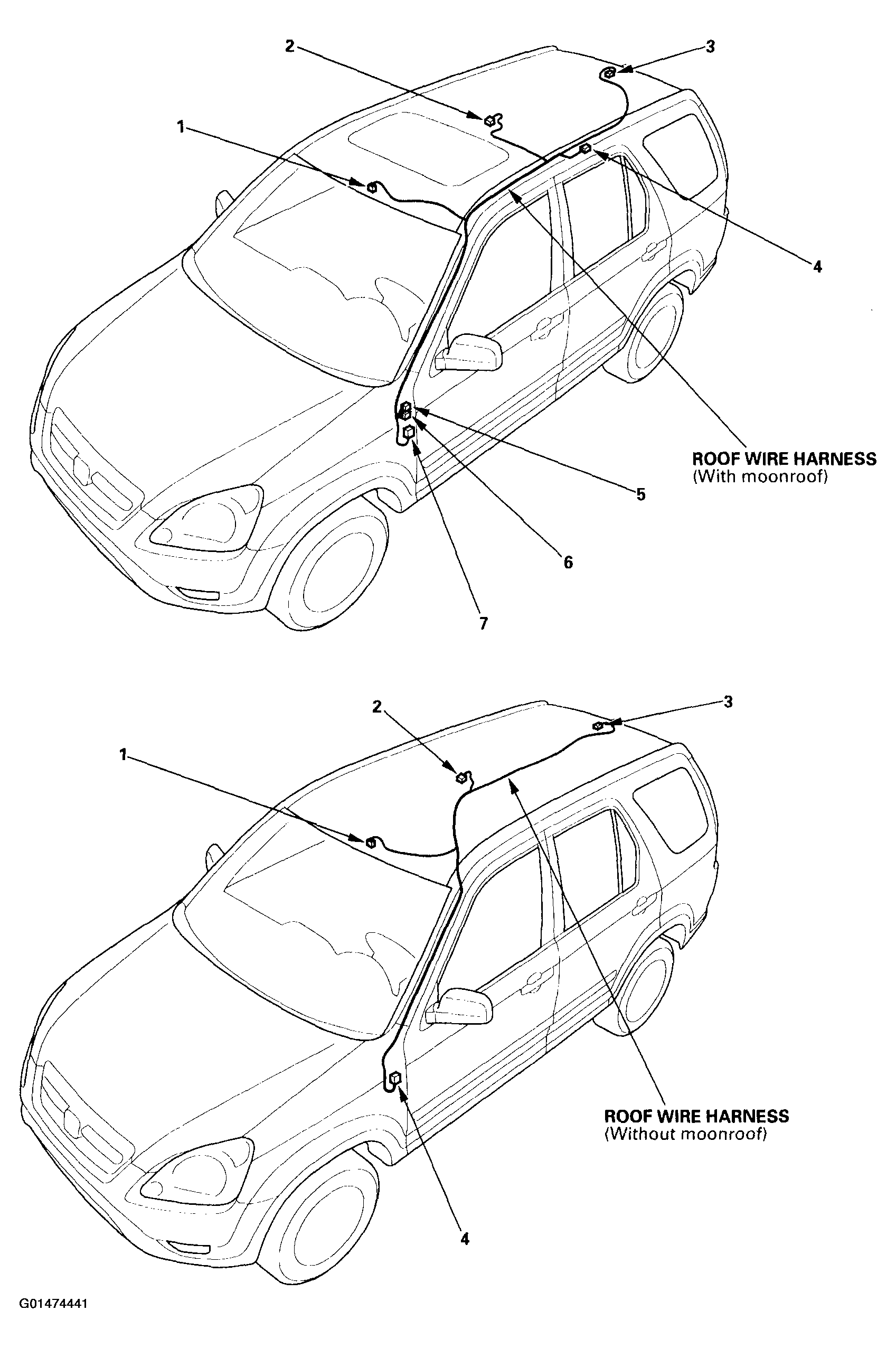

Fig 28: Locating Roof Wire Harness (With/Without Moonroof)
G01474441Courtesy of AMERICAN HONDA MOTOR CO., INC.

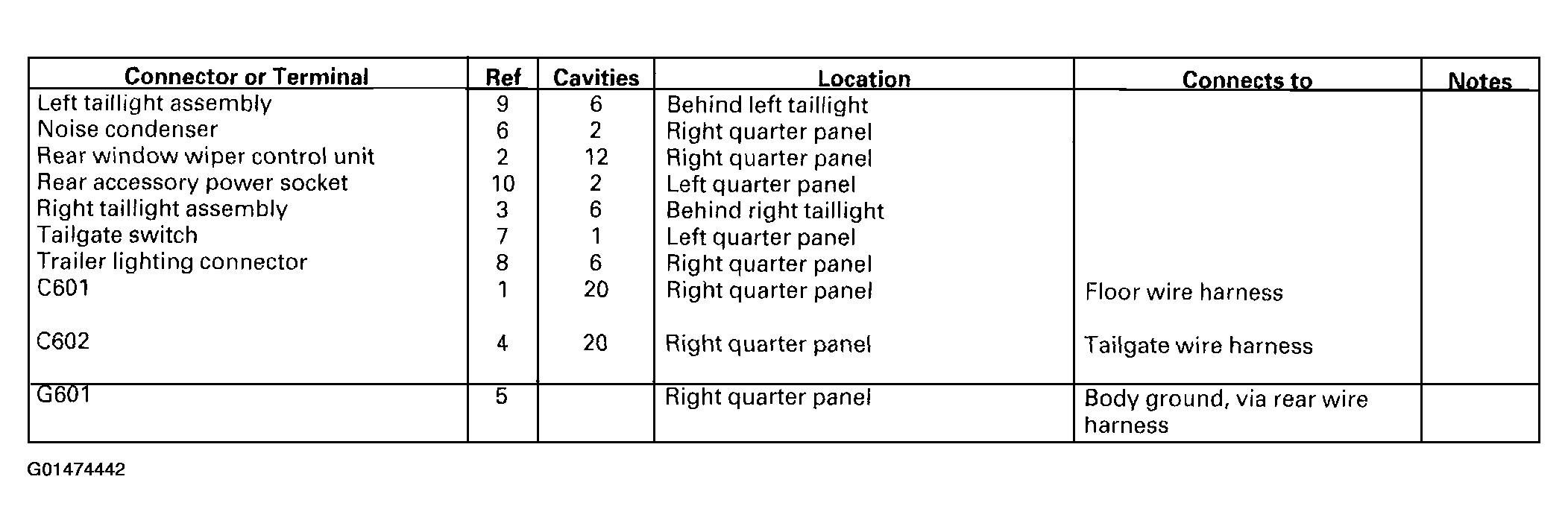

Fig 29: Connector To Harness Chart (Rear Wire Harness)
G01474442Courtesy of AMERICAN HONDA MOTOR CO., INC.

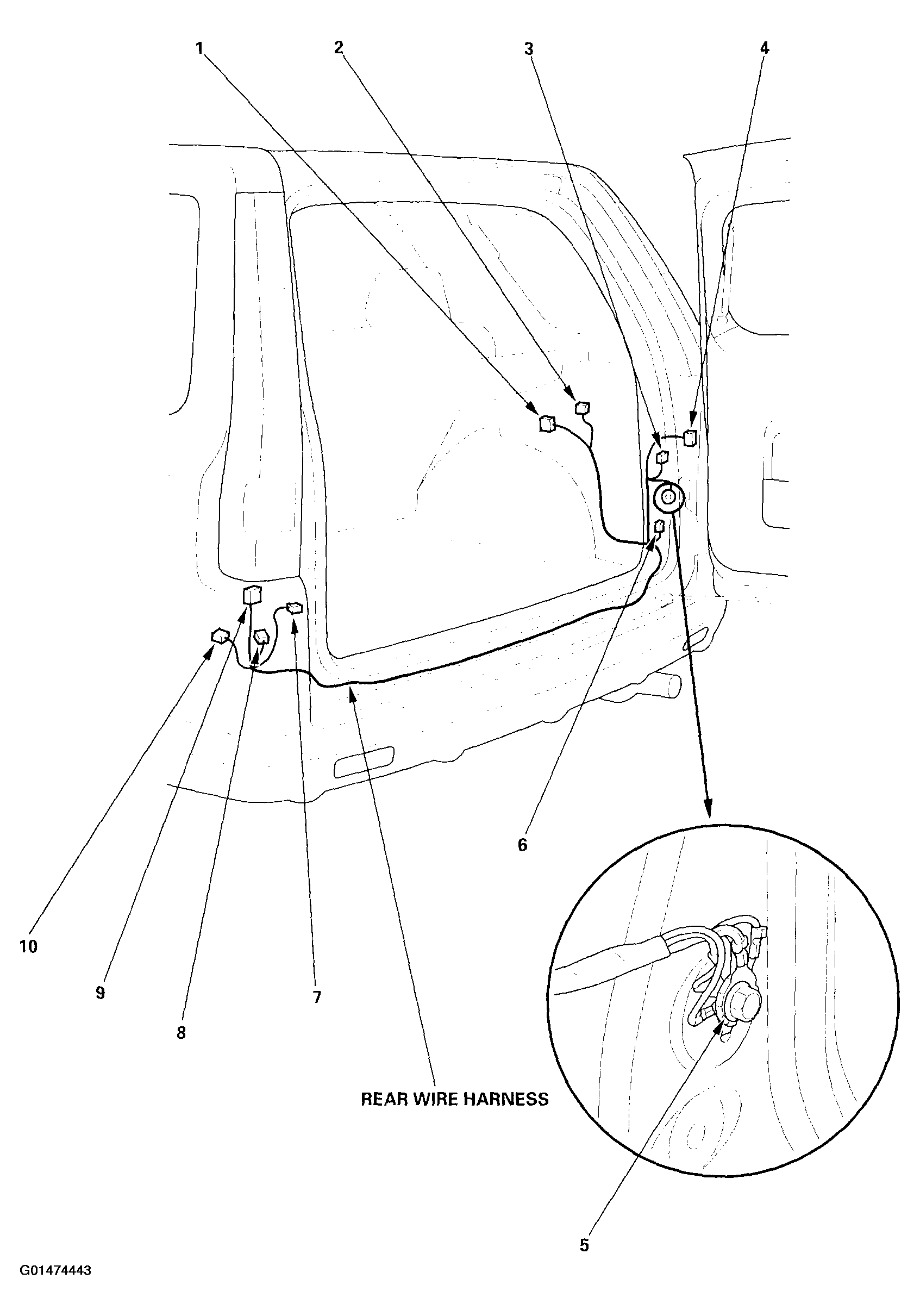

Fig 30: Locating Rear Wire Harness
G01474443Courtesy of AMERICAN HONDA MOTOR CO., INC.

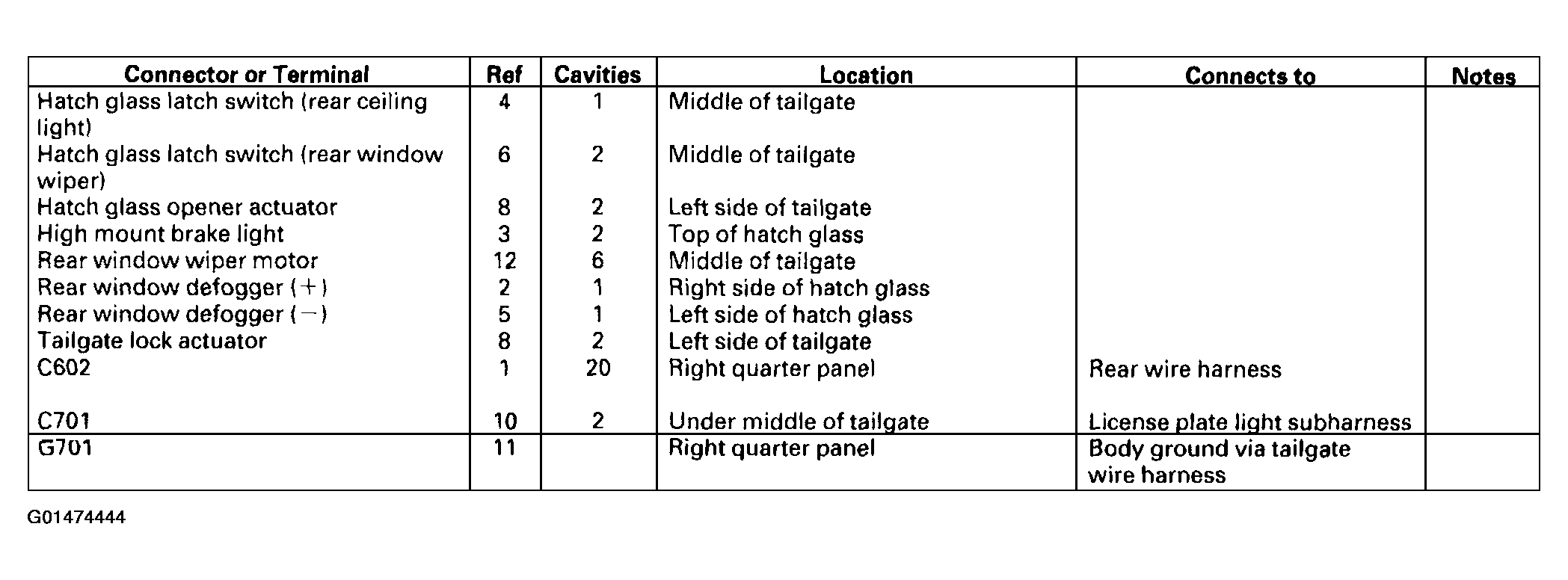

Fig 31: Connector To Harness Chart (Tailgate Wire Harness)
G01474444Courtesy of AMERICAN HONDA MOTOR CO., INC.

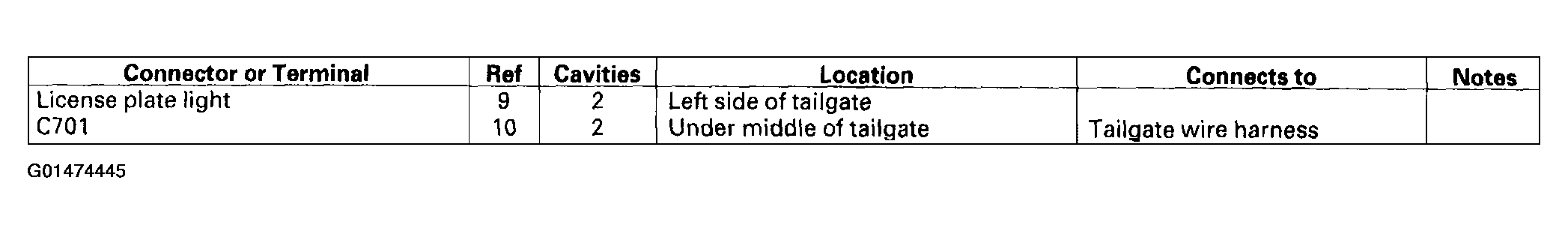

Fig 32: Connector To Harness Chart (License Plate Light Subharness)
G01474445Courtesy of AMERICAN HONDA MOTOR CO., INC.

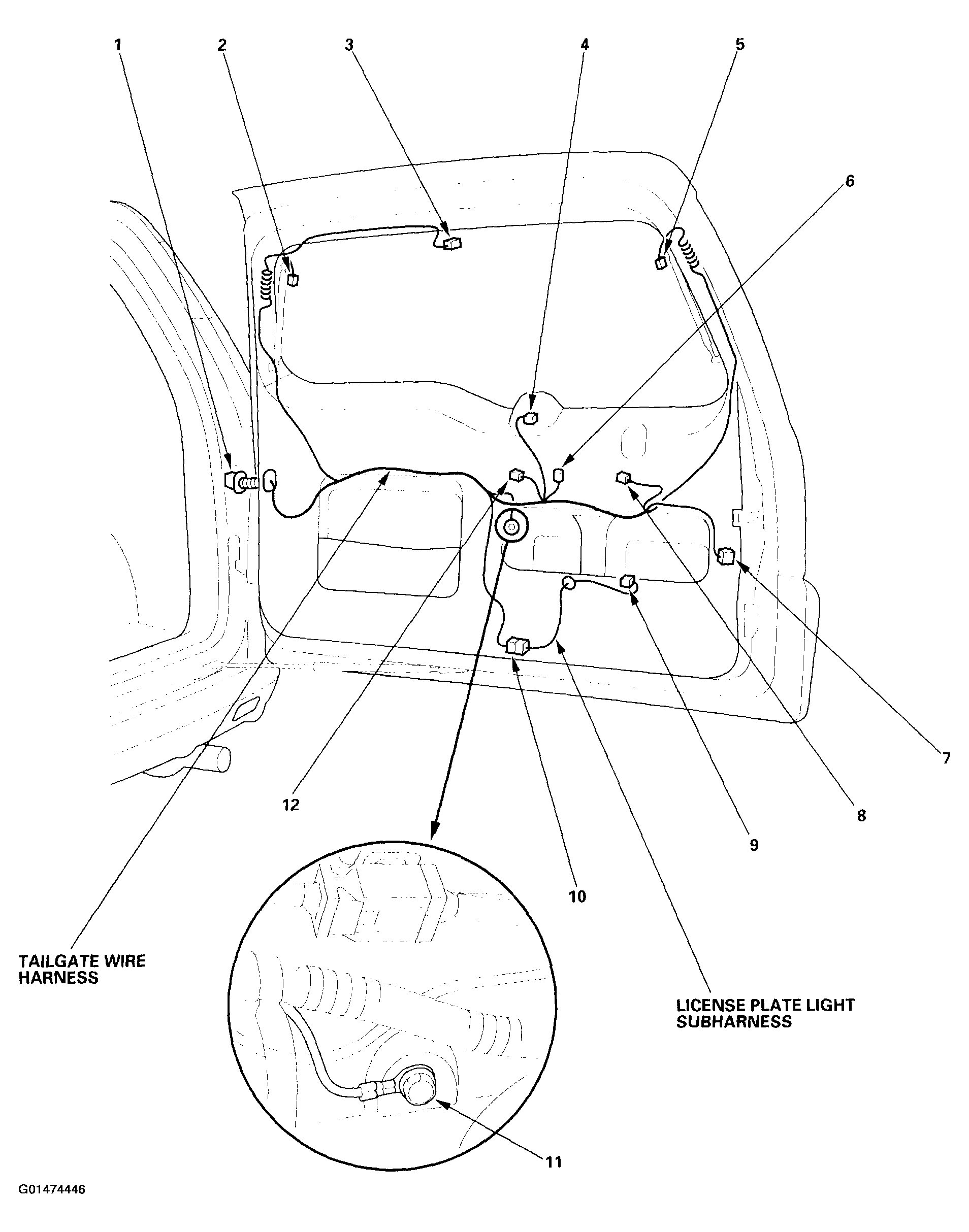

Fig 33: Locating Tailgate Wire Harness & License Plate Light Subharness
G01474446Courtesy of AMERICAN HONDA MOTOR CO., INC.

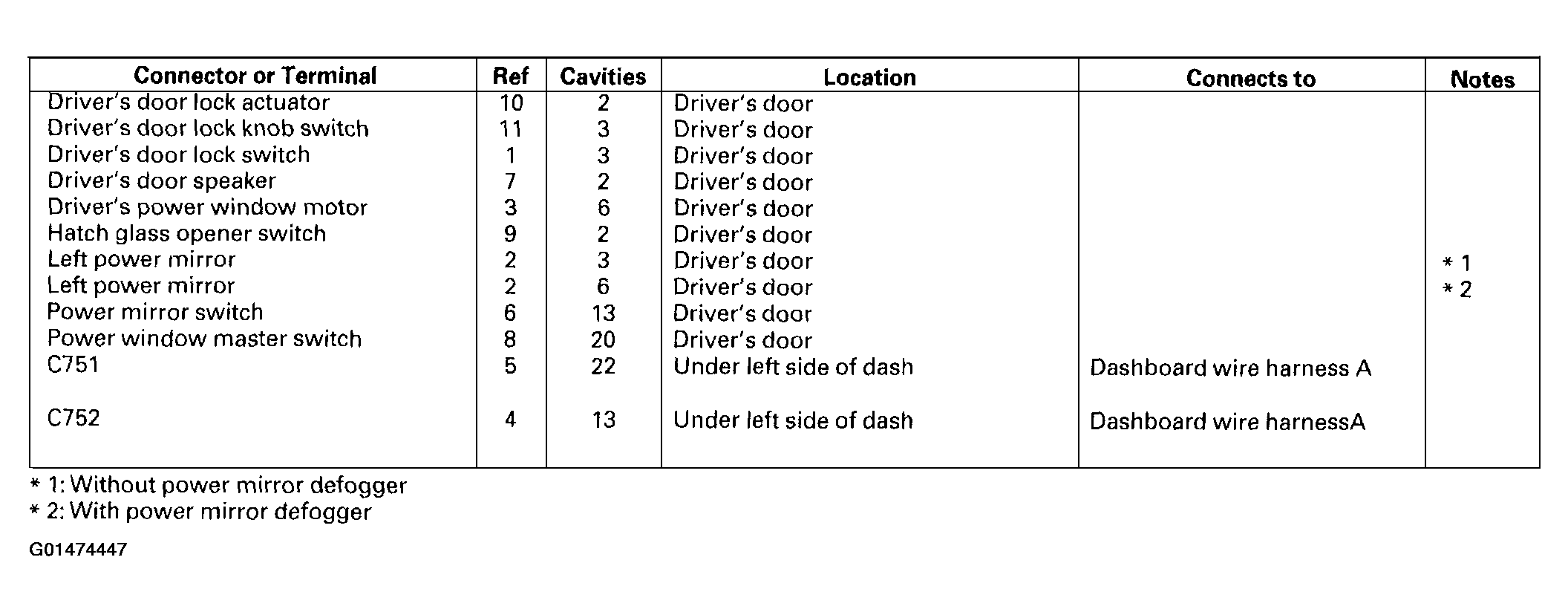

Fig 34: Connector To Harness Chart (Driver's Door Wire Harness)
G01474447Courtesy of AMERICAN HONDA MOTOR CO., INC.

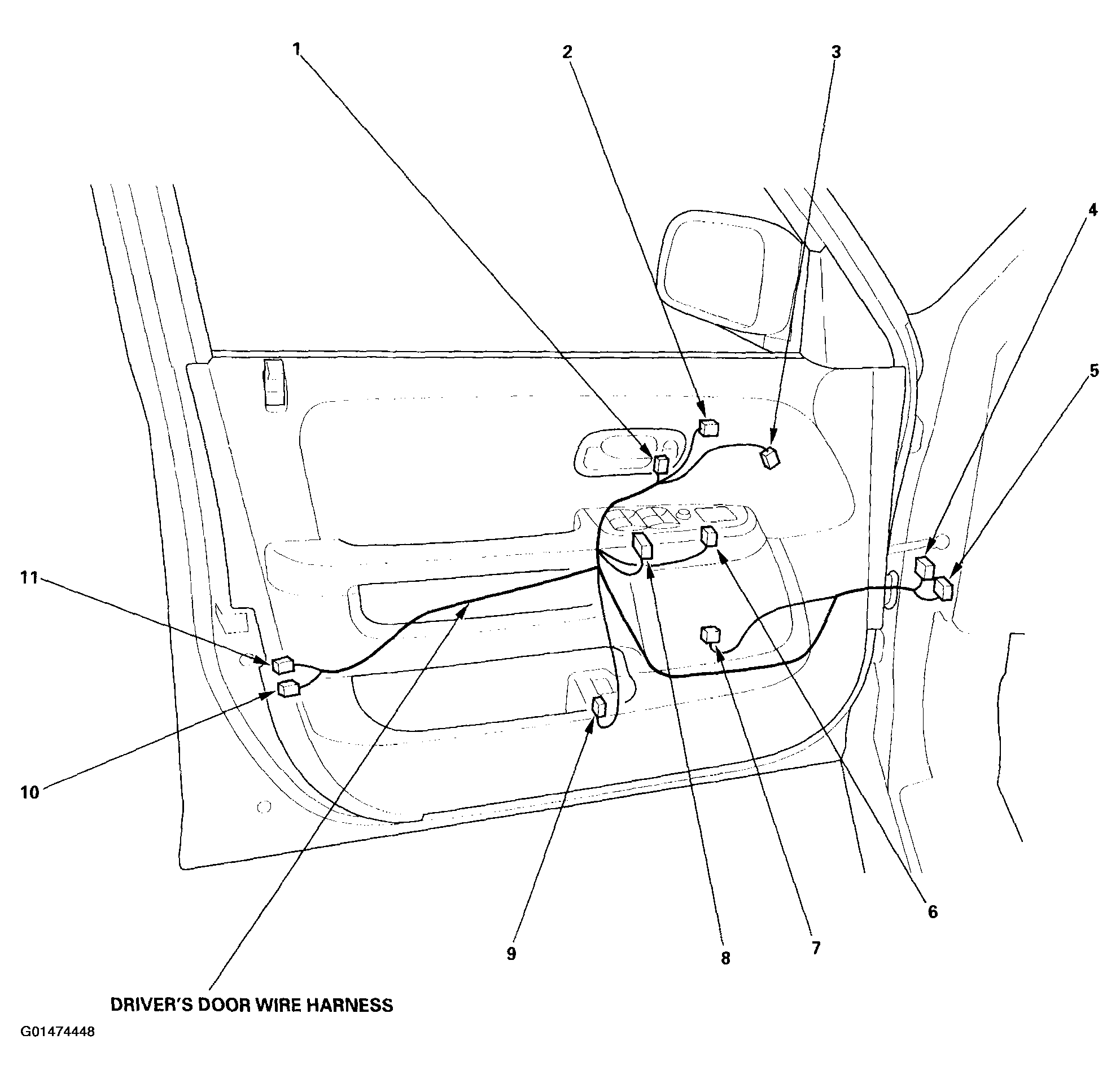

Fig 35: Locating Driver's Door Wire Harness
G01474448Courtesy of AMERICAN HONDA MOTOR CO., INC.

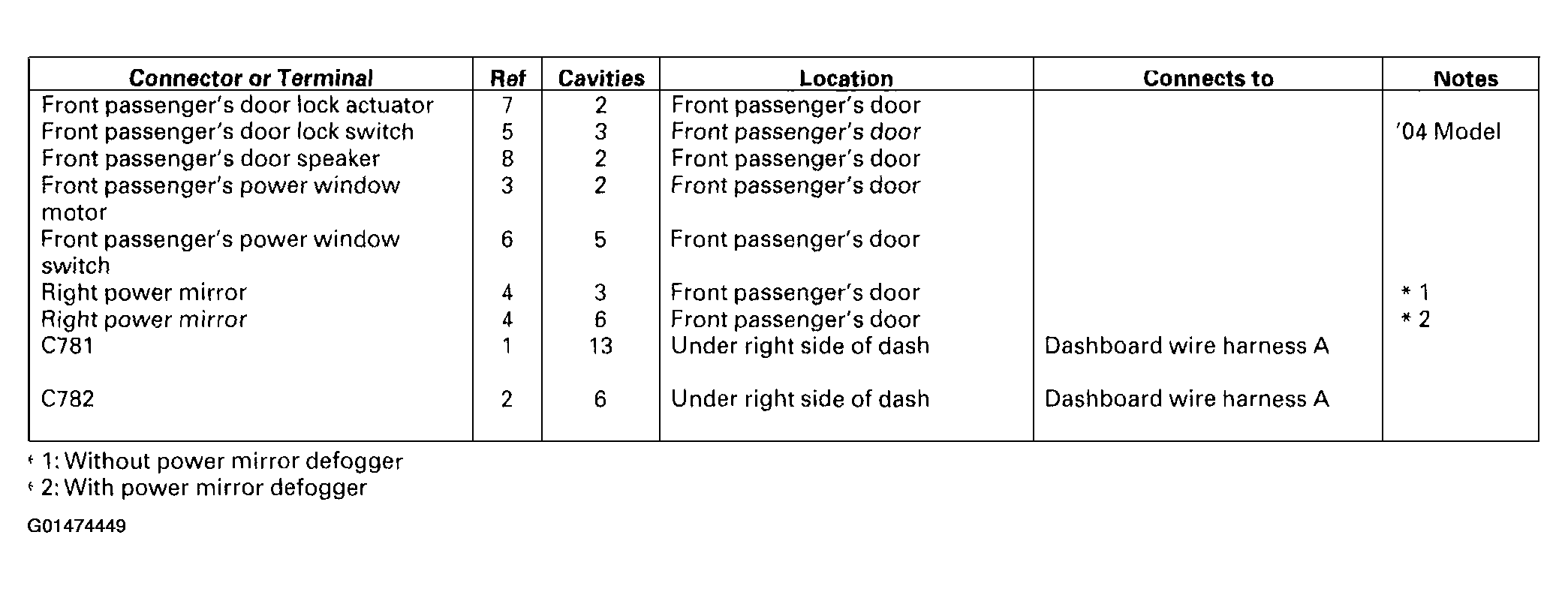

Fig 36: Connector To Harness Chart (Front Passenger's Door Wire Harness)
G01474449Courtesy of AMERICAN HONDA MOTOR CO., INC.

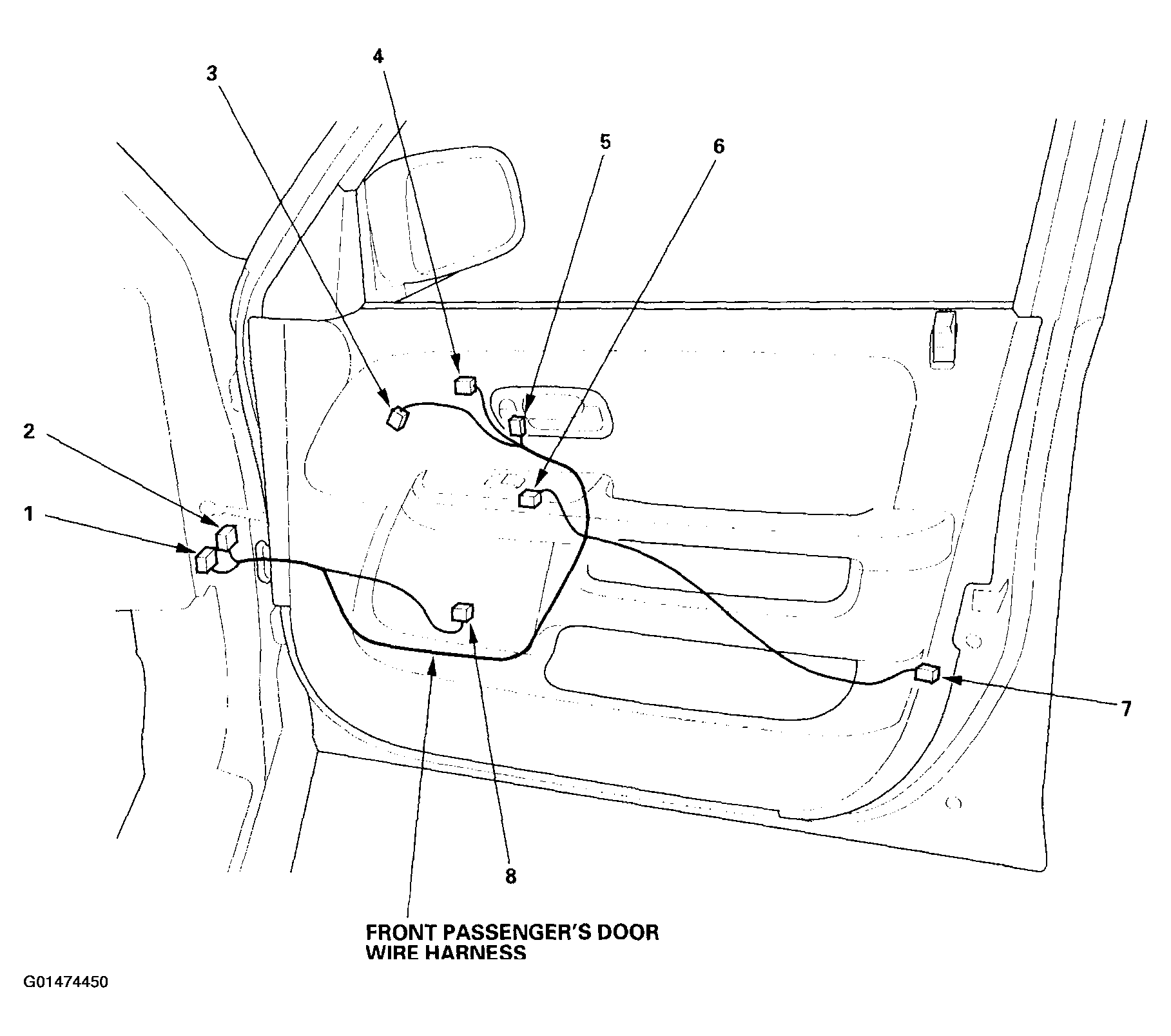

Fig 37: Locating Front Passenger's Door Wire Harness
G01474450Courtesy of AMERICAN HONDA MOTOR CO., INC.

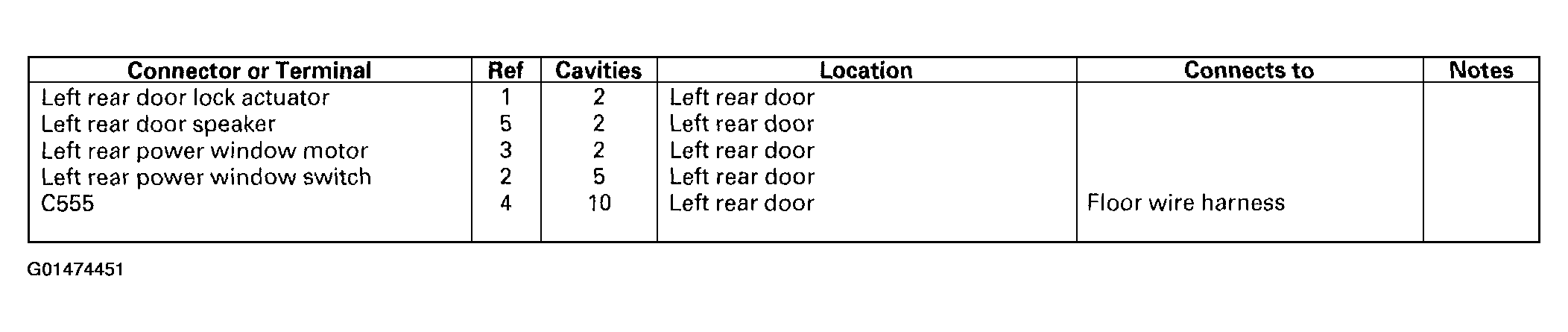

Fig 38: Connector To Harness Chart (Left Rear Door Wire Harness)
G01474451Courtesy of AMERICAN HONDA MOTOR CO., INC.

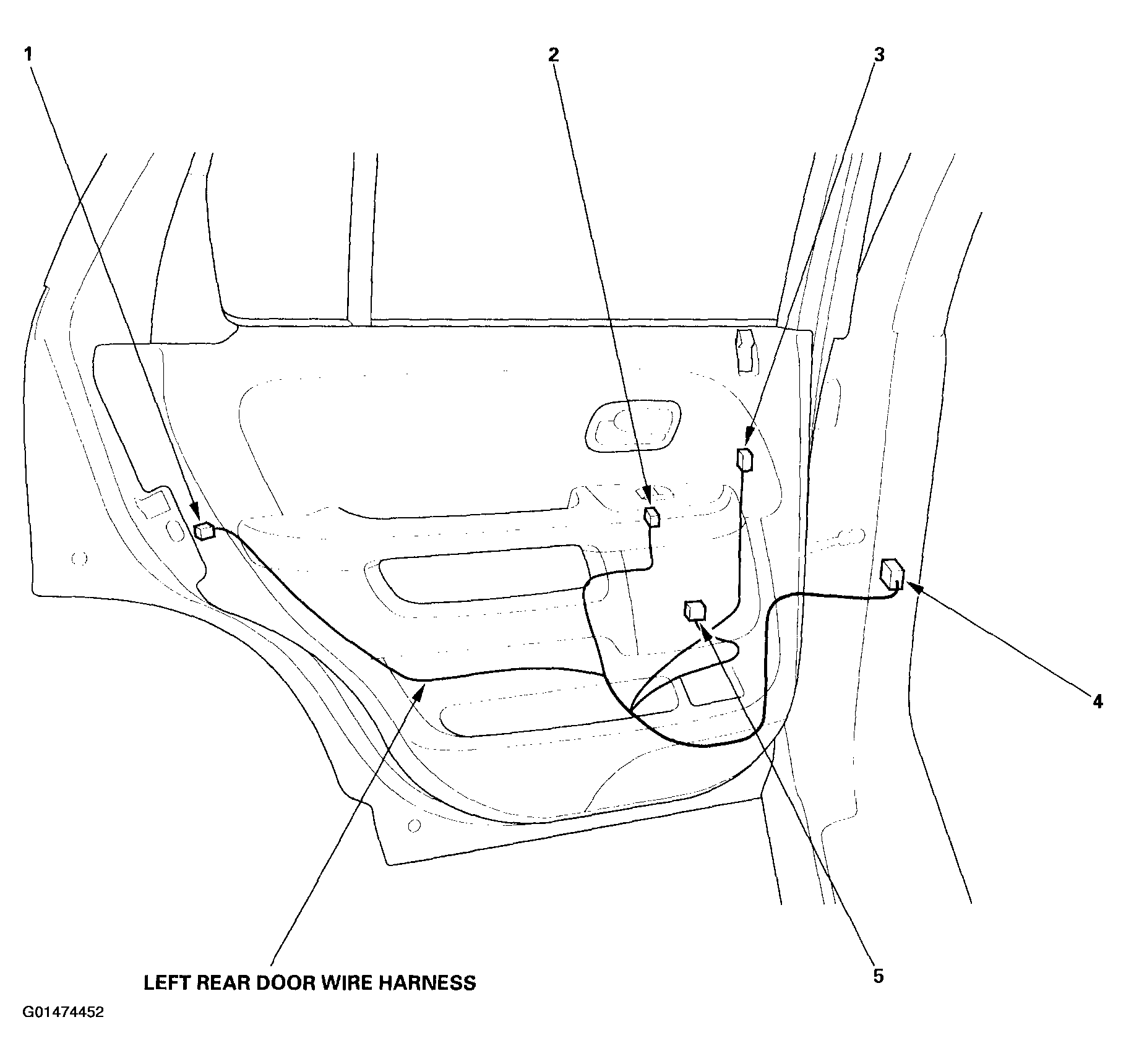

Fig 39: Locating Left Rear Door Wire Harness
G01474452Courtesy of AMERICAN HONDA MOTOR CO., INC.

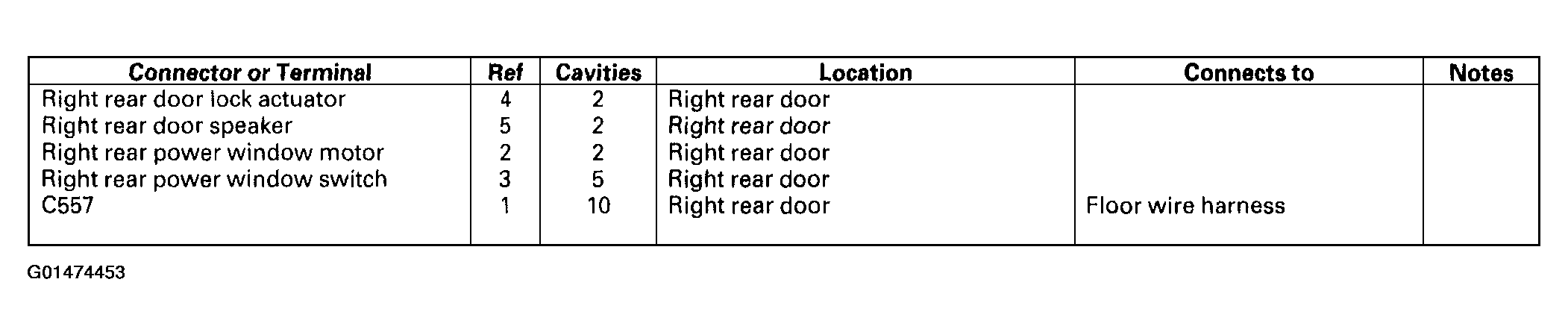

Fig 40: Connector To Harness Chart (Right Rear Door Wire Harness)
G01474453Courtesy of AMERICAN HONDA MOTOR CO., INC.

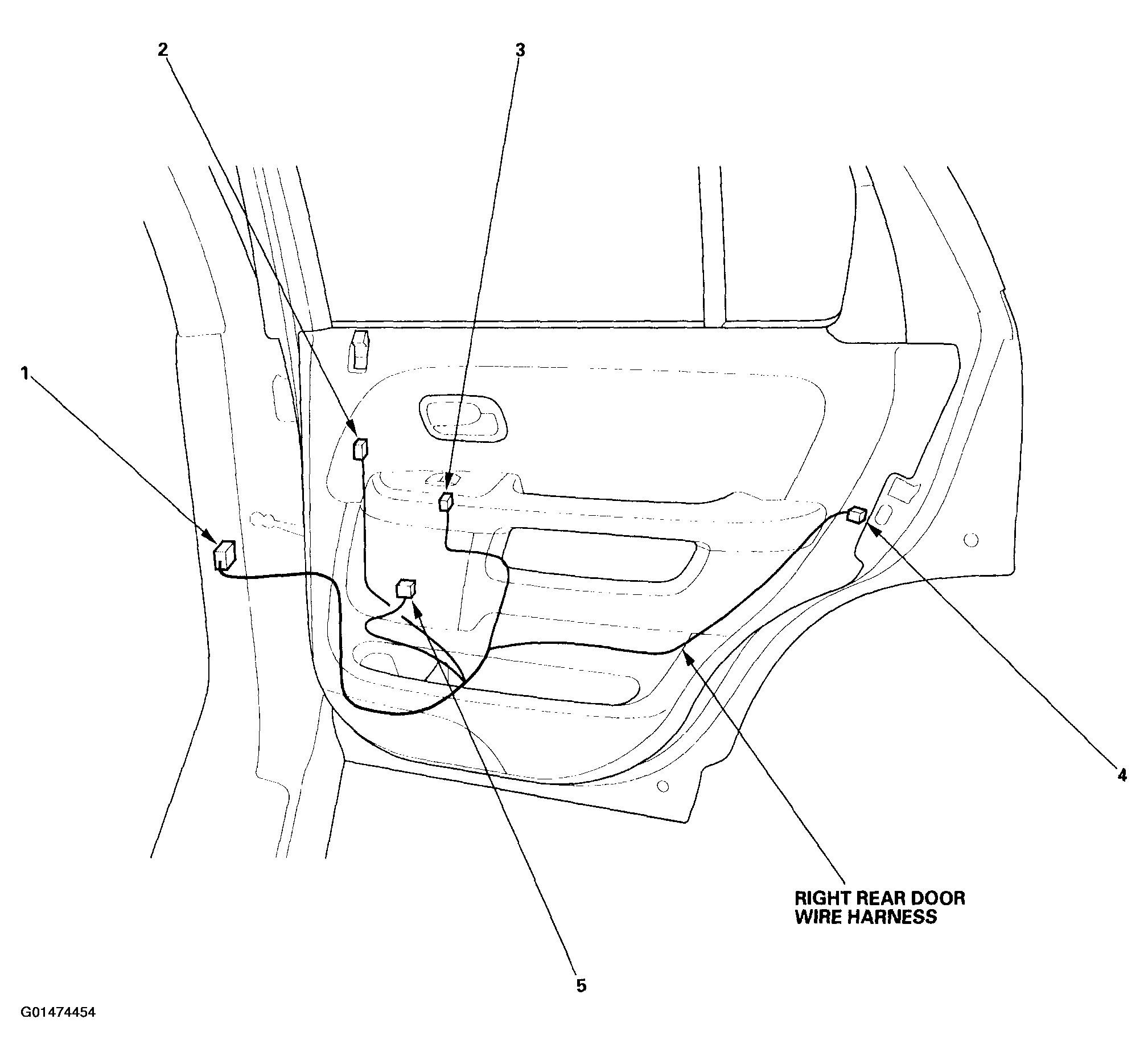

Fig 41: Locating Right Rear Door Wire Harness
G01474454Courtesy of AMERICAN HONDA MOTOR CO., INC.

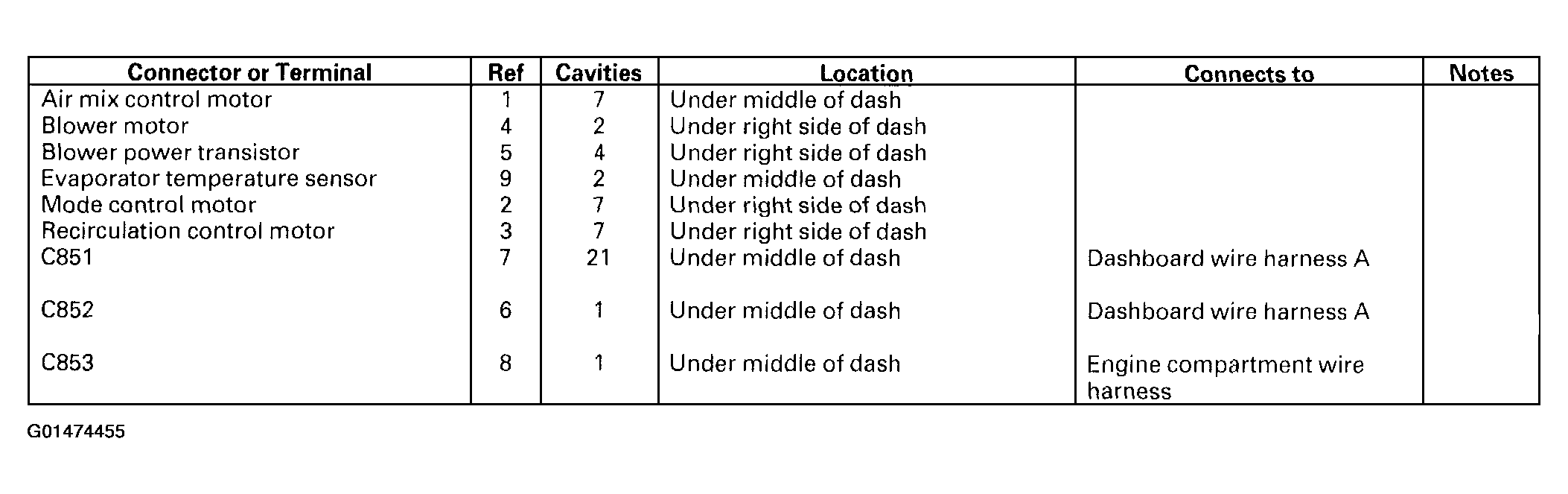

Fig 42: Connector To Harness Chart (A/C Wire Harness)
G01474455Courtesy of AMERICAN HONDA MOTOR CO., INC.

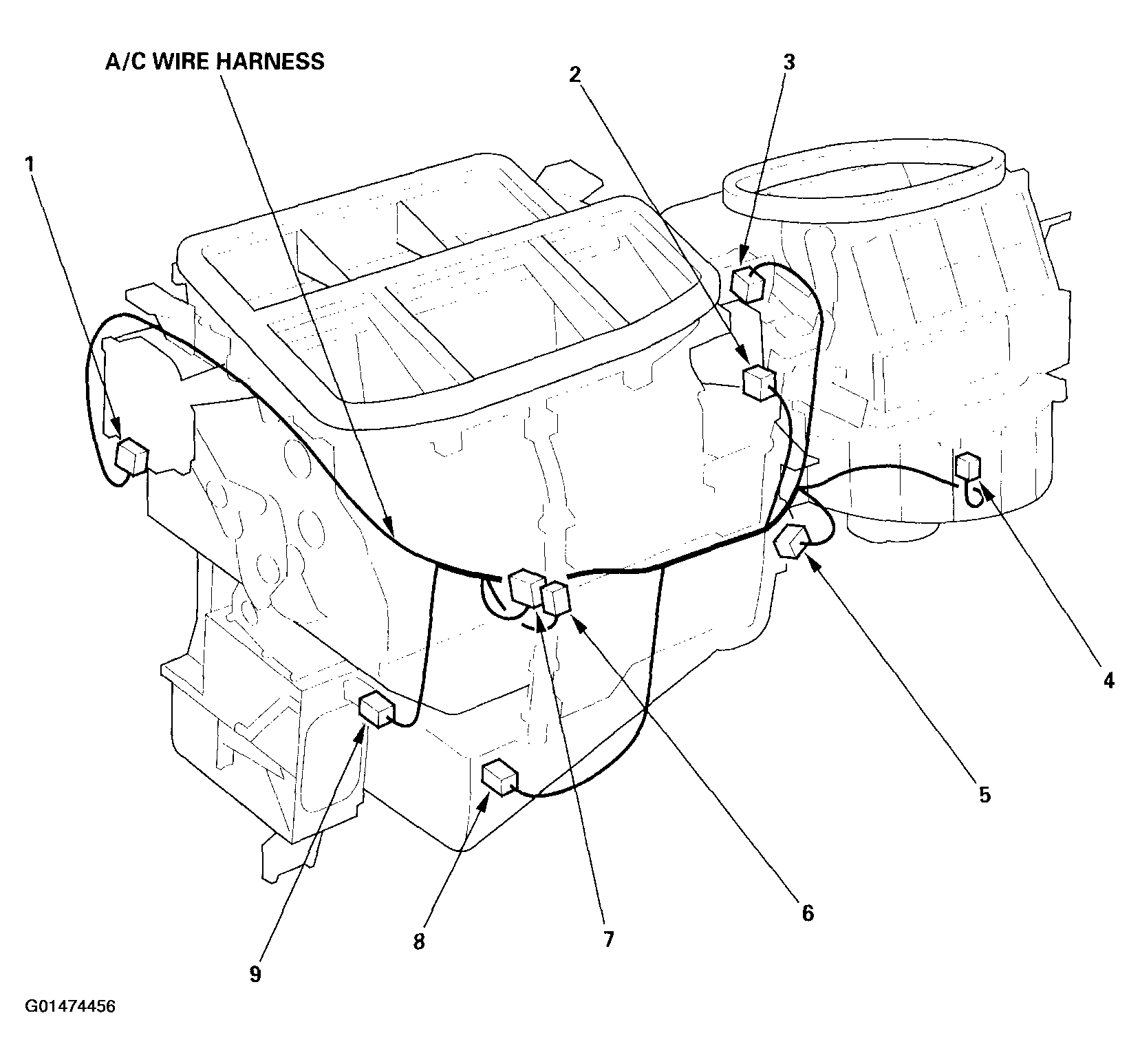

Fig 43: Locating A/C Wire Harness
G01474456Courtesy of AMERICAN HONDA MOTOR CO., INC.

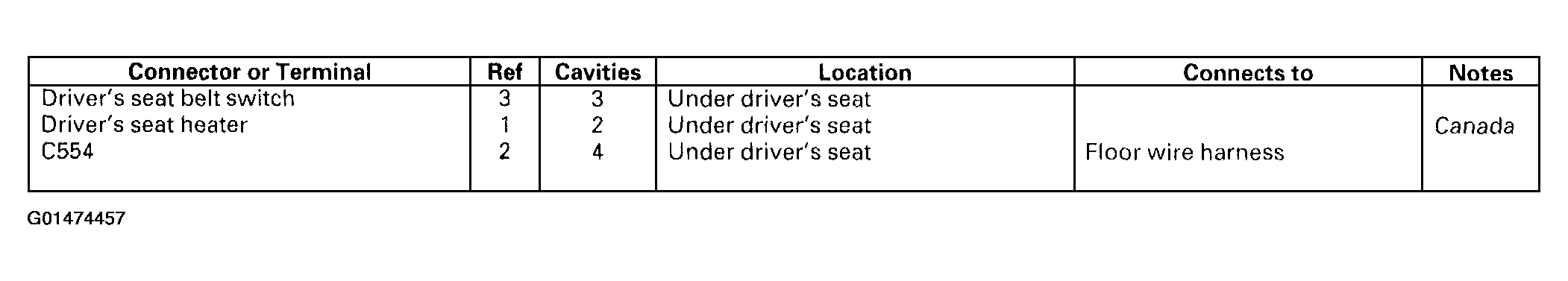

Fig 44: Connector To Harness Chart (Driver's Seat Subharness - With Seat Heater)
G01474457Courtesy of AMERICAN HONDA MOTOR CO., INC.

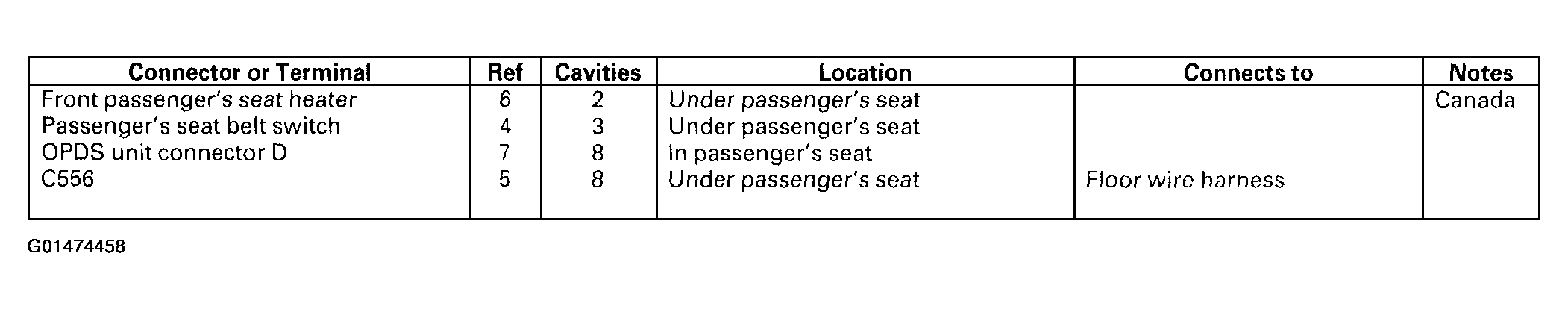

Fig 45: Connector To Harness Chart (Front Passenger's Seat Subharness -With Seat Heater & OPDS)
G01474458Courtesy of AMERICAN HONDA MOTOR CO., INC.

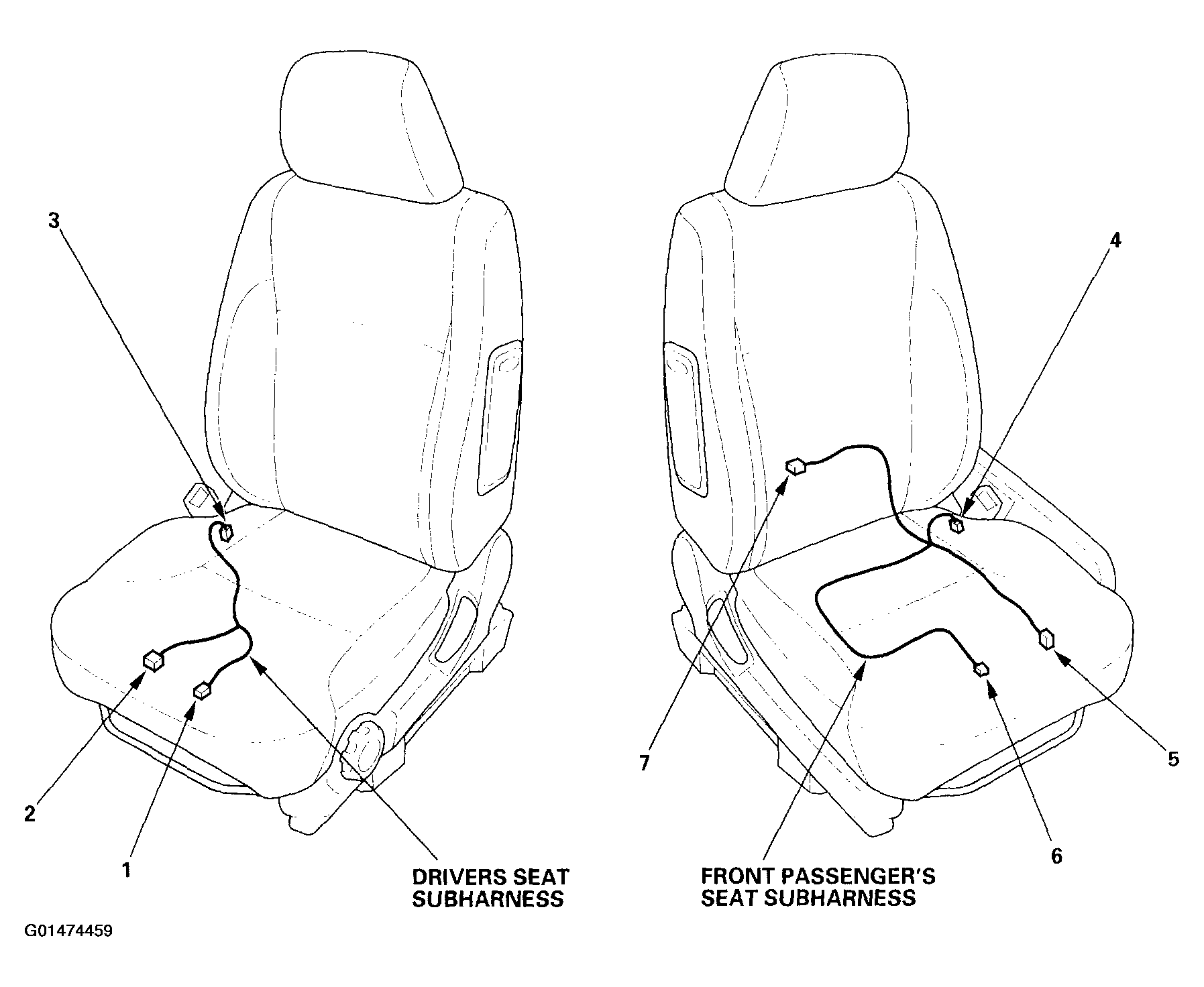

Fig 46: Locating Driver's Seat Subharness & Front Passenger's Seat Subharness
G01474459Courtesy of AMERICAN HONDA MOTOR CO., INC.
