Connector Index

Identification numbers have been assigned to in-line connectors. The number is preceded by the letter "C" for connectors, "G" for ground terminals or "T" for non-ground terminals.

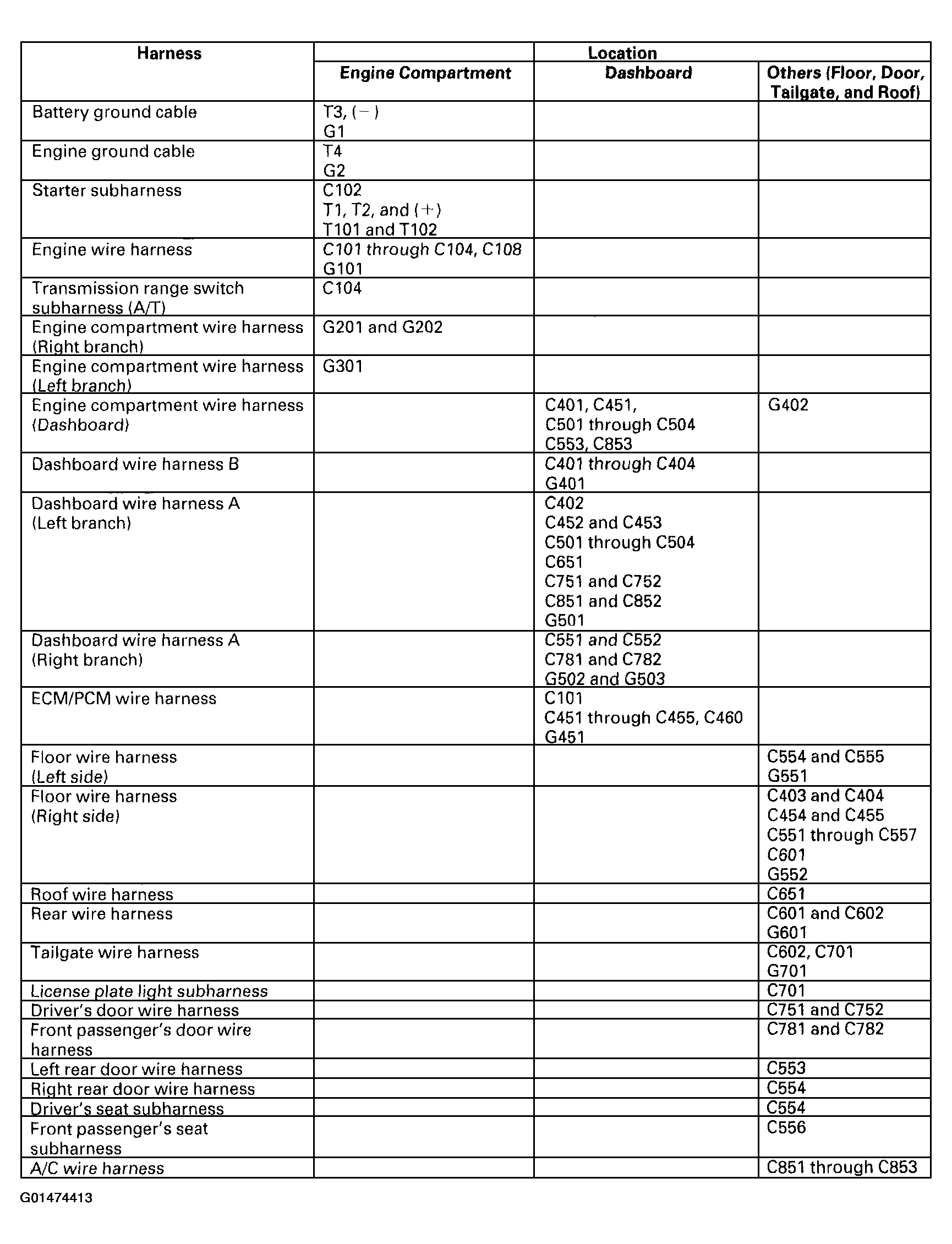

Fig 1: Identifying Harness Connector Locations Chart
G01474413Courtesy of AMERICAN HONDA MOTOR CO., INC.
