M/T only

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect the 3P connector from the vehicle speed sensor (VSS).

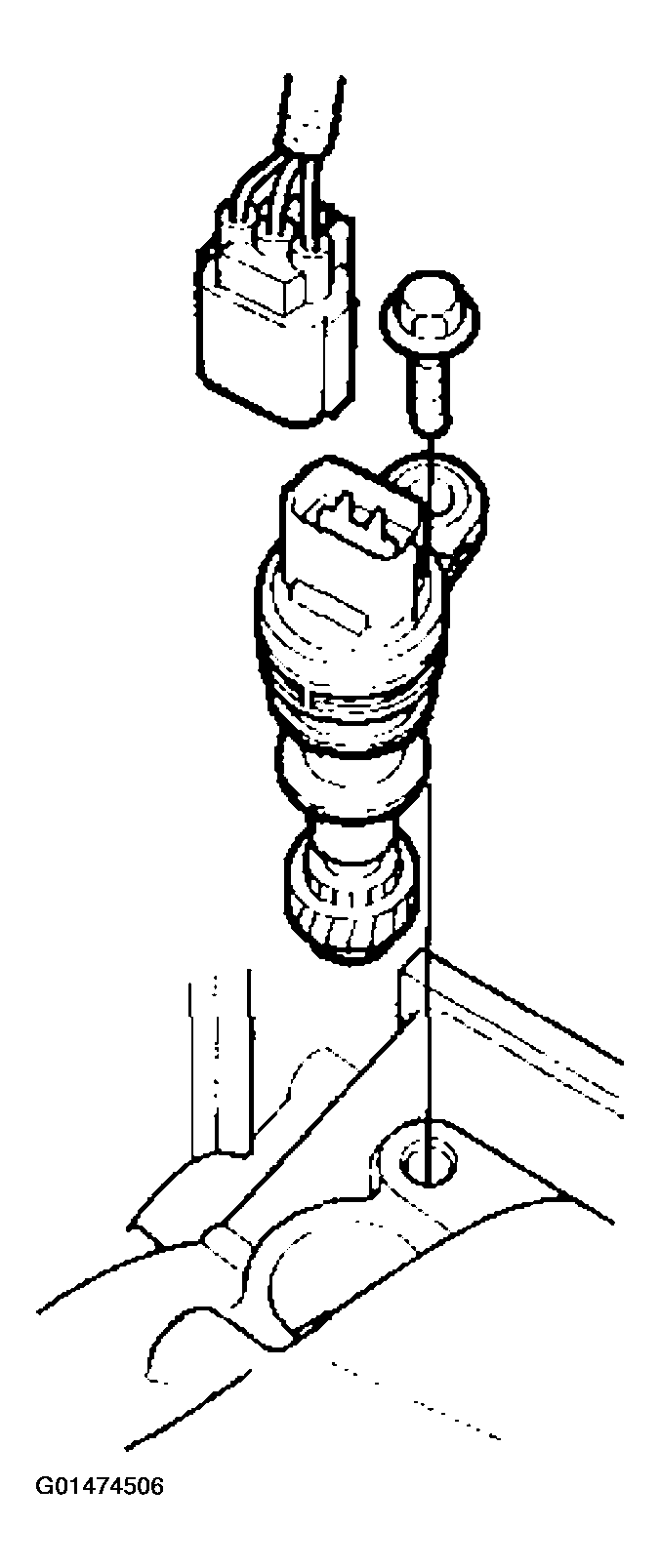

    Fig 1: Disconnecting 3-Pin Connector From Vehicle Speed Sensor
    G01474506Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the mounting bolt, then remove the VSS.
  4. Install the VSS in the reverse order of removal.
