Honda
>>
2004
>>
CR-V EX, Automatic
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panel
>>
Circuit Diagram
Circuit Diagram

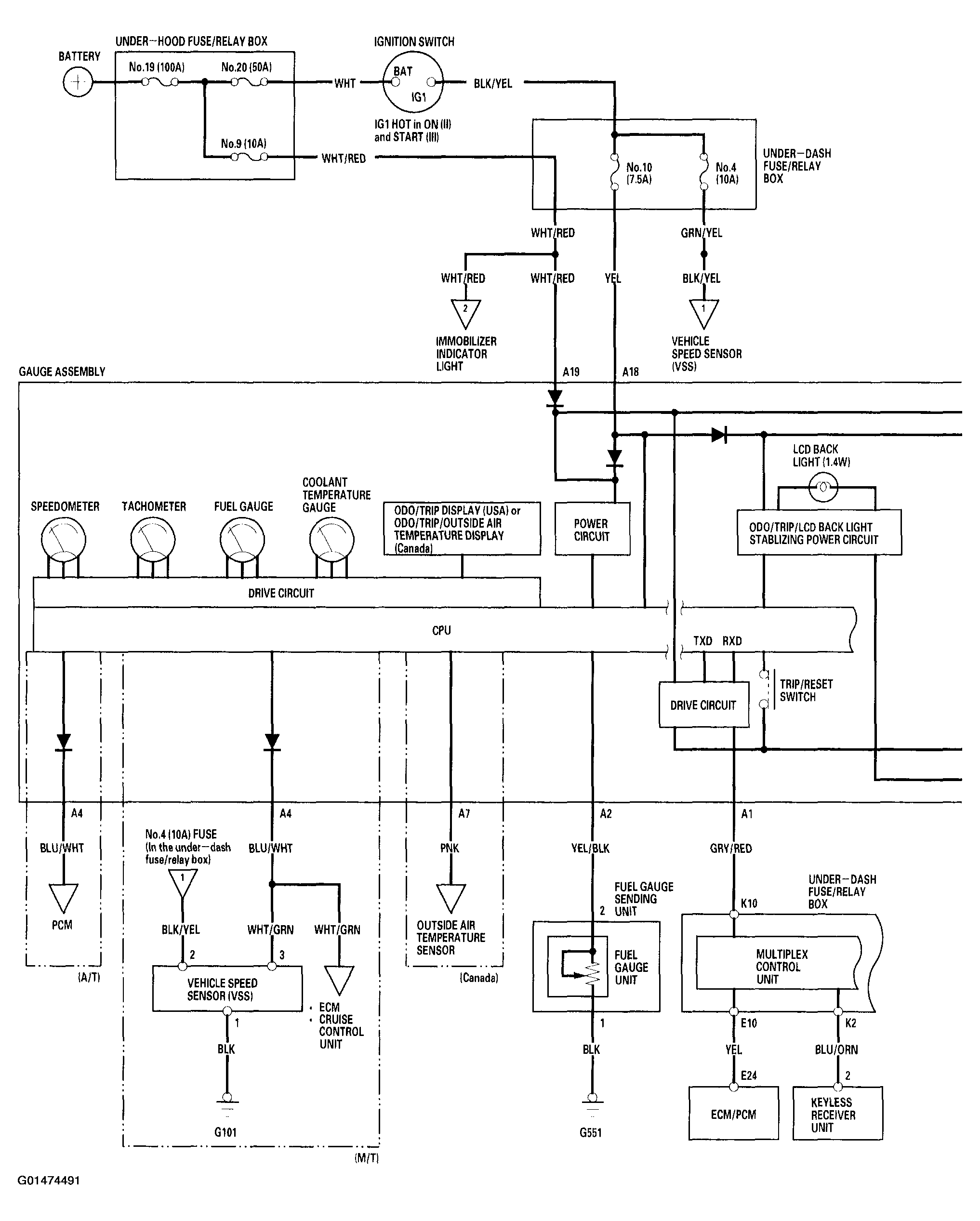

Fig 1: Identifying Circuit Diagram (1 of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

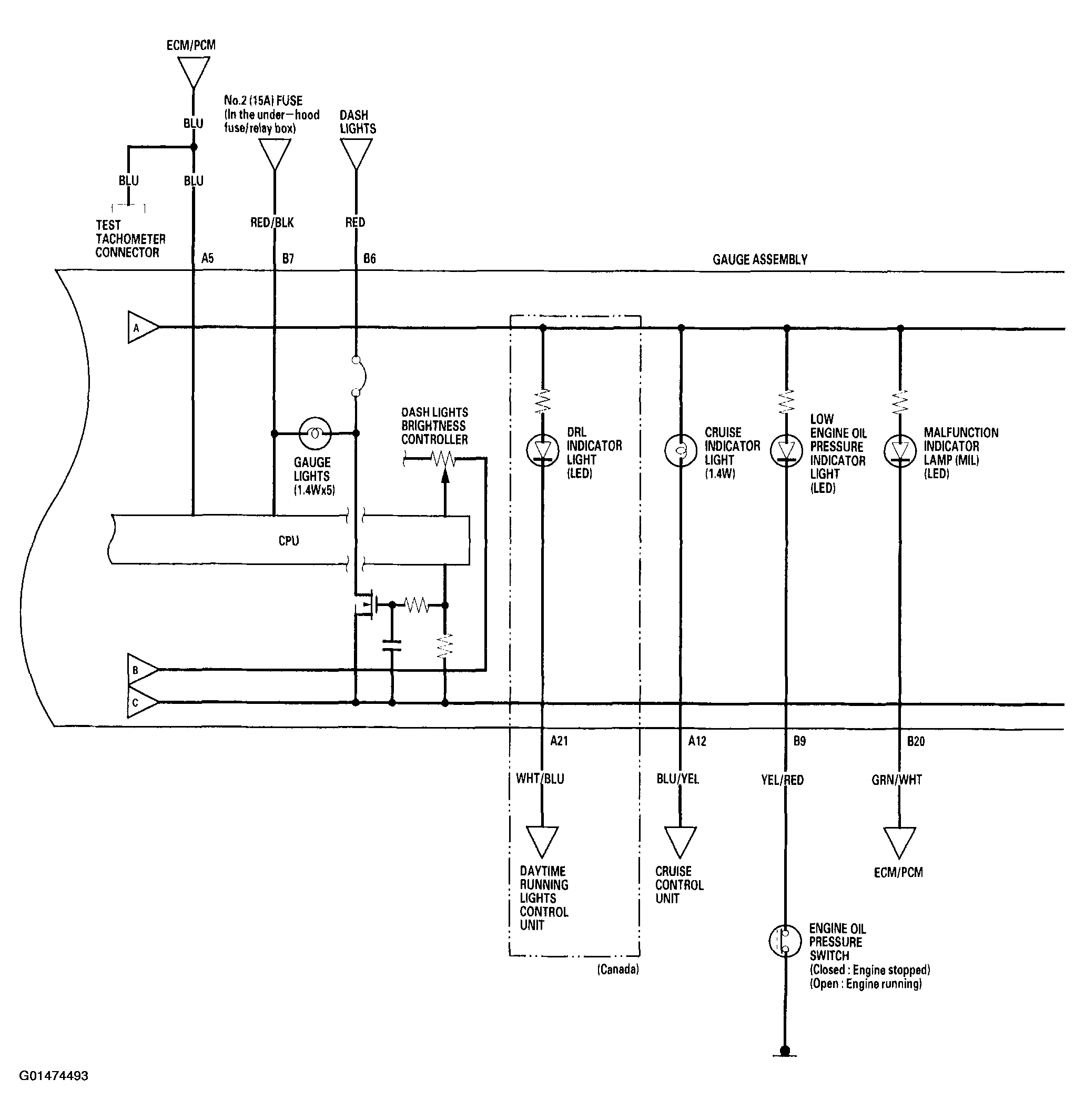

Fig 2: Identifying Circuit Diagram (2 of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

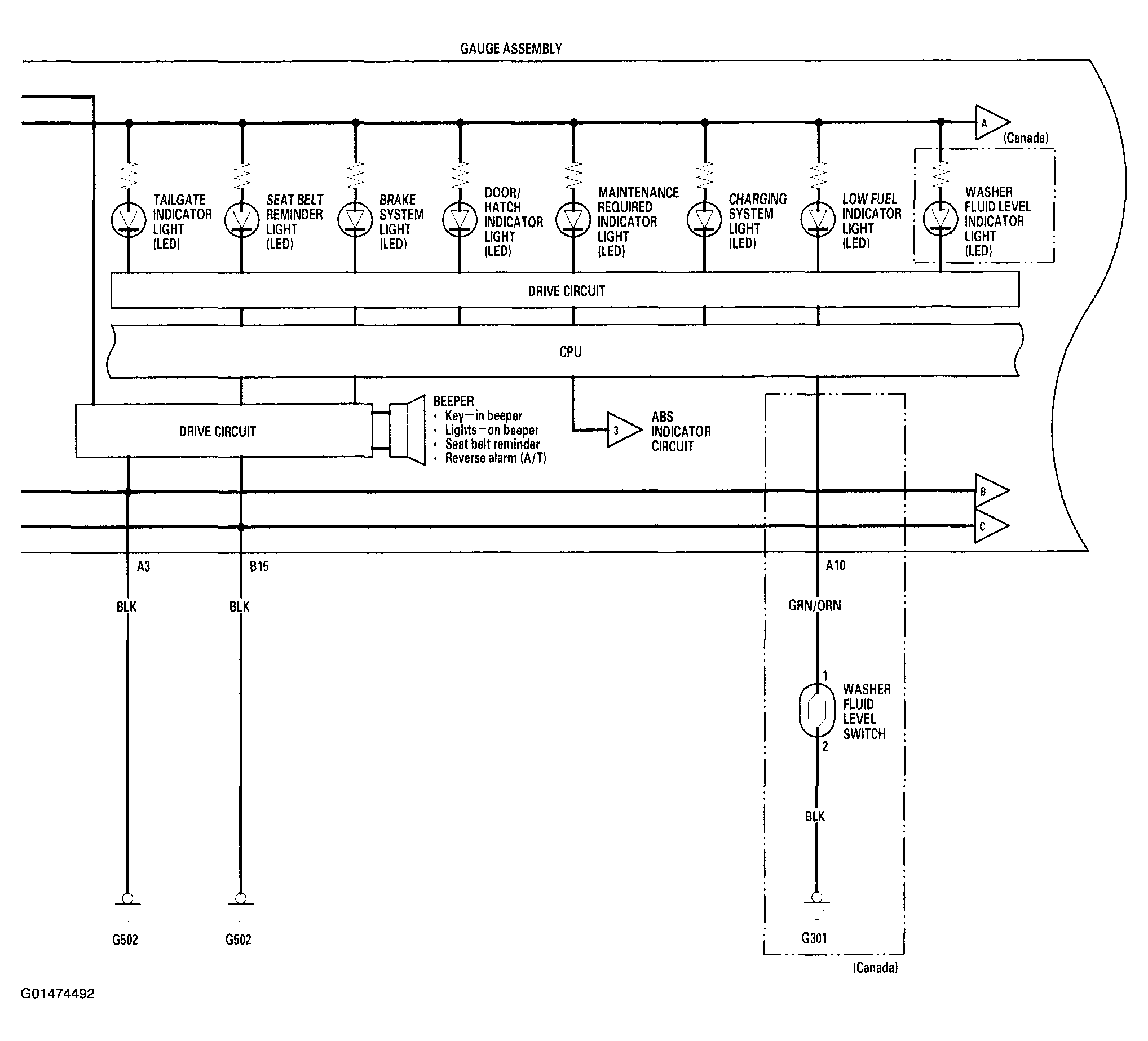

Fig 3: Identifying Circuit Diagram (3 of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

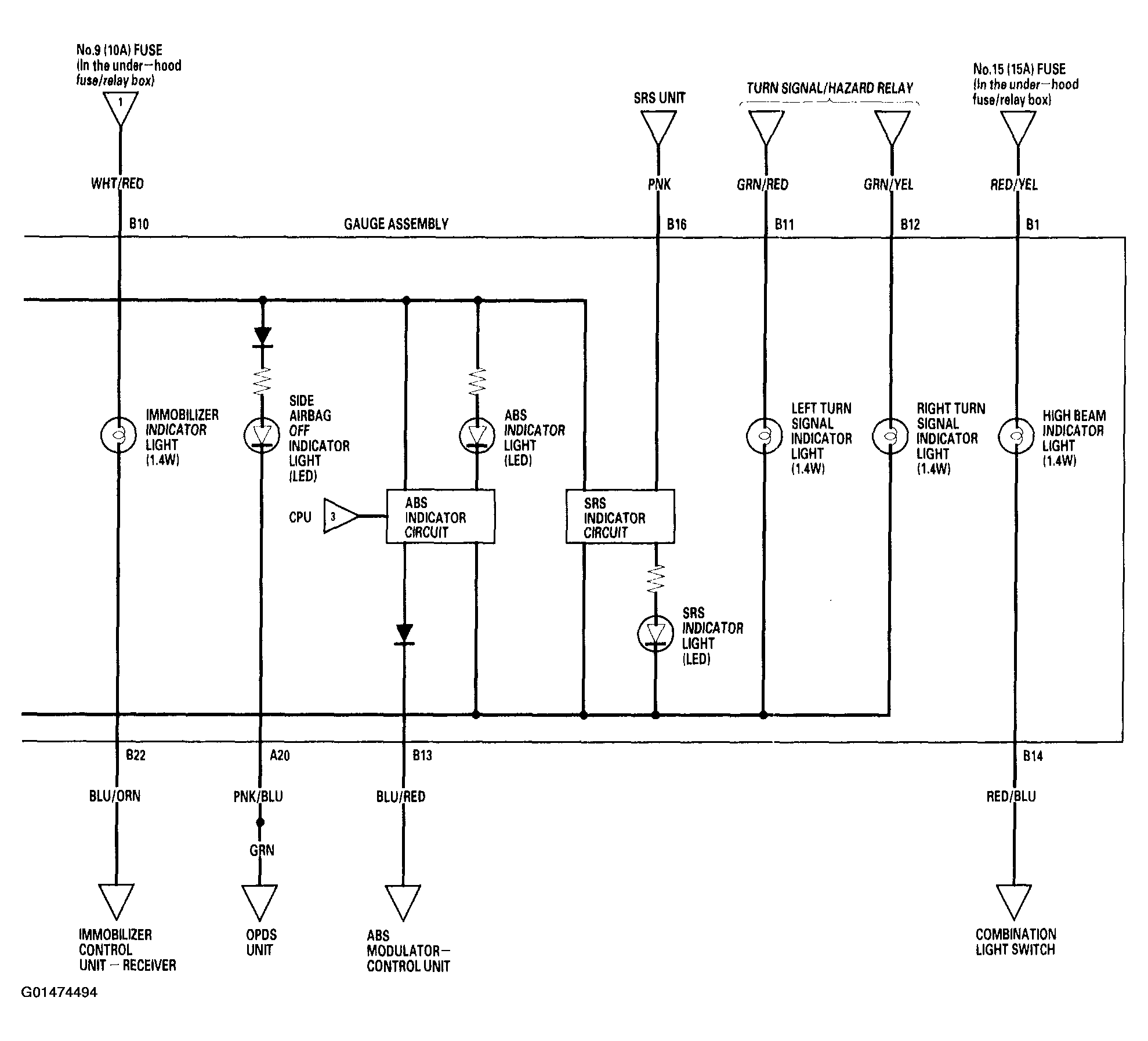

Fig 4: Identifying Circuit Diagram (4 of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
