Home >> Honda >> 2003 >> Pilot V6-3.5L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Belt Buckle Switch >> Locations

Seat Belt Buckle Switch: Locations

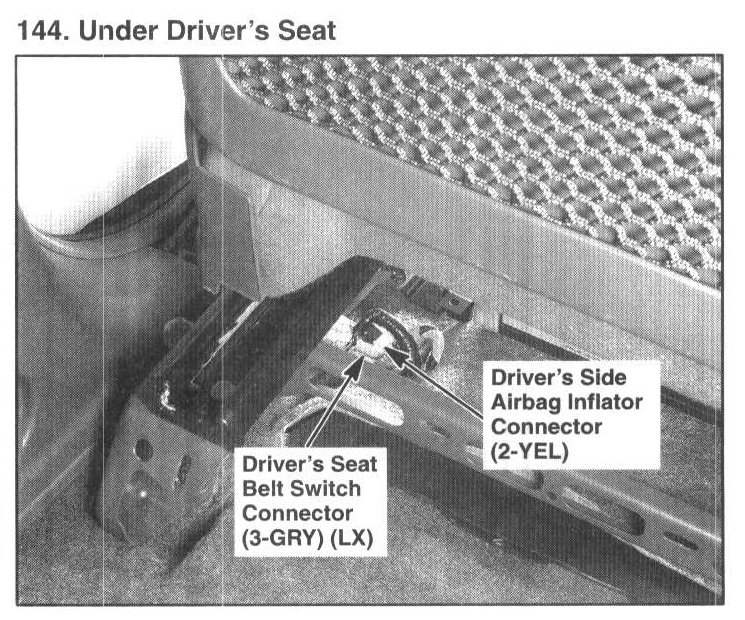

144. Under Driver's Seat:

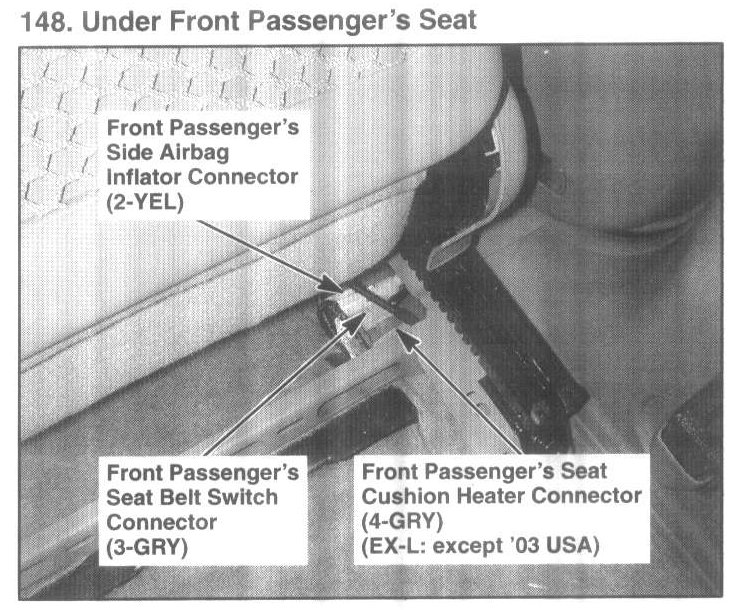

148. Under Front Passenger's Seat:

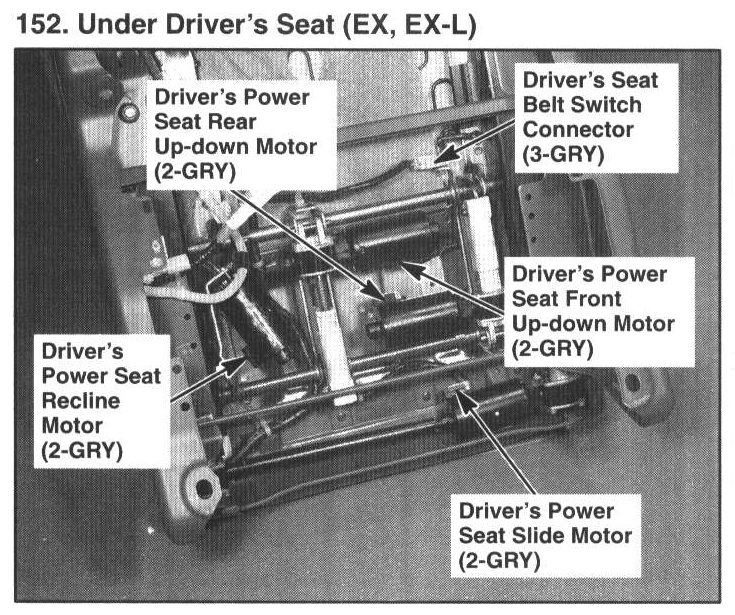

152. Under Driver's Seat (EX, EX-L):
