Connector Locations

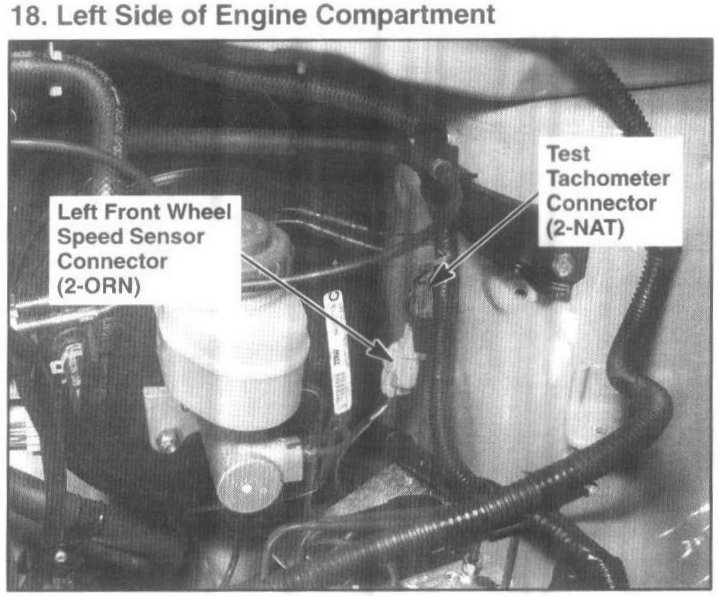

18. Left Side of Engine Compartment:

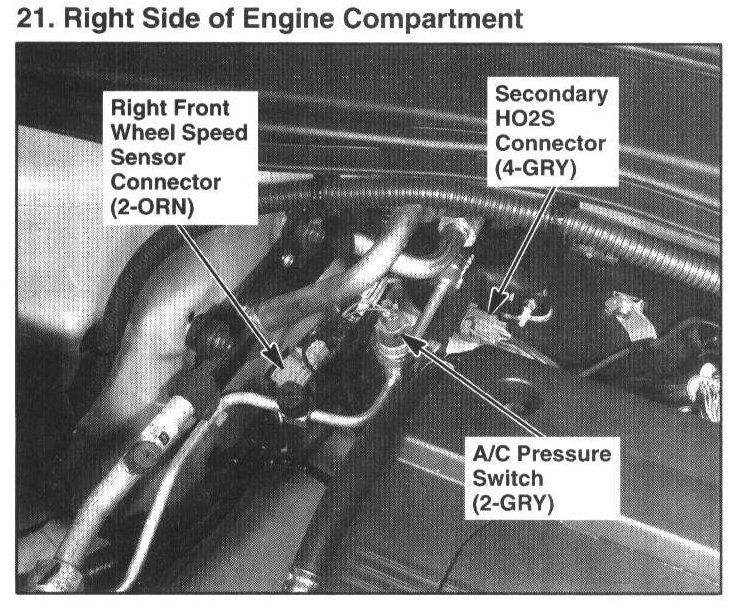

21. Right Side of Engine Cowl Compartment:

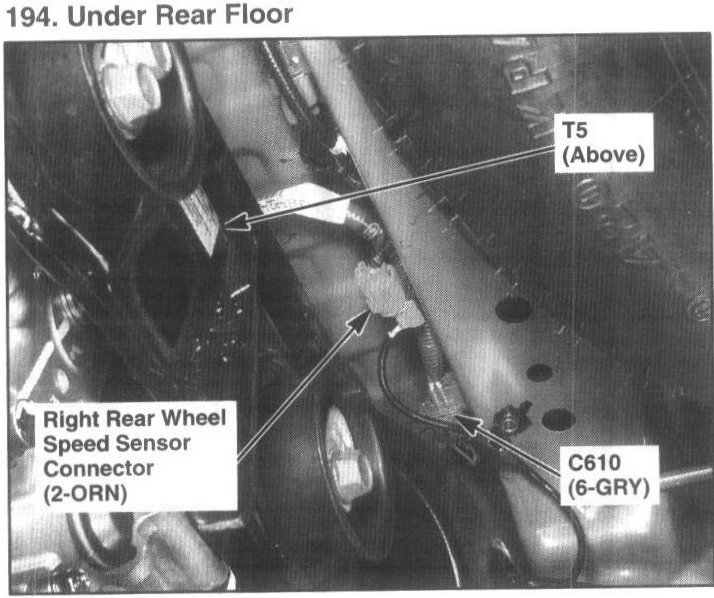

194. Under Rear Floor:
