Home >> Honda >> 2003 >> Pilot V6-3.5L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Braking Sensor/Switch >> Locations

Braking Sensor/Switch: Locations

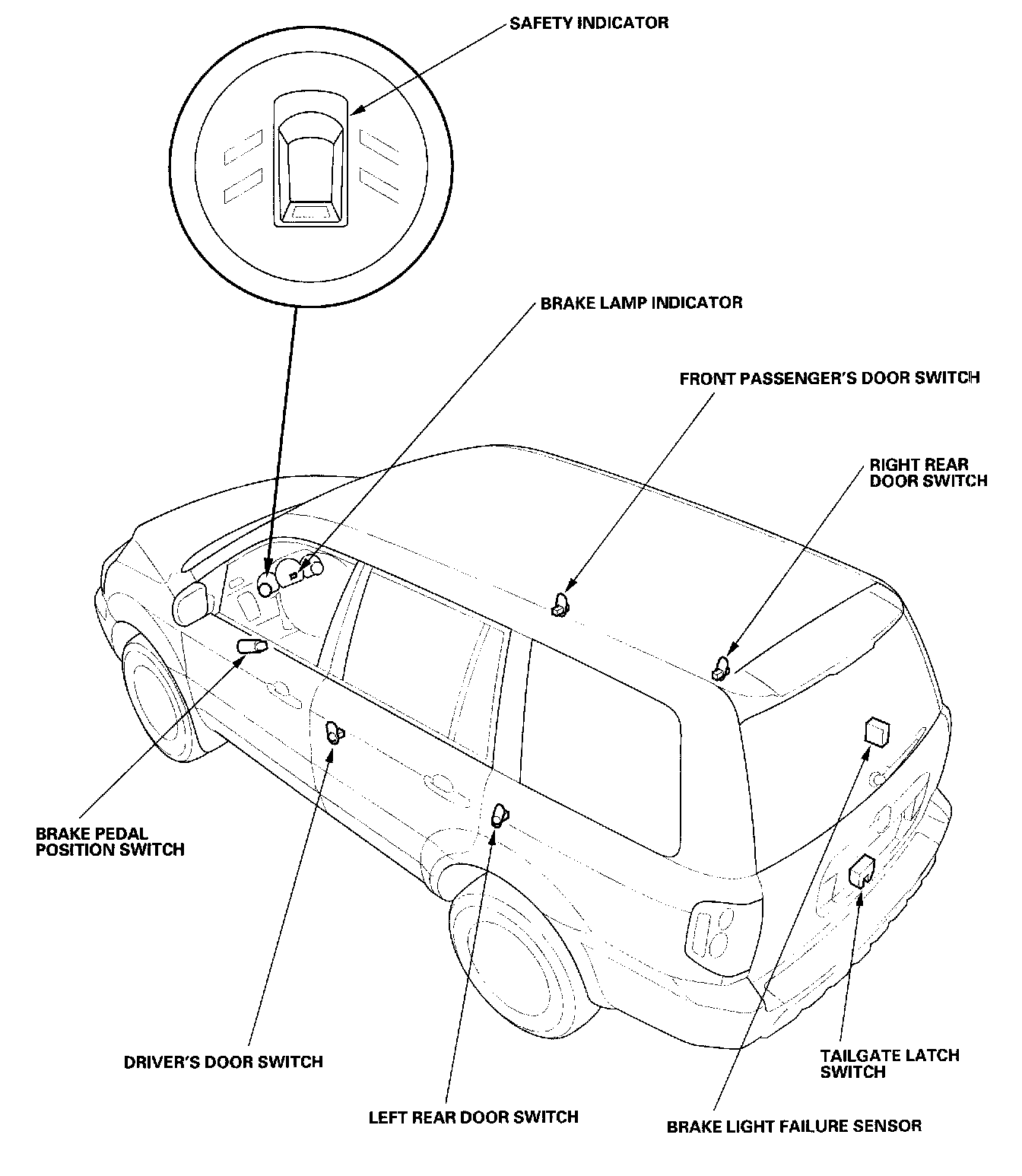

Safety Indicator System Component Location Index:

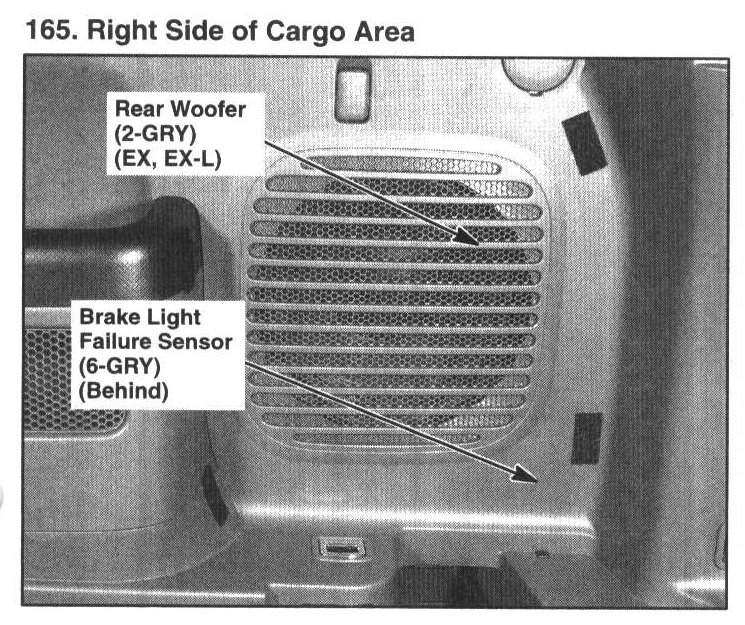

165. Right Side of Cargo Area:
