Home >> Honda >> 2003 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 150 >> 150-8 to 150-10

150-8 to 150-10

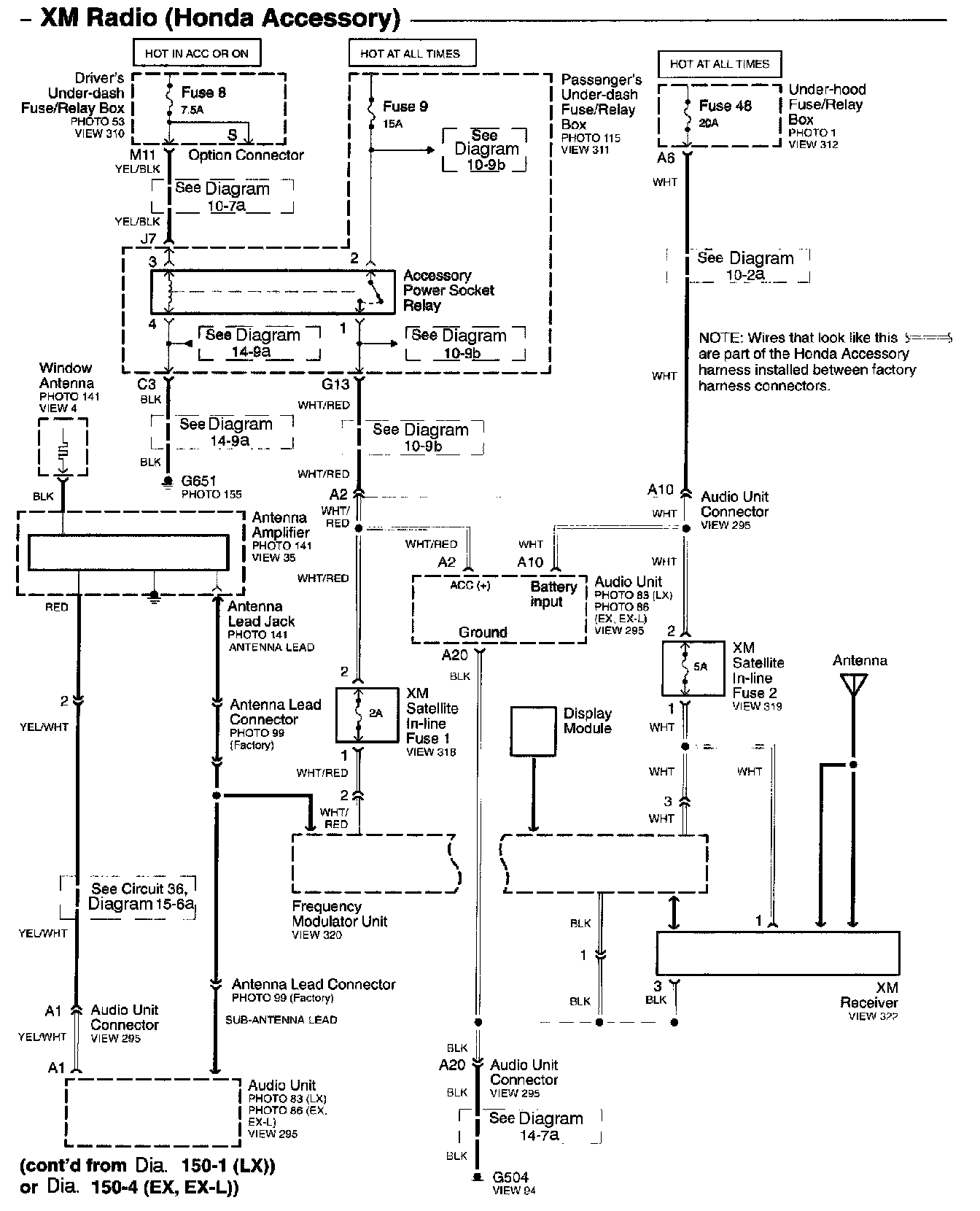

Diagram 150-8 XM Radio (Honda Accessory):

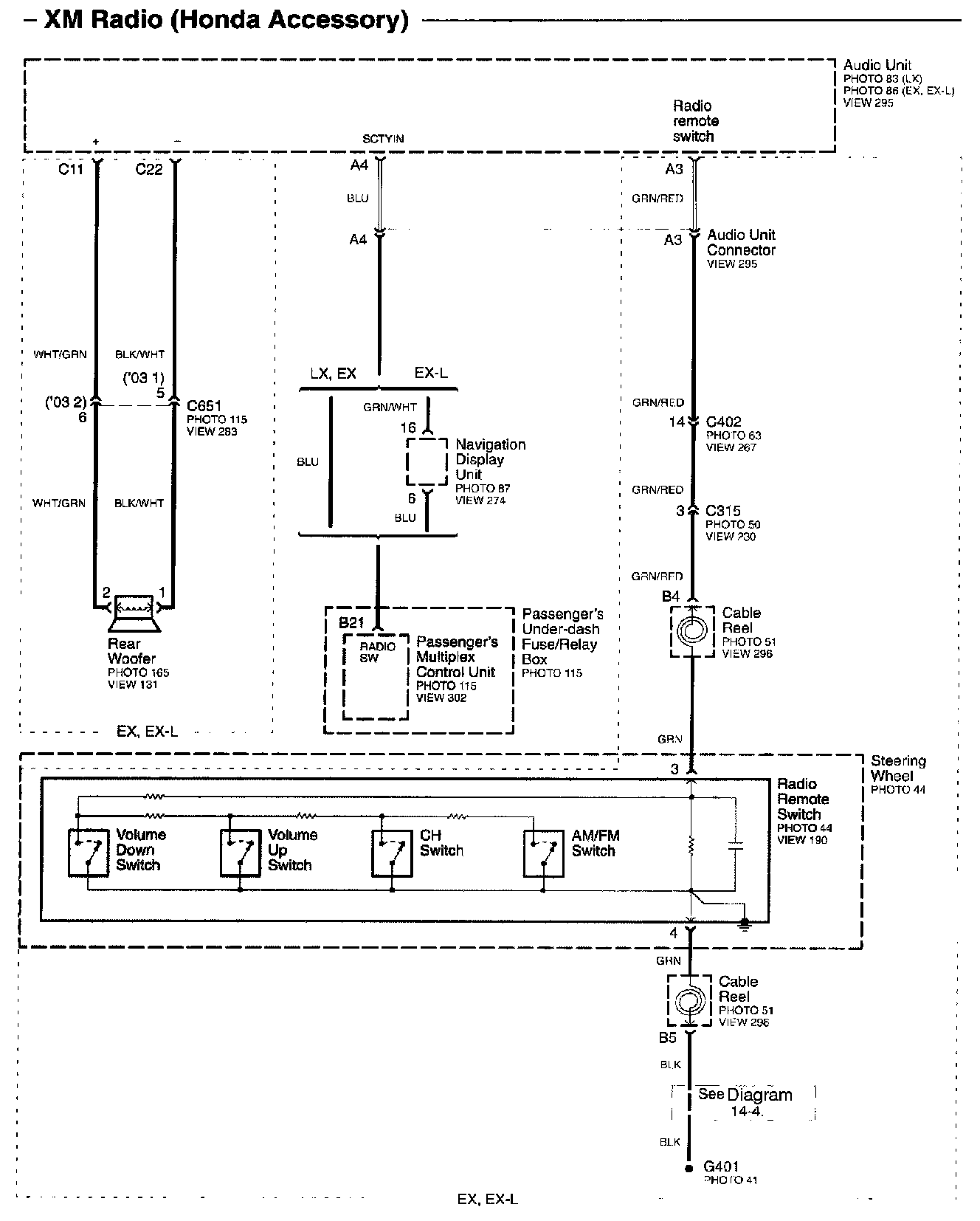

Diagram 150-9 (Honda Accessory):

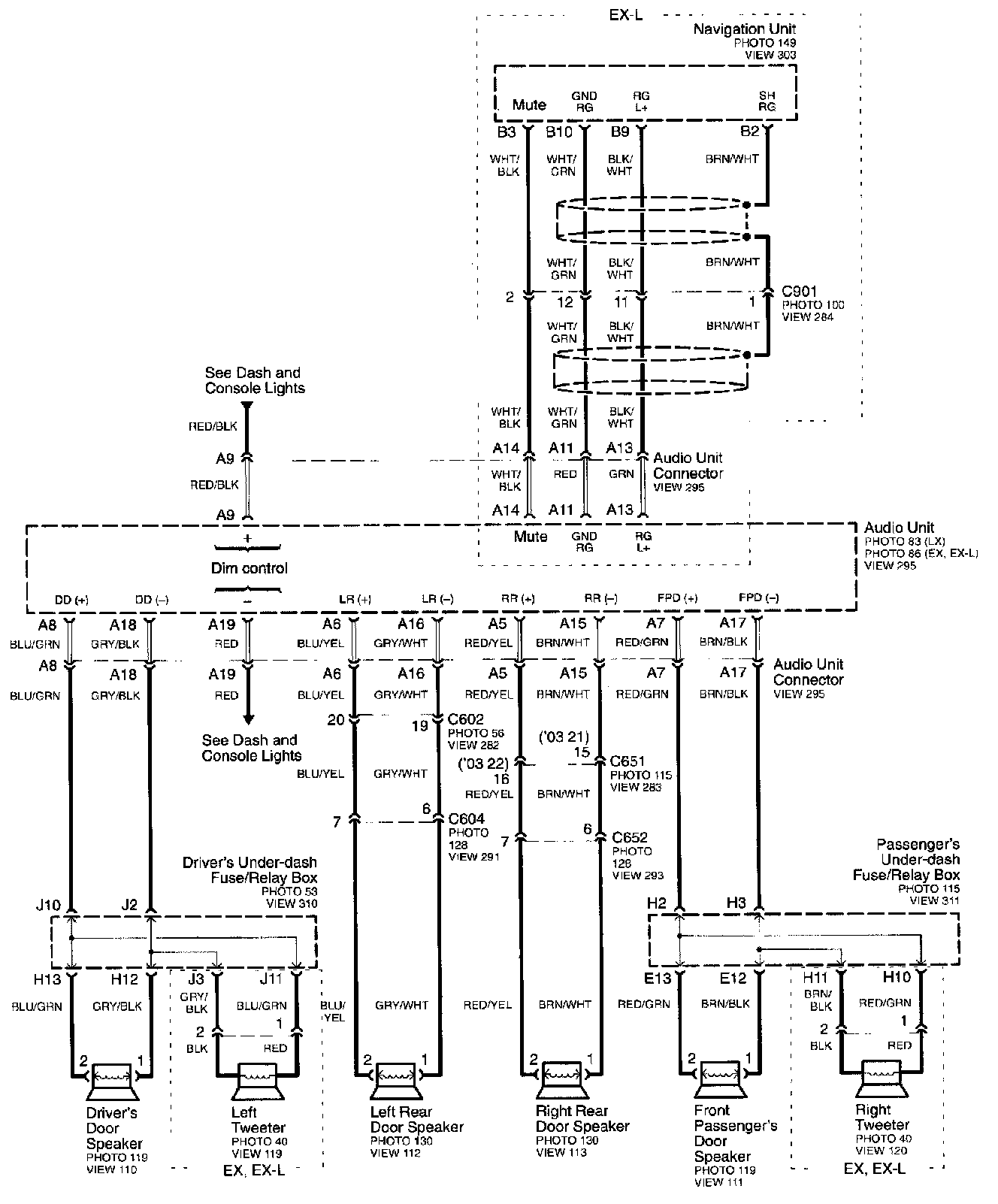

Diagram 150-10 (Honda Accessory):
