150-0 to 150-4

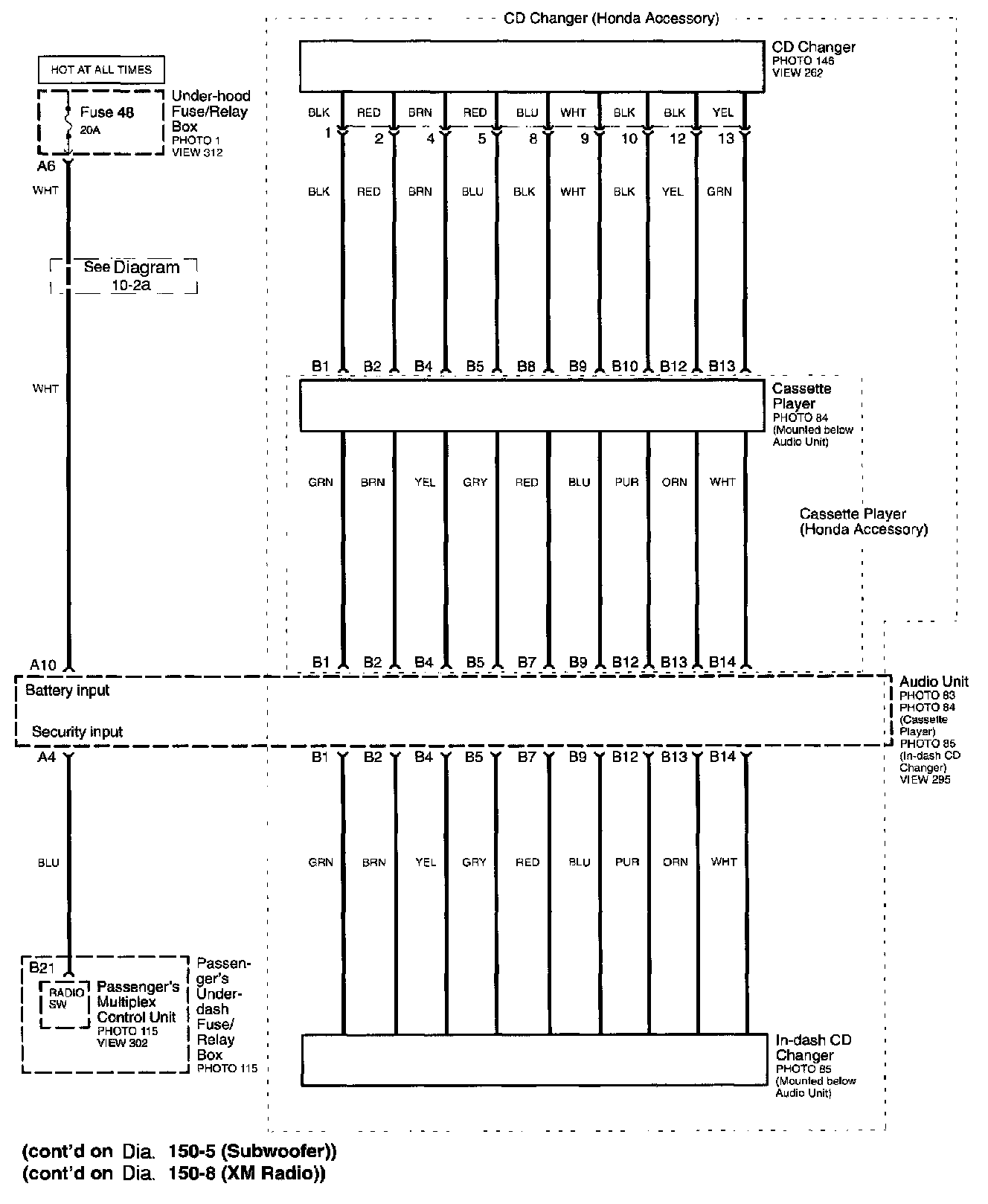

Diagram 150-0 (LX):

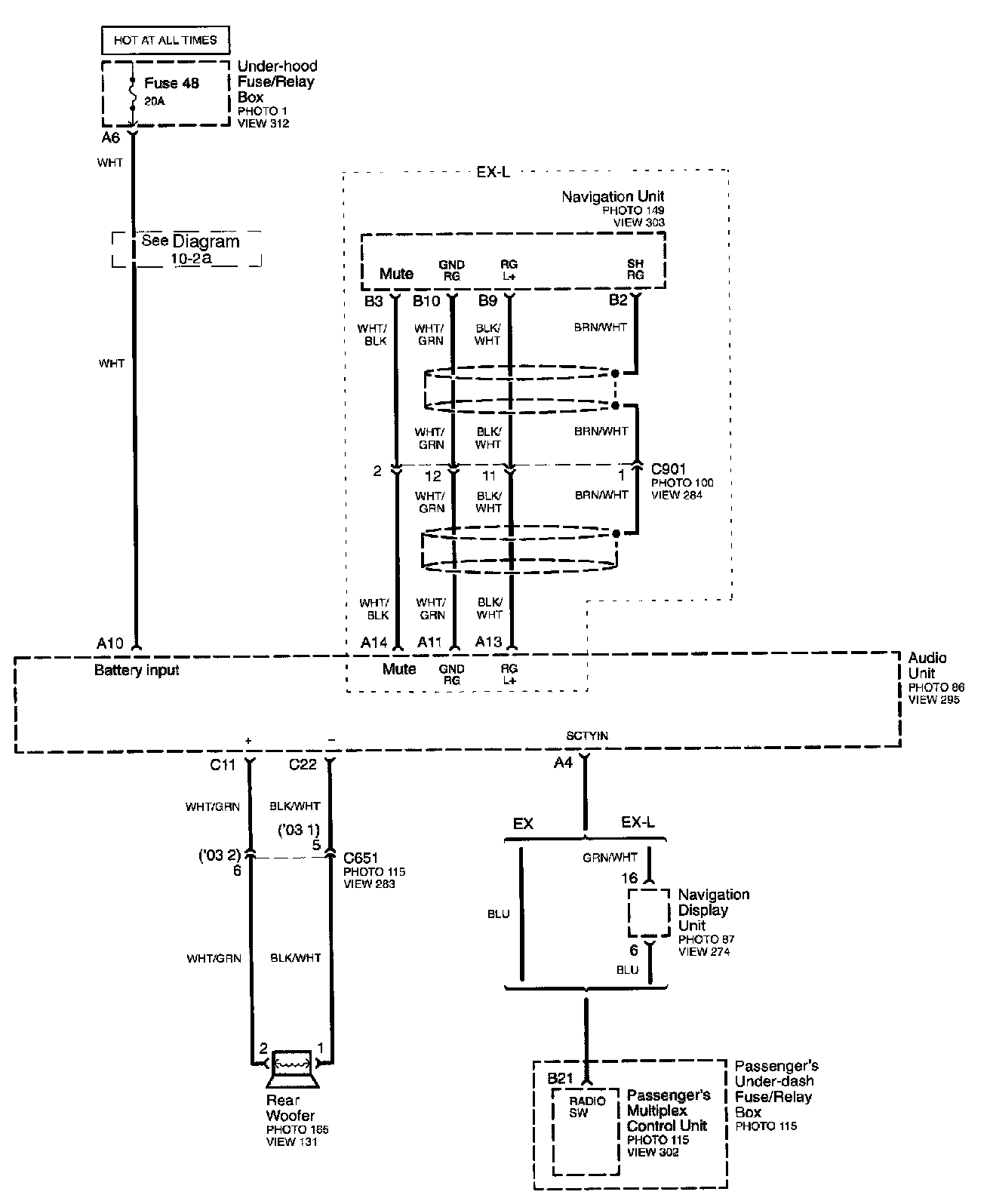

Diagram 150-1 (LX):

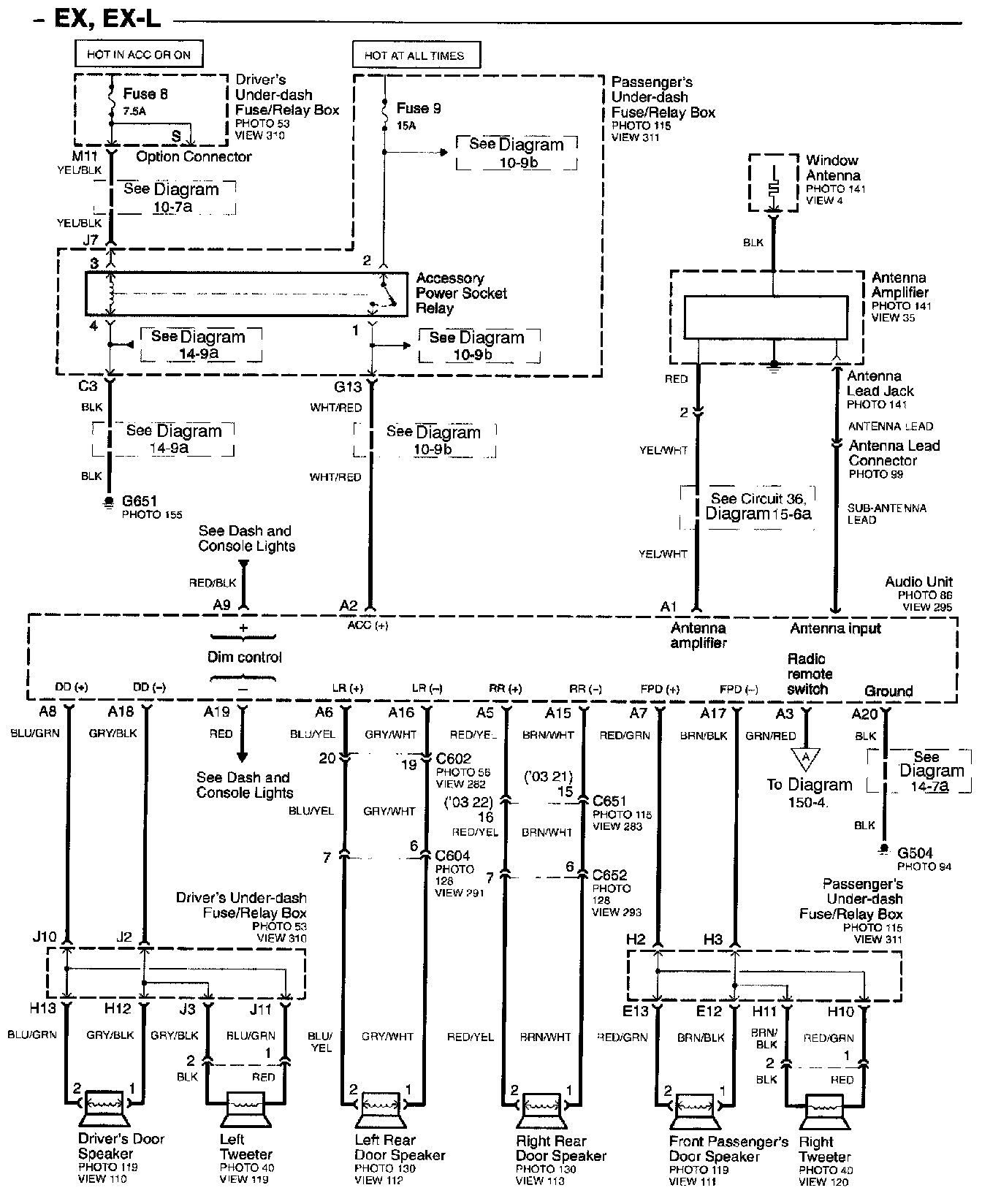

Diagram 150-2 (EX, EX-L):

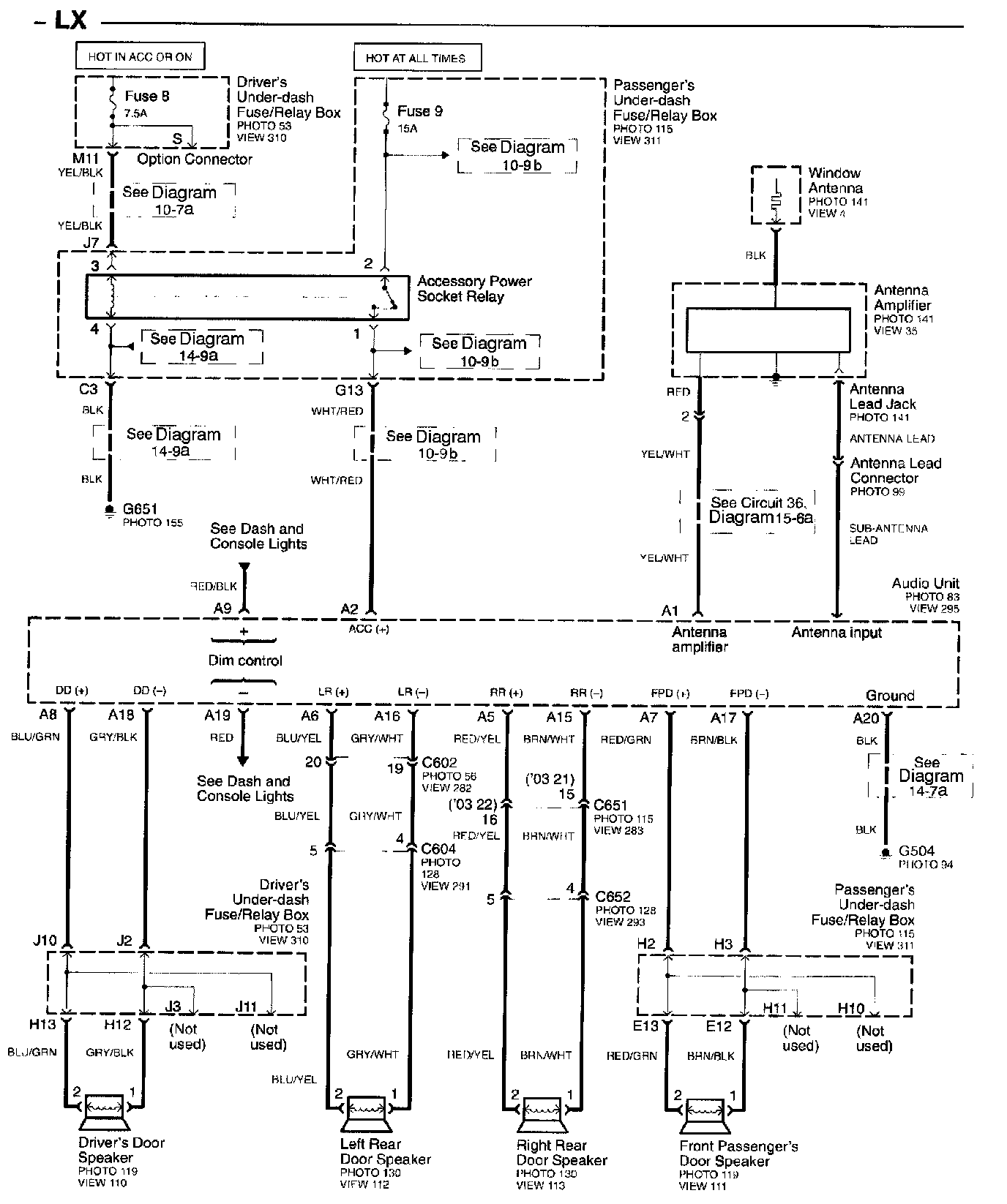

Diagram 150-3 (EX, EX-L):

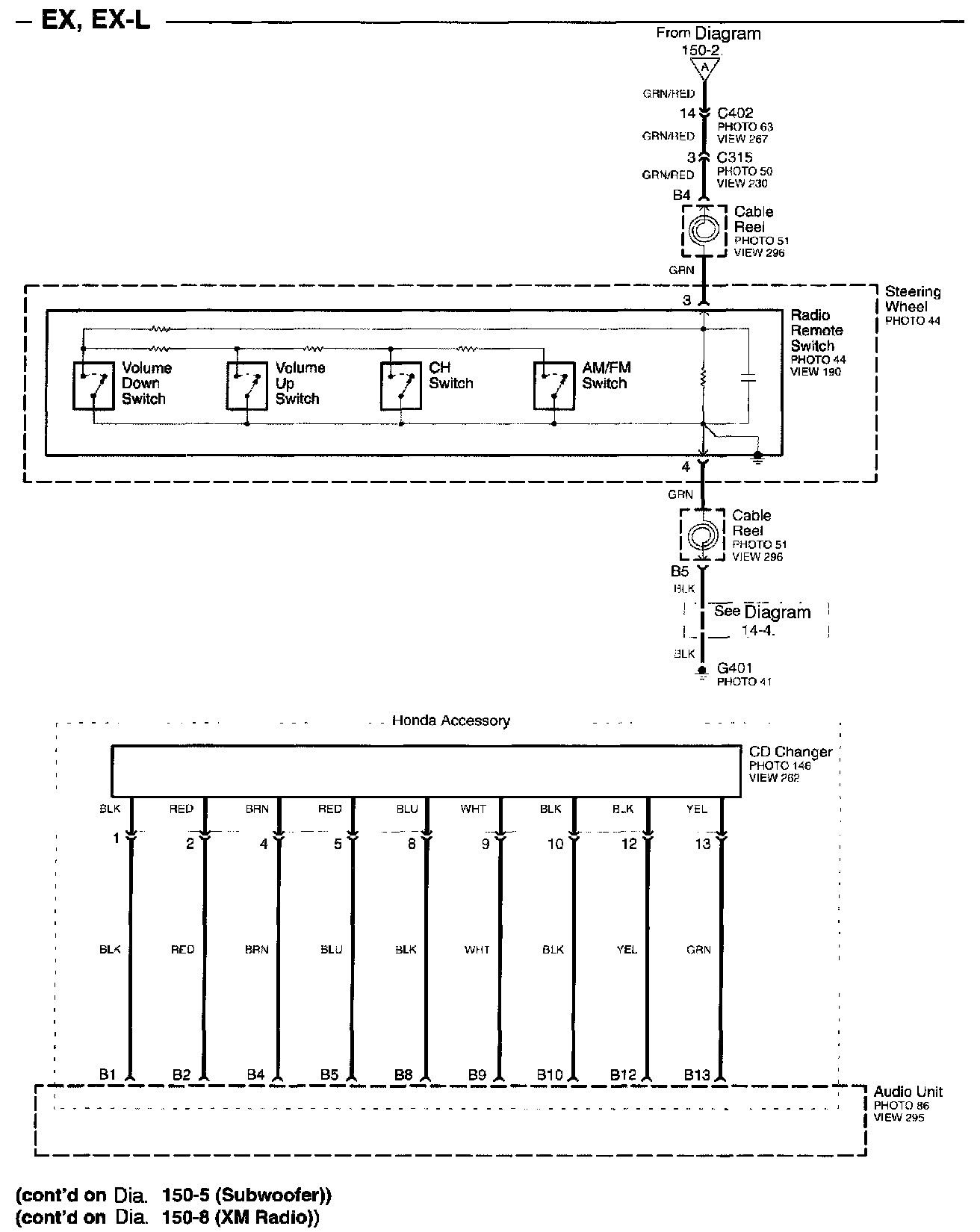

Diagram 150-4 (EX, EX-L):
