110-5 to 110-10

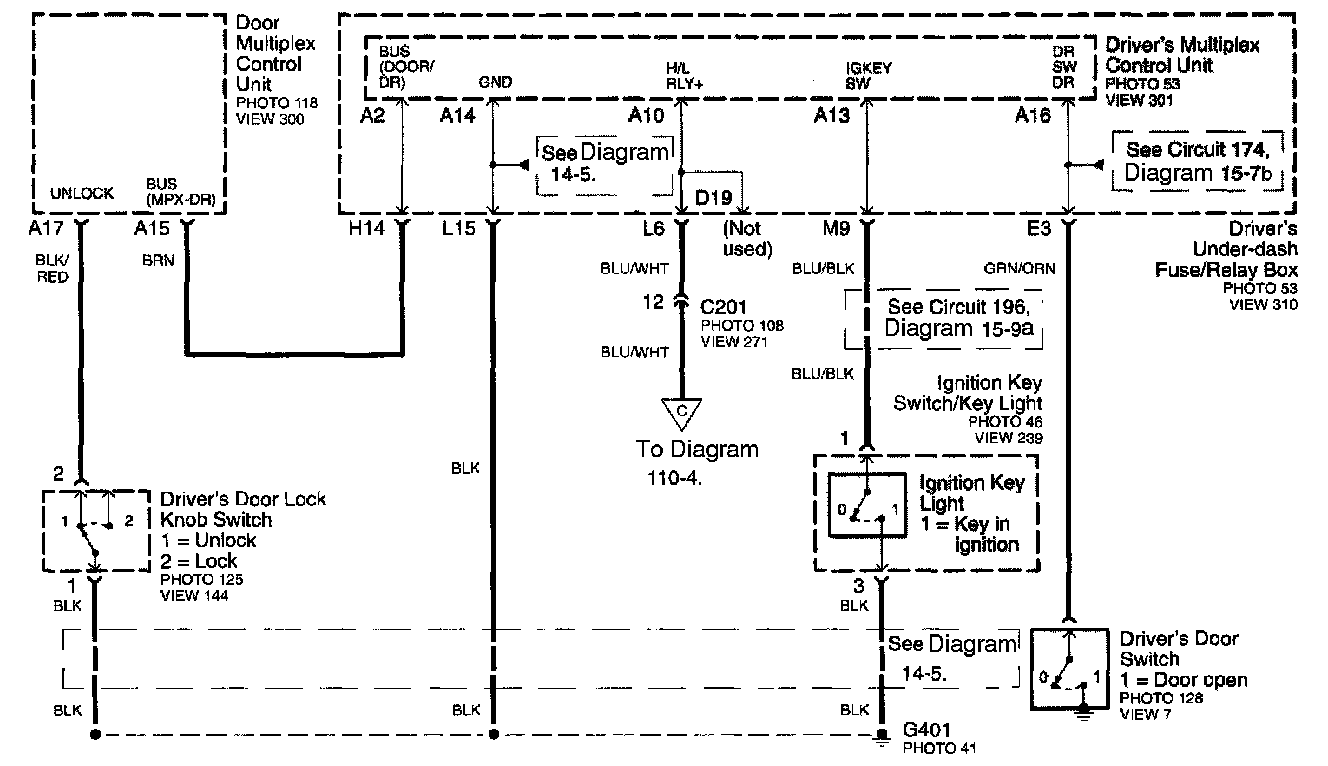

Diagram 110-5 (USA):

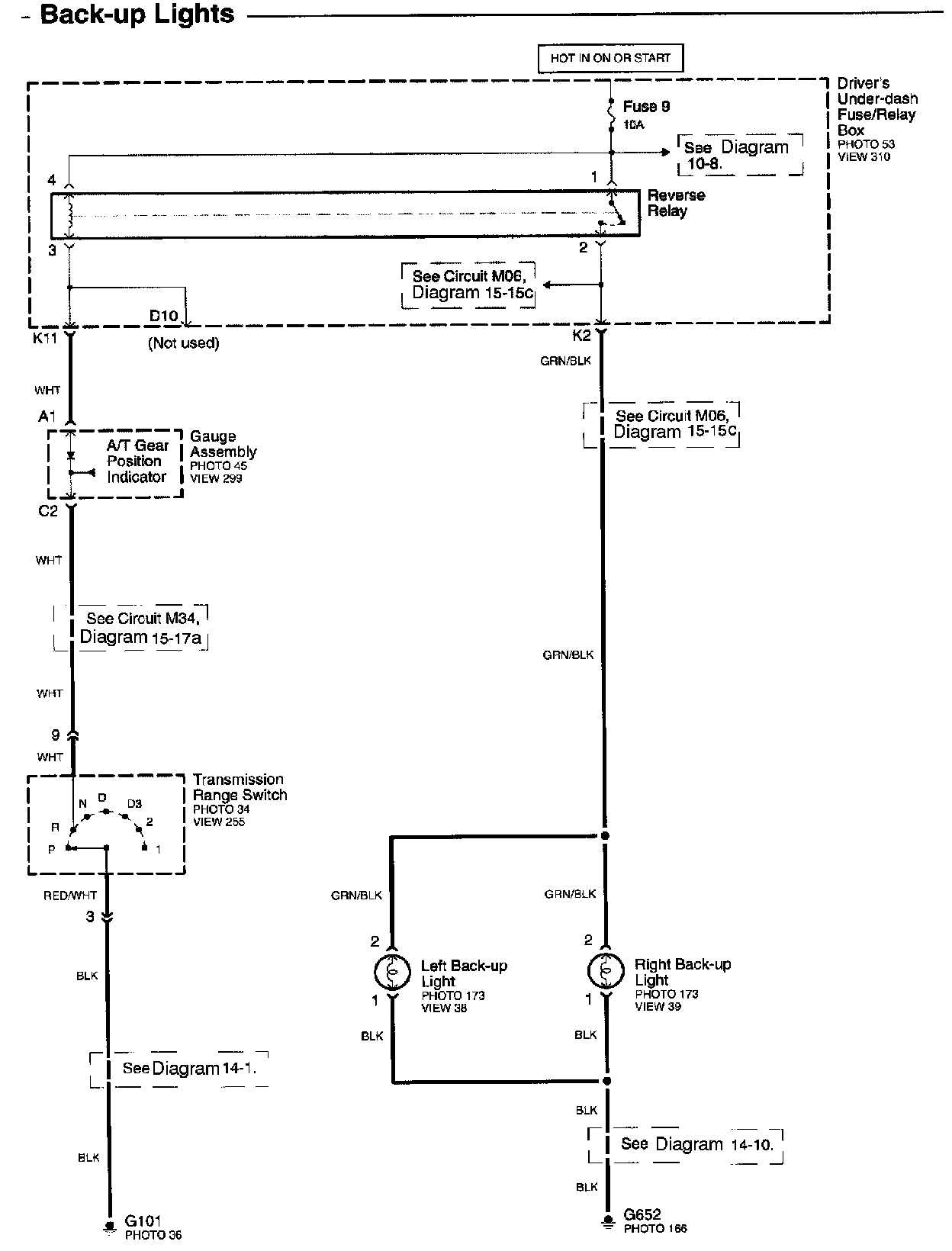

Diagram 110-7:

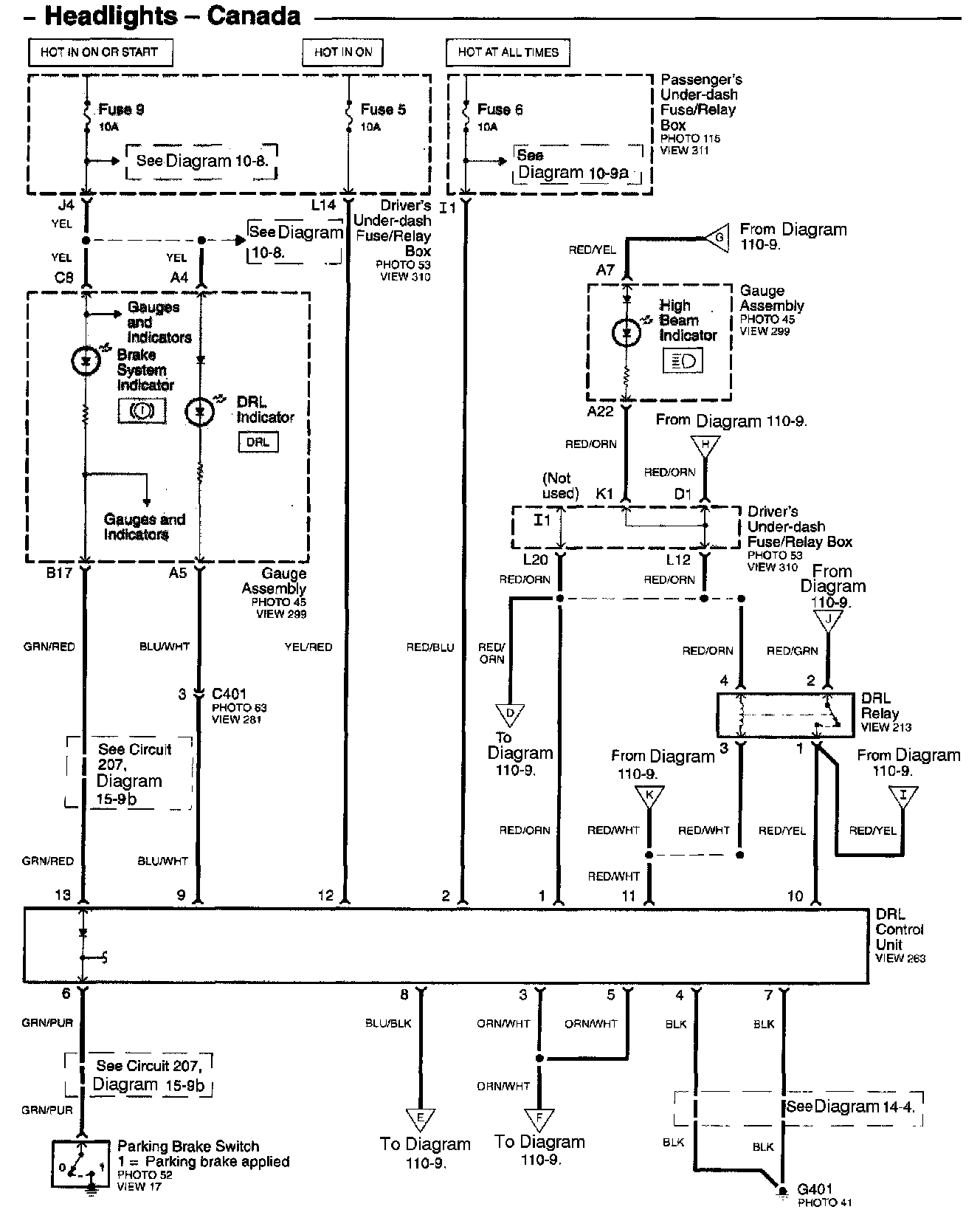

Diagram 110-8 (Canada):
Diagram 110-9 (Canada):

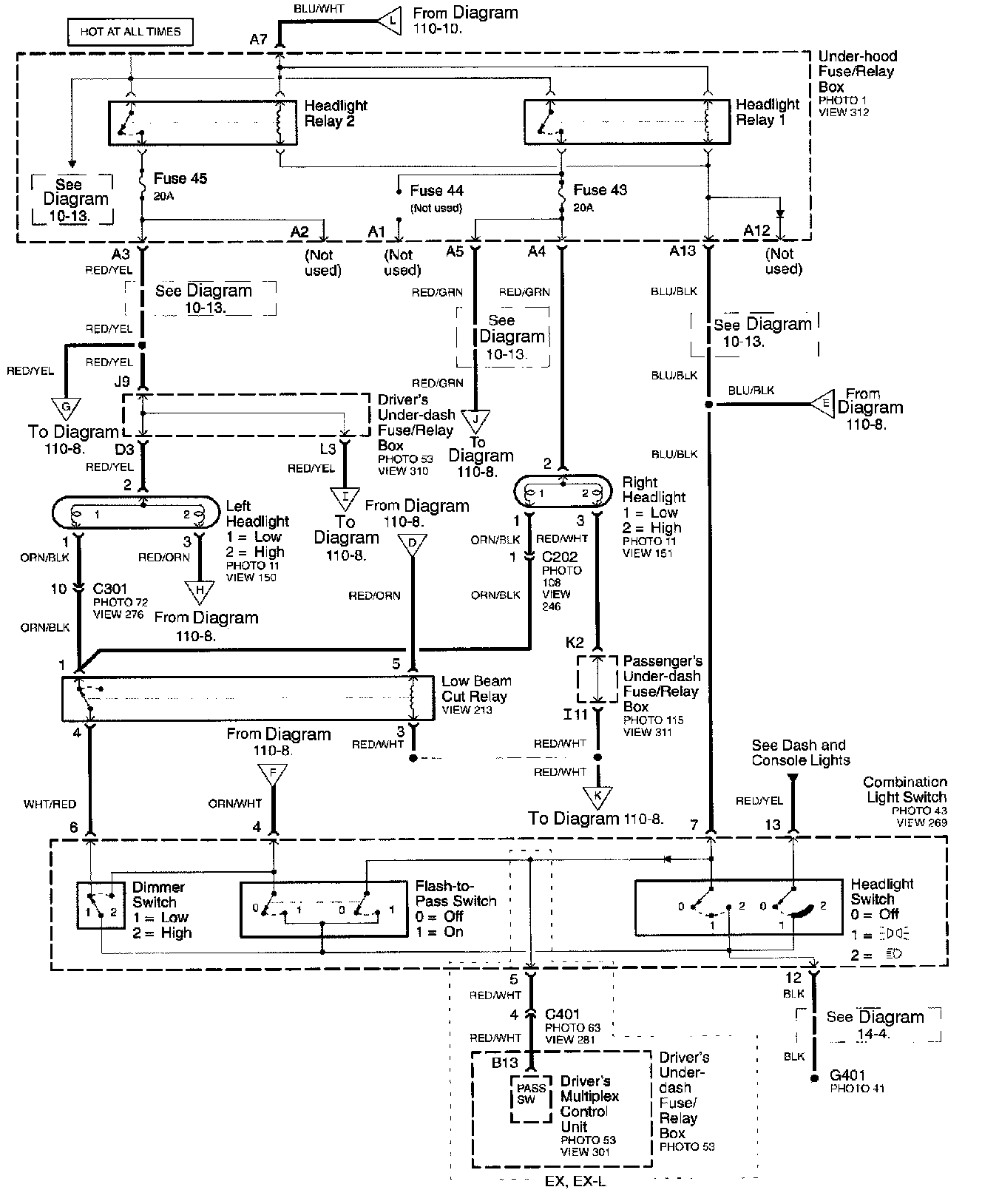

Diagram 110-10 (Canada):
