Dashboard Wire Harness B (left branch)

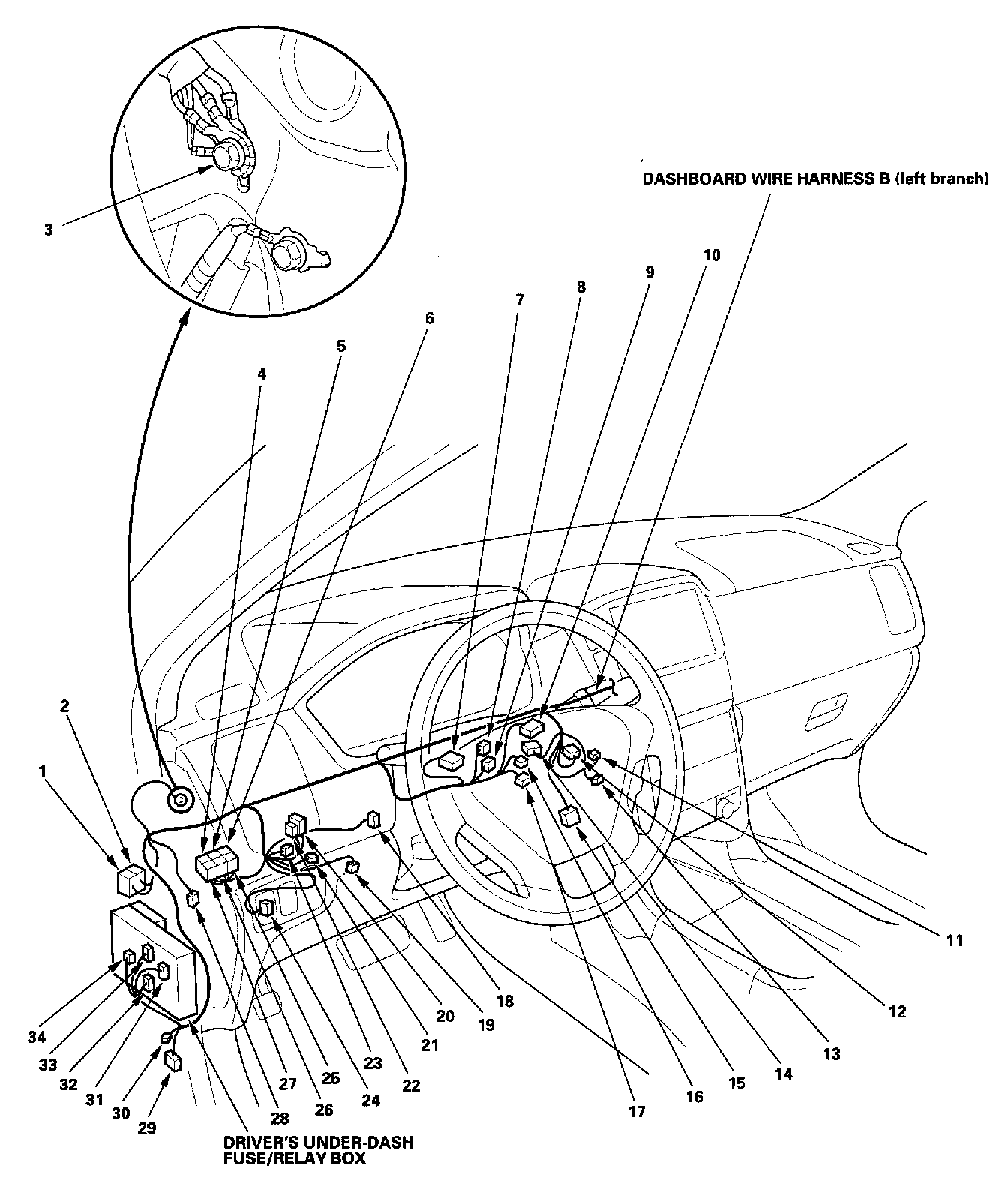

Harness Location View:

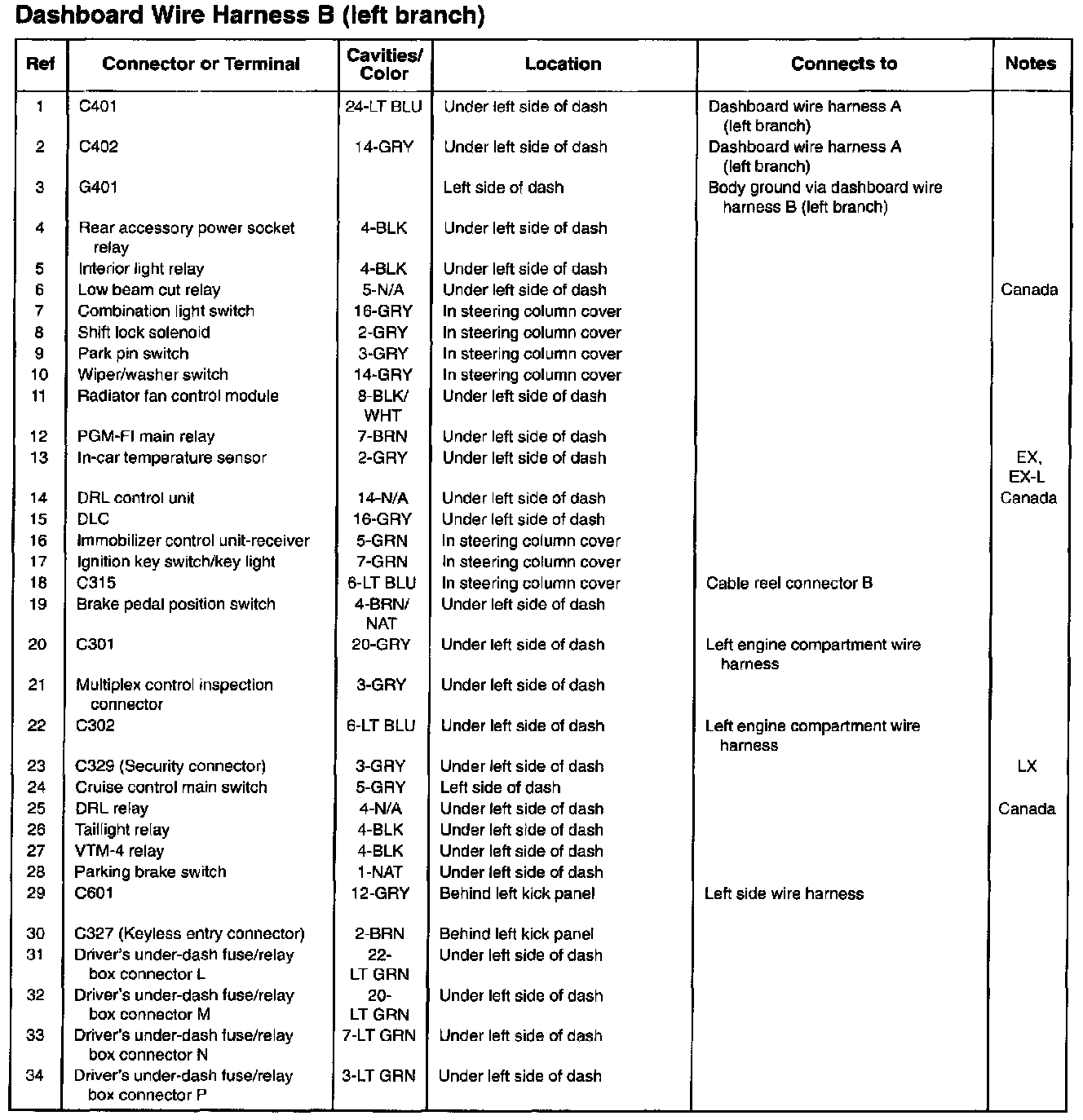

Dashboard Wire Harness B (left Branch):

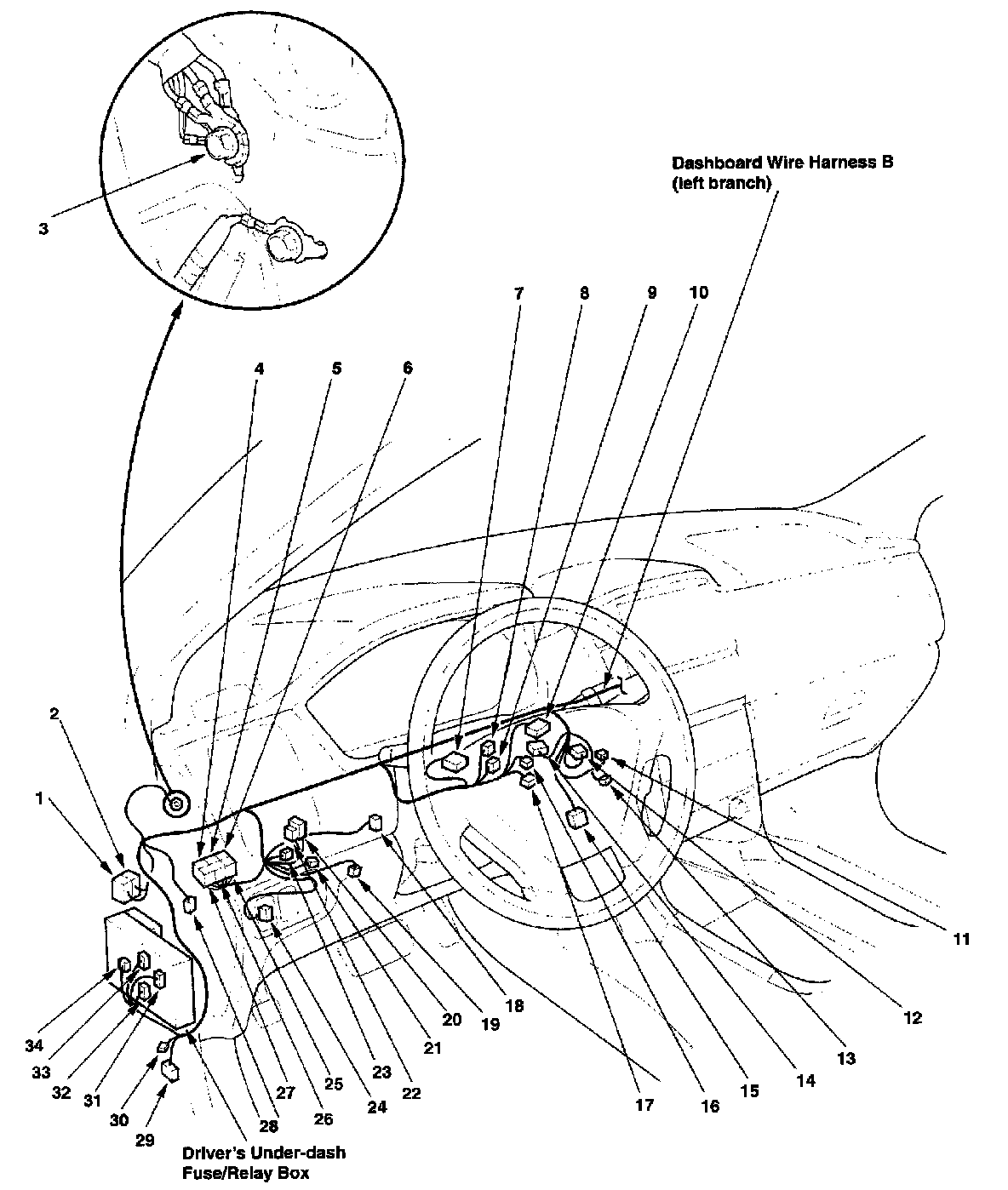

Harness Location View:

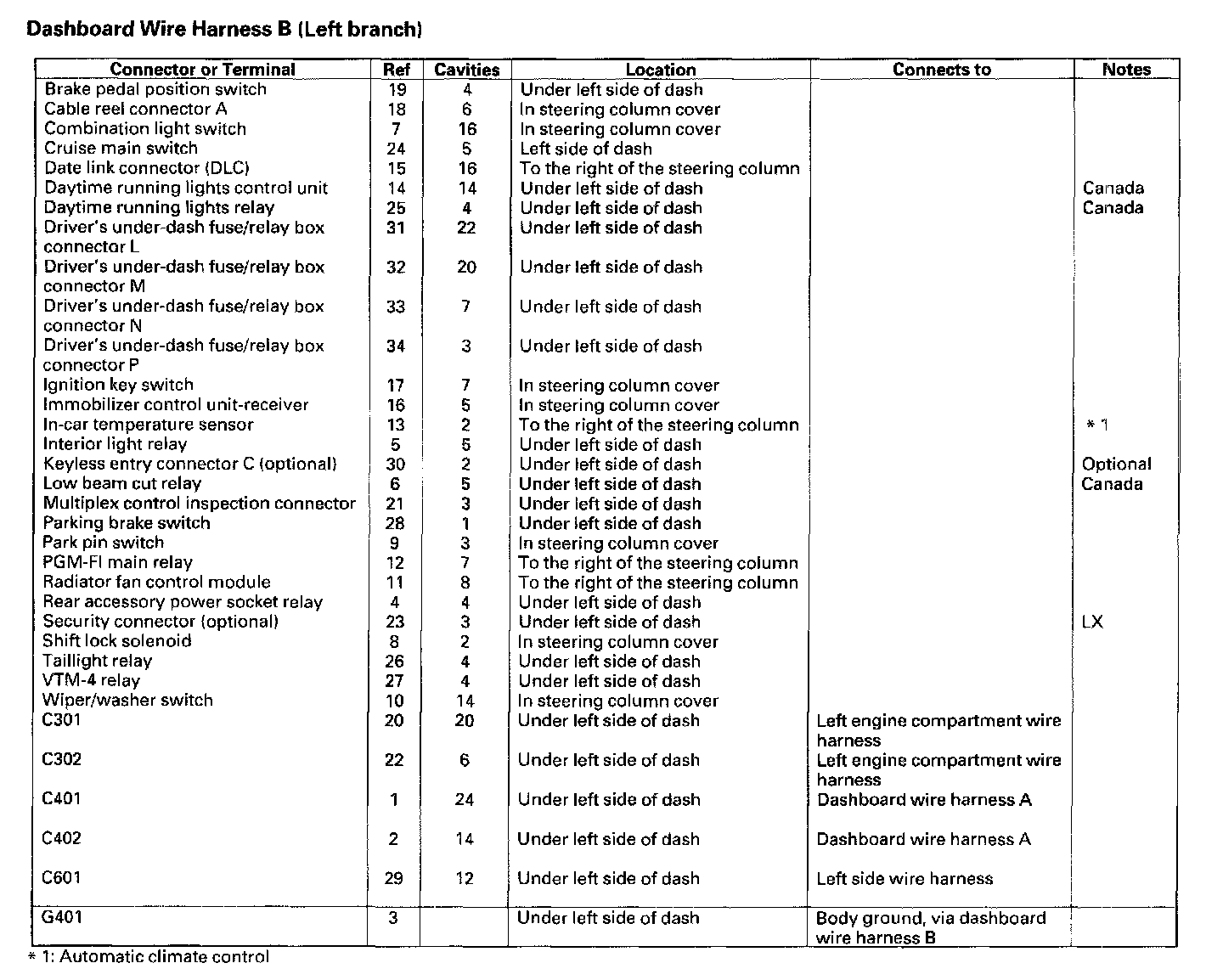

Dashboard Wire Harness B (Left Branch):
