Trim Removal/Installation - Rear Side Pillar Area
NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

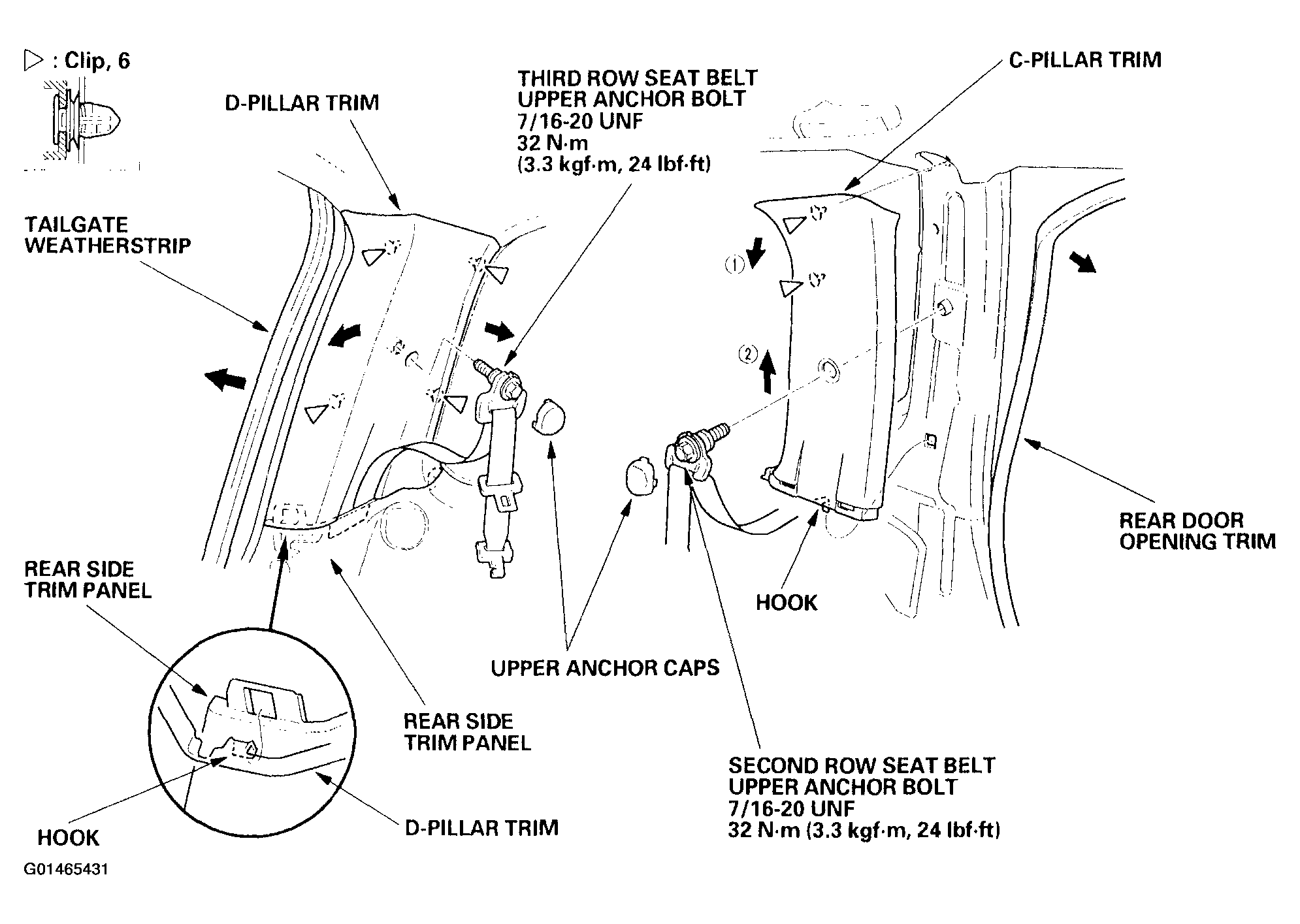

- Remove the trim as shown. To remove the C-pillar, trim, remove the upper portion of the rear side trim panel as necessary (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
- Install the trim in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
- Apply liquid thread lock to the upper anchor bolts before installation.
- When installing the rear side trim panel, make sure there are no pinches in the seat belts.
- Before installing the anchor bolts, make sure there are no twists or kinks in the seat belts.
