Reminder Systems, Key Light Timer, & Engine Oil Pressure Indicator Systems
>>
Circuit Diagram
Circuit Diagram

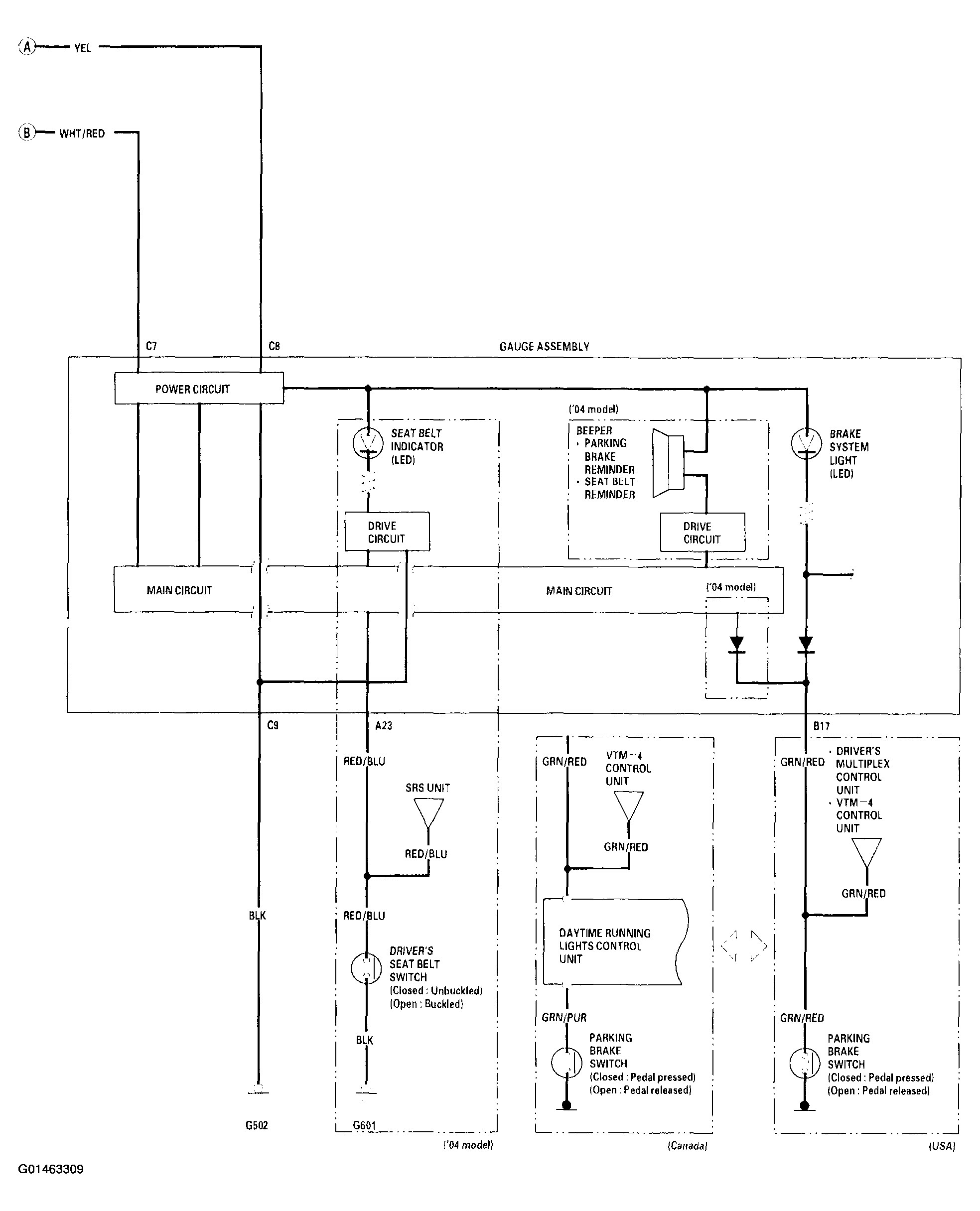

Fig 1: Reminder Systems, Key Light Timer, & Engine Oil Pressure Indicator Systems Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

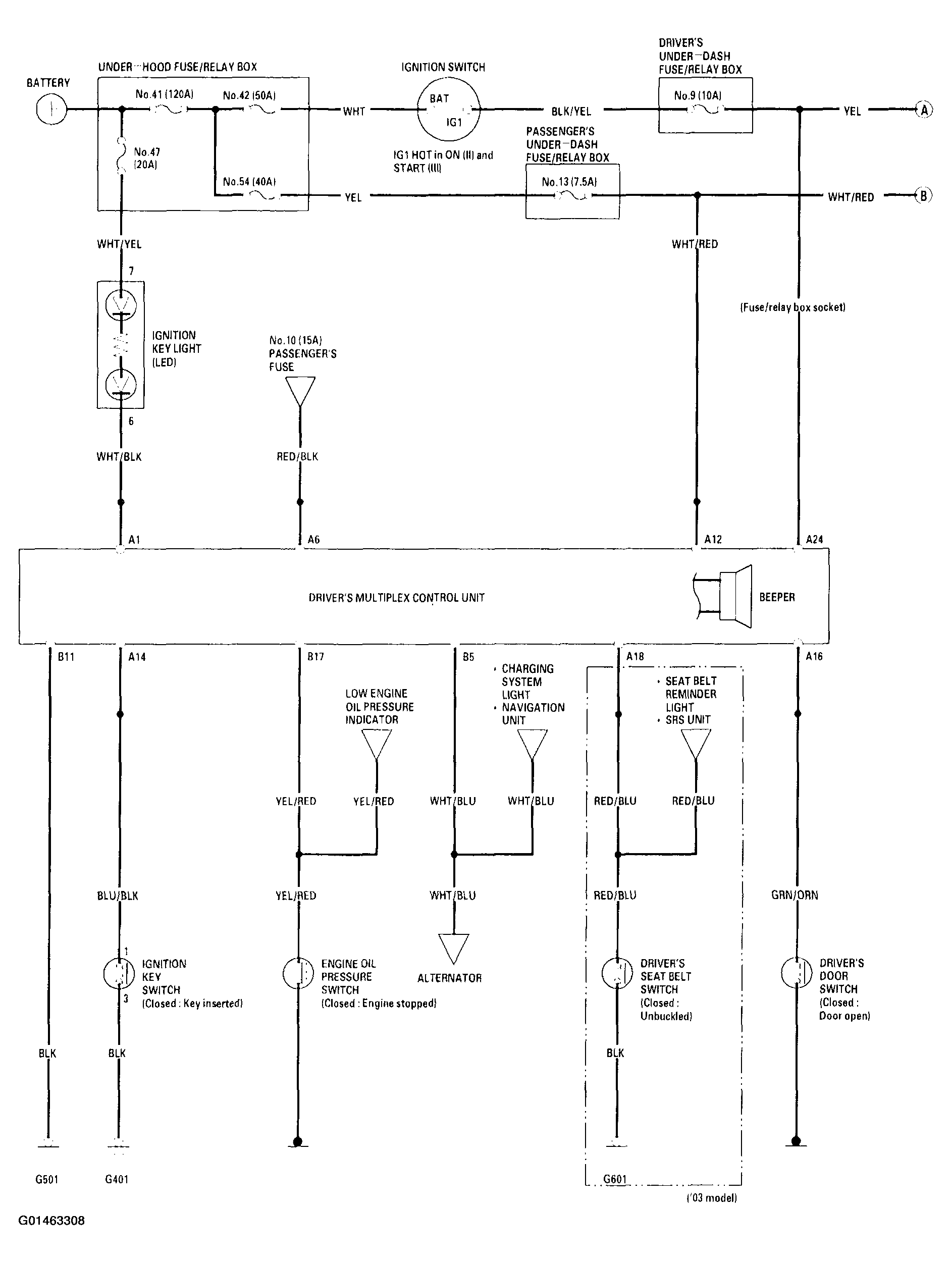

Fig 2: Reminder Systems, Key Light Timer, & Engine Oil Pressure Indicator Systems Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
