Gauge Assembly Replacement

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Remove the screws from the gauge assembly (A), and spread a protective cloth (B) on the upper column cover.

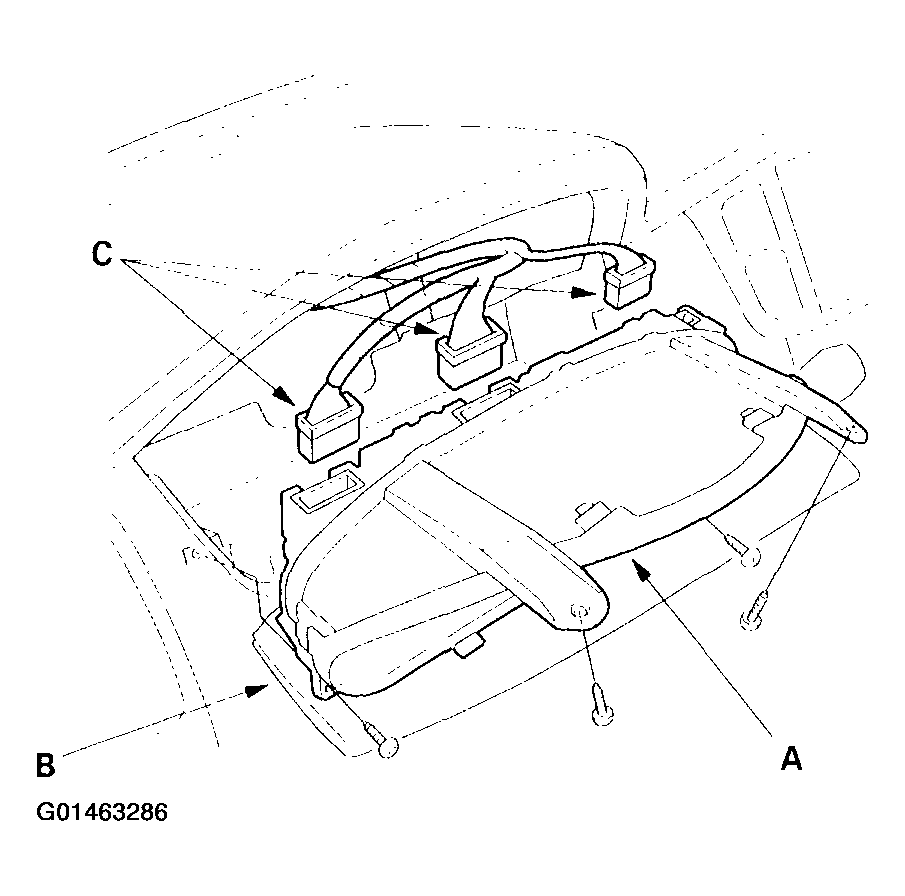

    Fig 1: Removing The Screws From The Gauge Assembly
    G01463286Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connectors (C), and remove the gauge assembly.
  4. Install the gauge in the reverse order of removal.
