Connector Index

Identification numbers have been assigned to in line connectors. The number is preceded by the letter "C" for connectors, "G" for ground terminals or "T" for non ground terminals.

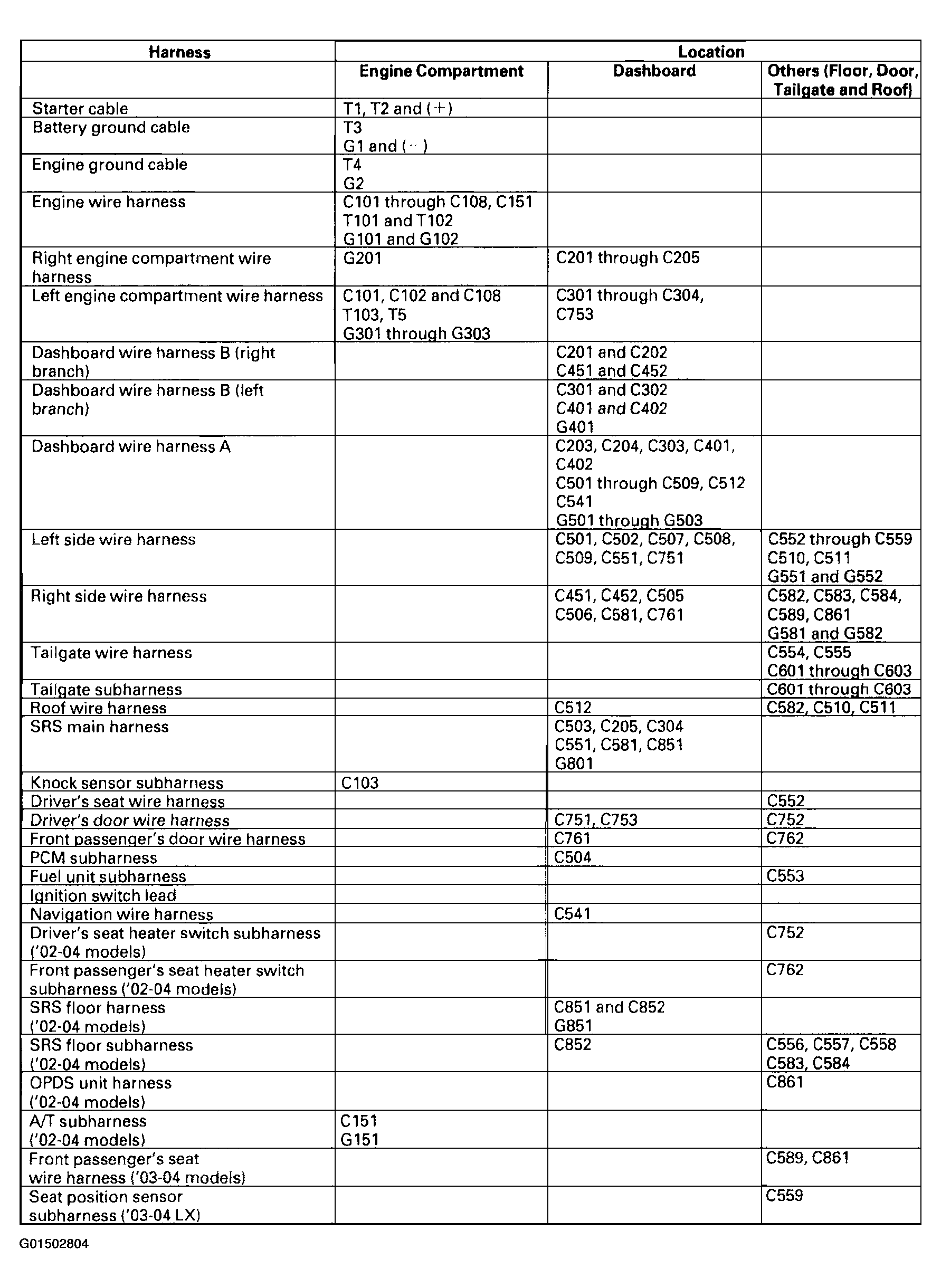

Fig 1: Identifying Harness Connector Locations Chart
G01502804Courtesy of AMERICAN HONDA MOTOR CO., INC.
