Clutch Pressure Control Solenoid Valve A Replacement

A/T Clutch Pressure Control Solenoid Valve A Replacement
1. Remove the air cleaner housing.
2. Disconnect the A/T clutch pressure control solenoid valve A connector.

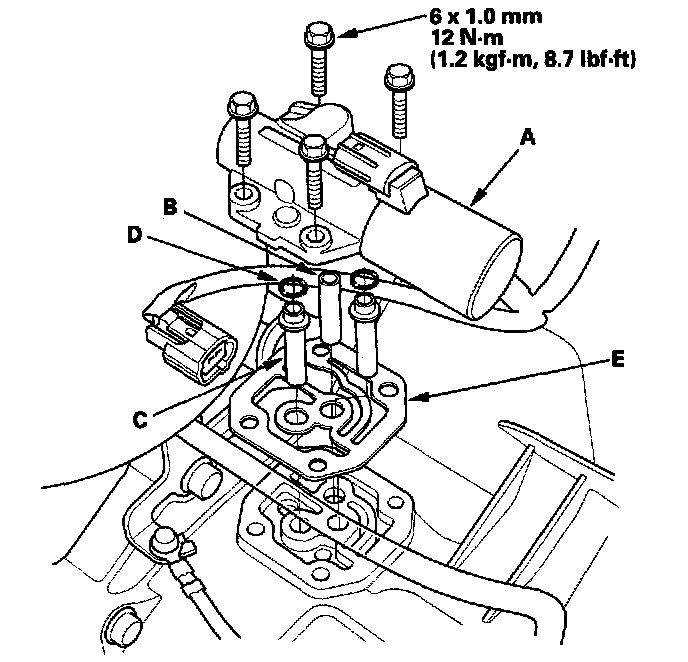

3. Remove the mounting bolts and A/T clutch pressure control solenoid valve A.
4. Remove the ATF pipe (B), ATF joint pipes (C), O-rings (D), and gasket (E).
5. Clean the mounting surface and fluid passage of the transmission housing.
6. Install the new gasket on the transmission housing, and install the ATF pipe and ATF joint pipes.
7. Install the new O-rings over the ATF joint pipes.
8. Install the new A/T clutch pressure control solenoid valve A.
9. Check the A/T clutch pressure control solenoid valve A connector for rust, dirt, and oil, clean if needed, then connect it securely.
10. Install the air cleaner housing.
