Home >> Honda >> 2003 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> Fuel Delivery and Air Induction

Fuel Delivery and Air Induction

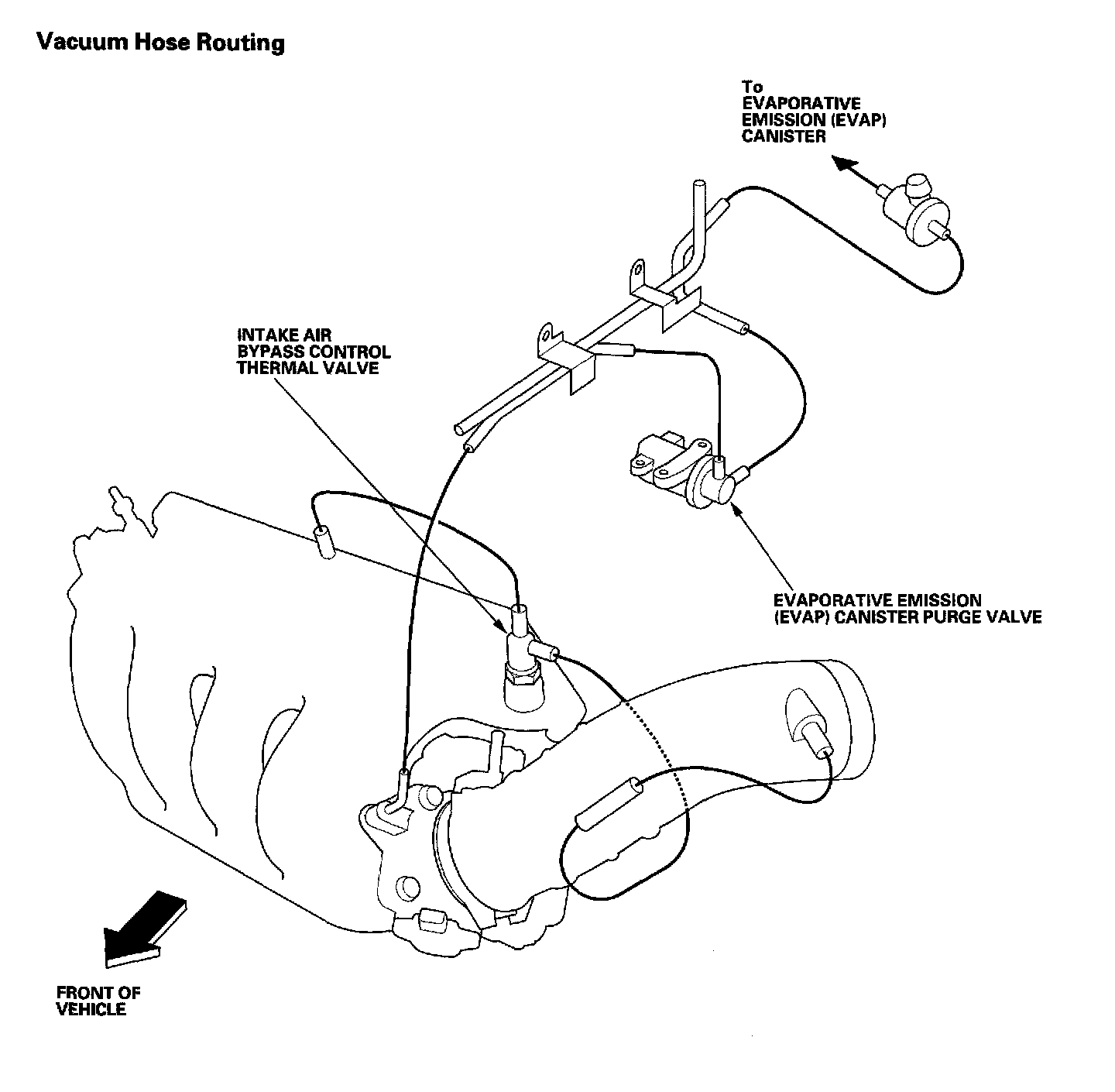

Vacuum Hose Routing:
