Floor Wire Harness (Left Side)

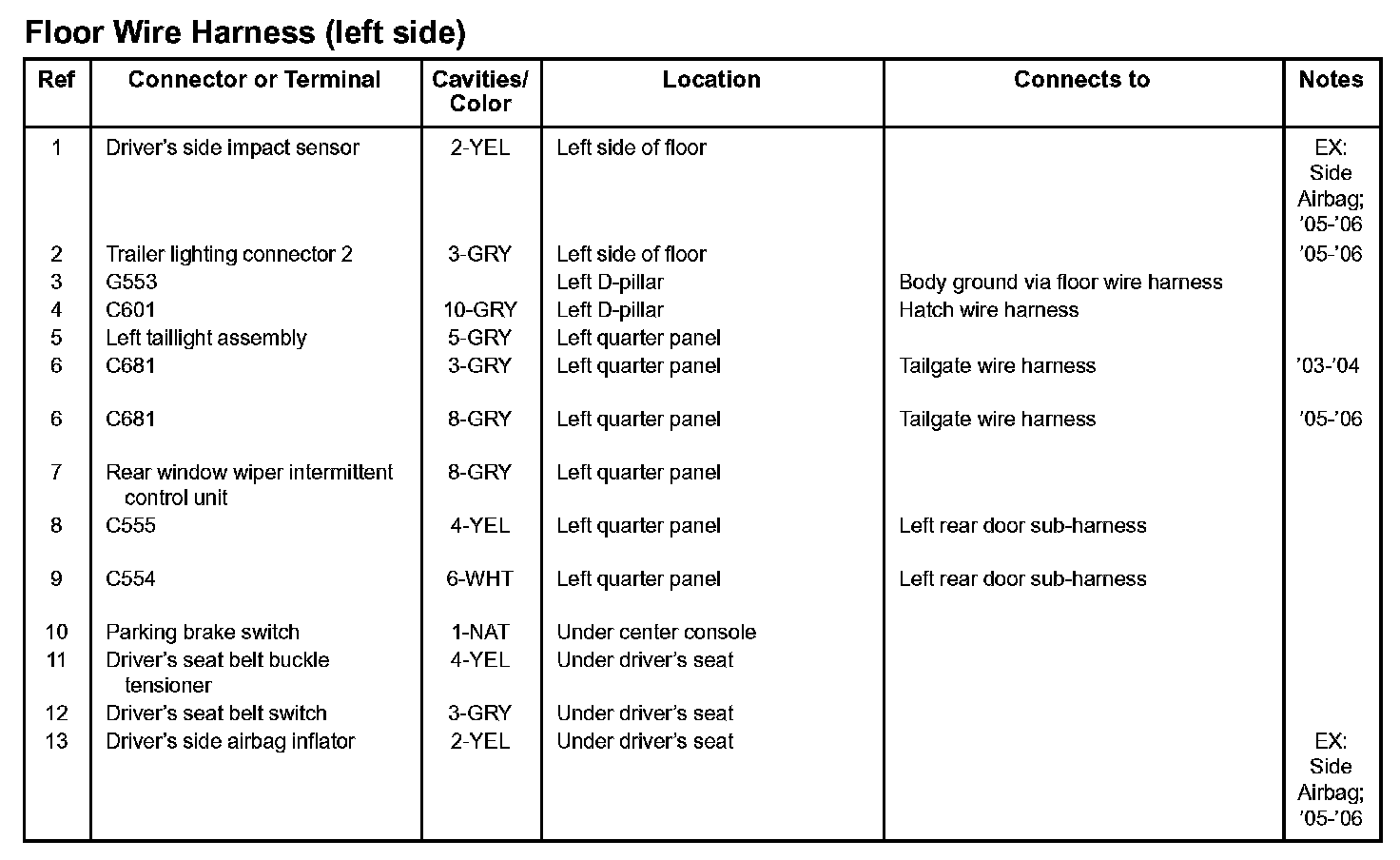

Floor Wire Harness (Left Side):

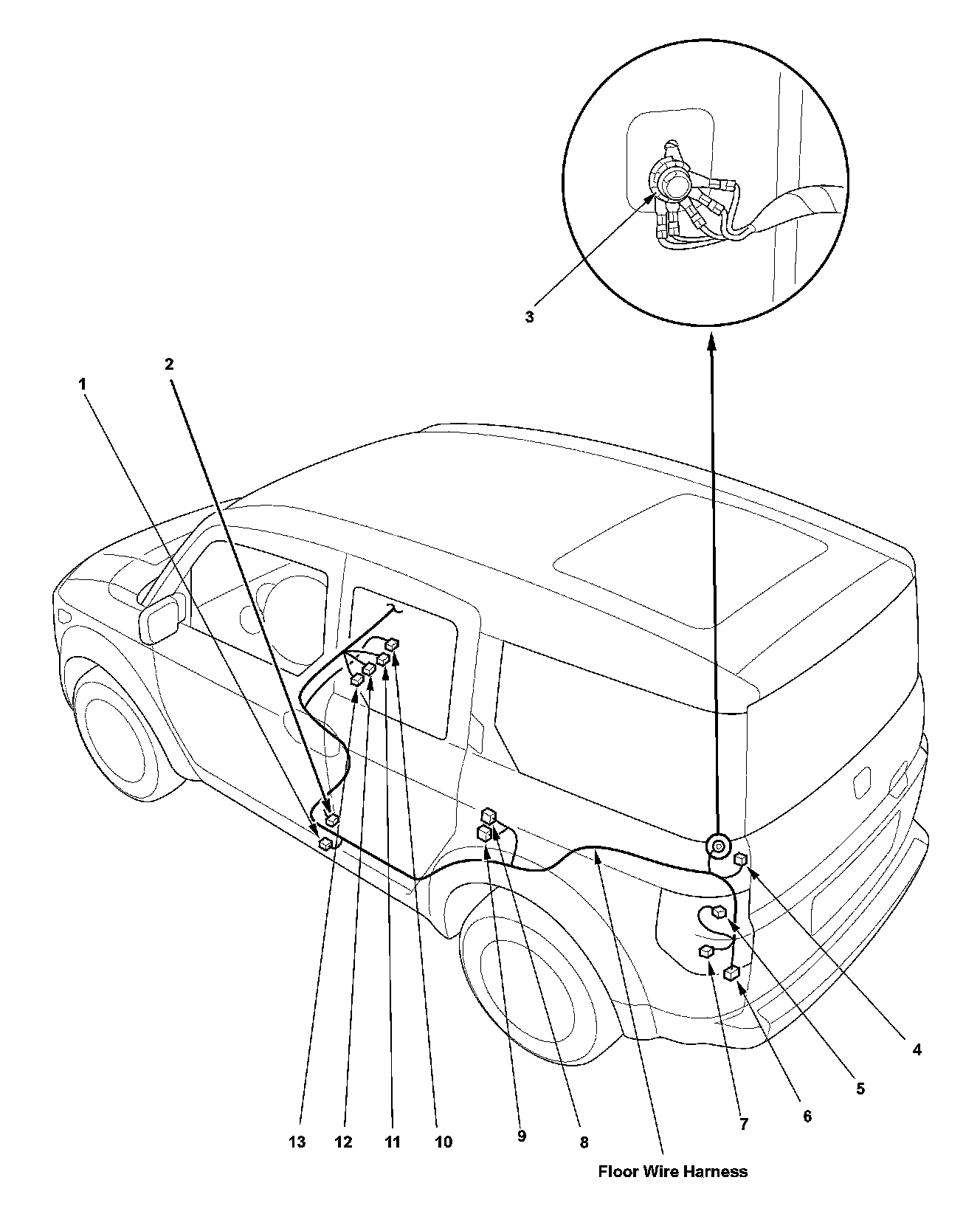

Harness Location View:



Floor Wire Harness (Left Side):

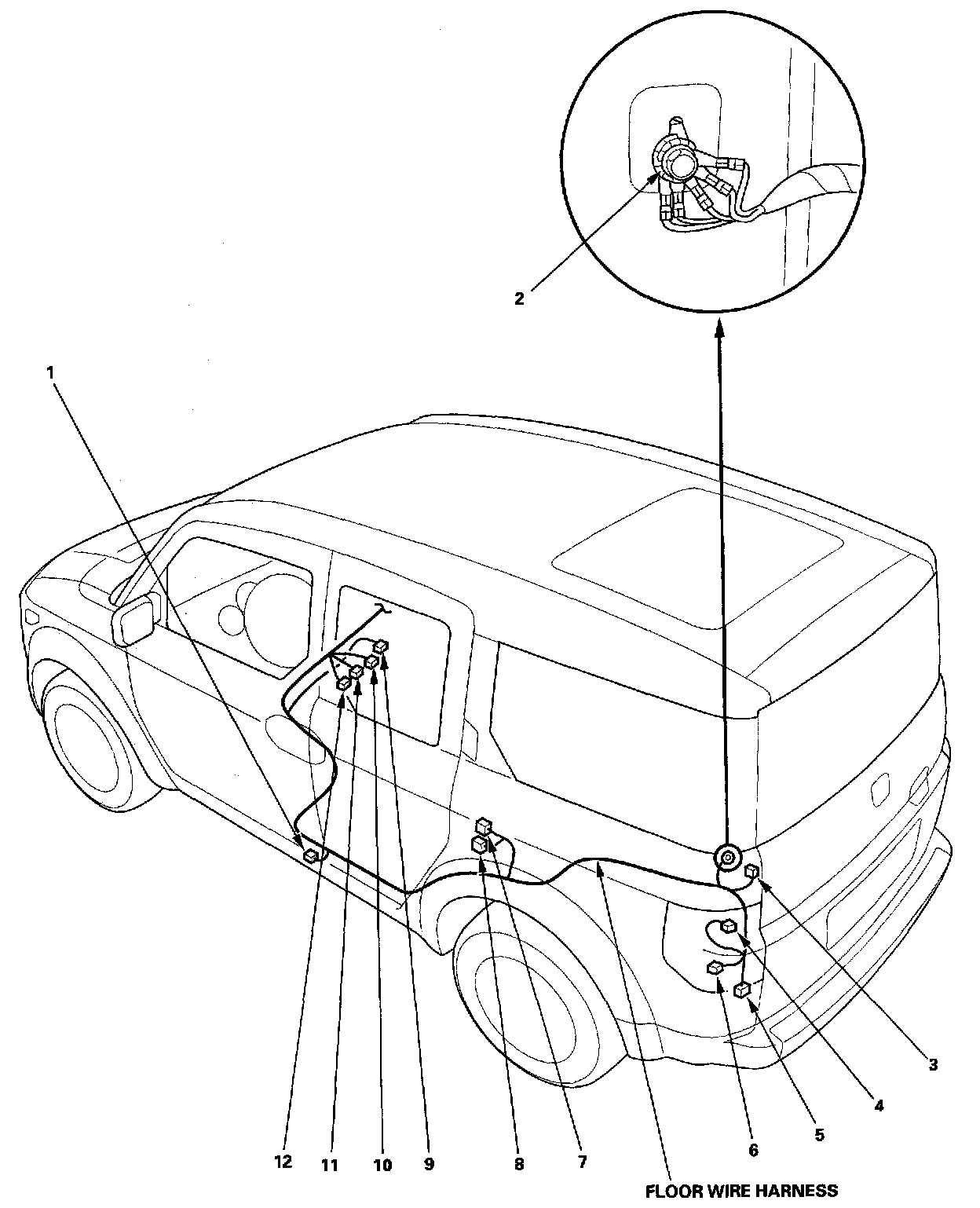

Harness Location View:
