Connector ID By Location on harness
>>
Dashboard Wire Harness A (Right Branch)
Dashboard Wire Harness A (Right Branch)

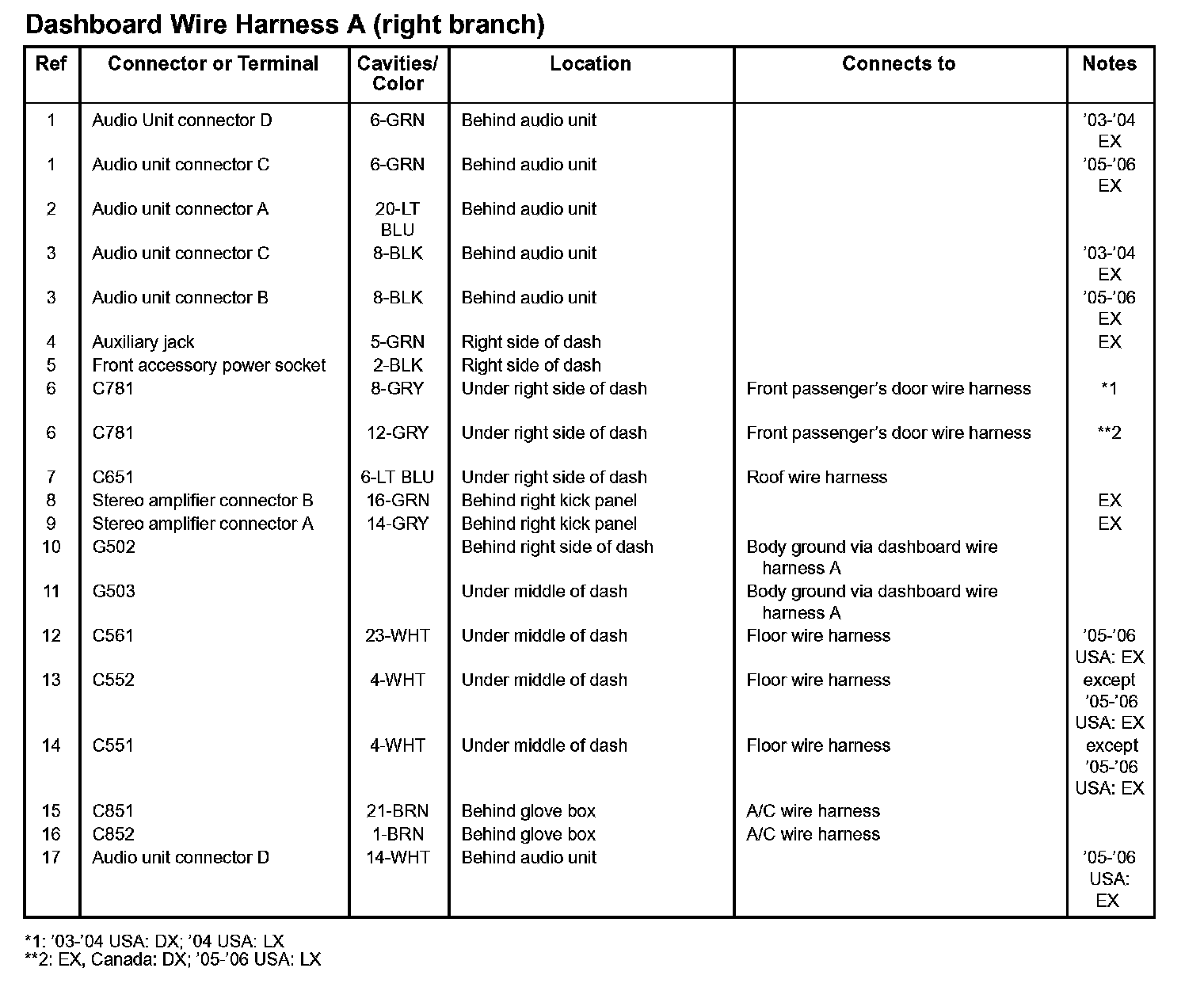

Dashboard Wire Harness A (Right Branch):

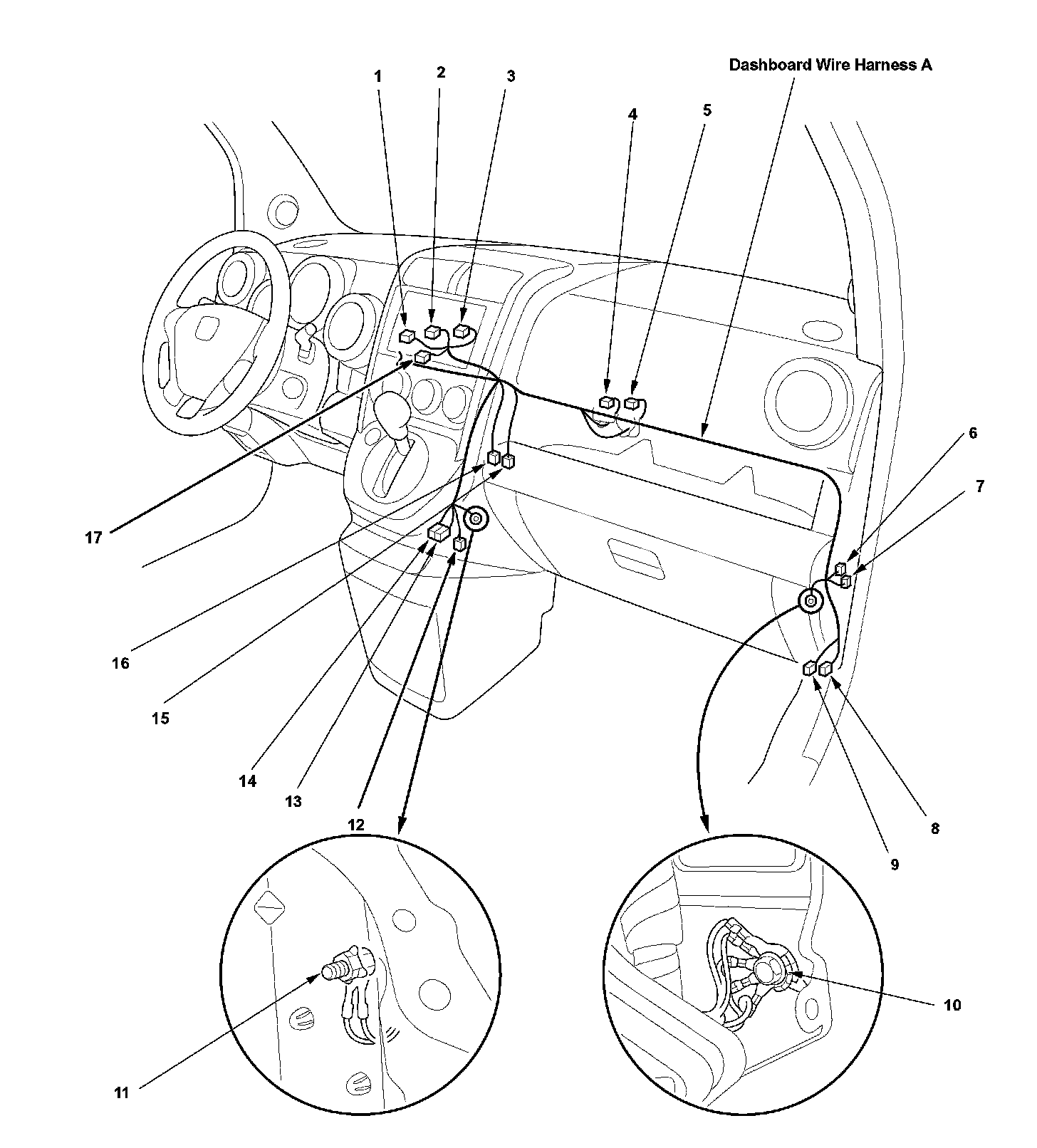

Harness Location View:

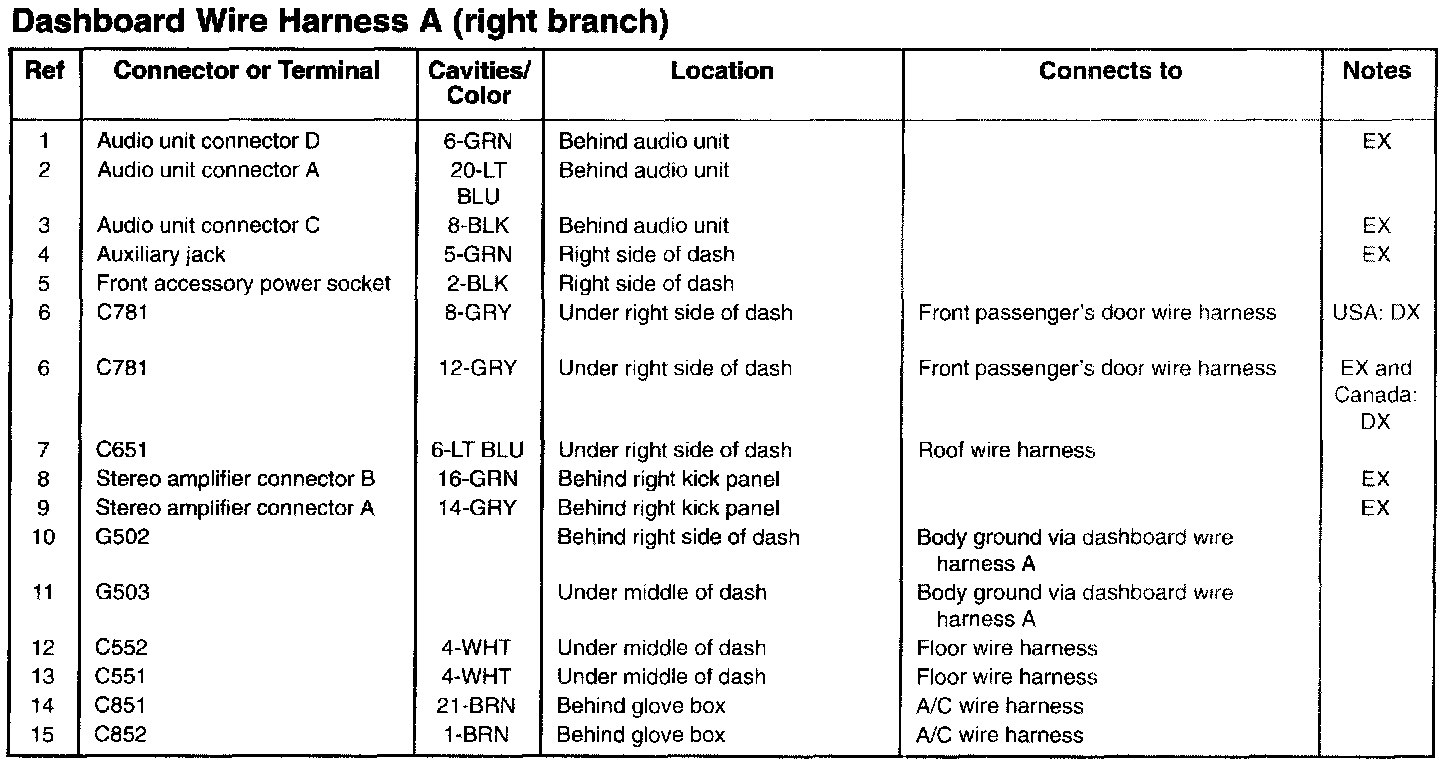

Dashboard Wire Harness A (Right Branch):

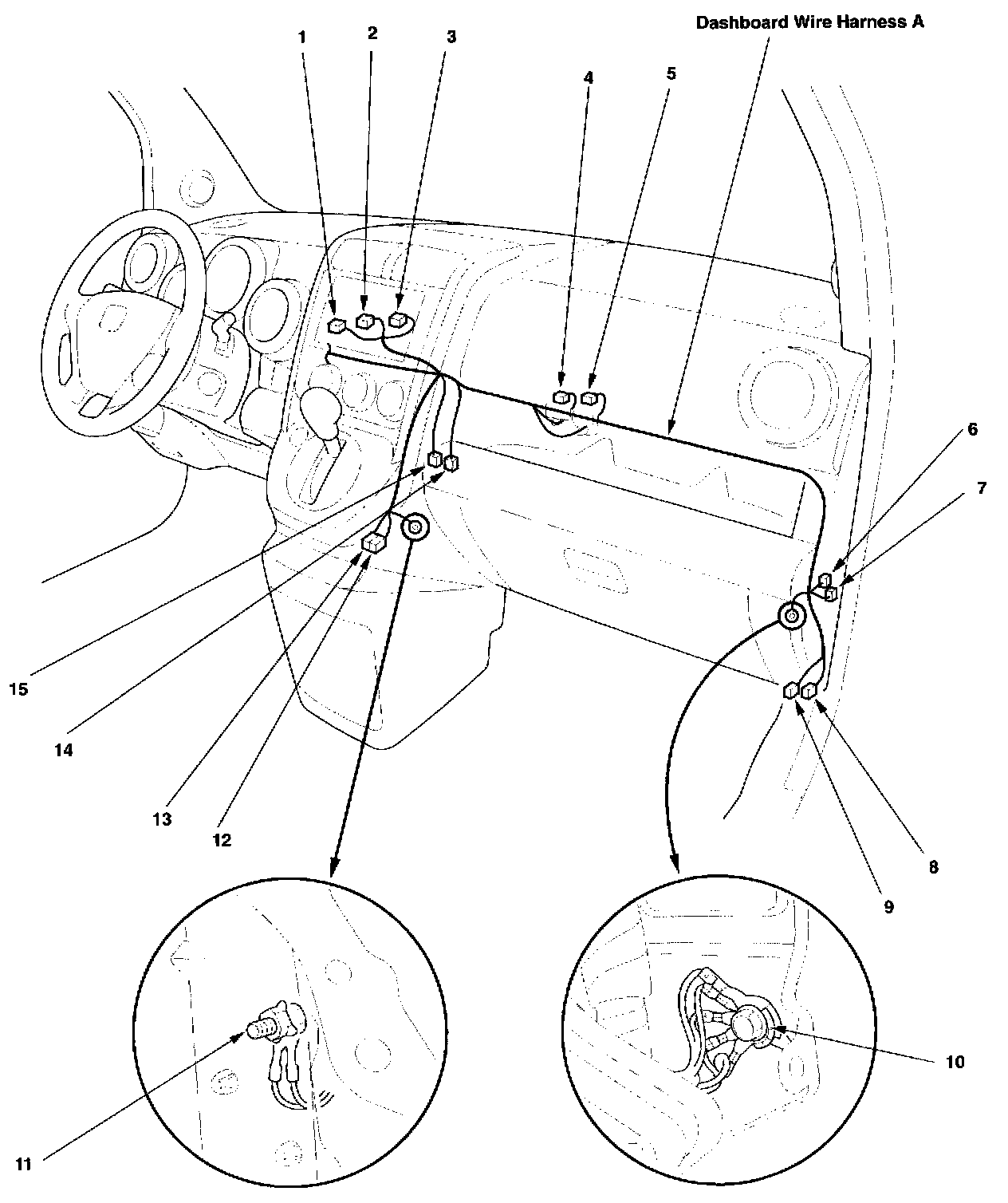

Harness Location View:
