Pin Voltage Tests

WARNING: This page is about a different car, the 2002 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.

See Fig 1 and Fig 2 .

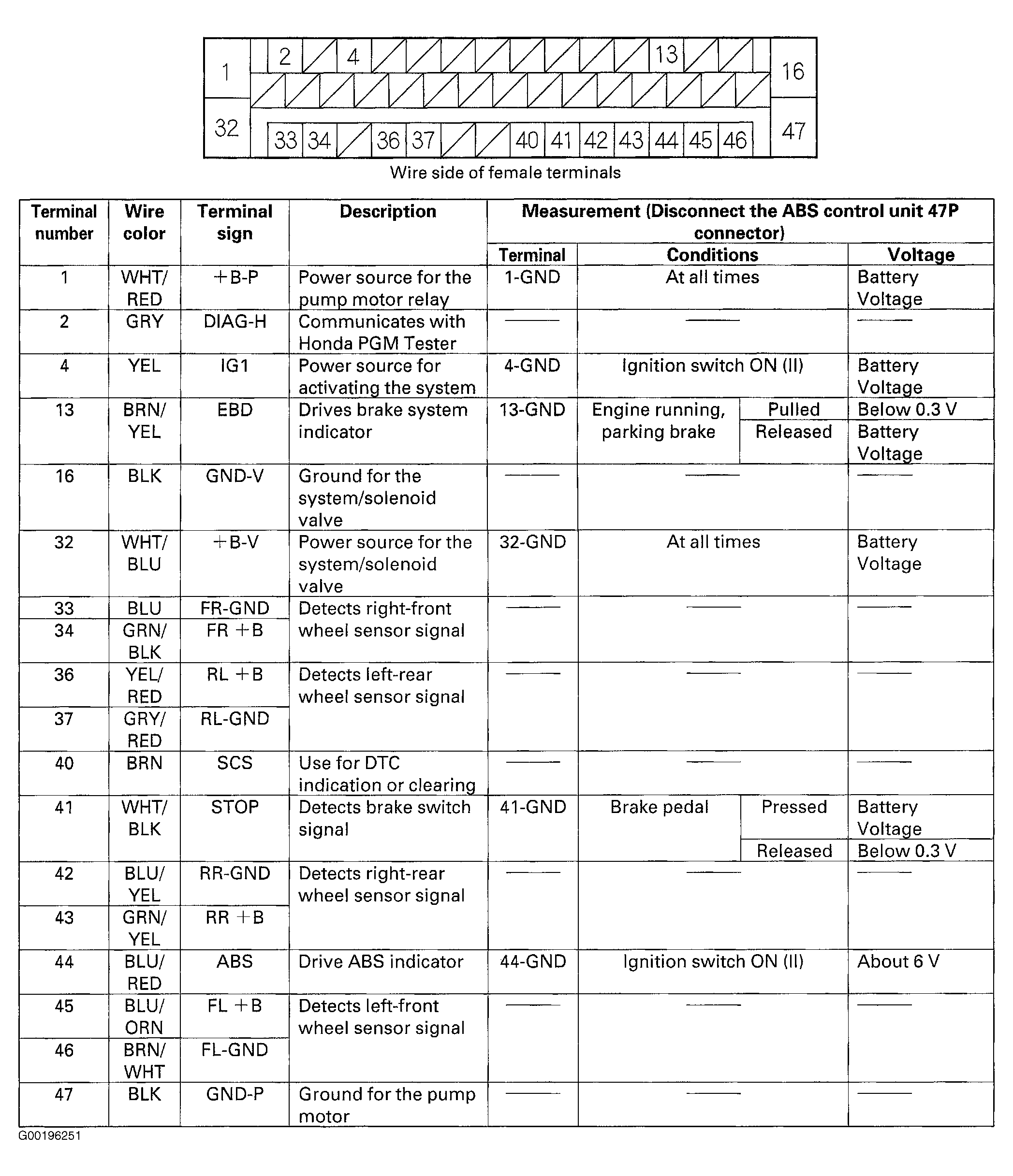

Fig 1: ABS Control Unit 47P Connector Pin Voltage Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

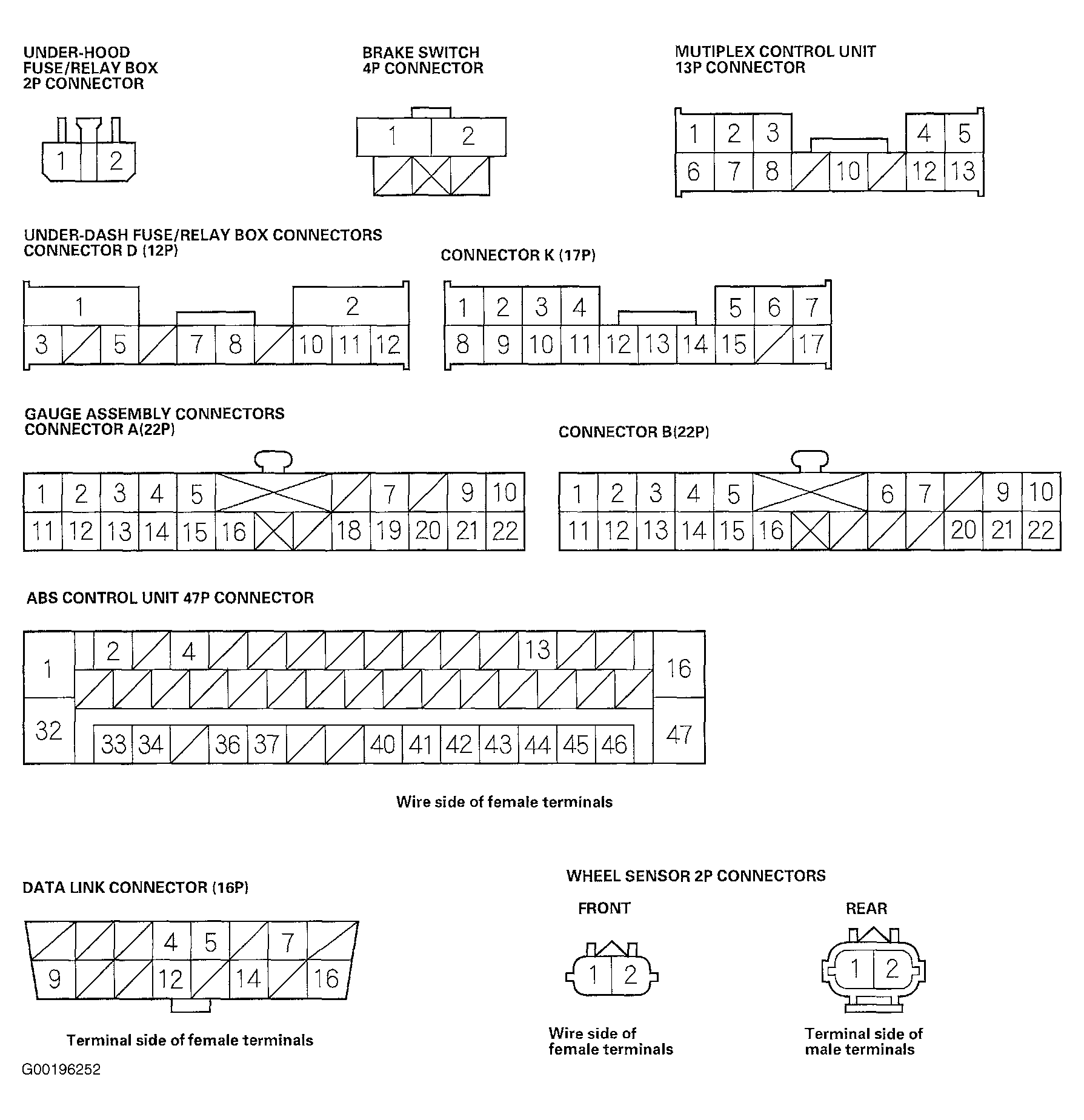

Fig 2: Identifying Pin Voltage Connectors

Courtesy of AMERICAN HONDA MOTOR CO., INC.
