CPU (Central Processing Unit Diagnosis & ROM/RAM Diagnosis)

WARNING: This page is about a different car, the 2002 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.

See Fig 1 for trouble shooting flow chart

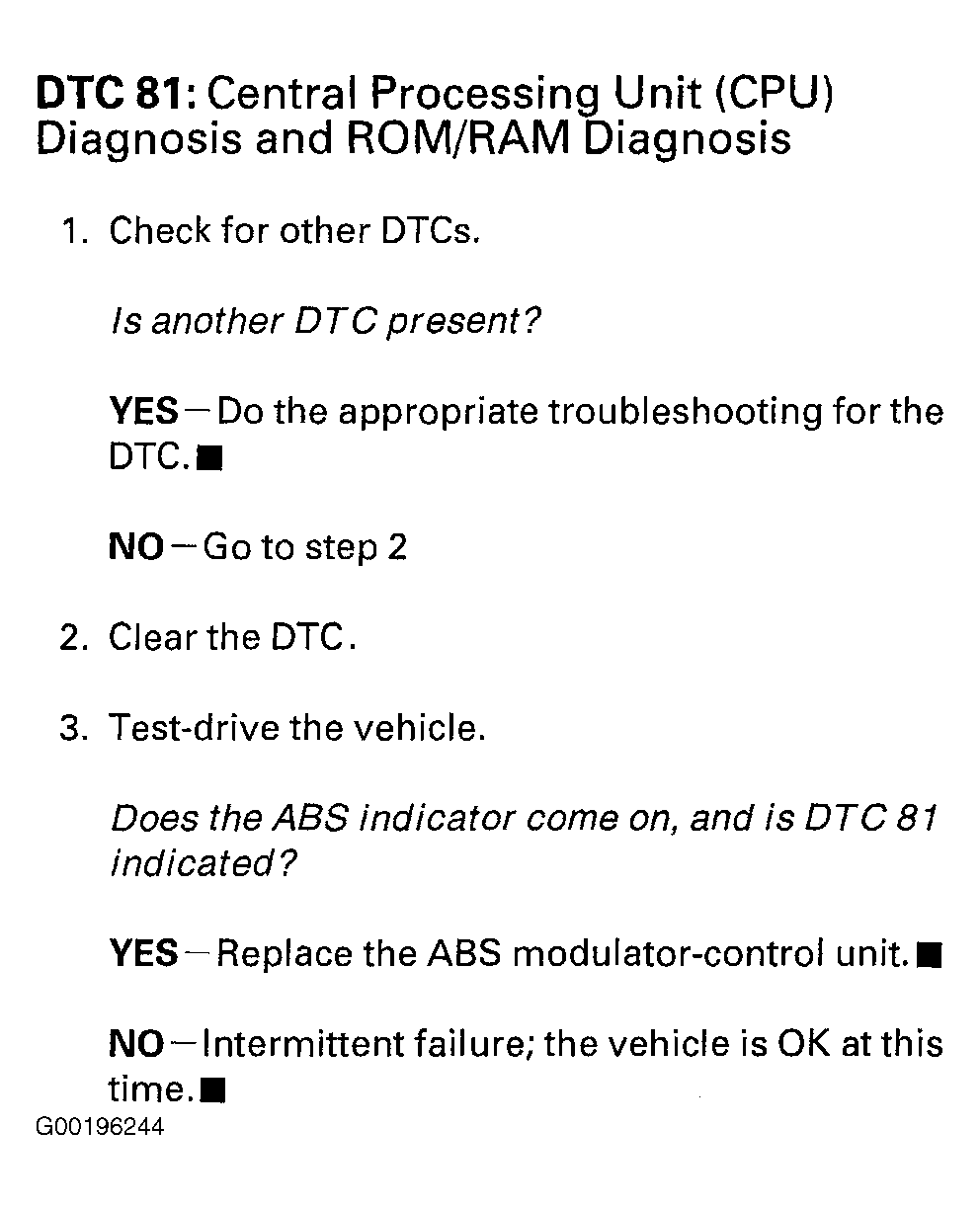

Fig 1: DTC 81 Trouble Shooting Flow Chart
G00196244Courtesy of AMERICAN HONDA MOTOR CO., INC.
