Magnetic Encoder

WARNING: This page is about a different car, the 2002 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.
  1. DTC 21 -  Right Front
  2. DTC 22 -  Left Front
  3. DTC 23 -  Right Rear
  4. DTC 24 -  Left Rear

See Fig 1 for trouble shooting flow chart.

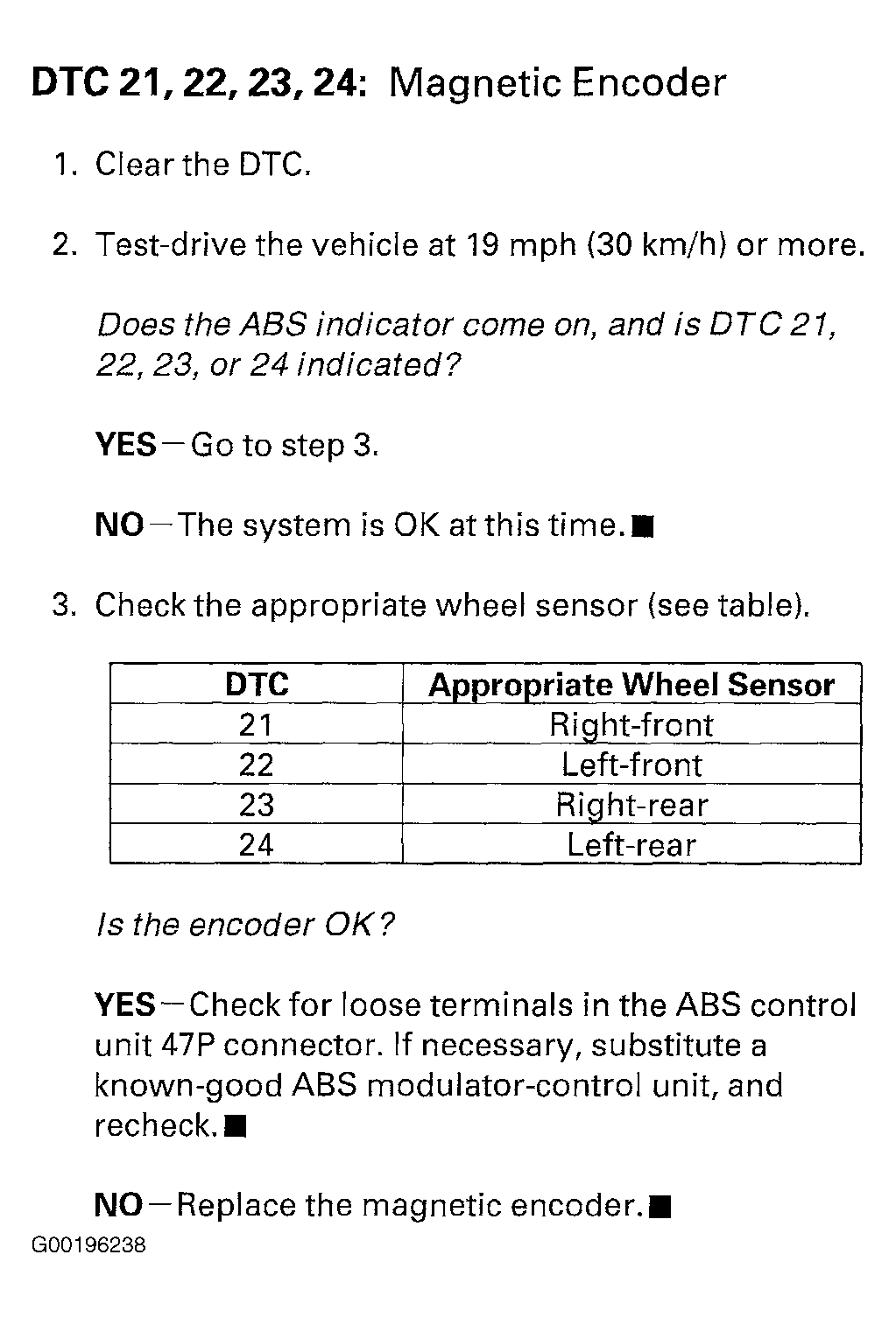

Fig 1: DTC 21, 22, 23 & 24 Trouble Shooting Flow Chart
G00196238Courtesy of AMERICAN HONDA MOTOR CO., INC.
