Wheel Sensor (Electrical Noise/Intermittent Interruption)

WARNING: This page is about a different car, the 2002 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.
  1. DTC 12 -  Right Front
  2. DTC 14 -  Left Front
  3. DTC 16 -  Right Rear
  4. DTC 18 -  Left Rear

See Fig 1 for trouble shooting flow charts.

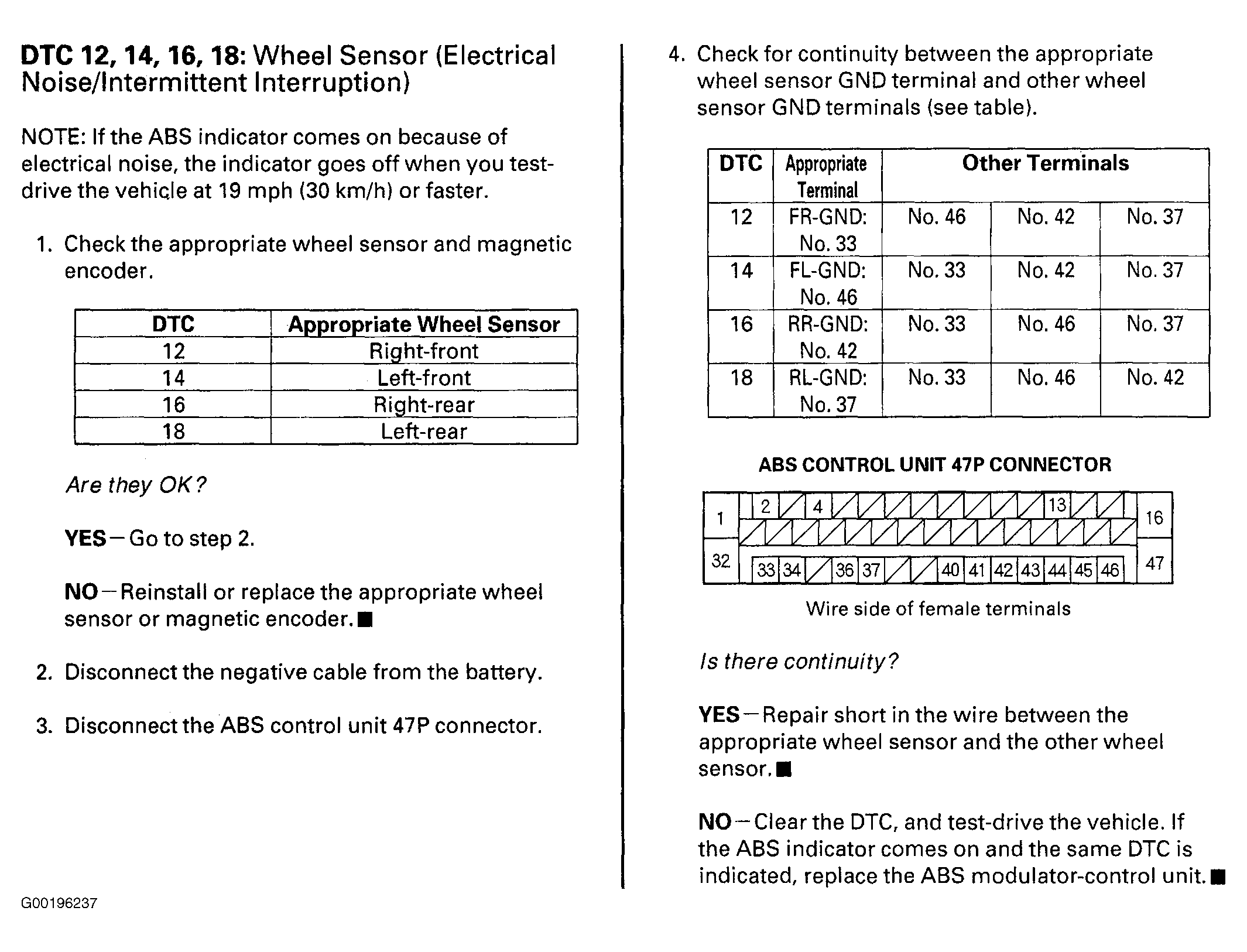

Fig 1: DTC 12, 14, 16 & 18 Trouble Shooting Flow Chart
G00196237Courtesy of AMERICAN HONDA MOTOR CO., INC.
