Wheel Sensor (Open/Short To Body Ground/Short To Power)

WARNING: This page is about a different car, the 2002 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.

DTC 11 - Right Front
DTC 13 - Left Front
DTC 15 - Right Front
DTC 17 - Left Rear

See Fig 1 and Fig 2 for trouble shooting flow charts.

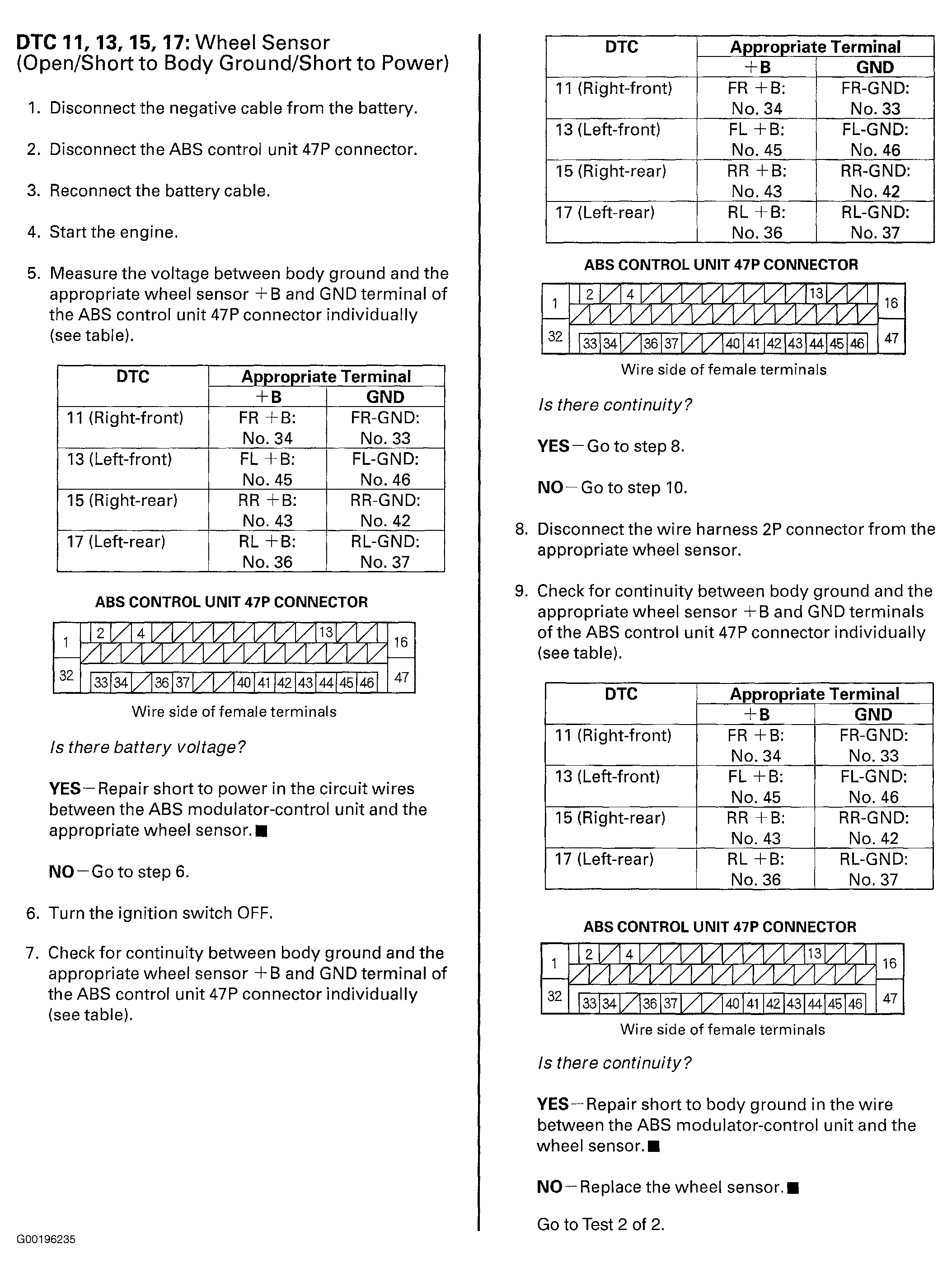

Fig 1: DTC 11, 13, 15 & 17 Trouble Shooting Flow Chart(s) (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

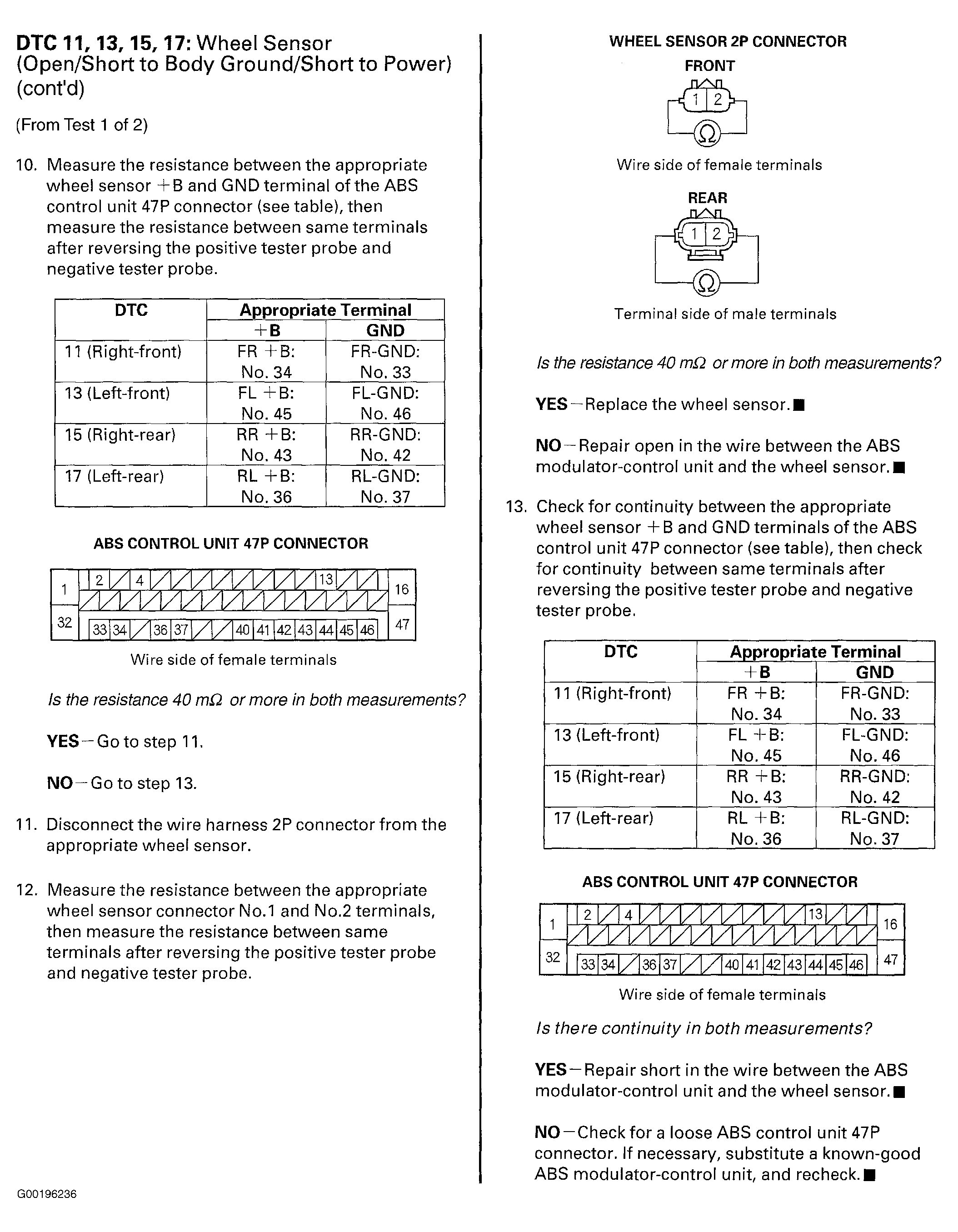

Fig 2: DTC 11, 13, 15 & 17 Trouble Shooting Flow Chart(s) (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
