Removal (Insight)

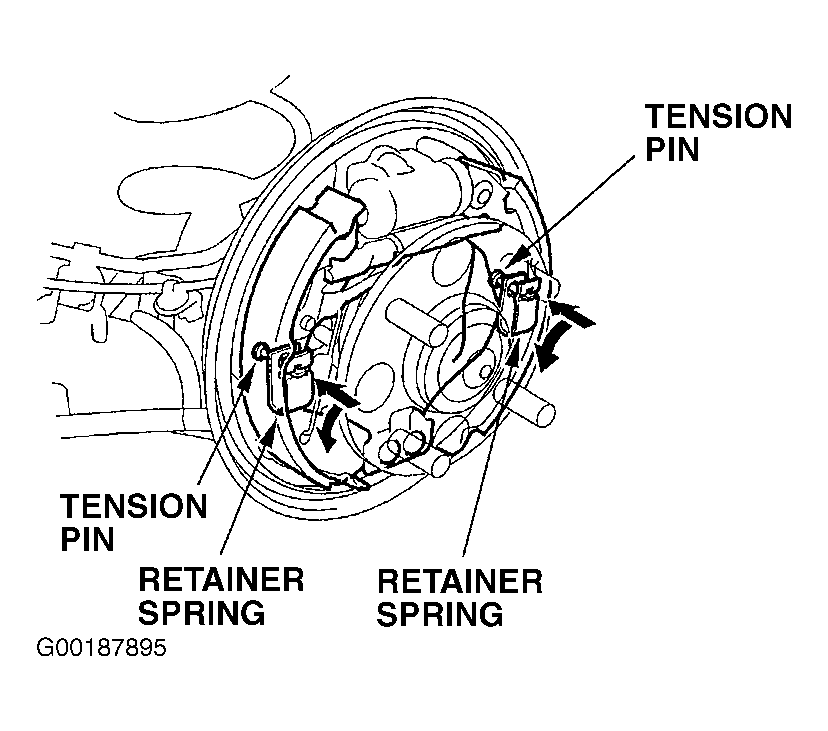

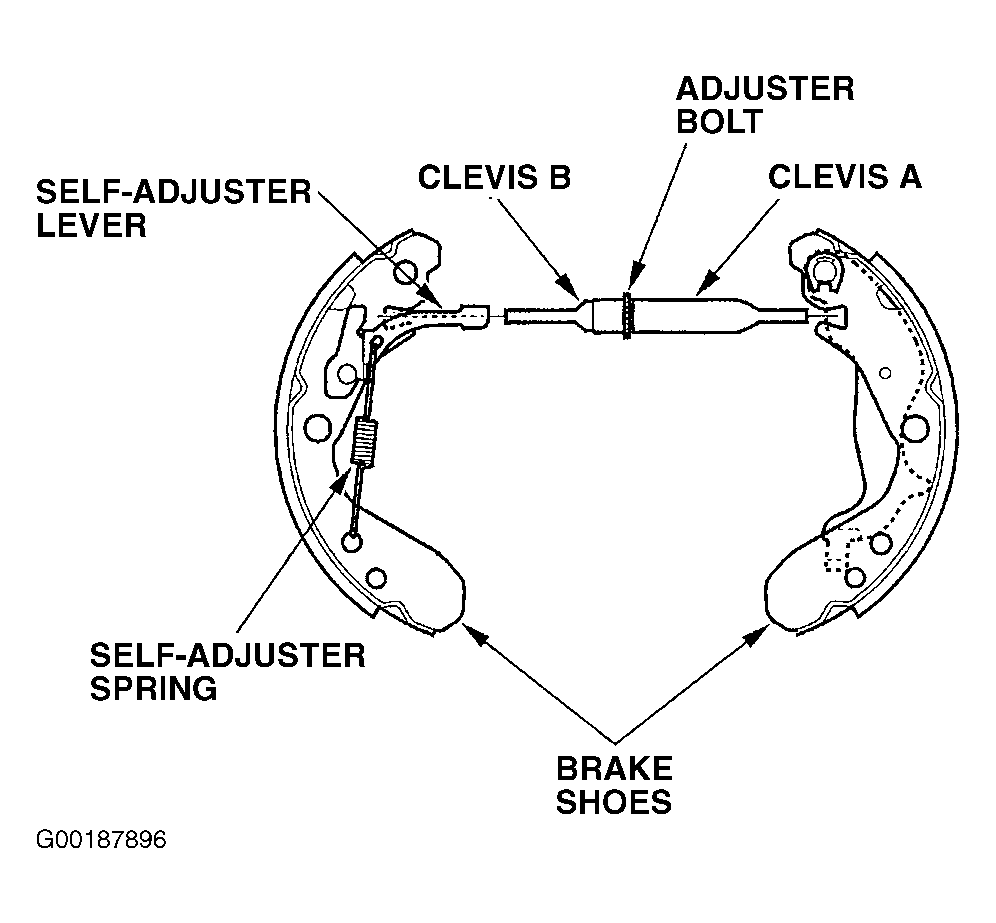

Raise and support vehicle. Remove rear wheels. Remove upper and lower return springs. Remove tension pins by turning them while pushing each retainer spring. See Fig 1 . Disconnect parking brake cable from parking brake lever, and remove brake shoes from backing plate. Remove clevis, adjuster bolt, and clevis, and separate brake shoes. See Fig 2 . Remove self-adjuster spring and self-adjuster lever. Remove U-clip, and remove parking brake lever from rear side of shoe.
CAUTION:
To avoid damage, do not strike aluminum parts with a metal hammer. If necessary, tap gently with a plastic tipped hammer.
