Disassembly & Reassembly

For exploded views of front and rear disc brake calipers, see Fig 1 -Fig 14

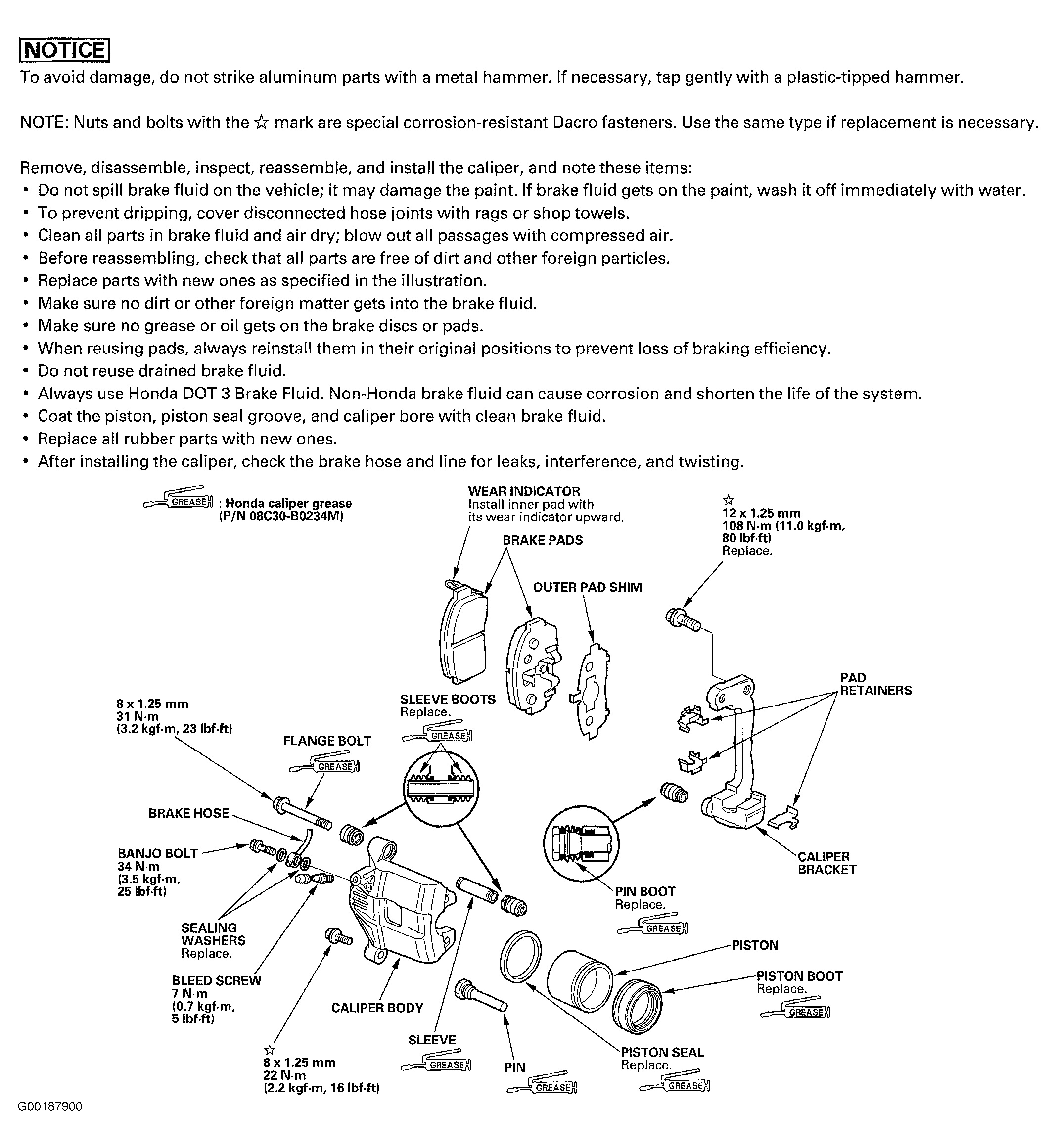

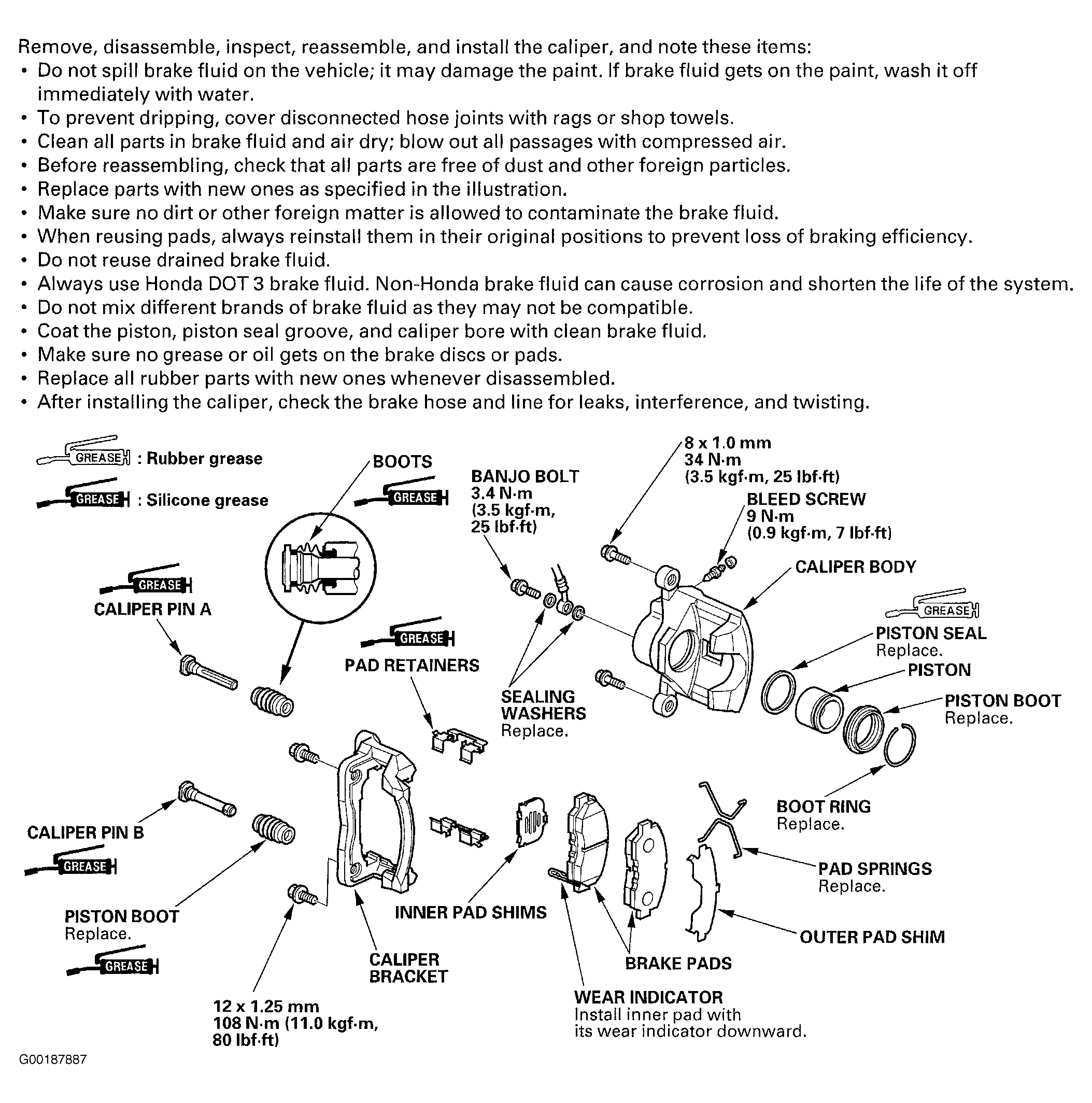

Fig 1: Exploded View Of Front Brake Caliper Overhaul (Accord)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

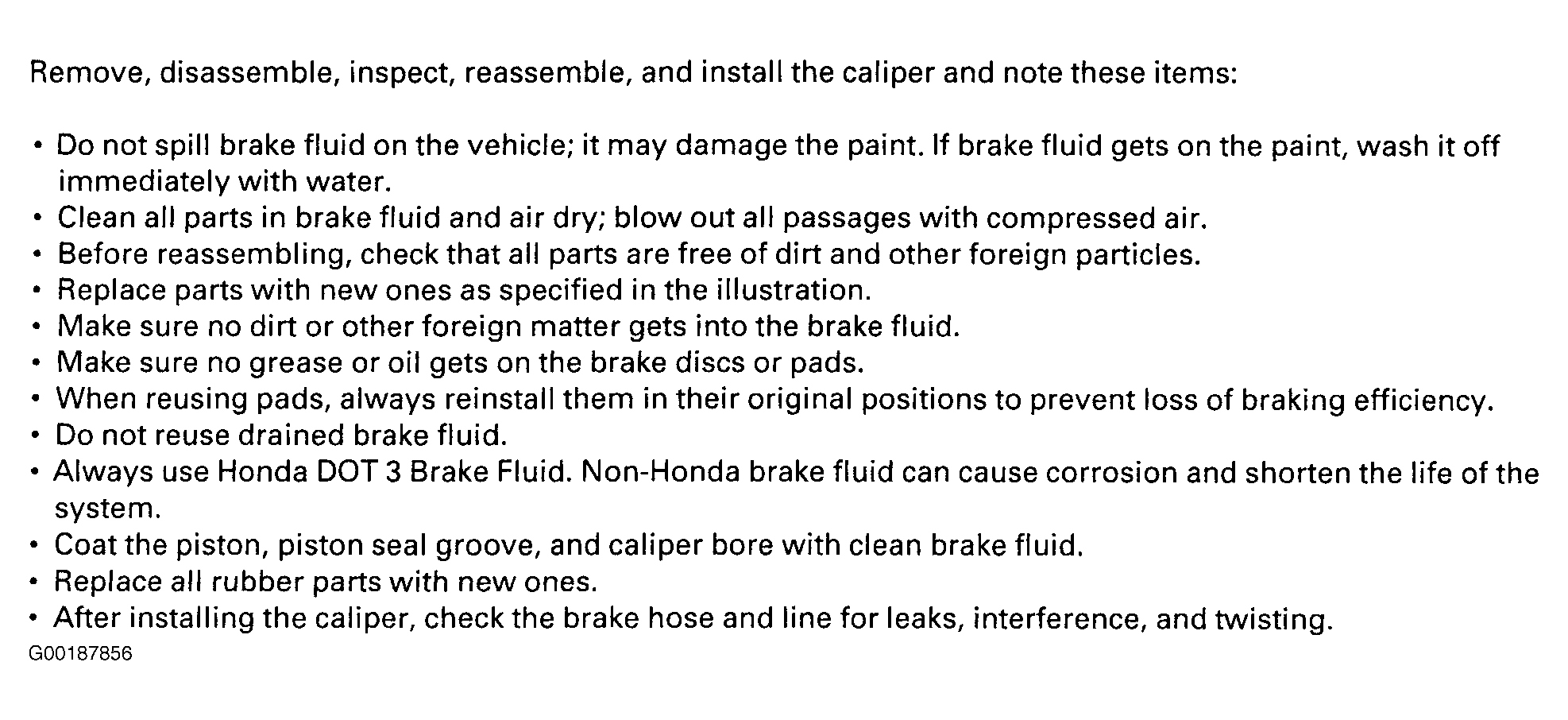

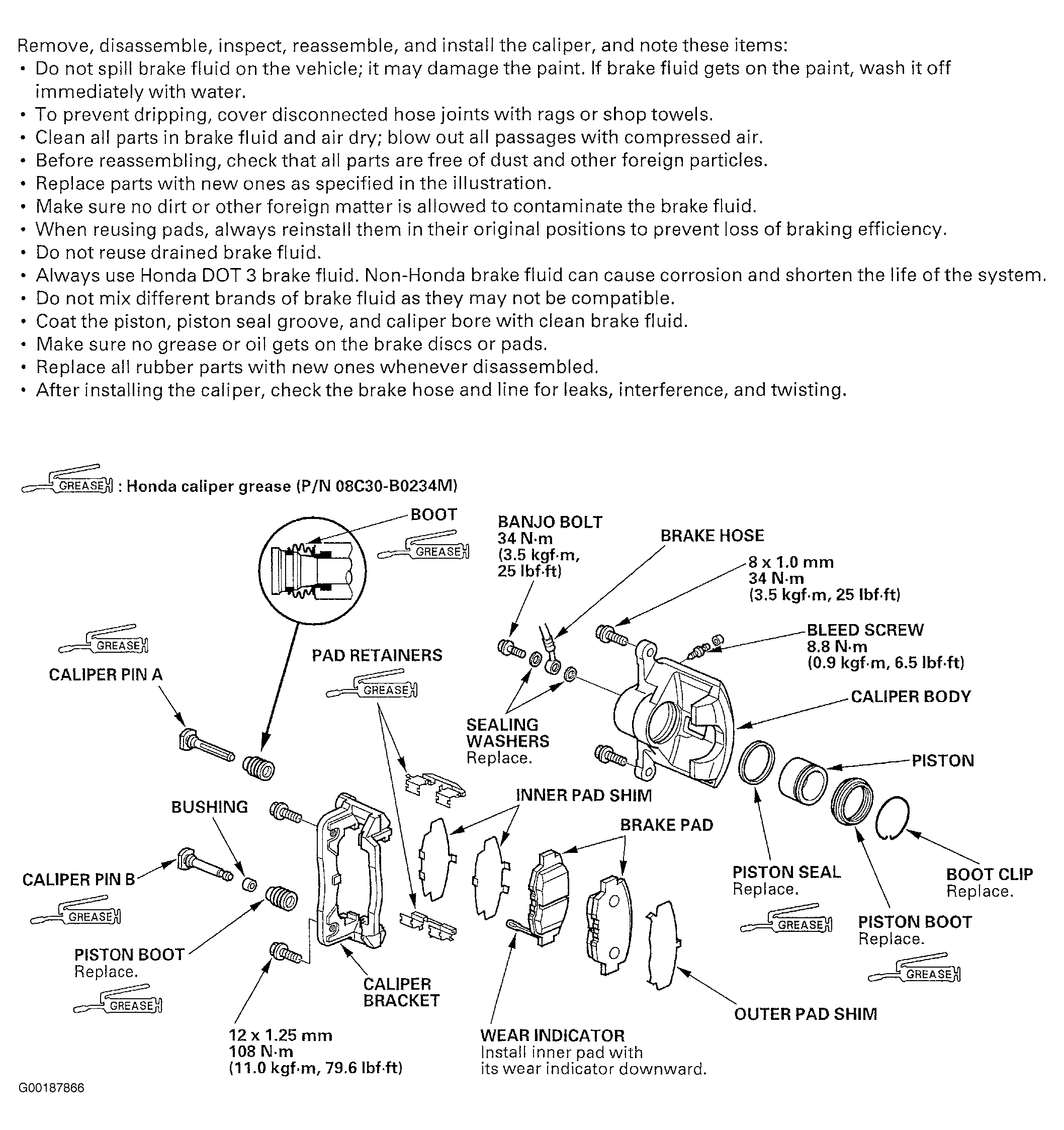

Fig 2: Cautions & Procedures For Rear Caliper Overhaul (Accord)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

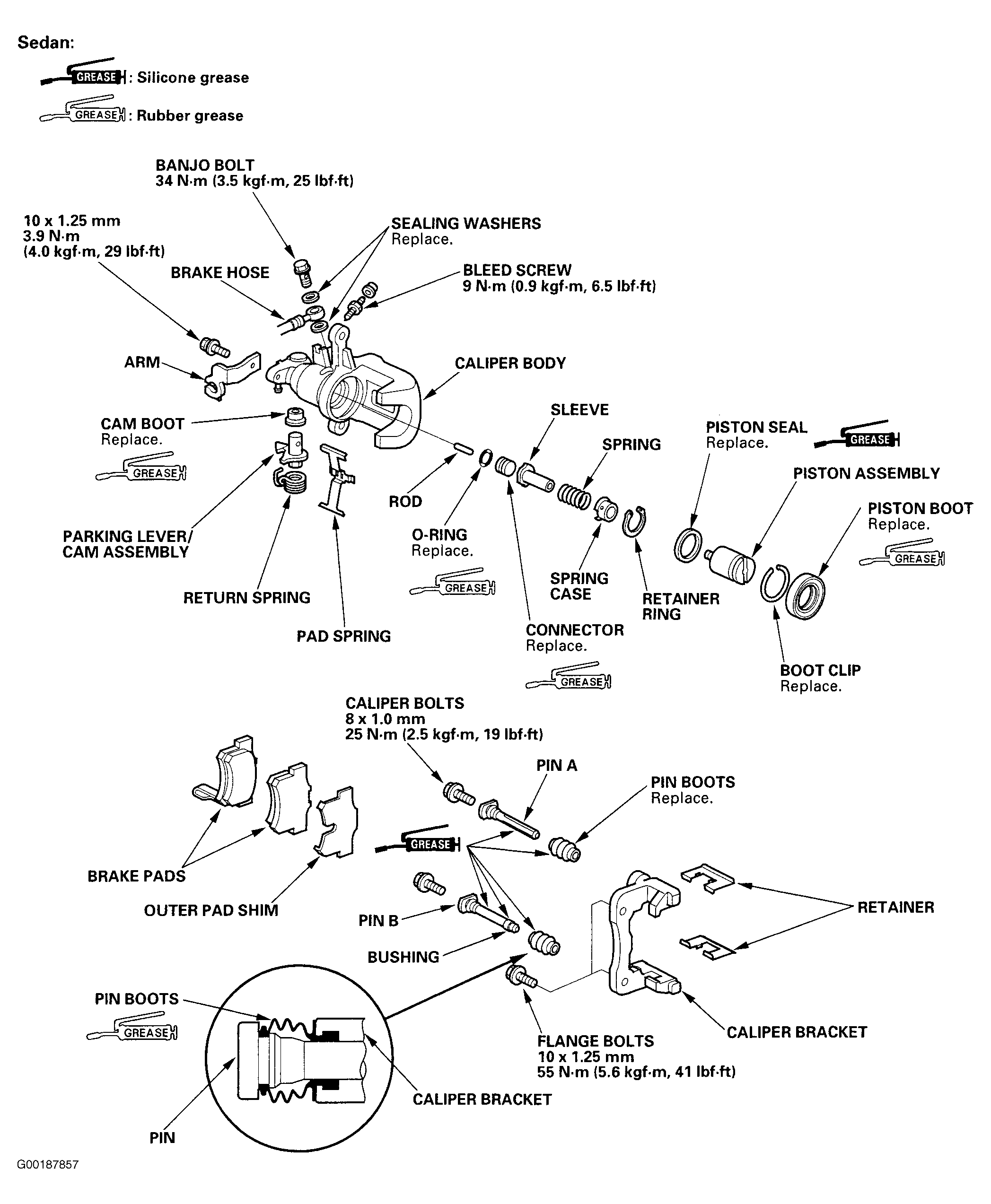

Fig 3: Exploded View Of Rear Brake Caliper Overhaul (Accord, Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

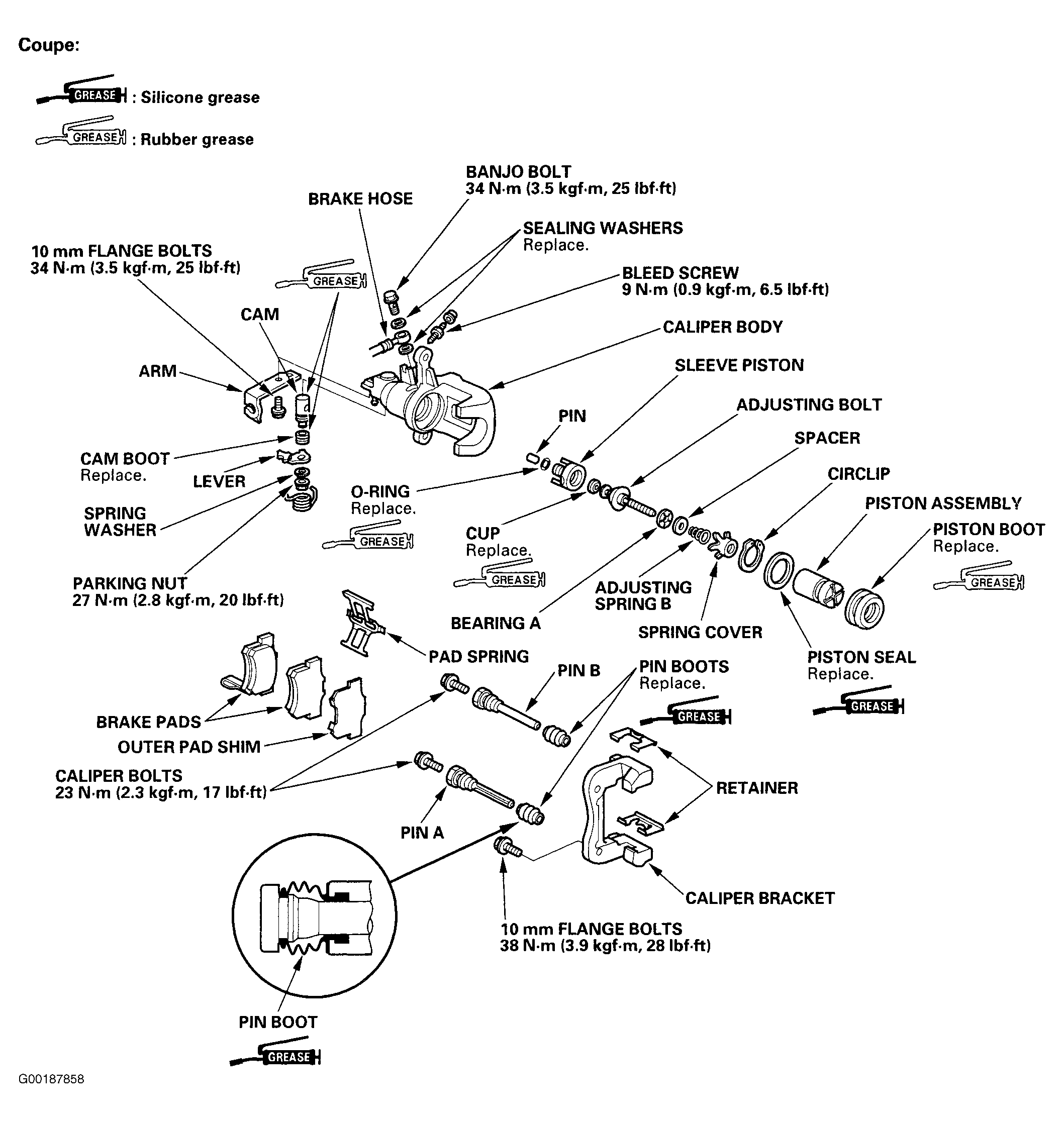

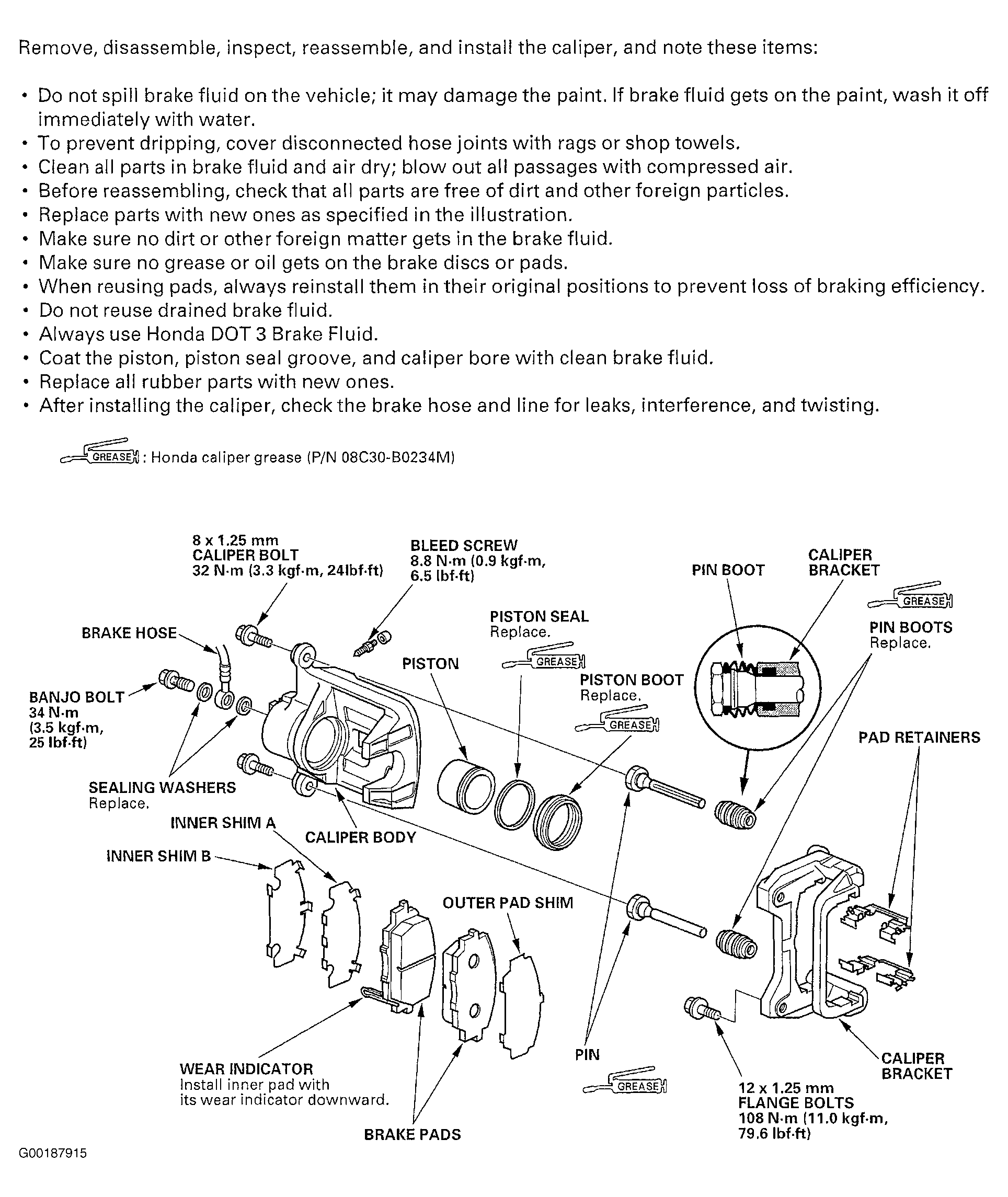

Fig 4: Exploded View Of Rear Brake Caliper Overhaul (Accord, Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

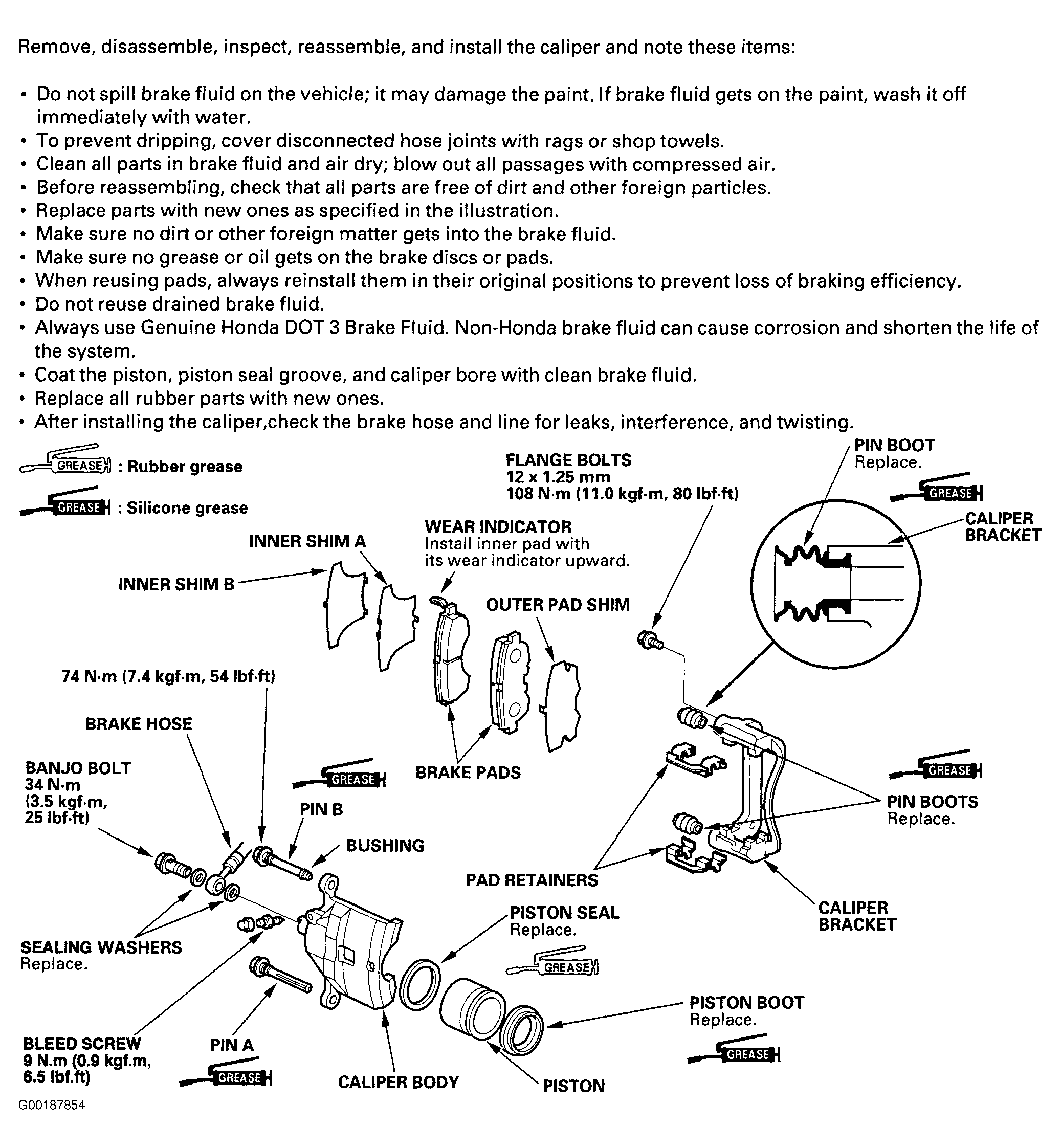

Fig 5: Exploded View Of Front Brake Caliper Overhaul (Civic - Except Si & Hatchback)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

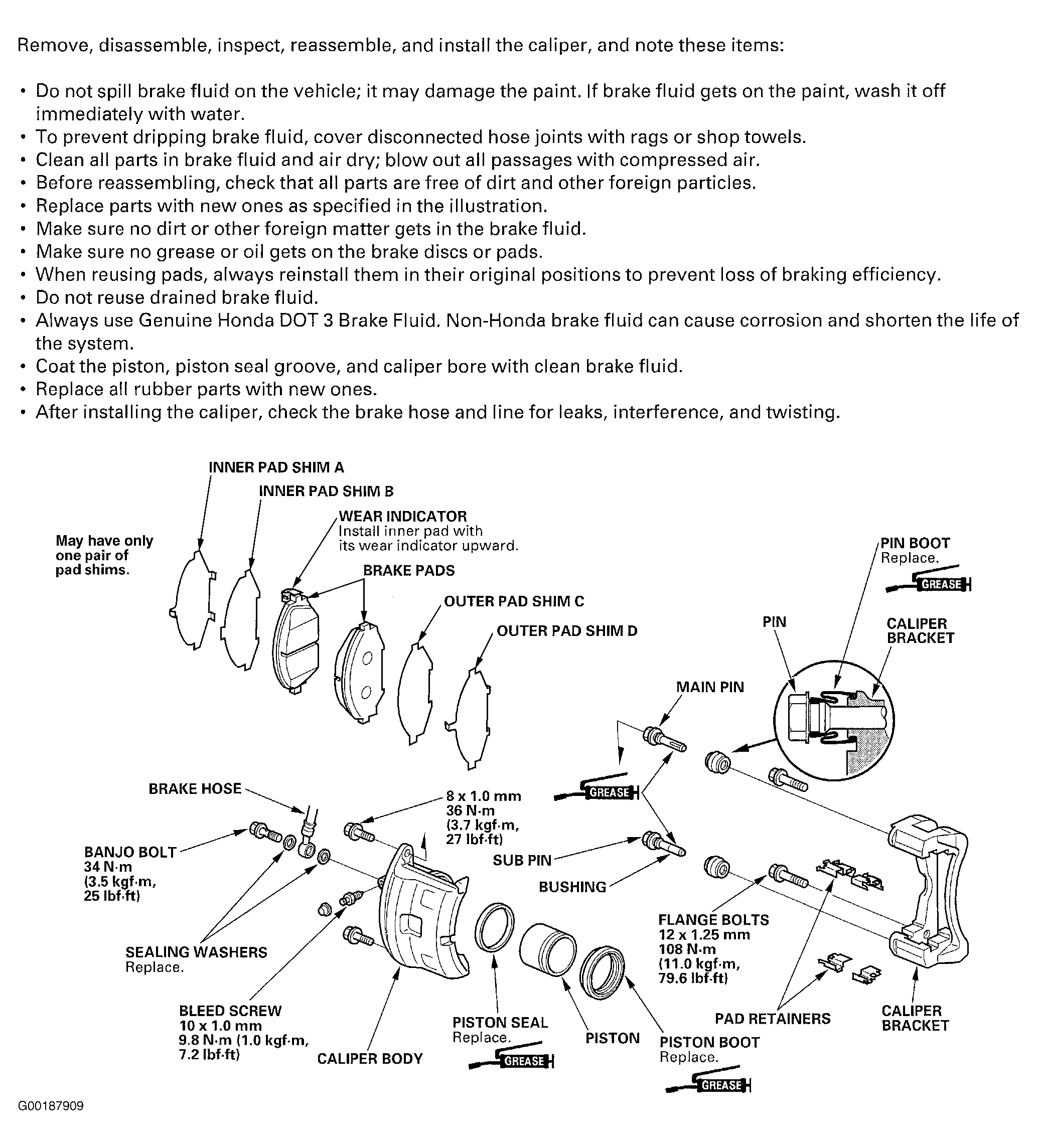

Fig 6: Exploded View Of Front Brake Caliper Overhaul (Civic - Si & Hatchback)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

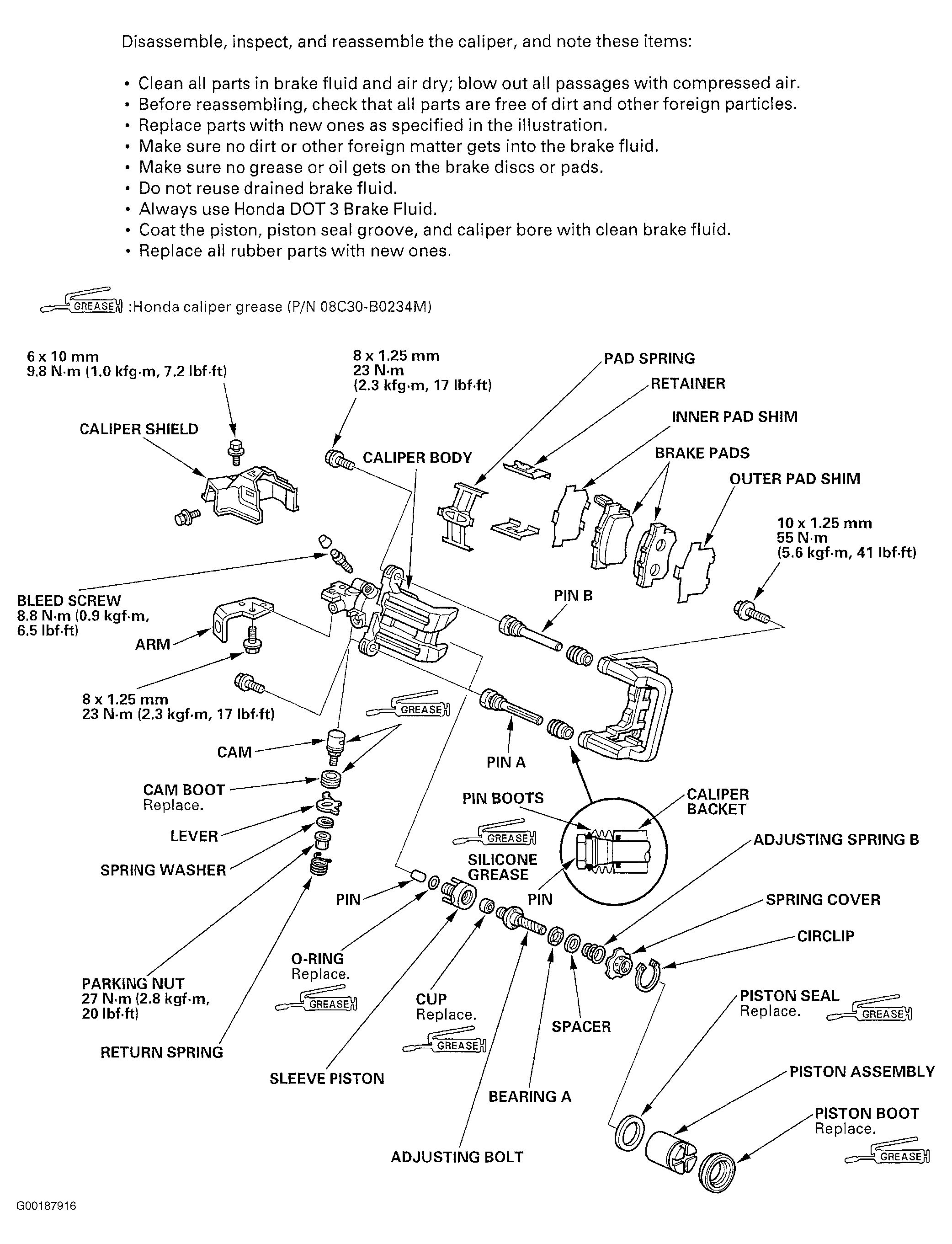

Fig 7: Exploded View Of Rear Brake Caliper Overhaul (Civic - Si & Hatchback)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

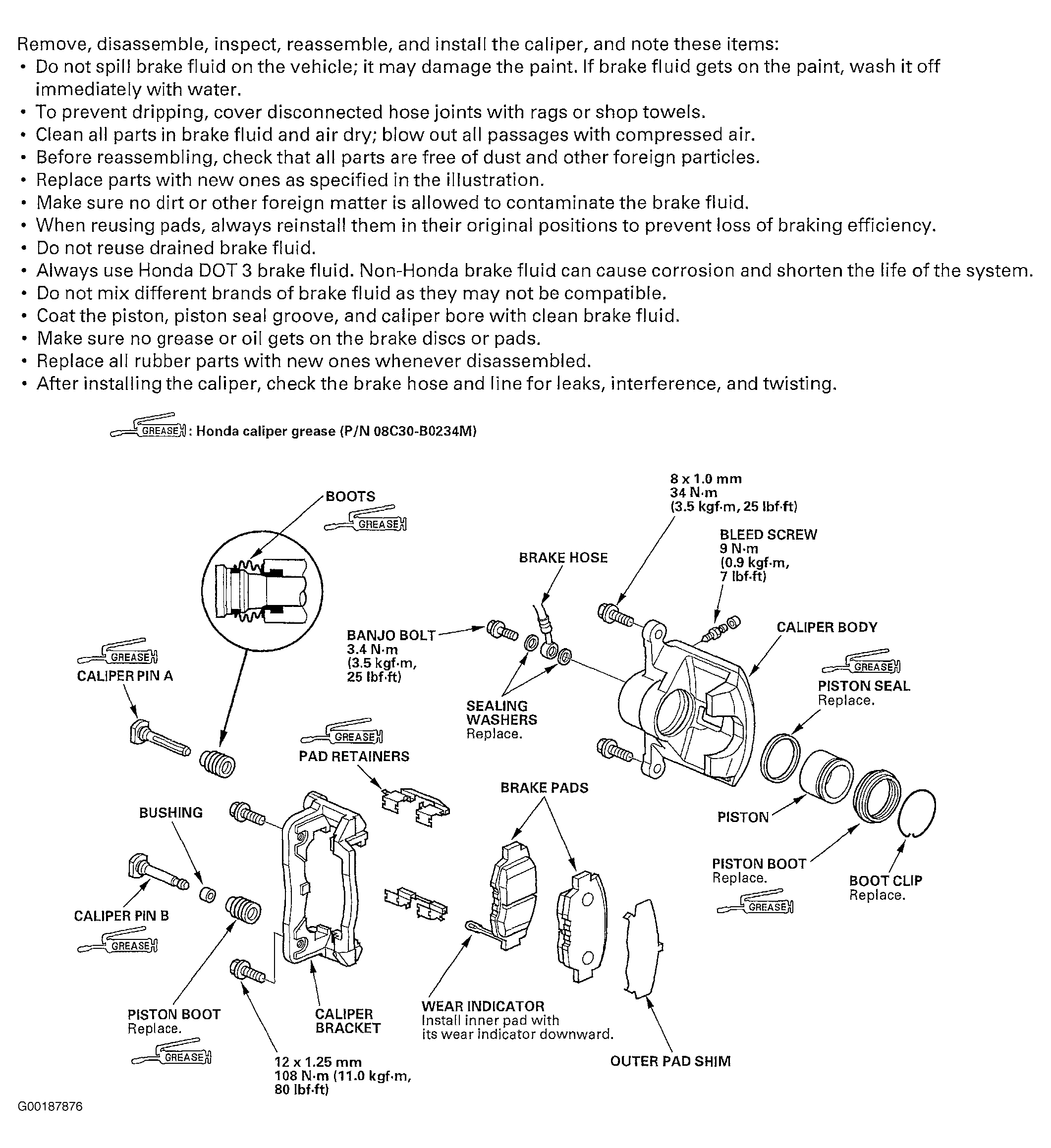

Fig 8: Exploded View Of Front Brake Caliper Overhaul (CR-V)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

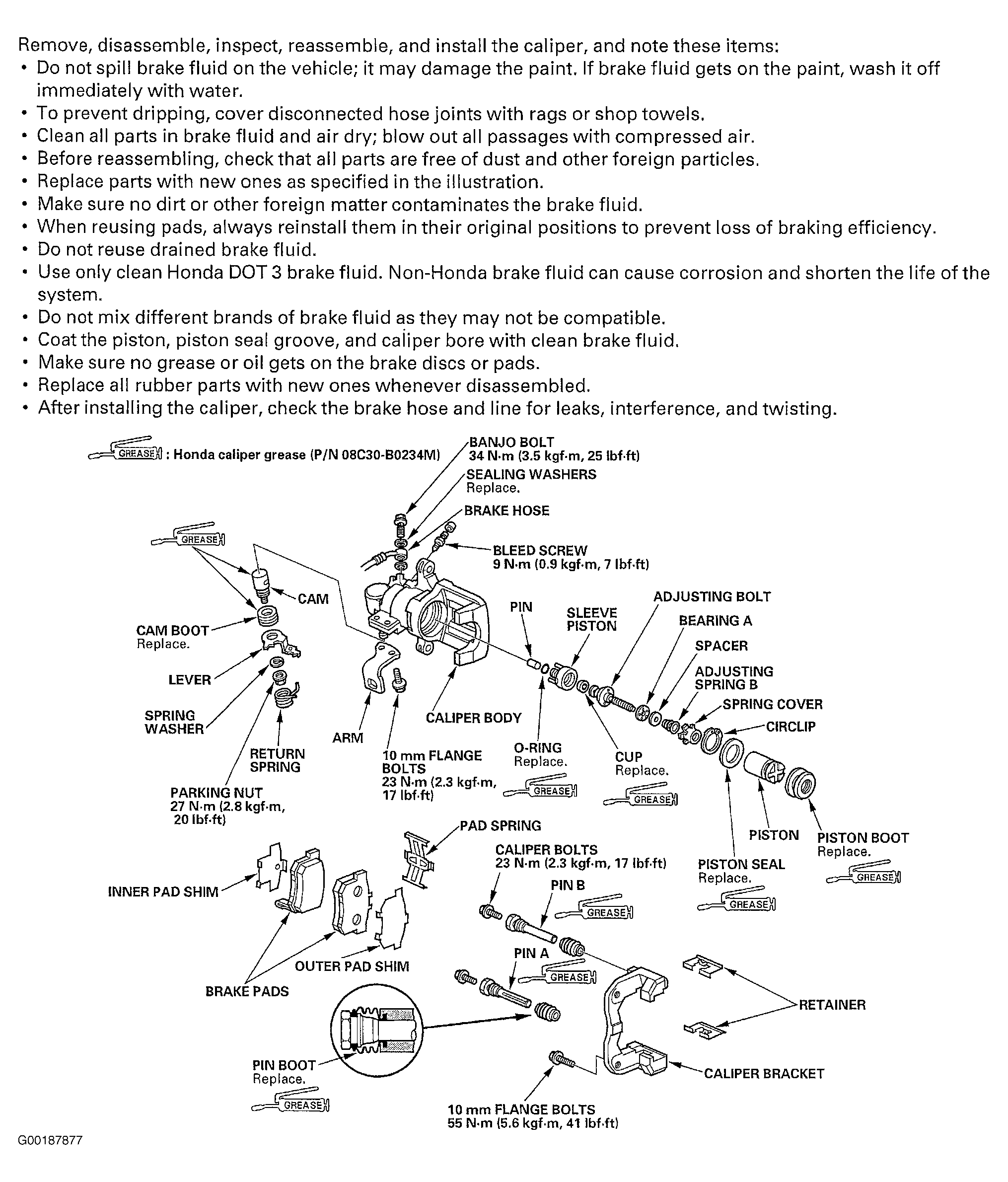

Fig 9: Exploded View Of Rear Brake Caliper Overhaul (CR-V)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Exploded View Of Front Brake Caliper Overhaul (Insight)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Exploded View Of Front Brake Caliper Overhaul (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

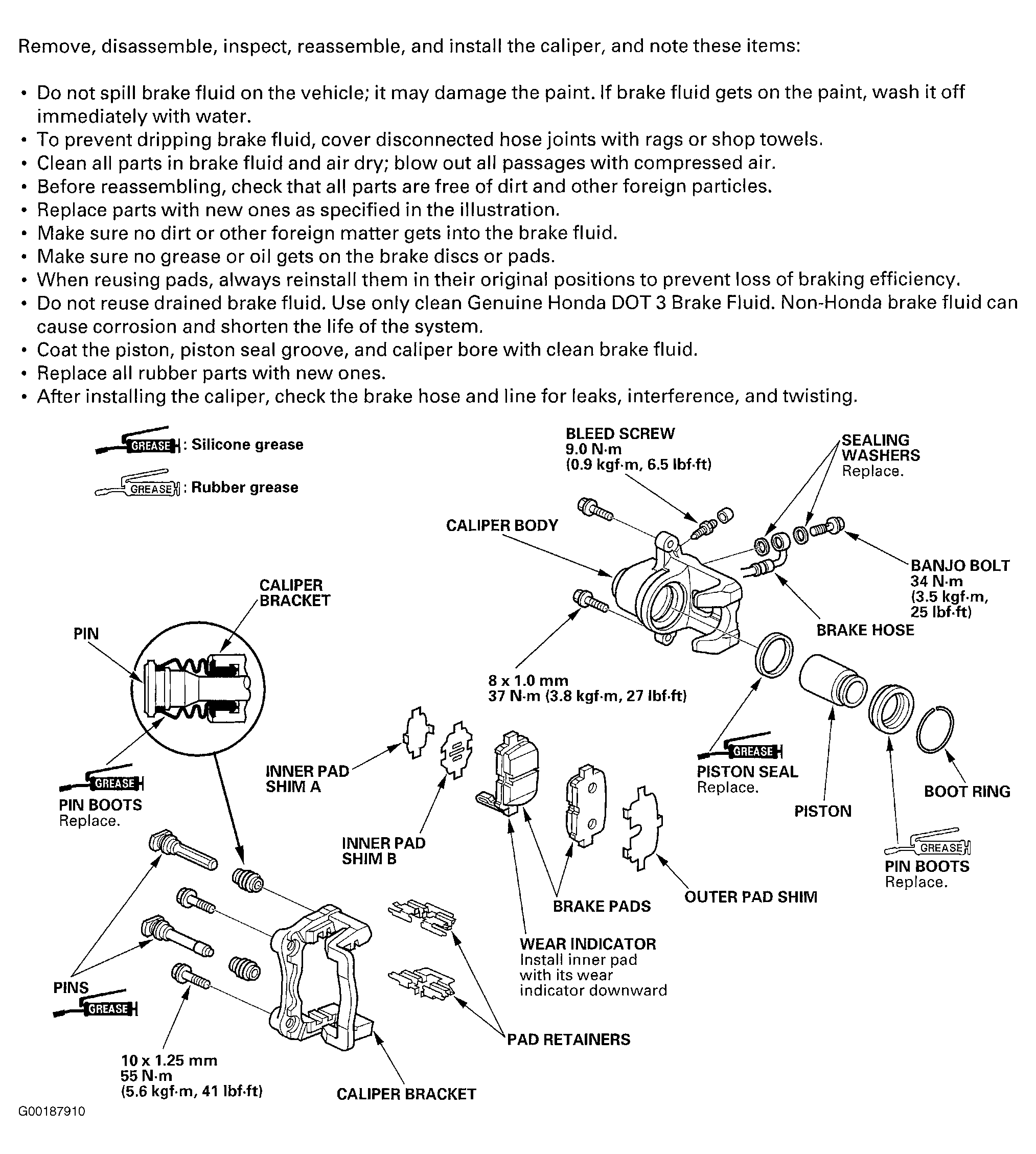

Fig 12: Exploded View Of Rear Brake Caliper Overhaul (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Exploded View Of Front Brake Caliper Overhaul (S2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

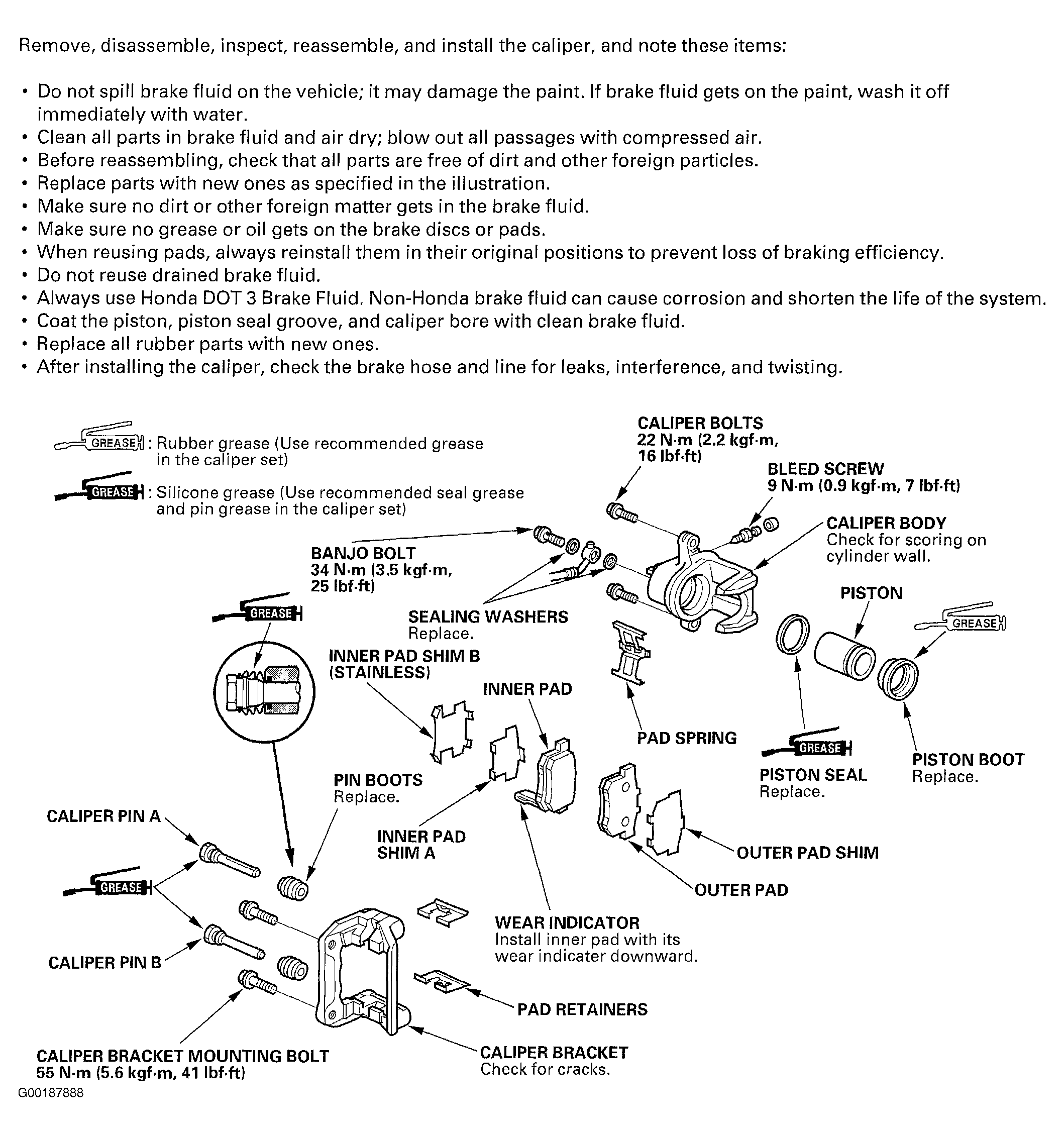

Fig 14: Exploded View Of Rear Brake Caliper Overhaul (S2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
