Brake System Operation: Odyssey
See
Fig 1
for trouble shooting table and leakage check.

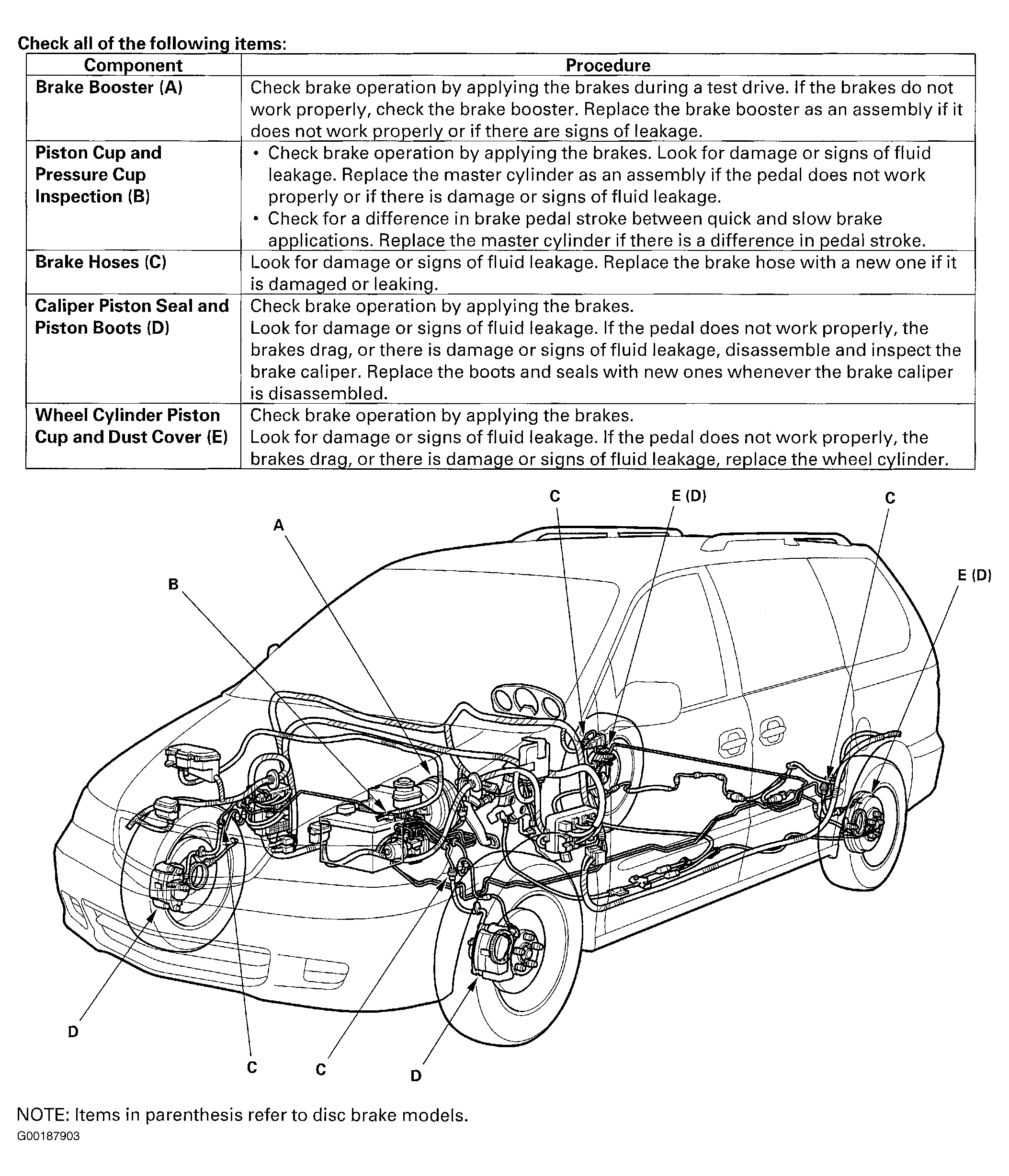

Fig 1: Trouble Shooting System Operation & Leakage Check (Odyssey)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
