Brake System Operation
>>
Cr-V
Brake System Operation: Cr-V
See
Fig 1
for trouble shooting table and leakage check.

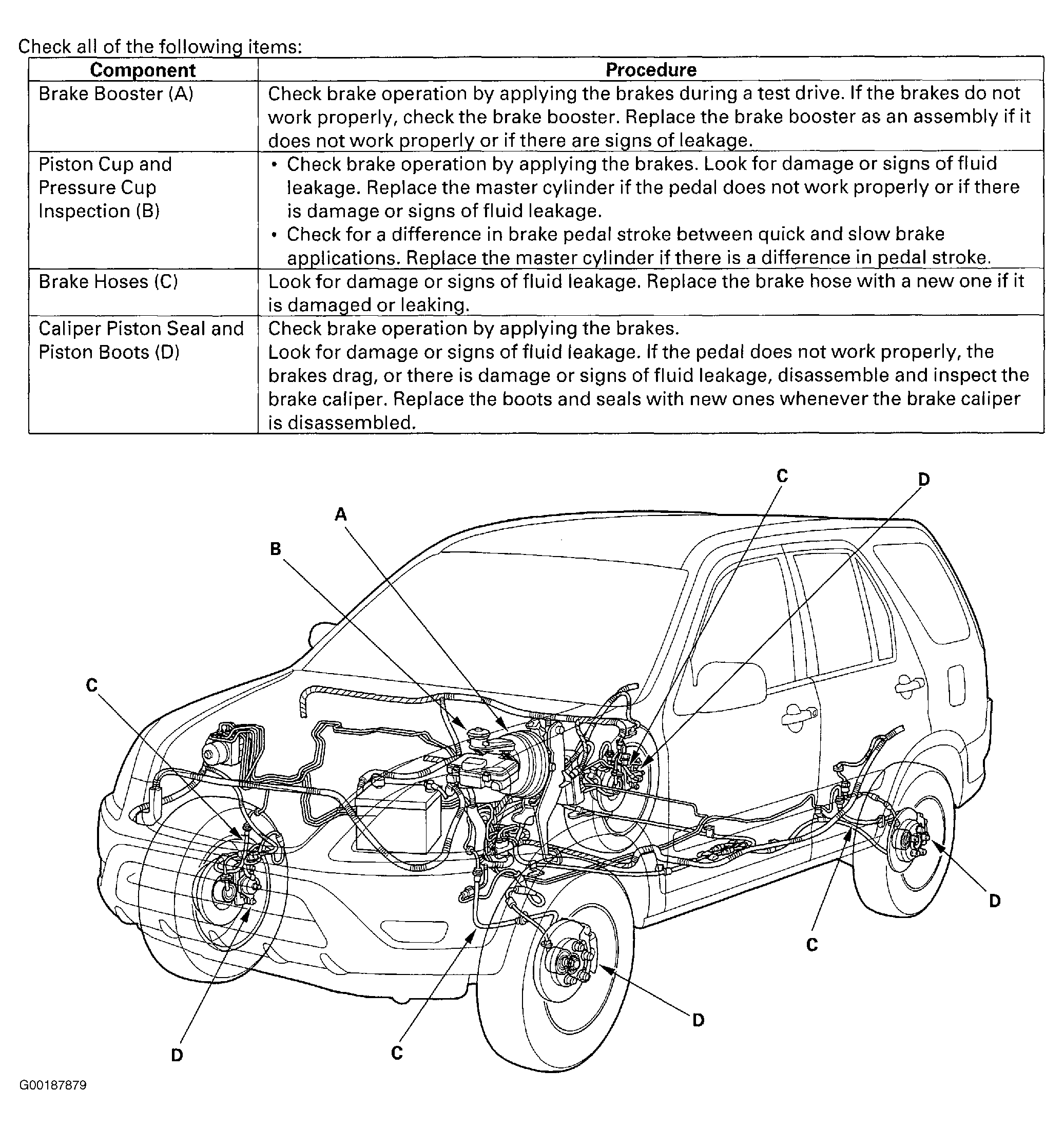

Fig 1: Trouble Shooting System Operation & Leakage Check (CR-V)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
