Civic, Insight, & S2000

See Fig 1 or Fig 2 for component trouble shooting. See Fig 3 and Fig 4 for system trouble shooting procedures.

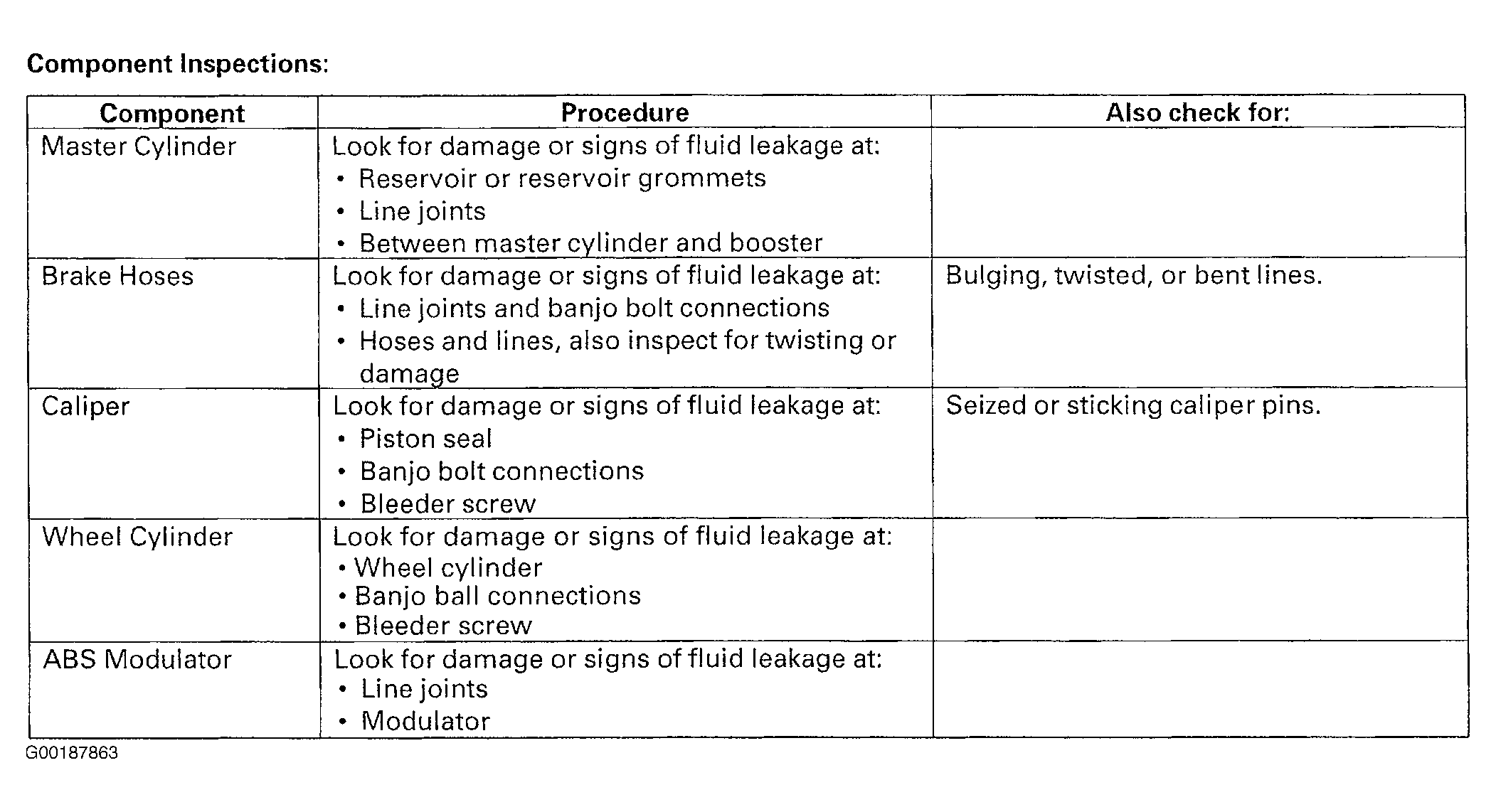

Fig 1: Trouble Shooting Brake System Components (Civic & Insight)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

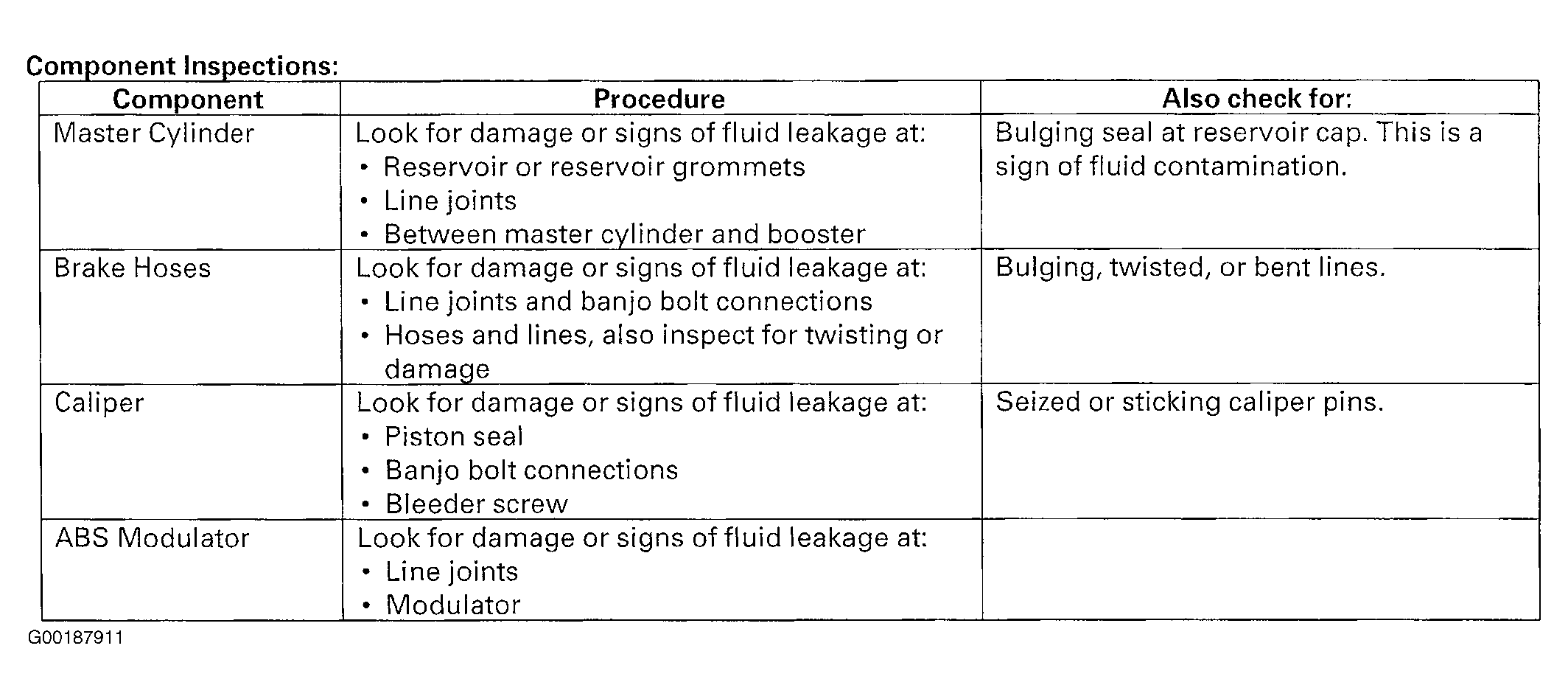

Fig 2: Trouble Shooting Brake System Components (S2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

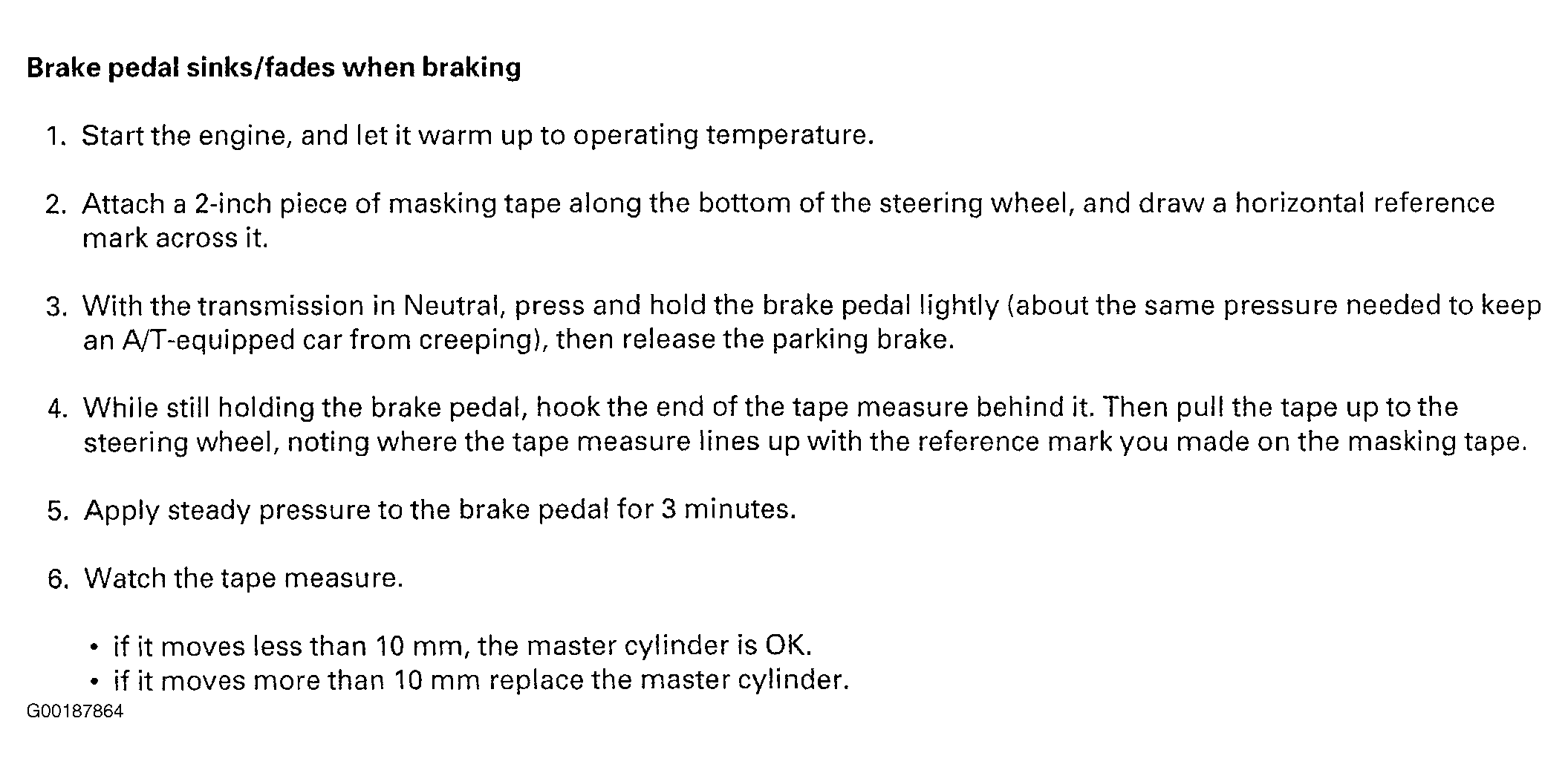

Fig 3: Trouble Shooting Brake System (Civic, Insight & S2000, 1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

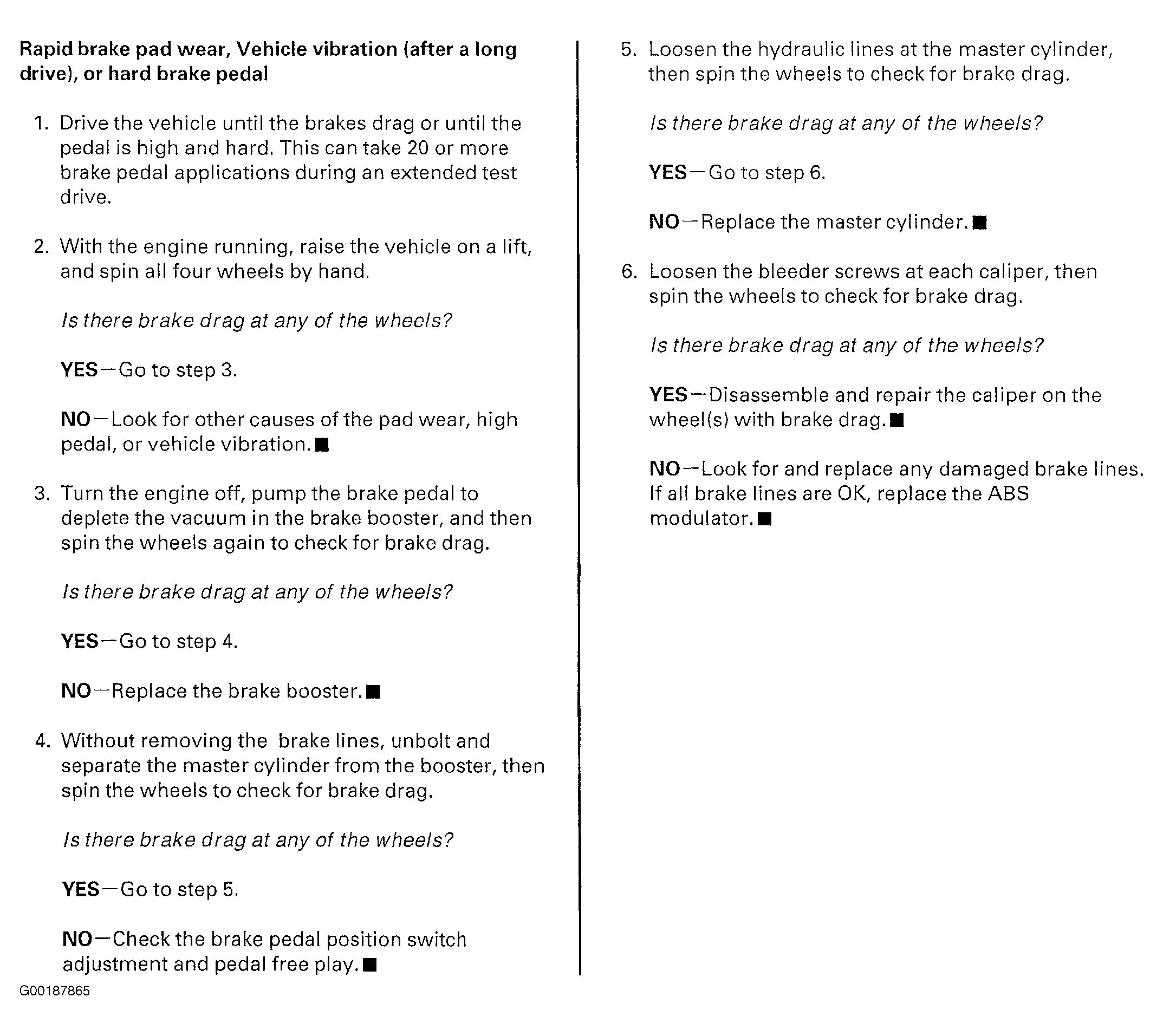

Fig 4: Trouble Shooting Brake System (Civic, Insight & S2000, 2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
