Except CR-V & Odyssey

Remove rear console, and disconnect connector from switch. See Fig 1 . Check for continuity between positive terminal and body ground. With brake lever up, there should be continuity. With brake lever down, there should be no continuity.

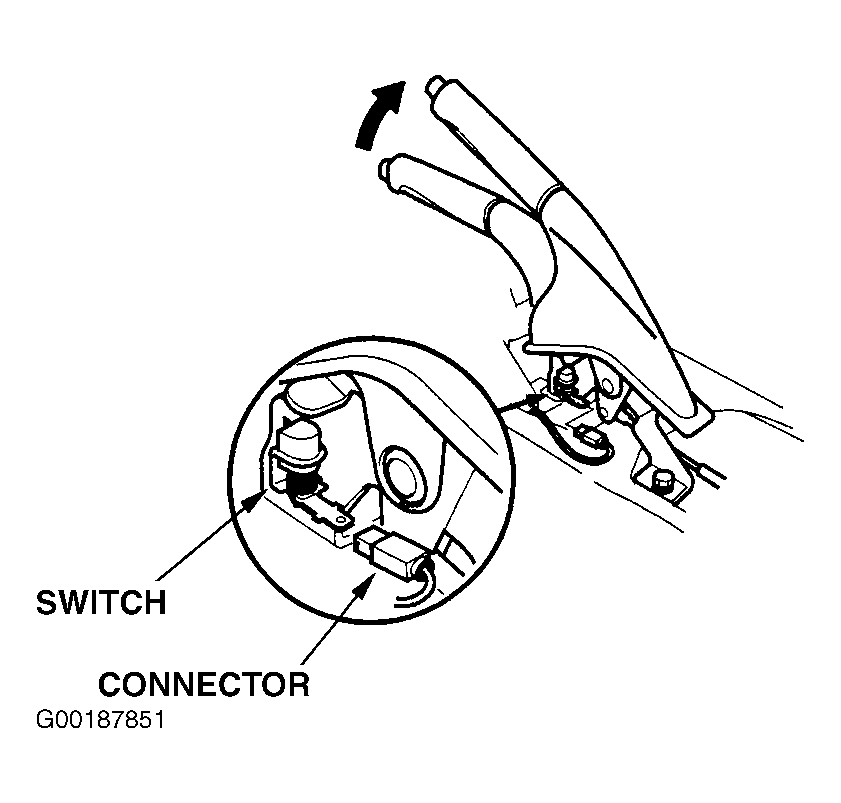

Fig 1: Locating Parking Brake Switch Terminal (Accord shown, All Others Similar)
G00187851Courtesy of AMERICAN HONDA MOTOR CO., INC.
