Removal & Installation (Odyssey)

Remove master cylinder. See MASTER CYLINDER  . Remove air intake duct. Remove cable bracket from throttle body, then disconnect throttle cable end and actuator cable end from throttle linkage. See Fig 1 . Disconnect vacuum hose from brake booster. Remove lock pin and joint pin. Remove 4 booster mounting nuts. See Fig 2 . Pull booster forward, and remove it from engine compartment. Install in reverse order of removal. Tighten mounting nuts to specification. See TORQUE SPECIFICATIONS  .

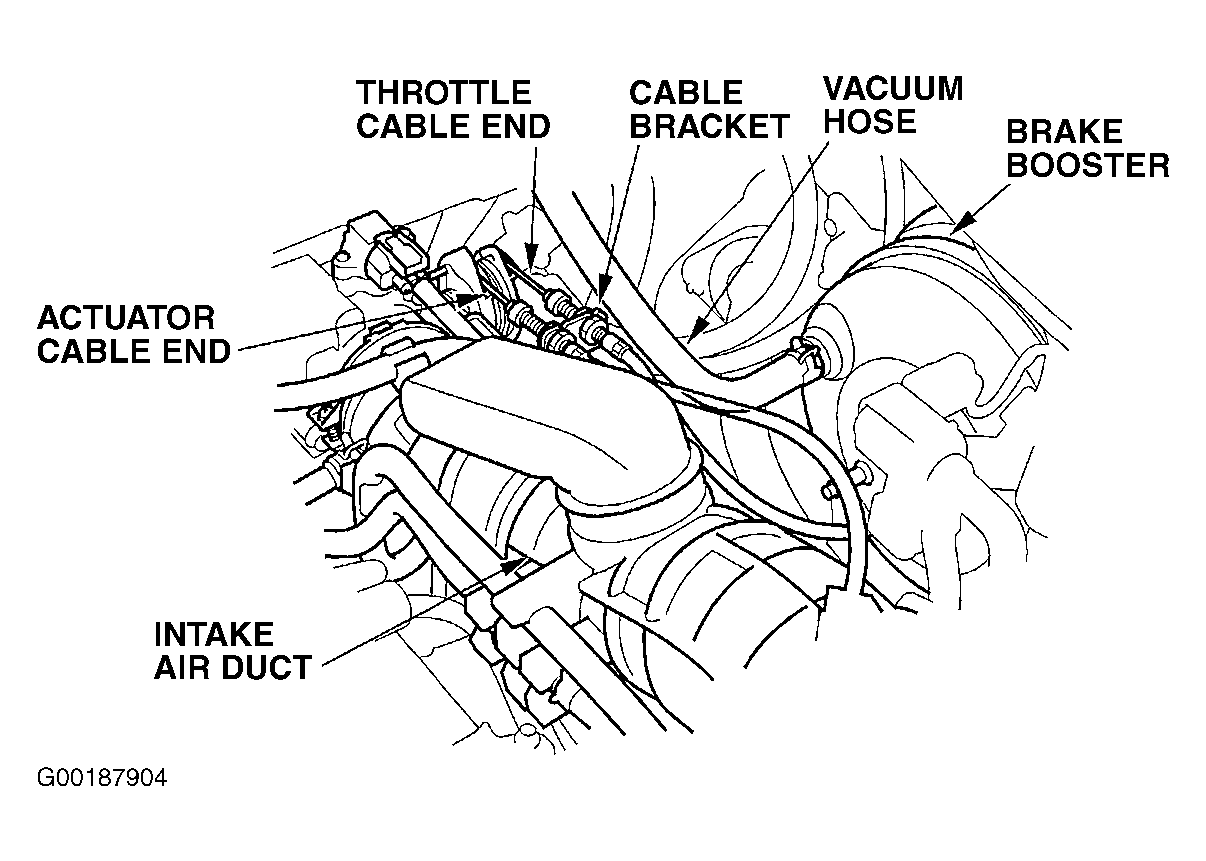

Fig 1: Identifying Cable Bracket & Throttle Body (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

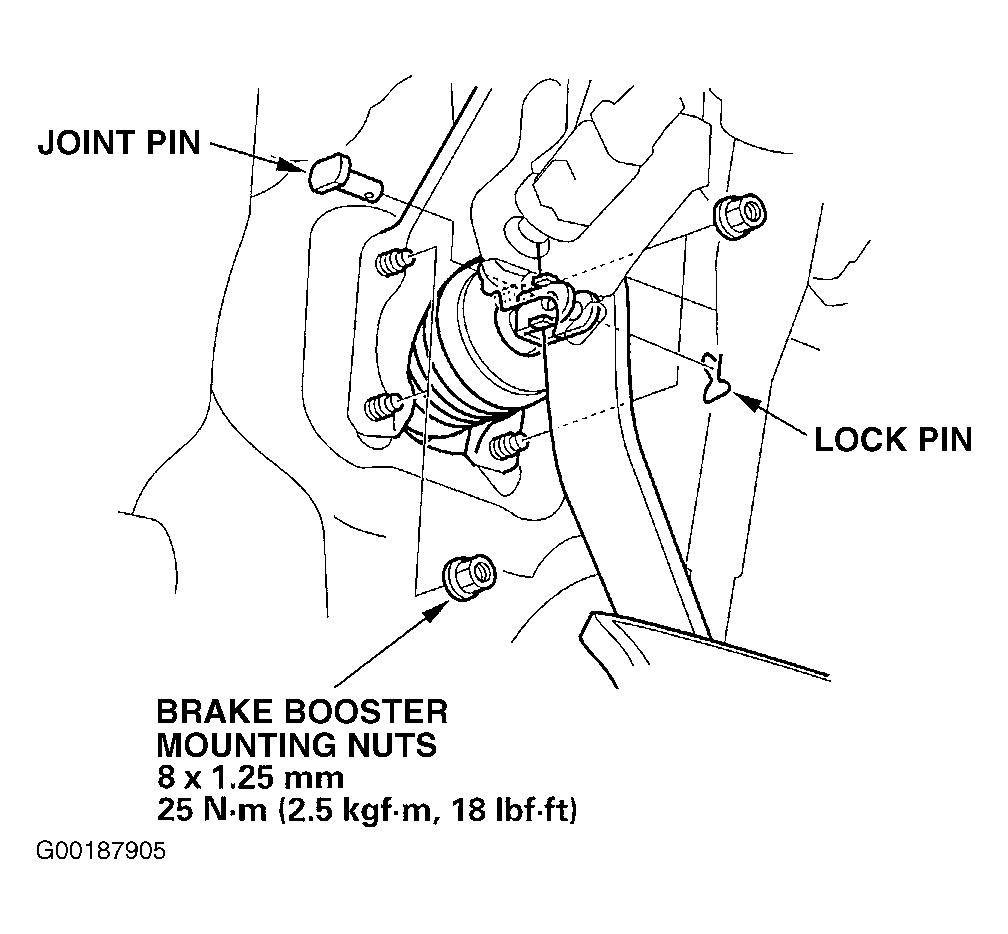

Fig 2: Identifying Lock Pin & Booster Mounting Nuts (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
