Master Cylinder
>>
Removal & Installation (S2000)
Removal & Installation (S2000)
See,
Fig 1
for exploded view of master cylinder components and removal procedures.

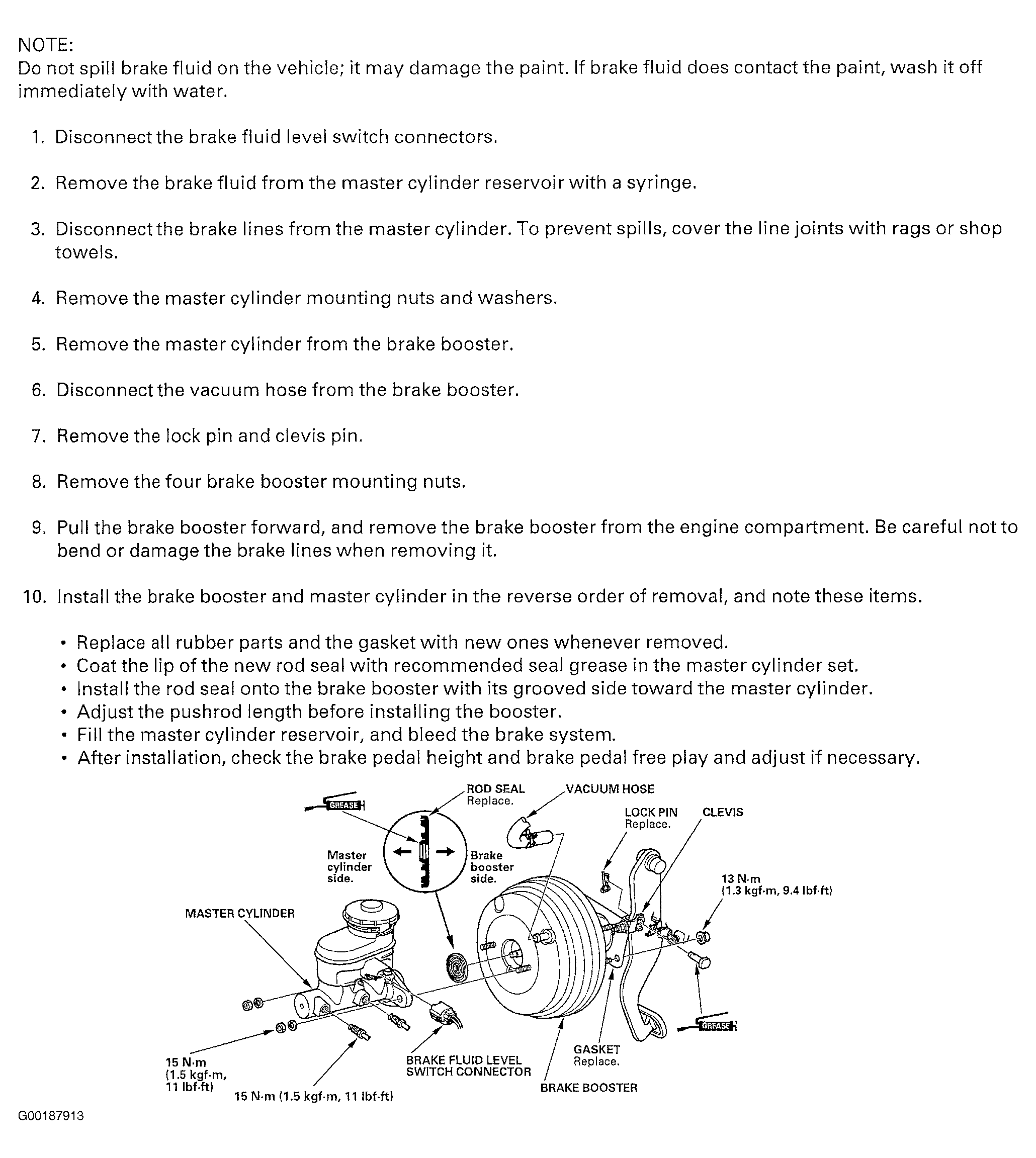

Fig 1: Exploded View Of Master Cylinder Components And Removal Procedures (S2000)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
