Home >> Honda >> 2000 >> S2000 >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Gauges >> Gauge Bulb Replacement >> '04-05 models

'04-05 models

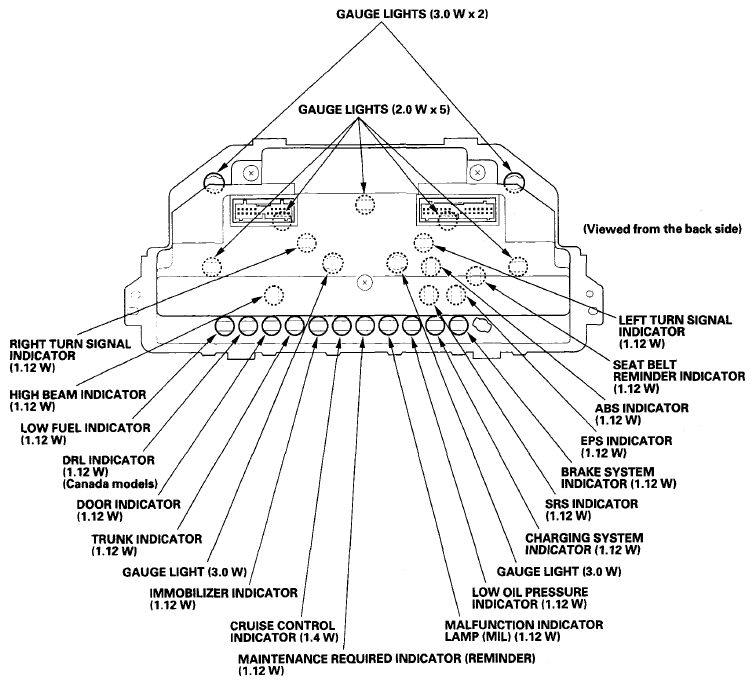

Fig 1: Identifying Gauge Bulb Location ('04-05 Models)

G06232314

Courtesy of AMERICAN HONDA MOTOR CO., INC.
