Gauge/Terminal Location Index ('00-03 models)

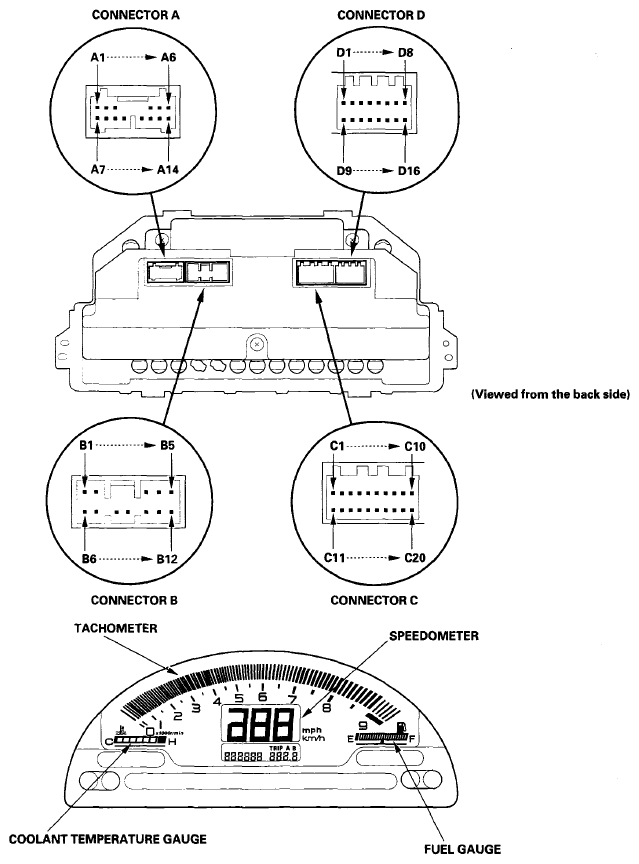

Fig 1: Identifying Gauge/Terminal Location ('00-03 Models)

G06232310

Courtesy of AMERICAN HONDA MOTOR CO., INC.
