Control Unit Input Test

Before testing these systems, troubleshoot the multiplex control system (see TROUBLESHOOTING ).
1. Driver's Multiplex Control Unit
Remove the driver's unit from the driver's under-dash fuse/relay box.
Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.

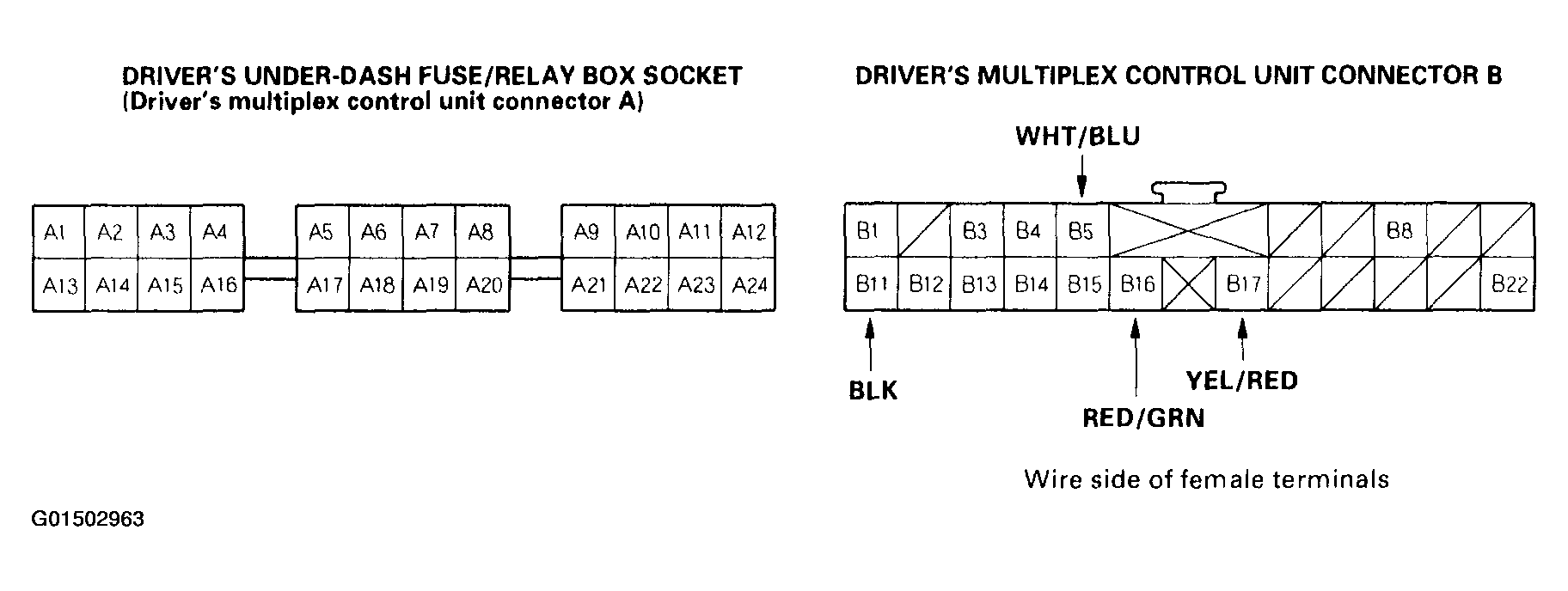

Fig 1: Identifying Under Driver's Dash Fuse/Relay Box Socket & Driver's Multiplex Control Unit Connector B
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With the driver's multiplex control unit still disconnected, make these input tests at the connector and driver's under-dash fuse/relay box sockets.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.

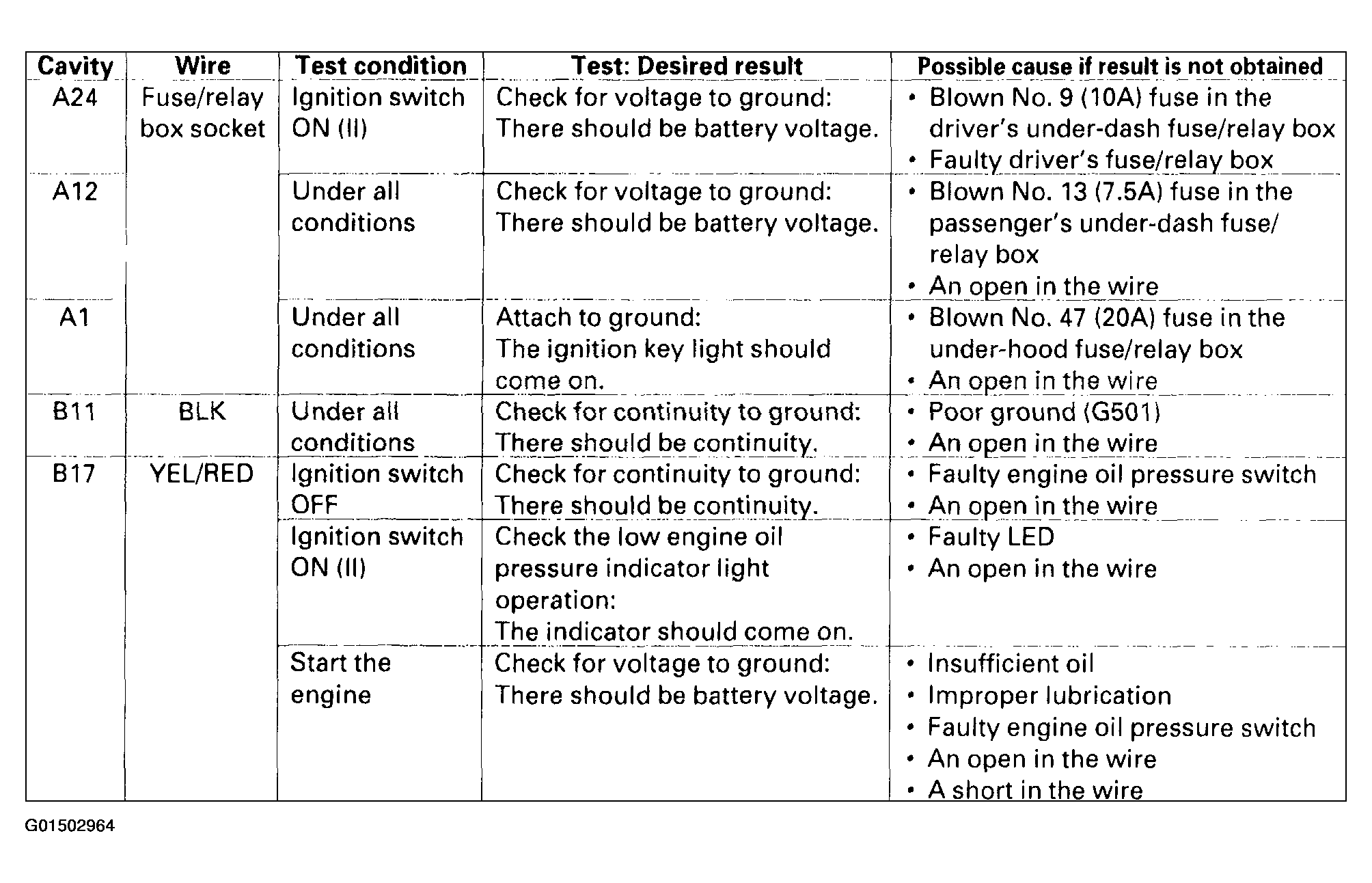

Fig 2: Control Unit Input Test Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reconnect the driver's multiplex control unit to the driver's under-dash fuse/relay box, and perform the following input tests at the appropriate connectors on the back of the driver's under-dash fuse/relay box.
For driver's under-dash fuse/relay box connector socket location (see DRIVER'S UNDER-DASH FUSE/RELAY BOX ).
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the driver's multiplex control unit must be faulty, replace it.

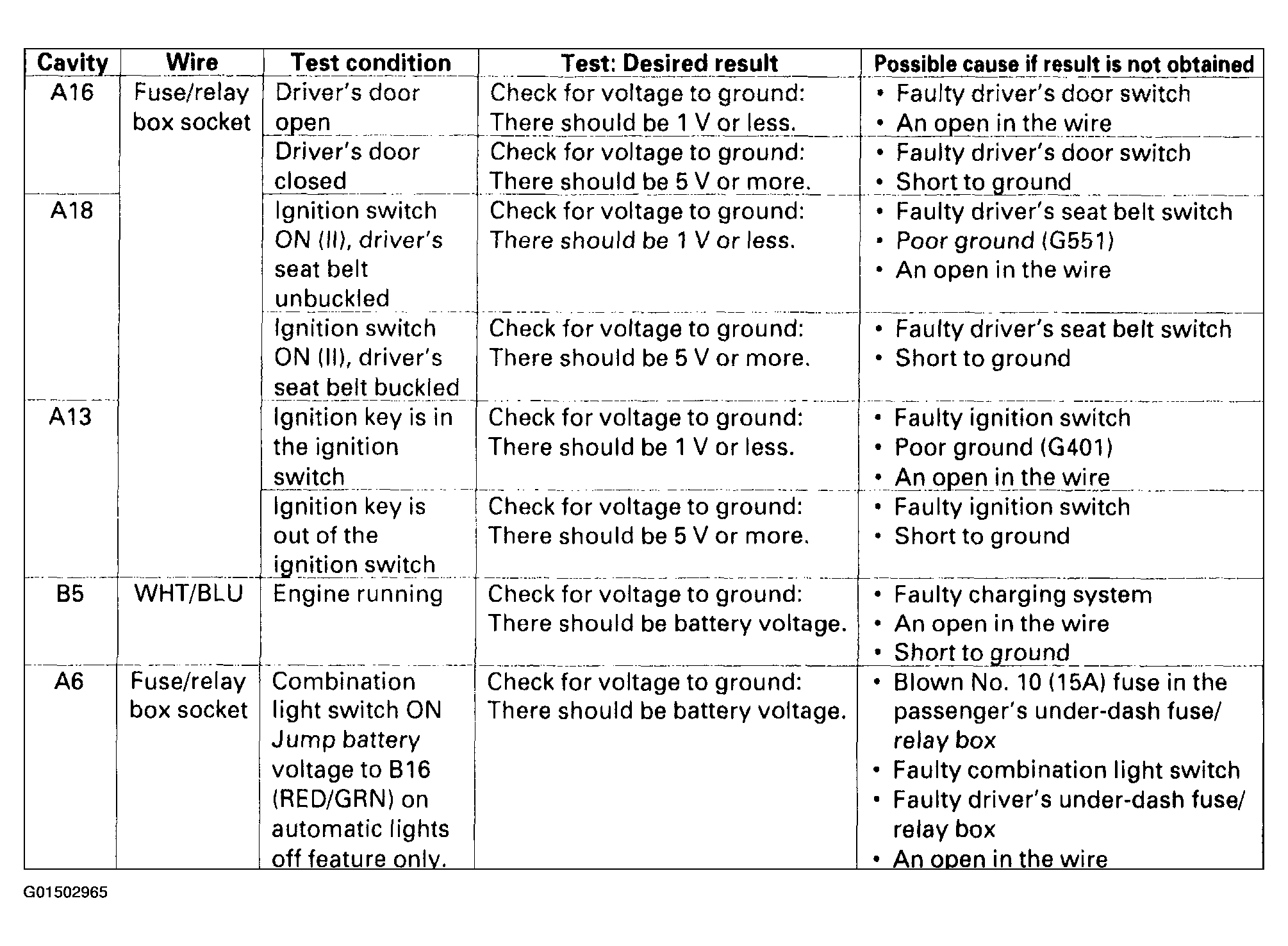

Fig 3: Control Unit Input Test Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
