Lights-on, Key-in, Seat Belt Reminder, Key Light Timer, and Engine Oil Pressure Indicator Systems
>>
Circuit Diagram
Circuit Diagram

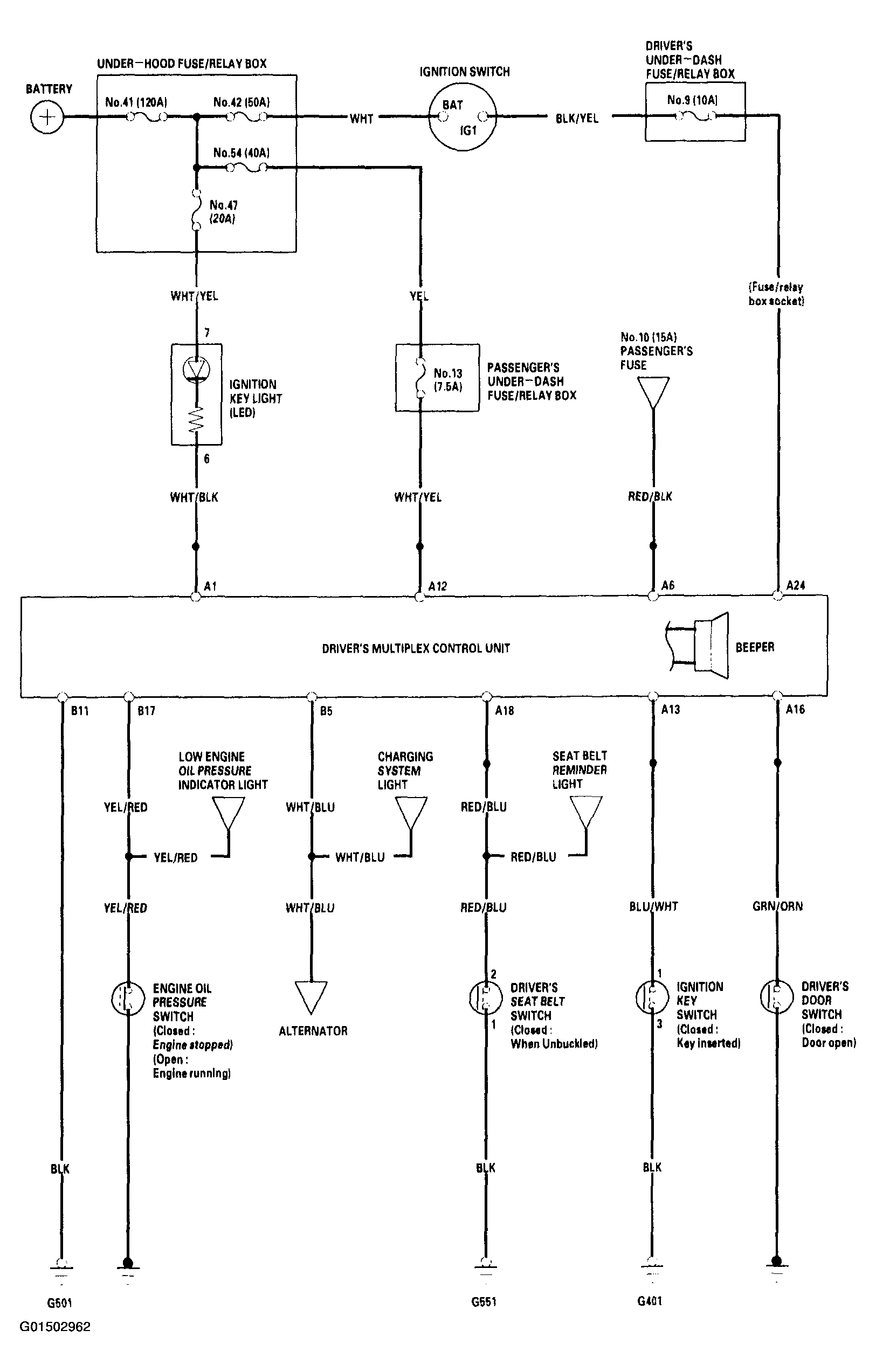

Fig 1: Lights-on, Key-in, Seat Belt Reminder, Key Light Timer, & Engine Oil Pressure Indicator Systems Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
