Torque Converter Clutch Solenoid Valve Replacement

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mounting bolt and torque converter clutch solenoid valve.

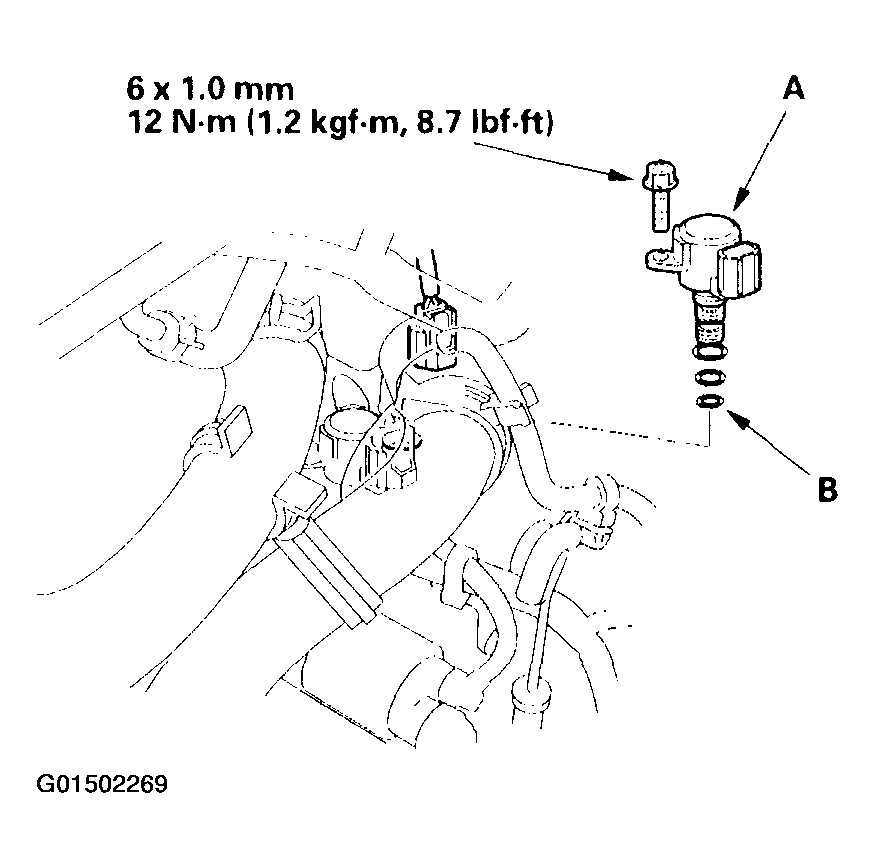

    Fig 1: Removing Torque Converter Clutch Solenoid Valve
    G01502269Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install a new torque converter clutch solenoid valve (A) with new O-rings (B). When installing the solenoid valve, do not allow dust or other foreign particles to enter the transmission.
  3. Check the connector for rust, dirt, or oil, then reconnect it.
