Torque Converter Clutch Lock-up ON (Engaging Torque Converter Clutch)

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Fluid in the chamber between the torque converter cover and the torque converter clutch piston is drained off, and fluid entering from the chamber between the pump and stator exerts pressure through the torque converter clutch piston against the torque converter cover. The torque converter clutch piston engages with the torque converter cover; torque converter clutch lock-up ON, and the mainshaft rotates at the same as the engine.

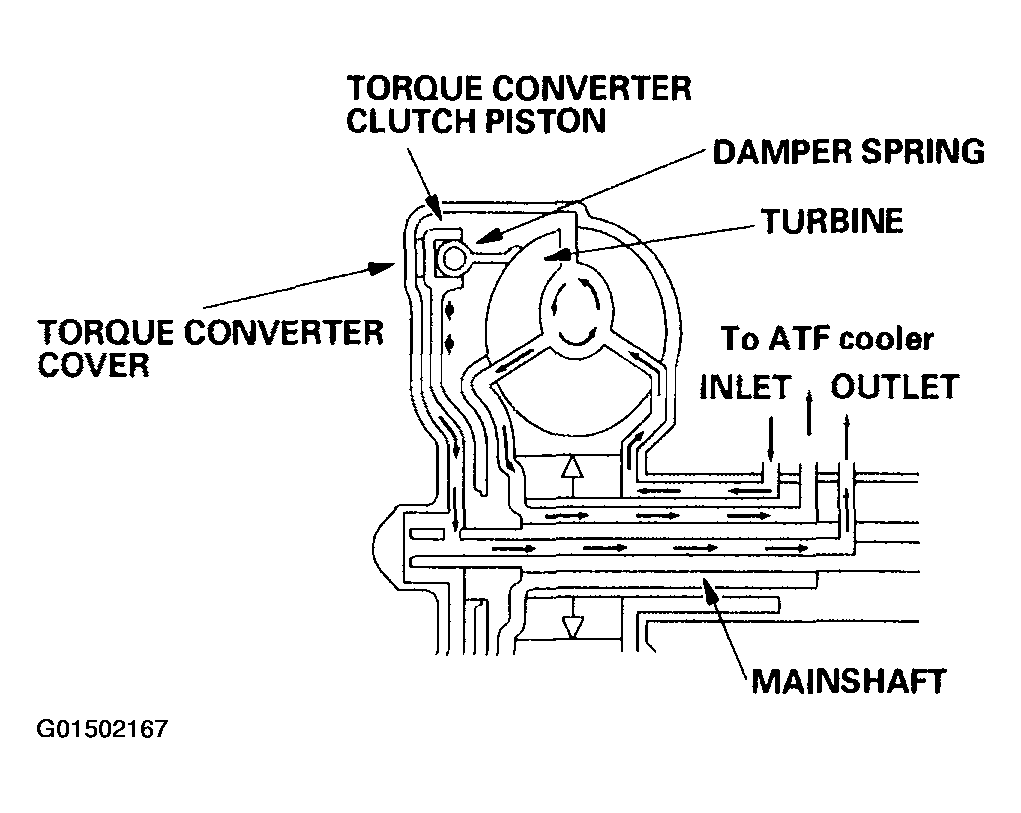

Fig 1: Oil Circuit Diagram - Torque Converter Clutch Lock-Up ON (Engaging Torque Converter Clutch - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Oil Circuit Diagram - Torque Converter Clutch Lock-Up ON (Engaging Torque Converter Clutch - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
