Torque Converter Clutch Lock-up OFF (Disengaging Torque Converter Clutch)

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Fluid entered from the chamber between the torque converter cover and the torque converter clutch piston passes through the torque converter and goes out through the chambers between the turbine and the stator, and between the pump and the stator. As a result, the torque converter clutch piston moves away from the torque converter cover, and the torque converter clutch lock-up is released; torque converter clutch lock-up OFF.

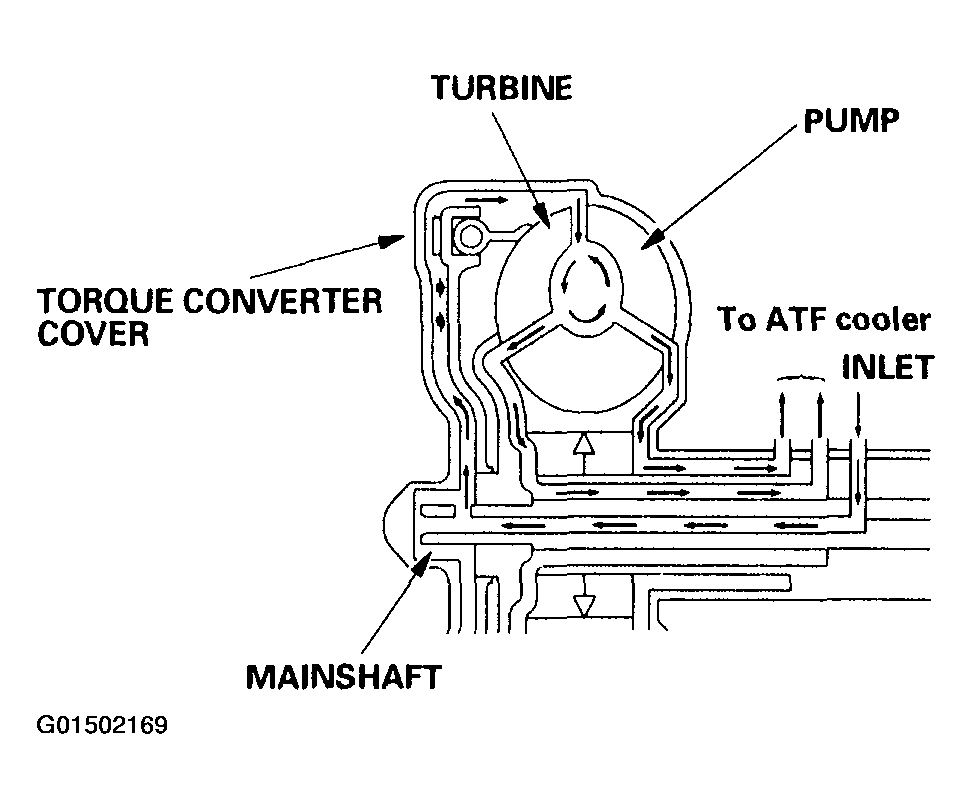

Fig 1: Oil Circuit Diagram - Torque Converter Clutch Lock-Up Off (Disengaging Torque Converter Clutch - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Oil Circuit Diagram - Torque Converter Clutch Lock-Up Off (Disengaging Torque Converter Clutch - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
