Top Accumulator Body

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The top accumulator body contains shift valve E, CPC valve C, 4th/1st-hold accumulator, and 5th accumulator.

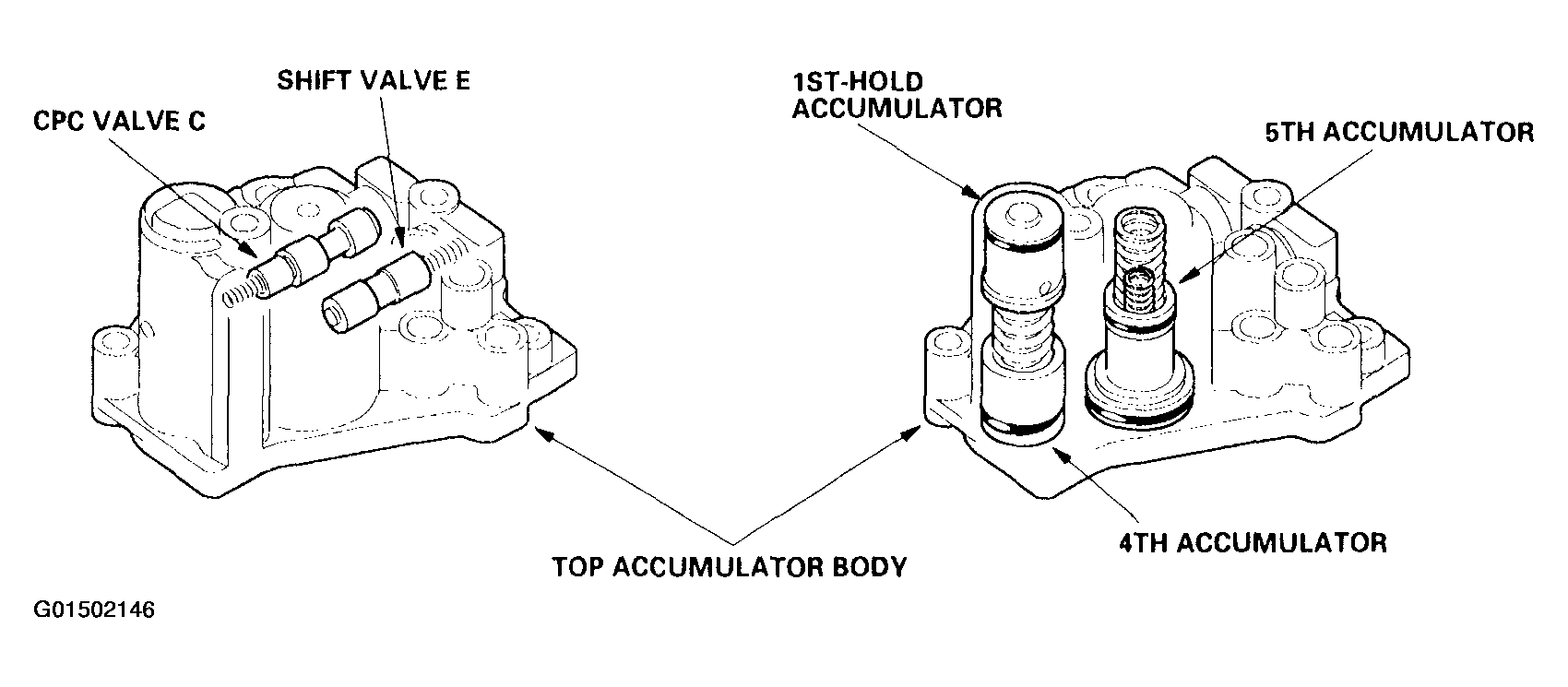

Fig 1: Exploded View Of Top Accumulator Body
G01502146Courtesy of AMERICAN HONDA MOTOR CO., INC.
