Servo Body

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The servo body is on the main valve body. It contains the servo valve, the shift valve A, the shift valve B, CPC valves A and B.

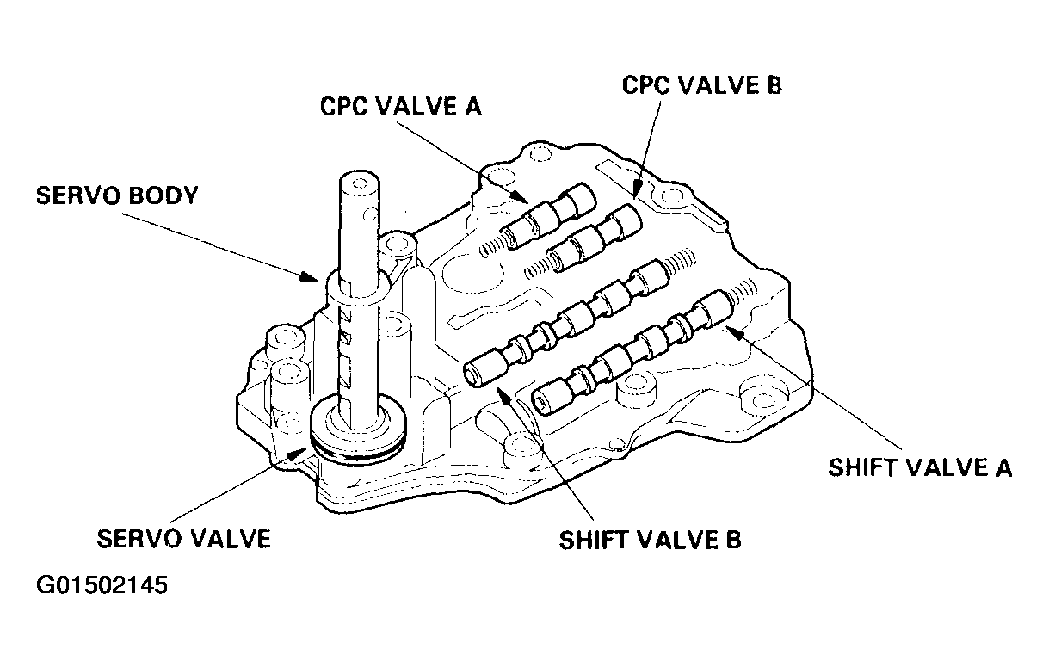

Fig 1: Exploded View Of Servo Body
G01502145Courtesy of AMERICAN HONDA MOTOR CO., INC.
