Regulator Valve Body

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The regulator valve body is located on the main valve body. The regulator valve body contains the regulator valve, the lock-up timing valve, and the lock-up control valve.

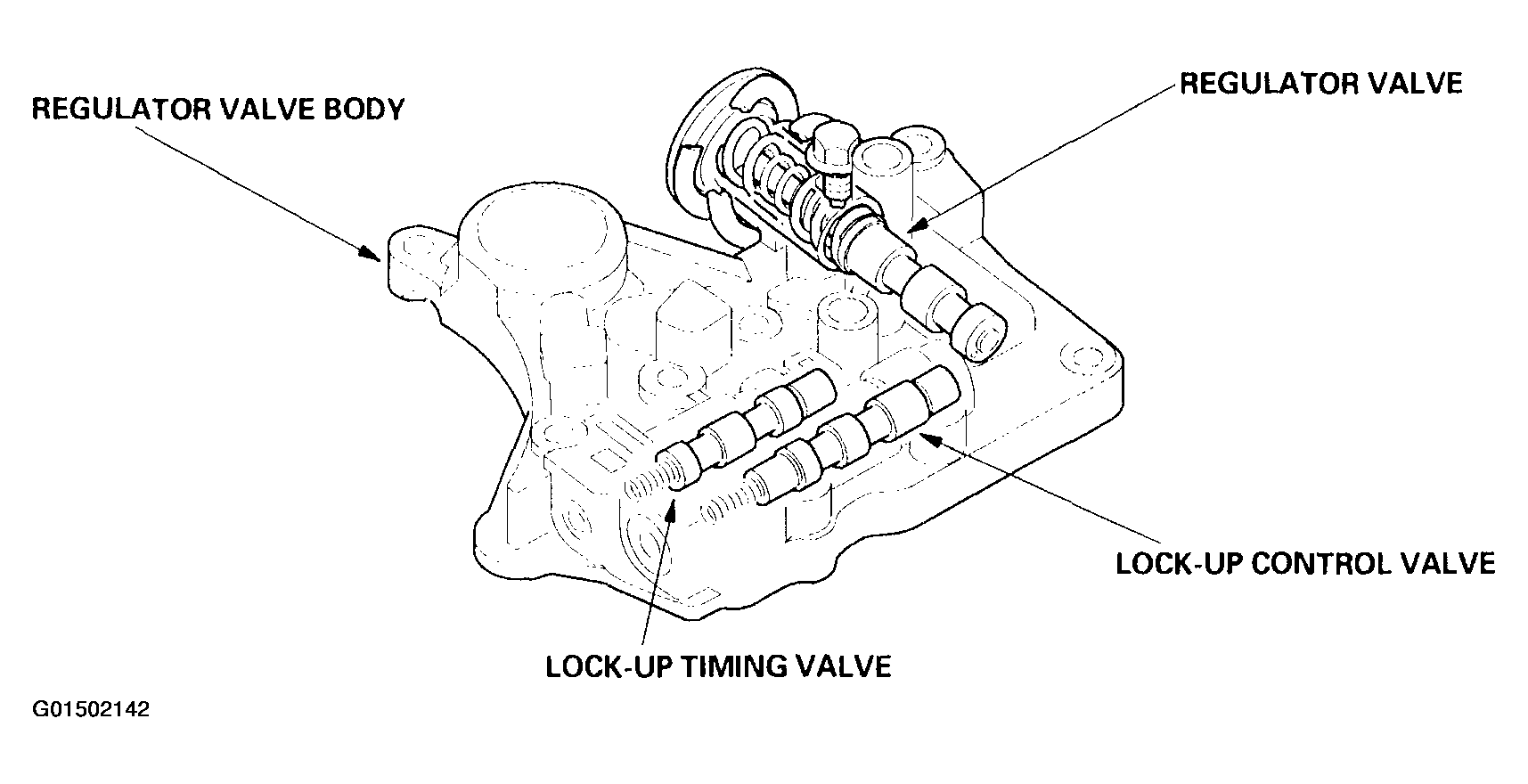

Fig 1: Exploded View Of Regulator Valve Body
G01502142Courtesy of AMERICAN HONDA MOTOR CO., INC.
