Gear Selection

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The shift lever has seven positions; P: PARK, R: REVERSE, N: NEUTRAL, D: 1st through 5th gear ranges, D3: 1st through 3rd gear ranges, 2: 2nd gear, 1: 1st gear.

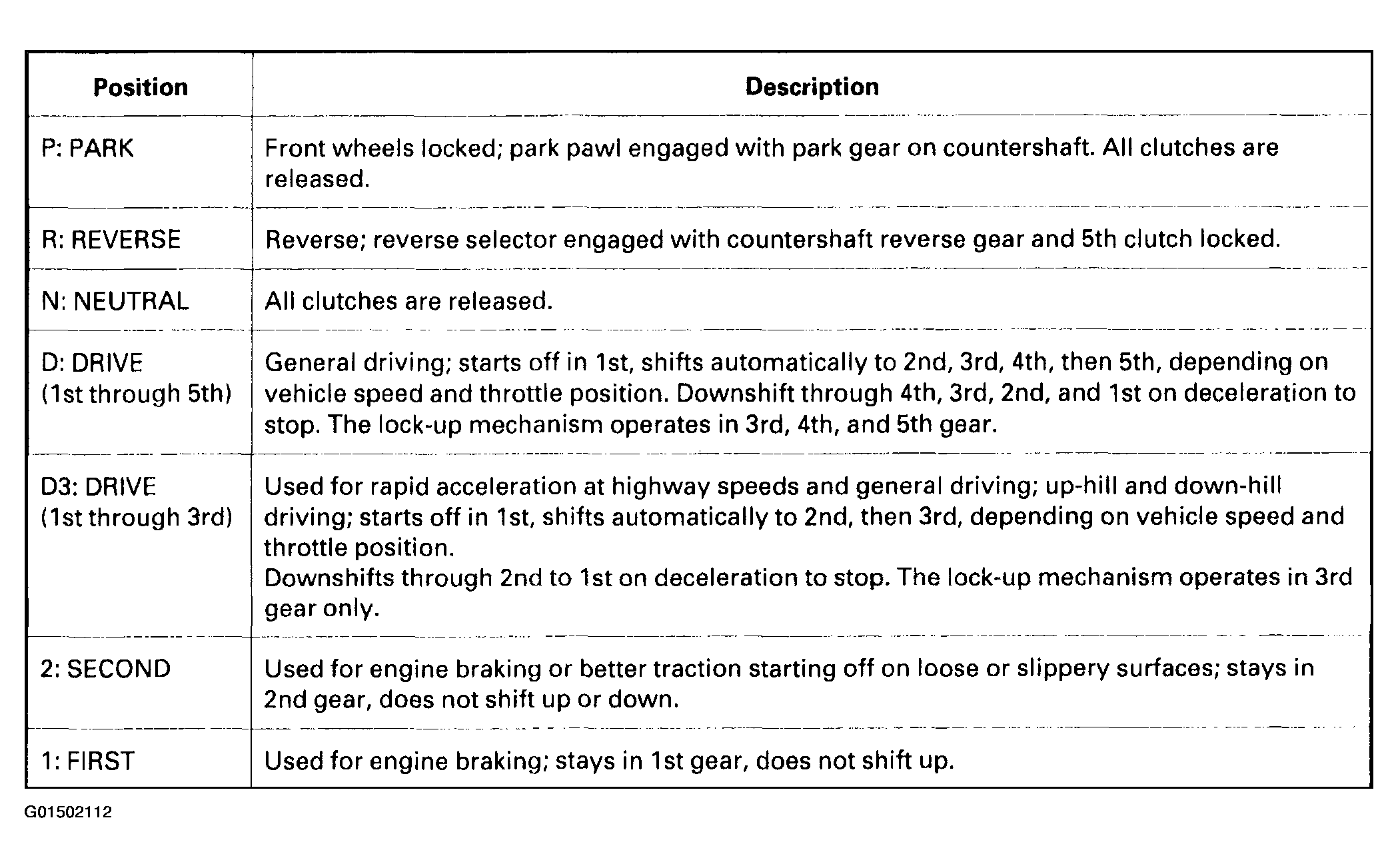

Fig 1: Explanation Of Transmission Shift Lever Positions
G01502112Courtesy of AMERICAN HONDA MOTOR CO., INC.

Starting is possible only in the P and N positions because of a slide-type neutral-safety switch.
