PCM Inputs and Outputs

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The PCM terminal voltage and measuring conditions for the A/T control system are shown.

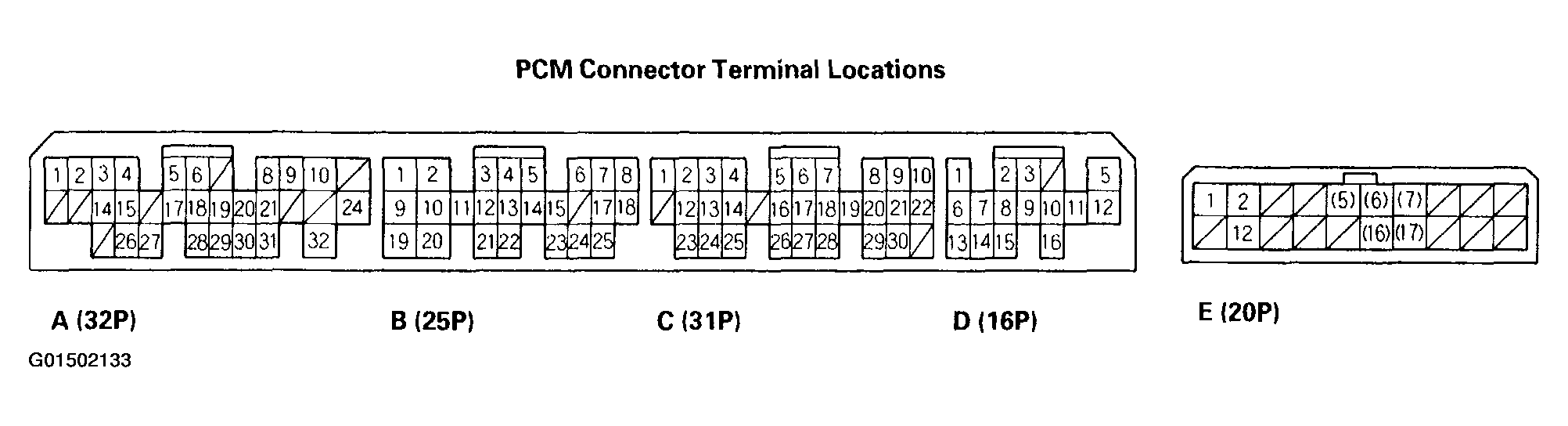

Fig 1: Identifying PCM Connectors & Terminal Locations

G01502133

Courtesy of AMERICAN HONDA MOTOR CO., INC.

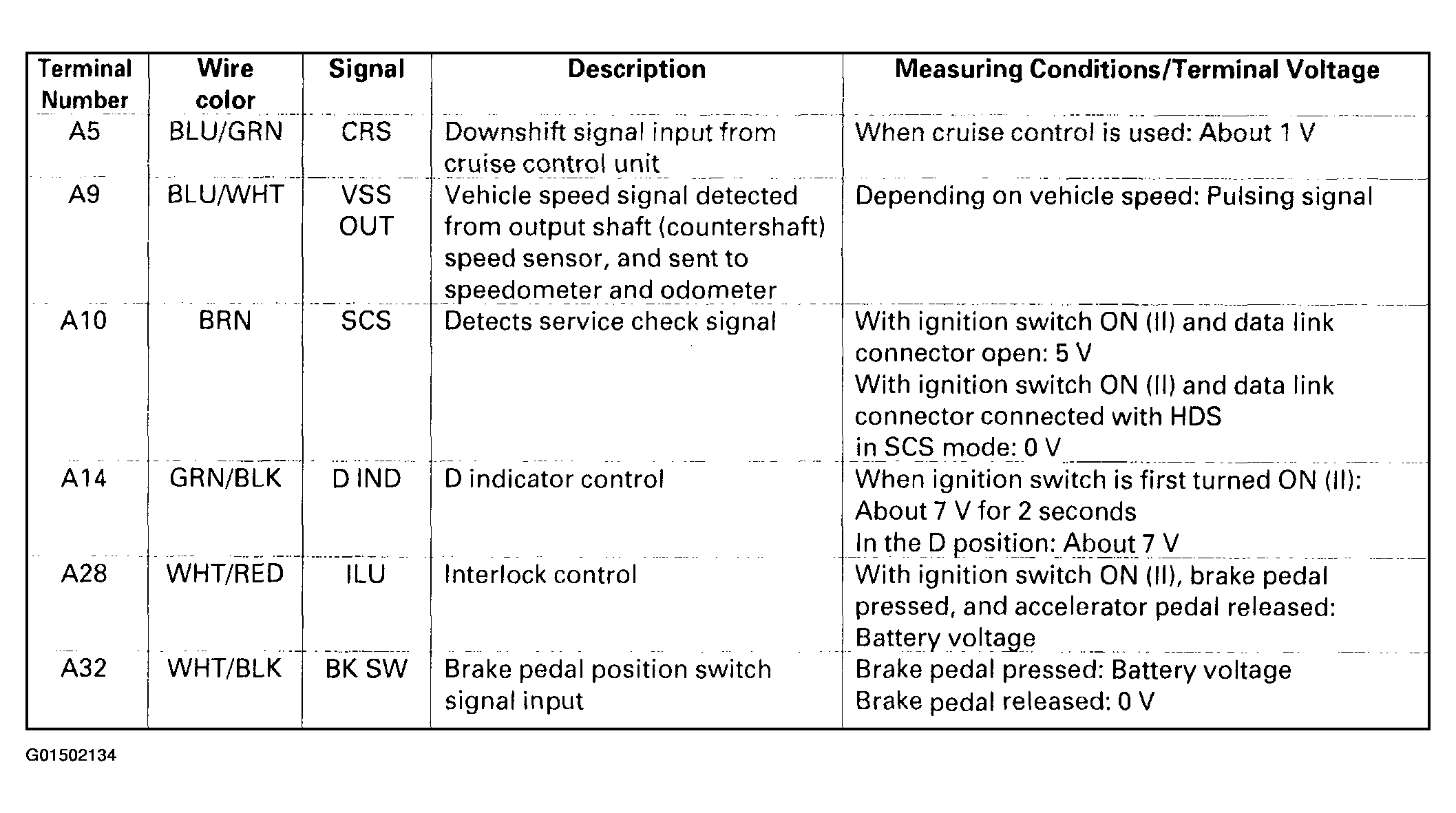

Fig 2: PCM Pin Voltage Chart - Connector A (32P)

G01502134

Courtesy of AMERICAN HONDA MOTOR CO., INC.

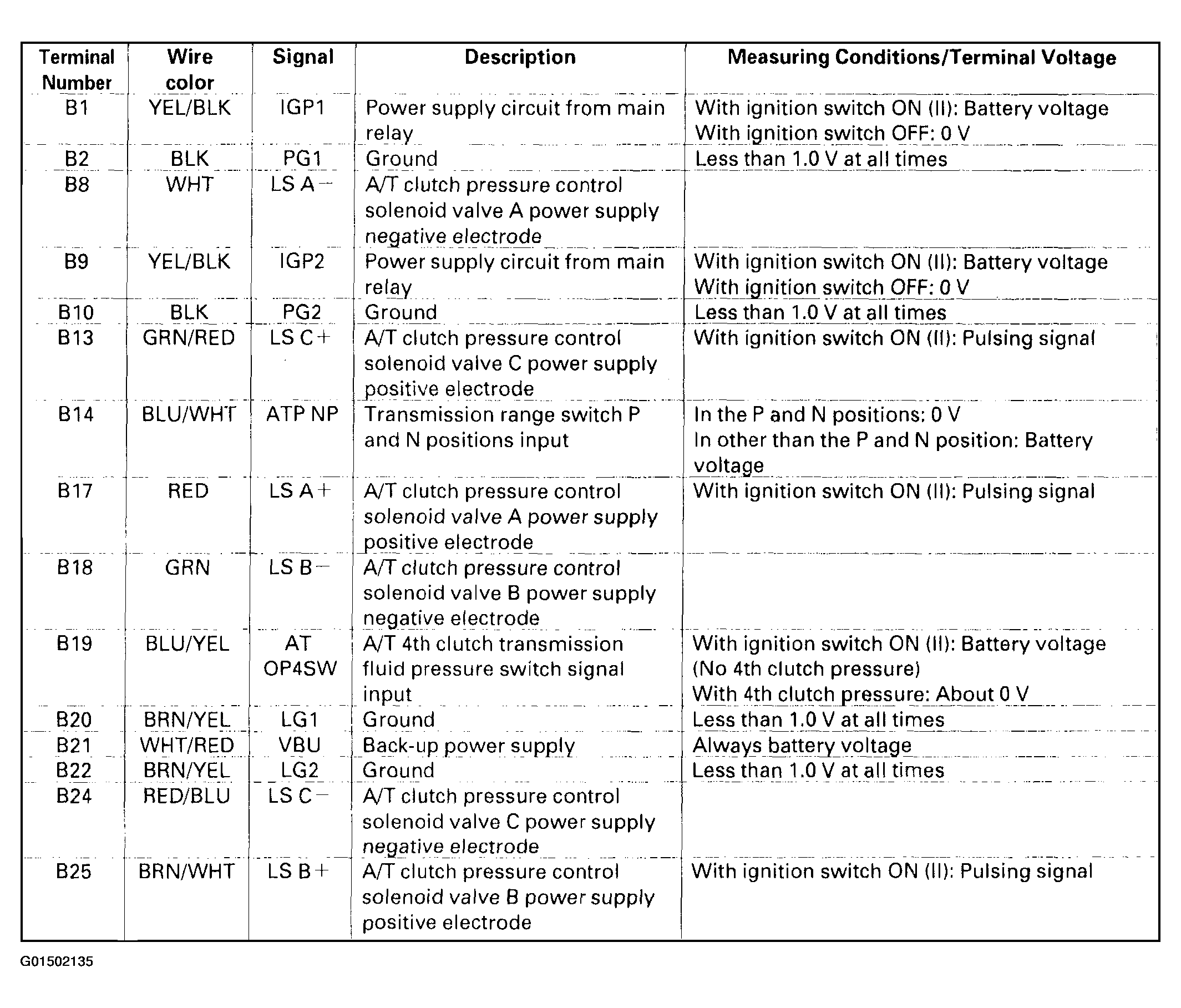

Fig 3: PCM Pin Voltage Chart - Connector B (25P)

G01502135

Courtesy of AMERICAN HONDA MOTOR CO., INC.

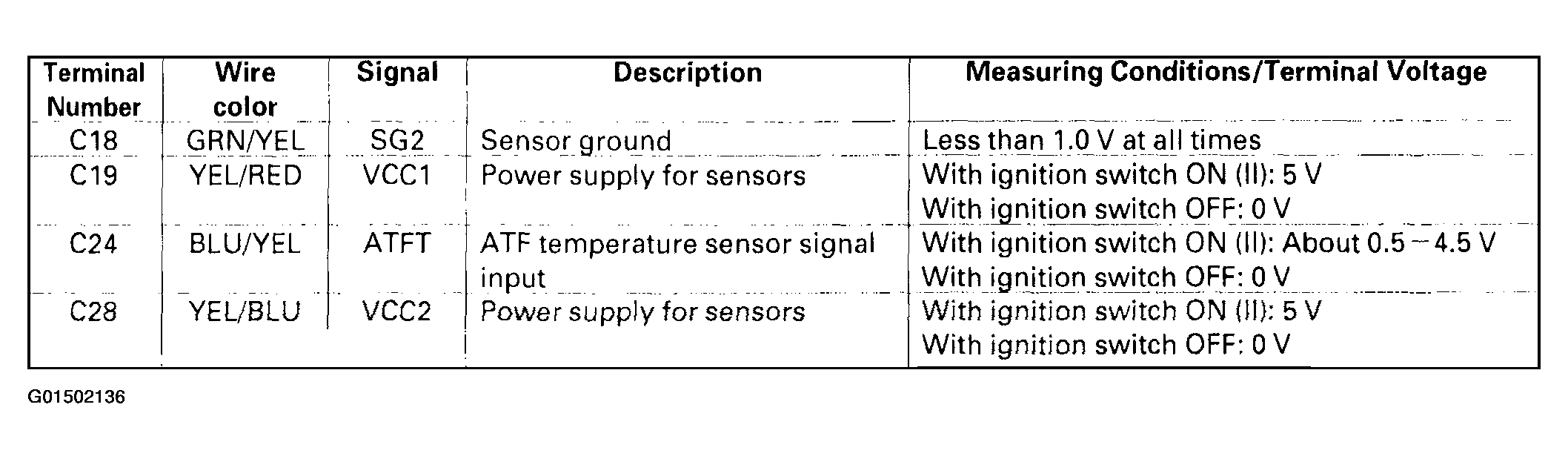

Fig 4: PCM Pin Voltage Chart - Connector C (31P)

G01502136

Courtesy of AMERICAN HONDA MOTOR CO., INC.

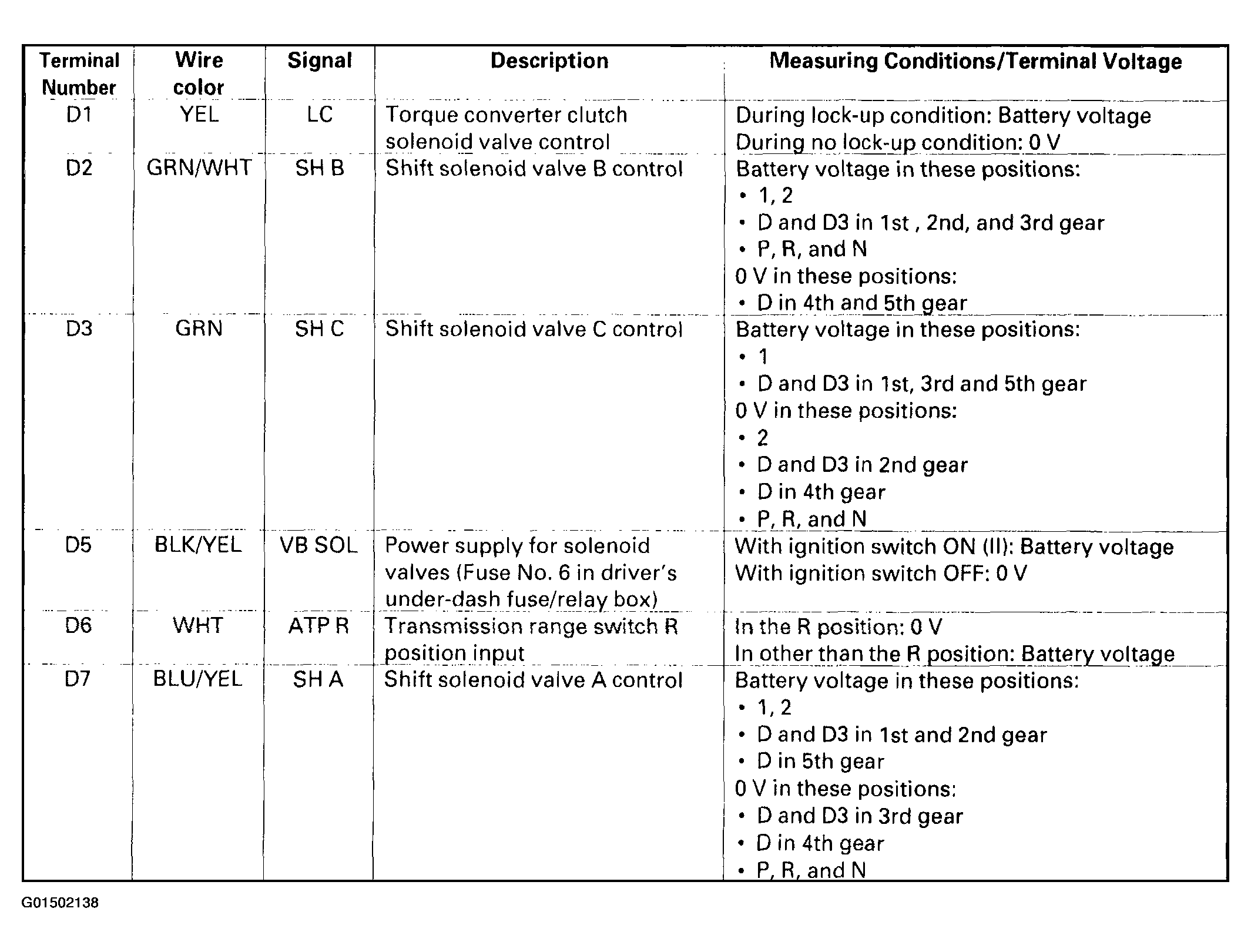

Fig 5: PCM Pin Voltage Chart - Connector D (16P - 1 Of 2)

G01502138

Courtesy of AMERICAN HONDA MOTOR CO., INC.

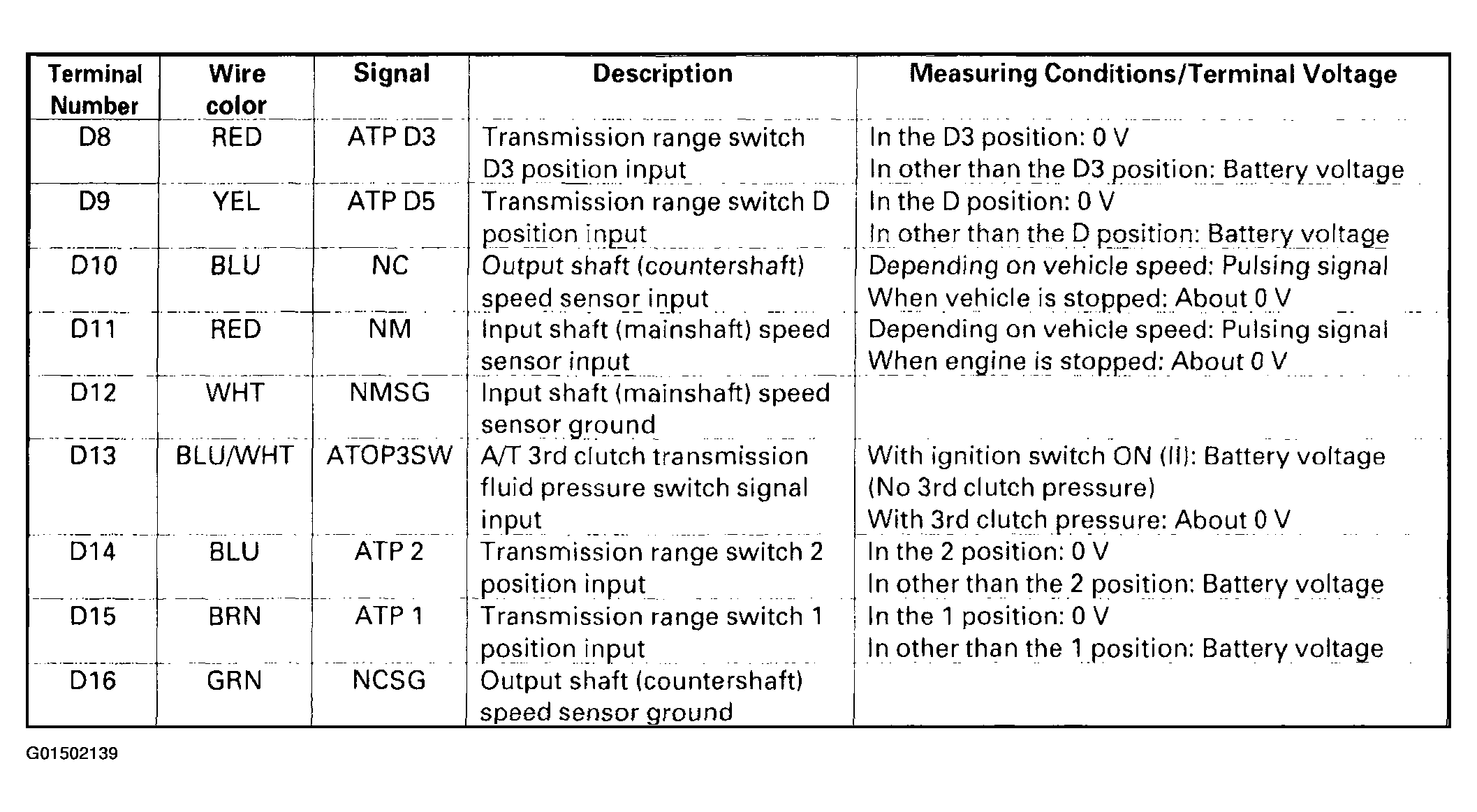

Fig 6: PCM Pin Voltage Chart - Connector D (16P - 2 Of 2)

G01502139

Courtesy of AMERICAN HONDA MOTOR CO., INC.
