Symptom Troubleshooting Index

These symptoms DO NOT trigger diagnostic trouble codes (DTCs) or cause the D indicator to blink. If the malfunction indicator lamp (MIL) was reported ON or the D indicator has been blinking, check for DTCs. If the vehicle has one of the symptoms in the following chart, check the probable cause(s) for it, in the sequence listed, until you find the problem.

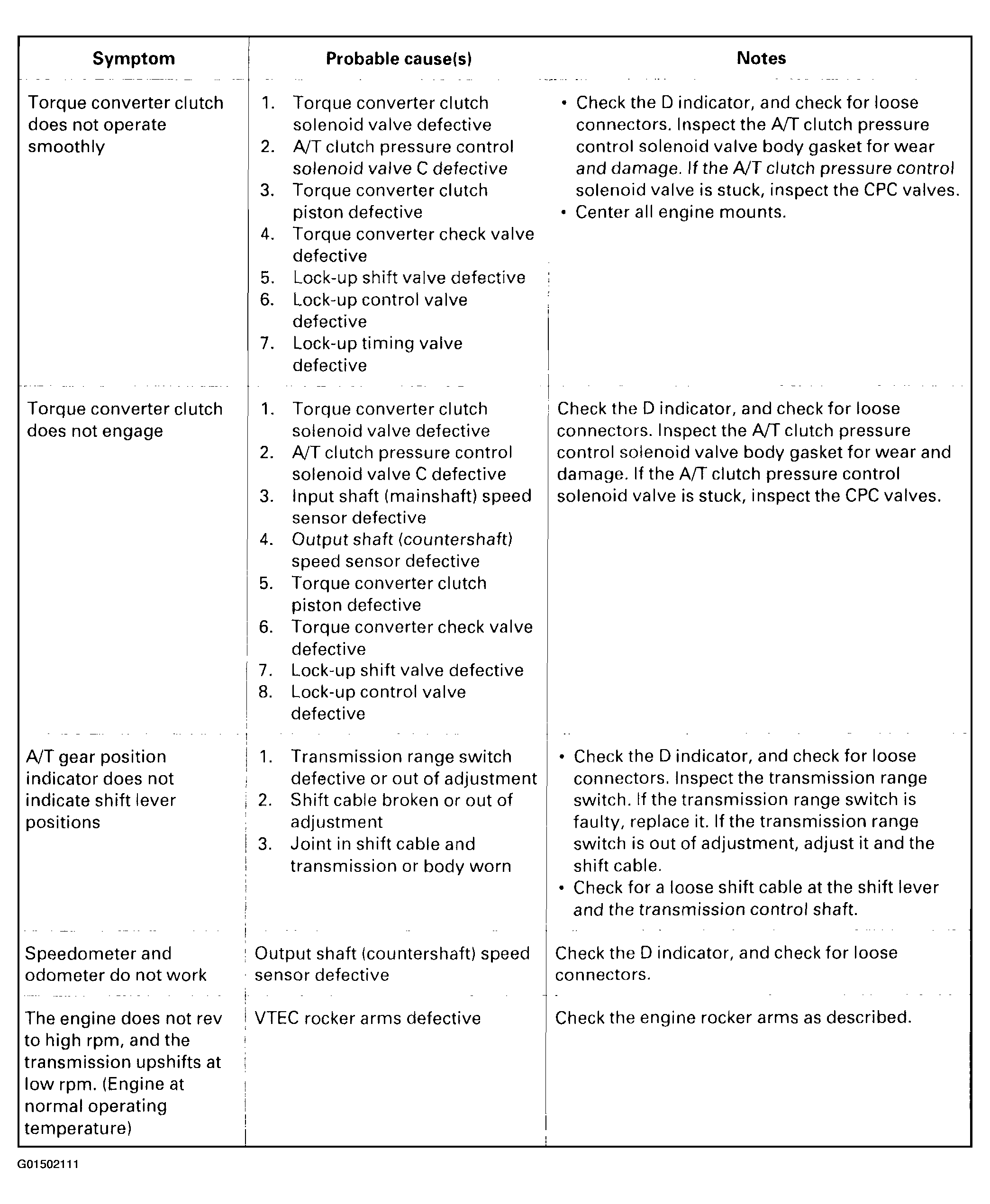

Fig 1: Symptom Index (1 Of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

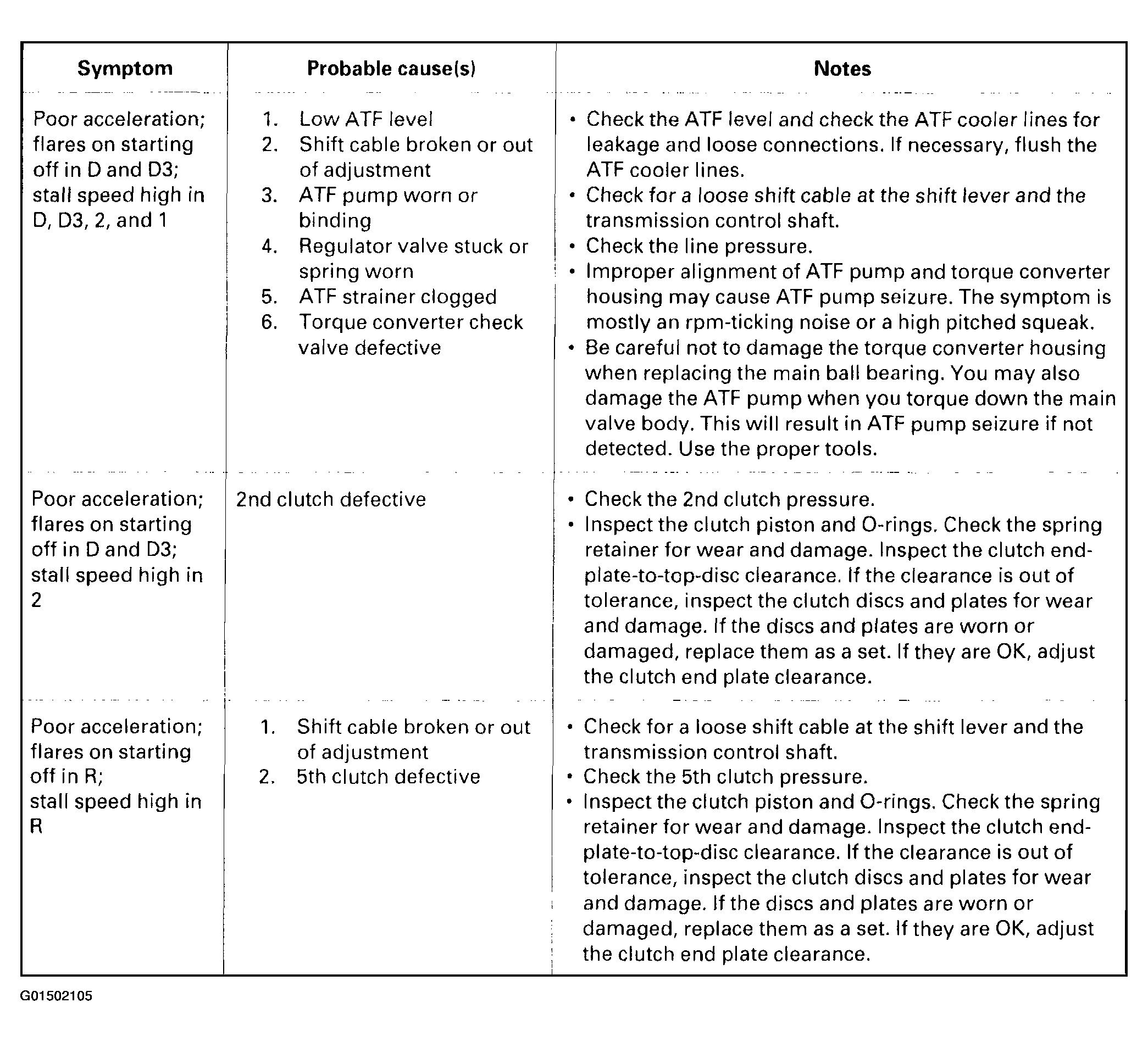

Fig 2: Symptom Index (2 Of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Symptom Index (3 Of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Symptom Index (4 Of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Symptom Index (5 Of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Symptom Index (6 Of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Symptom Index (7 Of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Symptom Index (8 Of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Symptom Index (9 Of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Symptom Index (10 Of 10)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
