Stall Speed Test

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engage the parking brake, and block all four wheels.
  2. Connect a tachometer to the engine, and start the engine.
  3. Make sure the A/C switch is OFF.
  4. After the engine has warmed up to normal operating temperature (the radiator fan comes on), shift to the 2 position.
  5. Fully press the brake pedal and accelerator pedal for 6 to 8 seconds, and note the engine speed. Do not move the shift lever while raising the engine speed.
  6. Allow 2 minutes for cooling, then repeat the test in the D, 1, and R positions.
    NOTE:
    • Do not test stall speed for more than 10 seconds at a time.
    • Stall speed tests should be used for diagnostic purposes only.
    • Stall speed should be the same in D, 2, 1, and R positions.
    • Do not test stall speed with the A/T pressure gauges installed.

    Stall Speed RPM:

    • Specification: 2,250 RPM
    • Service Limit: 2,100-2,400 RPM

  7. If the measurements are out of the service limit, problems and probable causes are listed in the table

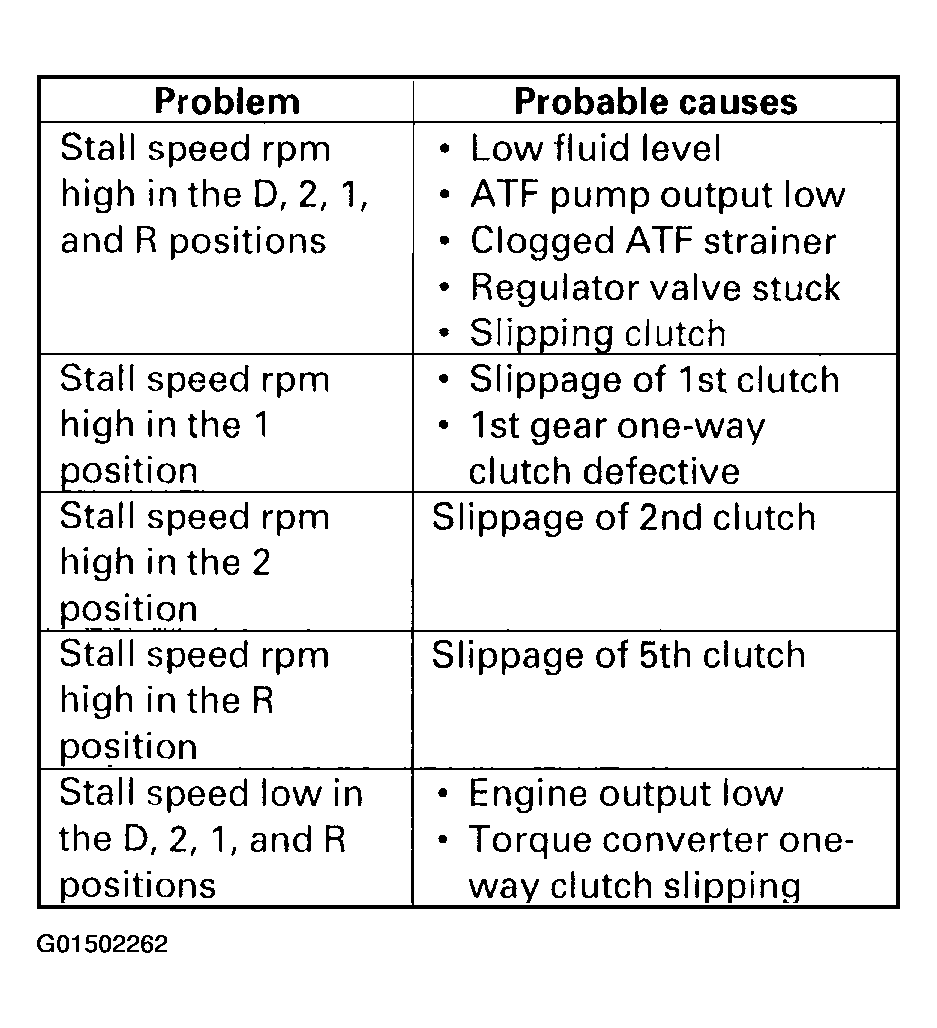

    Fig 1: Probable Causes Of Out Of Service Limit Stall Speeds
    G01502262Courtesy of AMERICAN HONDA MOTOR CO., INC.
