Shift Solenoid Valve B Test

WARNING: This page is about a different car, the 2004 Honda Odyssey, 2003 Honda Odyssey, and 2002 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the connector from the shift solenoid valve B.

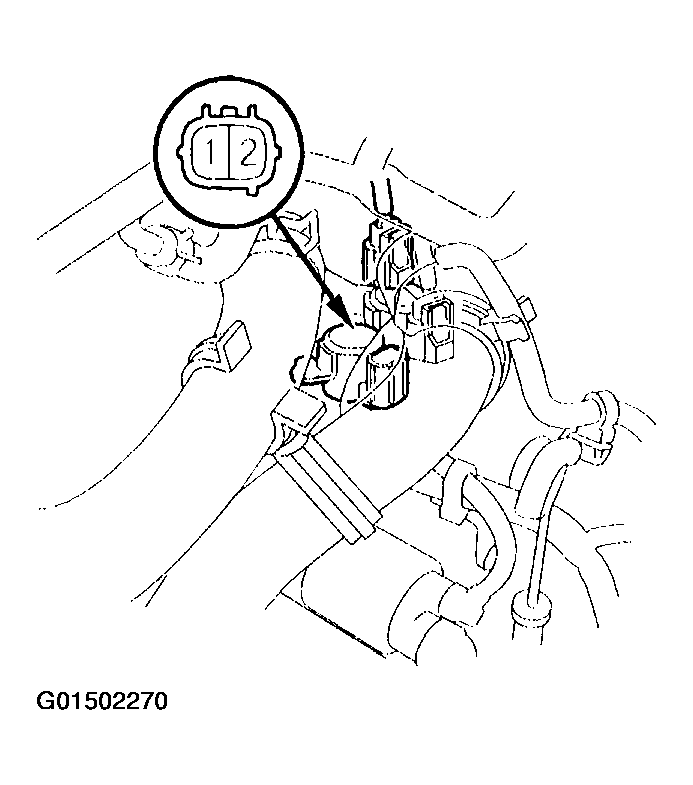

    Fig 1: Disconnecting Connector From Shift Solenoid Valve B
    G01502270Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Measure shift solenoid valve B resistance at the solenoid valve connector (blown).

    Standard: 12-25 Ω.

  3. Replace the shift solenoid valve B if the resistance is out of standard.
  4. If the resistance is within the standard, connect the No. 2 terminal of the shift solenoid valve B connector to the battery positive terminal, and connect the No. 1 terminal to the battery negative terminal. A clicking sound should be heard. Replace the shift solenoid valve B if no clicking sound is heard.
